有Waffle图表的r ggplot图例
有Waffle图表的r ggplot图例
提问于 2022-10-20 09:59:55
library(tidyverse)
library(waffle)
df_2 <- structure(list(group = c(2, 2, 2, 1, 1, 1),
parts = c("A", "B", "C", "A", "B", "C"),
values = c(1, 39, 60, 14, 15, 71)), row.names = c(NA,
-6L), class = c("tbl_df", "tbl", "data.frame"))
df_2 %>% ggplot(aes(label = parts)) +
geom_pictogram(
n_rows = 10, aes(color = parts, values = values),
family = "fontawesome-webfont",
flip = TRUE
) +
scale_label_pictogram(
name = "Case",
values = c("male"),
breaks = c("A", "B", "C"),
labels = c("A", "B", "C")
) +
scale_color_manual(
name = "Case",
values = c("A" = "red", "B" = "green", "C" = "grey85"),
breaks = c("A", "B", "C"),
labels = c("A", "B", "C")
) +

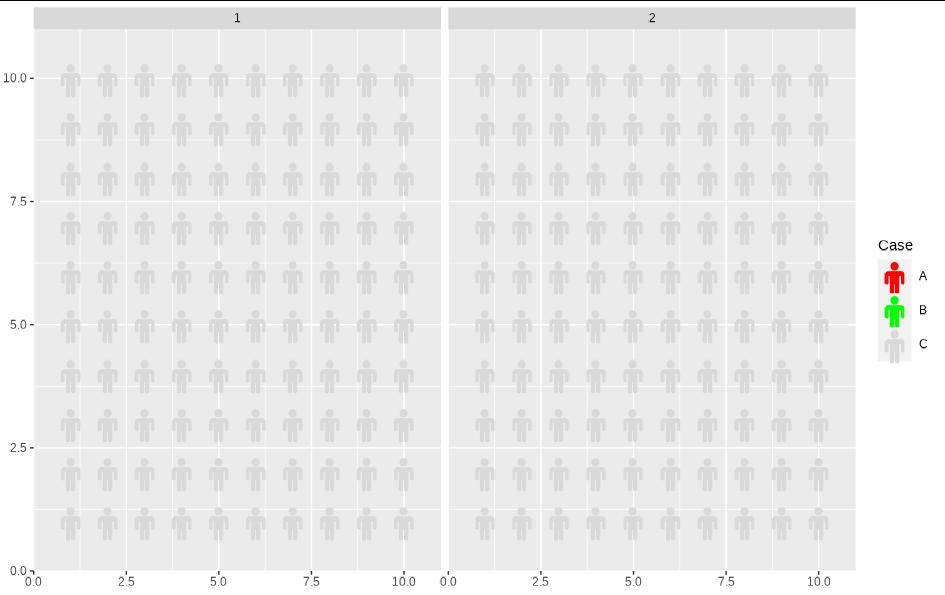

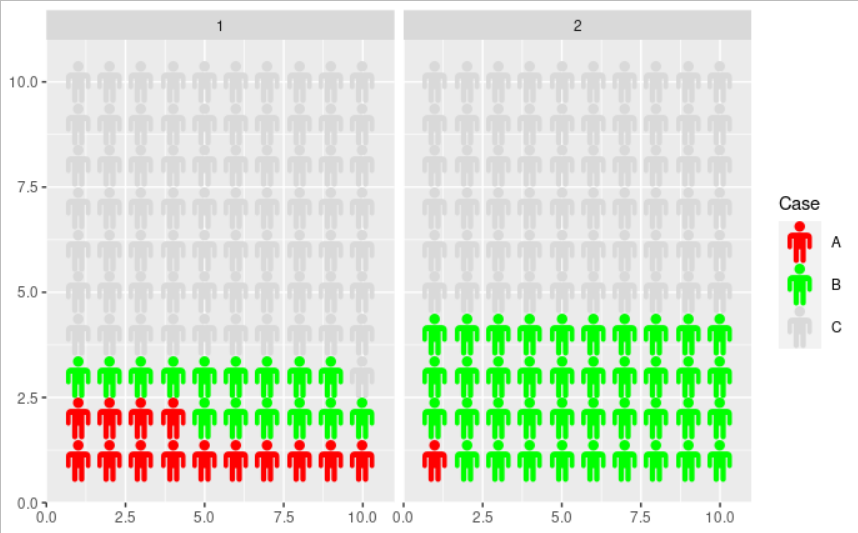

facet_grid(~group)通过上面的代码，我得到了我所期望的传奇：

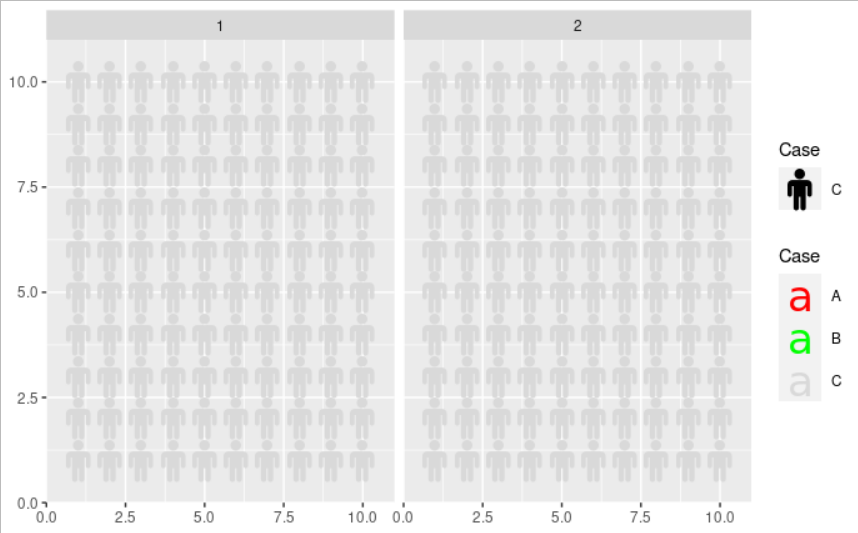

但是，当我用下面的df_2数据unable替换df_1时，我无法将两个传说结合起来。
df_1 <- structure(list(group = c(2, 2, 2, 1, 1, 1),
parts = c("A", "B", "C", "A", "B", "C"),
values = c(0, 0, 100, 0, 0, 100)),
row.names = c(NA,-6L), class = c("tbl_df", "tbl", "data.frame"))我知道问题的原因(0值)，但是我想保持图例和上面的图相同。如有任何建议，将不胜感激。
回答 1
Stack Overflow用户
回答已采纳
发布于 2022-10-20 10:15:15
为了说明这一点，此处提到的“华夫饼”包不是“华夫饼”，而是GitHub专用的包：
remotes::install_github("hrbrmstr/waffle")
library(waffle)您还需要一种显示象形图的方法，例如：
library(emojifont)
load.fontawesome()现在，与任何其他离散刻度一样，如果要添加(Post)数据中不存在的值，则需要使用limits参数：
df_1 %>% ggplot(aes(label = parts)) +
geom_pictogram(
n_rows = 10, aes(color = parts, values = values),
family = "fontawesome-webfont",
flip = TRUE
) +
scale_label_pictogram(
name = "Case",
values = c("male"),
breaks = c("A", "B", "C"),
labels = c("A", "B", "C"),
limits = c("A", "B", "C")
) +
scale_color_manual(
name = "Case",
values = c("A" = "red", "B" = "green", "C" = "grey85"),
breaks = c("A", "B", "C"),
labels = c("A", "B", "C")
) +
facet_grid(~group)
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/74137988
