C# EPPlus如何用破折号线生成线图
C# EPPlus如何用破折号线生成线图
提问于 2022-10-27 20:08:53
在过去的两天里，我一直在处理EPPlus的一个线图问题。我的目标是创建一个与EPPlus的线状图和线样式将是破折号线，如下图。图片附呈。
我搜索了很多谷歌2天，仍然没有相关提示有破折号在图表中。我不确定在任何EPPlus支持短跑线。我使用的是EPPlus版本6.0和.NET框架版本4.8。这是一个示例代码，在excel表格中用一行生成图表，但我需要这一行将是破折号线。请有人看到我的代码，并告诉我，在我的代码中缺少什么，我不能有破折号线样式的线条图。
ExcelPackage.LicenseContext = LicenseContext.NonCommercial;
var newFile = new FileInfo(filepath);
using (ExcelPackage xlPackage = new ExcelPackage(newFile))
{
ExcelWorksheet worksheet = xlPackage.Workbook.Worksheets.Add("test");
worksheet.Cells["A1"].Value = 1;
worksheet.Cells["A2"].Value = 2;
worksheet.Cells["A3"].Value = 3;
worksheet.Cells["A4"].Value = 4;
worksheet.Cells["A5"].Value = 5;
worksheet.Cells["A6"].Value = 6;
worksheet.Cells["B1"].Value = 10000;
worksheet.Cells["B2"].Value = 10100;
worksheet.Cells["B3"].Value = 10200;
worksheet.Cells["B4"].Value = 10150;
worksheet.Cells["B5"].Value = 10250;
worksheet.Cells["B6"].Value = 10200;
//ExcelChart chart = worksheet.Drawings.AddChart("LineChart", eChartType.XYScatterSmooth);
ExcelChart chart = worksheet.Drawings.AddChart("LineChart", eChartType.XYScatterSmoothNoMarkers);
chart.Series.Add(ExcelRange.GetAddress(1, 2, worksheet.Dimension.End.Row, 2),
ExcelRange.GetAddress(1, 1, worksheet.Dimension.End.Row, 1));
var Series = chart.Series[0];
//chart.Axis[0].MinorGridlines.Fill.Color = Color.Red;
//chart.Axis[0].MinorGridlines.LineStyle = eLineStyle.LongDashDot;
chart.Axis[0].RemoveGridlines();
chart.Axis[1].RemoveGridlines();
chart.Axis[0].Border.LineStyle = eLineStyle.SystemDash;
//chart.XAxis.Border.LineStyle = eLineStyle.Dash;
chart.Series[0].Header = "Blah";
//chart.Series[0].Border.LineStyle = eLineStyle.DashDot;
//chart.Axis[0].Border.LineStyle = eLineStyle.Dash;
xlPackage.Save();
MessageBox.Show("Done");
}我还检查了这个帖子，但无法在代码Office Open XML: Drawing Dashed Line in Chart中实现它。
请把我推向正确的方向，以实现我的目标。提前谢谢。
回答 2
Stack Overflow用户
回答已采纳
发布于 2022-10-27 21:49:33
这适用于我和你一样的版本。
您需要为颜色添加对System.Drawing的引用：
// ...(code above this line did not change)
ExcelChart chart = worksheet.Drawings.AddChart("LineChart", eChartType.XYScatterSmoothNoMarkers);
chart.Series.Add(
ExcelRange.GetAddress(1, 2, worksheet.Dimension.End.Row, 2),
ExcelRange.GetAddress(1, 1, worksheet.Dimension.End.Row, 1));
chart.Series[0].Header = "Blah";
// Add this:
chart.Series[0].Border.LineStyle = OfficeOpenXml.Drawing.eLineStyle.Dash;
chart.Series[0].Border.Width = 2;
chart.Series[0].Border.Fill.Color = System.Drawing.Color.Blue;
chart.Axis[0].RemoveGridlines();
chart.Axis[1].RemoveGridlines();

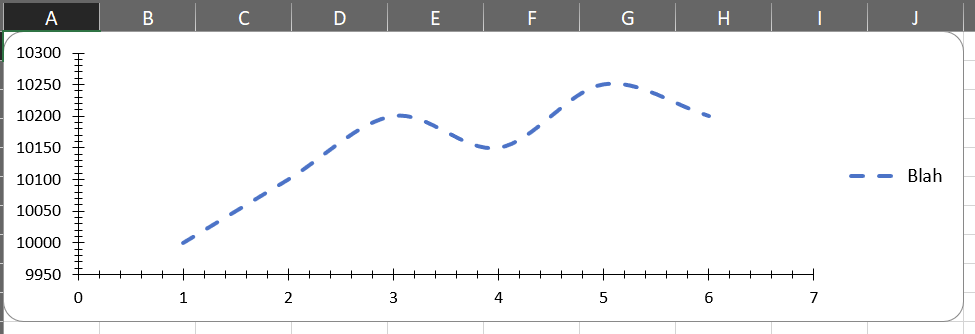

xlPackage.Save();结果：
Stack Overflow用户
发布于 2022-11-04 14:31:42
#区域图汇总4 ExcelWorksheet Worksheet4 =p.Workbook.Worksheets.Add(“图(4)”)；var summary_Chart_four =Worksheet4.Drawings.AddChart(“图表”，eChartType.LineMarkers)；// var summary_Chart_four =Worksheet4.Drawings.AddChart(“图表”，eChartType.XYScatterLines)为ExcelScatterChart；
//var summary_Chart_four = Worksheet4.Drawings.AddChart("chart", (eChartType)System.Windows.Forms.DataVisualization.Charting.ChartDashStyle.Dash);
//var summary_Chart_four = myWorksheet.Drawings.AddChart("chart", (eChartType)System.Windows.Forms.DataVisualization.Charting.ChartDashStyle.Dash);
summary_Chart_four.ShowDataLabelsOverMaximum = true;
Worksheet4.Cells.Style.Font.Name = "Arial";
Worksheet4.Cells.Style.Font.Size = 10;
Worksheet4.Cells.Style.Font.Bold = false;
loopCnt = 0;
for (int i = 0; i < (cVM.PeerGroups.Count + cVM.IndexGroups.Count) * 4; i += 4)
{
int rowIndex = 10 + i;
int endRowIndex = 14 + i;
string startingColumn_series = "C" + rowIndex;
string endColumn_series = column + rowIndex;
string lastColumn_xaxis = column + 6;
int headerRowIndex = 9 + i;
string seriesHeader = "A" + headerRowIndex;
var series_i = summary_Chart_four.Series.Add(myWorksheet_summary_data.Cells[startingColumn_series + ":" + endColumn_series], myWorksheet_summary_data.Cells["C6:" + lastColumn_xaxis]);//working
series_i.Header = myWorksheet_summary_data.Cells[seriesHeader].Value.ToString();
summary_Chart_four.YAxis.Font.Size = 10;
summary_Chart_four.XAxis.Font.Size = 10;
//summary_Chart_four.XAxis.Format =DateTime.Now.Year.ToString();
summary_Chart_four.YAxis.Format = "$0";
if (loopCnt == 0)
{
string LineColor = "#000080";
series_i.Border.LineStyle = eLineStyle.Solid;
//series_i.LineColor = LineColor.ConvertToColor();
//series_i.LineWidth = 2.0;
//series_i.Marker.Style = eMarkerStyle.Diamond;
//series_i.Marker.Size = 8;
//string BGColor = "#99ccff";
//series_i.Marker.Fill.Color = BGColor.ConvertToColor();
//string strBorderColor = "#000080";
//series_i.Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineColor = LineColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineWidth = 2.0;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Diamond;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Size = 8;
string BGColor = "#99ccff";
//((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.LineCap
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Fill.Color = BGColor.ConvertToColor();
string strBorderColor = "#000080";
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Width = 0.75;
}
else if (loopCnt == 1)
{
string LineColor = "#003300";
series_i.Border.LineStyle = eLineStyle.LongDash;
//series_i.LineColor = LineColor.ConvertToColor();
//series_i.LineWidth = 2.0;
//series_i.Marker.Style = eMarkerStyle.Square;
////((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Dash;
//series_i.Marker.Size = 7;
string BGColor = "#c0c0c0";
//series_i.Marker.Fill.Color = BGColor.ConvertToColor();
//string strBorderColor = "#003300";
//series_i.Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineColor = LineColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineWidth = 2.0;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Square;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Size = 7;
//((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.LineCap
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Fill.Color = BGColor.ConvertToColor();
string strBorderColor = "#003300";
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Width = 0.75;
}
else if (loopCnt == 2)
{
string LineColor = "#F79646";
series_i.Border.LineStyle = eLineStyle.Dot;
////series_i.LineColor = LineColor.ConvertToColor();
////series_i.LineWidth = 2.0;
////series_i.Marker.Style = eMarkerStyle.Circle;
//////((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Dot;
////series_i.Marker.Size = 8;
string BGColor = "#ccffcc";
////series_i.Marker.Fill.Color = BGColor.ConvertToColor();
string strBorderColor = "#F79646";
////series_i.Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineColor = LineColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineWidth = 2.0;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Circle;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Size = 8;
//((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.LineCap
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Fill.Color = BGColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Width = 0.75;
}
else if (loopCnt == 3)
{
string LineColor = "#c0504d";
series_i.Border.LineStyle = eLineStyle.LongDashDotDot;
////series_i.LineColor = LineColor.ConvertToColor();
////series_i.LineWidth = 2.0;
////series_i.Marker.Style = eMarkerStyle.Triangle;
//////((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Dot;
////series_i.Marker.Size = 8;
string BGColor = "#c0504d";
////series_i.Marker.Fill.Color = BGColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineColor = LineColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).LineWidth = 2.0;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Triangle;
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Size = 8;
//((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.LineCap
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Fill.Color = BGColor.ConvertToColor();
string strBorderColor = "#003300";
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Fill.Color = strBorderColor.ConvertToColor();
((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Border.Width = 0.75;
}
//else if (loopCnt == 4)
//{
// string LineColor = "#c0504d";
// series_i.Border.LineStyle = eLineStyle.LongDashDotDot;
// series_i.LineColor = LineColor.ConvertToColor();
// series_i.LineWidth = 1.5;
// series_i.Marker.Style = eMarkerStyle.Square;
// //((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Marker.Style = eMarkerStyle.Dot;
// series_i.Marker.Size = 8;
// string BGColor = "#c0504d";
// series_i.Marker.Fill.Color = BGColor.ConvertToColor();
//}
else
{
////series_i.LineColor = System.Drawing.Color.Aqua;
////series_i.LineWidth = 1.5;
////series_i.Marker.Style = eMarkerStyle.Circle;
////series_i.Marker.Size = 8;
////series_i.Marker.Fill.Color = System.Drawing.Color.Aqua;
}
//series_i.Smooth = eLineStyle.Dash;
//((OfficeOpenXml.Drawing.Chart.ExcelLineChartSerie)series_i).Series=eChartType.d
loopCnt++;
}
//var series_four = summary_Chart_four.Series.Add(myWorksheet_summary_data.Cells["C10:" + lastColumn_series1], myWorksheet_summary_data.Cells["C6:" + lastColumn_xaxis]);//working
//series_four.Header = myWorksheet_summary_data.Cells["A9"].Value.ToString();
//var series_four1 = summary_Chart_four.Series.Add(myWorksheet_summary_data.Cells["C14:" + lastColumn_series2], myWorksheet_summary_data.Cells["C6:" + lastColumn_xaxis]);
//series_four1.Header = myWorksheet_summary_data.Cells["A13"].Value.ToString();
summary_Chart_four.Border.Fill.Color = System.Drawing.Color.Black;
//summary_Chart_four.Title.Text = "Comparison of " + cVM.YearsBack + " Year Cumulative Total Return" + Environment.NewLine + " Assumes Initial Investment of $100" + Environment.NewLine + strMonth + " " + strSelectedDt.Year;
summary_Chart_four.Title.Text = "COMPARISON OF CUMULATIVE TOTAL RETURN";
summary_Chart_four.SetSize(960, 600);
// Add to 6th row and to the 6th column
summary_Chart_four.Legend.Font.Size = 10;
((OfficeOpenXml.Drawing.Chart.ExcelChartStandard)summary_Chart_four).Legend.Font.SetFromFont("Calibri", 11, false, false, false, false);
((OfficeOpenXml.Drawing.Chart.ExcelChartStandard)summary_Chart_four).YAxis.Font.SetFromFont("Arial", 10, false, false, false, false);
((OfficeOpenXml.Drawing.Chart.ExcelChartStandard)summary_Chart_four).XAxis.Font.SetFromFont("Arial", 10, false, false, false, false);
((OfficeOpenXml.Drawing.Chart.ExcelChartStandard)summary_Chart_four).Title.Font.Bold = true;
((OfficeOpenXml.Drawing.Chart.ExcelChartStandard)summary_Chart_four).Title.Font.SetFromFont("Calibri", 16, false, false, false, false);
//summary_Chart_four.Legend.Border.Fill.Color = System.Drawing.Color.Black;
summary_Chart_four.SetPosition(0, 0, 0, 0);
summary_Chart_four.XAxis.MajorTickMark = eAxisTickMark.In;
//summary_Chart.XAxis.MajorTickMark = eAxisTickMark.In;
summary_Chart_four.XAxis.MinorTickMark = eAxisTickMark.None;
summary_Chart_four.YAxis.MinorTickMark = eAxisTickMark.None;
summary_Chart_four.Legend.Position = eLegendPosition.Top;
summary_Chart_four.YAxis.CrossBetween = eCrossBetween.MidCat;
summary_Chart_four.XAxis.MajorGridlines.CompoundLineStyle = eCompundLineStyle.Double;页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
