提问于 2022-11-01 17:21:53
我想在一个地方画一个5米长的圆圈，我怎样才能把半径5米的半径映射成像素呢？
const radius = //5 meters
const myCircle = new google.maps.Circle({
strokeColor: "#FF0000",
strokeOpacity: 0.8,
strokeWeight: 2,
fillColor: "#FF0000",
fillOpacity: 0.35,
map,
center: myCenter,
radius: radius,
});回答 1
Stack Overflow用户
回答已采纳
发布于 2022-11-01 18:05:18
一个圆的半径以米为单位，这应该是可行的：
const radius = 5; // meters
const myCircle = new google.maps.Circle({
strokeColor: "#FF0000",
strokeOpacity: 0.8,
strokeWeight: 2,
fillColor: "#FF0000",
fillOpacity: 0.35,
map,
center: myCenter,
radius: radius,
});

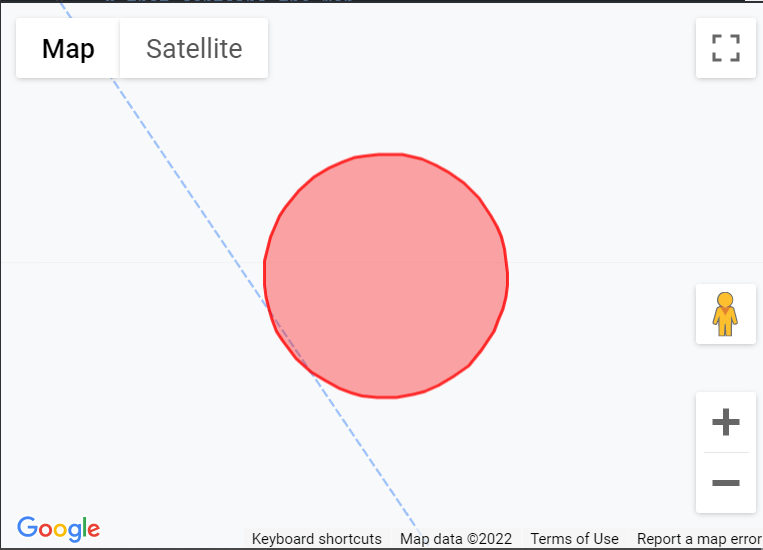

代码片段：
let map;
function initMap() {
map = new google.maps.Map(document.getElementById("map"), {
center: { lat: -34.397, lng: 150.644 },
zoom: 8,
});
const radius = 5; // meters
const myCircle = new google.maps.Circle({
strokeColor: "#FF0000",
strokeOpacity: 0.8,
strokeWeight: 2,
fillColor: "#FF0000",
fillOpacity: 0.35,
map: map,
center: map.getCenter(),
radius: radius,
});
map.fitBounds(myCircle.getBounds())
}
window.initMap = initMap;/*
* Always set the map height explicitly to define the size of the div element
* that contains the map.
*/
#map {
height: 100%;
}
/*
* Optional: Makes the sample page fill the window.
*/
html,
body {
height: 100%;
margin: 0;
padding: 0;
}<!DOCTYPE html>
<html>
<head>
<title>Simple Map</title>
<script src="https://polyfill.io/v3/polyfill.min.js?features=default"></script>
<!-- jsFiddle will insert css and js -->
</head>
<body>
<div id="map"></div>
<!--
The `defer` attribute causes the callback to execute after the full HTML
document has been parsed. For non-blocking uses, avoiding race conditions,
and consistent behavior across browsers, consider loading using Promises
with https://www.npmjs.com/package/@googlemaps/js-api-loader.
-->
<script
src="https://maps.googleapis.com/maps/api/js?key=AIzaSyCkUOdZ5y7hMm0yrcCQoCvLwzdM6M8s5qk&callback=initMap&v=weekly"
defer
></script>
</body>
</html>
