问Jetpack编写SubcomposeLayout是如何工作的？

EN

@Composable
private fun DynamicWidthLayout(
    modifier: Modifier = Modifier,
    mainContent: @Composable () -> Unit,
    dependentContent: @Composable (IntSize) -> Unit
) {

    SubcomposeLayout(modifier = modifier) { constraints ->


        var mainPlaceables: List<Placeable> = subcompose(SlotsEnum.Main, mainContent).map {
            it.measure(constraints)
        }

        var maxSize =
            mainPlaceables.fold(IntSize.Zero) { currentMax: IntSize, placeable: Placeable ->
                IntSize(
                    width = maxOf(currentMax.width, placeable.width),
                    height = maxOf(currentMax.height, placeable.height)
                )
            }

        val dependentMeasurables: List<Measurable> = subcompose(SlotsEnum.Dependent) {
            //  Send maxSize of mainComponent to
            // dependent composable in case it might be used
            dependentContent(maxSize)
        }

        val dependentPlaceables: List<Placeable> = dependentMeasurables
            .map { measurable: Measurable ->
                measurable.measure(Constraints(maxSize.width, constraints.maxWidth))
            }

        // Get maximum width of dependent composable
        val maxWidth = dependentPlaceables.maxOf { it.width }


        println(" DynamicWidthLayout-> maxSize width: ${maxSize.width}, height: ${maxSize.height}")

        // If width of dependent composable is longer than main one, remeasure main one
        // with dependent composable's width using it as minimumWidthConstraint
        if (maxWidth > maxSize.width) {

            println(" DynamicWidthLayout REMEASURE MAIN COMPONENT")

            // !!!  CANNOT use SlotsEnum.Main here why?
            mainPlaceables = subcompose(2, mainContent).map {
                it.measure(Constraints(maxWidth, constraints.maxWidth))
            }
        }

        // Our final maxSize is longest width and total height of main and dependent composables
        maxSize = IntSize(
            maxSize.width.coerceAtLeast(maxWidth),
            maxSize.height + dependentPlaceables.maxOf { it.height }
        )


        layout(maxSize.width, maxSize.height) {

            // Place layouts
            mainPlaceables.forEach { it.placeRelative(0, 0) }
            dependentPlaceables.forEach {
                it.placeRelative(0, mainPlaceables.maxOf { it.height })
            }
        }
    }
}


enum class SlotsEnum { Main, Dependent }

@Composable

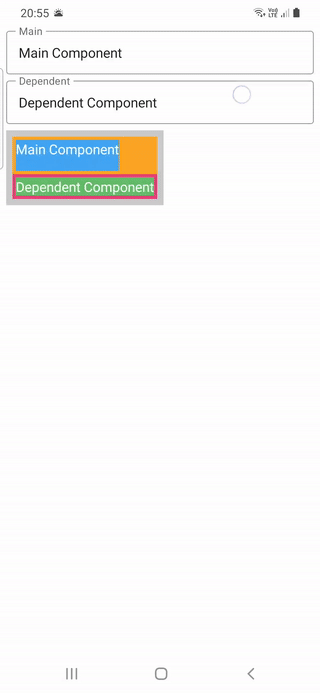

private fun TutorialContent() {

    val density = LocalDensity.current.density

    Column(
        modifier = Modifier
            .fillMaxSize()
            .verticalScroll(rememberScrollState())
    ) {


        var mainText by remember { mutableStateOf(TextFieldValue("Main Component")) }
        var dependentText by remember { mutableStateOf(TextFieldValue("Dependent Component")) }


        OutlinedTextField(
            modifier = Modifier
                .padding(horizontal = 8.dp)
                .fillMaxWidth(),
            value = mainText,
            label = { Text("Main") },
            placeholder = { Text("Set text to change main width") },
            onValueChange = { newValue: TextFieldValue ->
                mainText = newValue
            }
        )

        OutlinedTextField(
            modifier = Modifier
                .padding(horizontal = 8.dp)
                .fillMaxWidth(),
            value = dependentText,
            label = { Text("Dependent") },
            placeholder = { Text("Set text to change dependent width") },
            onValueChange = { newValue ->
                dependentText = newValue
            }
        )

        DynamicWidthLayout(
            modifier = Modifier
                .padding(8.dp)
                .background(Color.LightGray)
                .padding(8.dp),
            mainContent = {

                println(" DynamicWidthLayout-> MainContent {} composed")

                Column(
                    modifier = Modifier
                        .background(orange400)
                        .padding(4.dp)
                ) {
                    Text(
                        text = mainText.text,
                        modifier = Modifier
                            .background(blue400)
                            .height(40.dp),
                        color = Color.White
                    )
                }
            },
            dependentContent = { size: IntSize ->


                //  Measure max width of main component in dp  retrieved
                // by subCompose of dependent component from IntSize
                val maxWidth = with(density) {
                    size.width / this
                }.dp

                println(
                    " DynamicWidthLayout-> DependentContent composed " +
                            "Dependent size: $size, "
                            + "maxWidth: $maxWidth"
                )

                Column(
                    modifier = Modifier
                        .background(pink400)
                        .padding(4.dp)
                ) {

                    Text(
                        text = dependentText.text,
                        modifier = Modifier
                            .background(green400),
                        color = Color.White
                    )
                }
            }
        )
    }
}

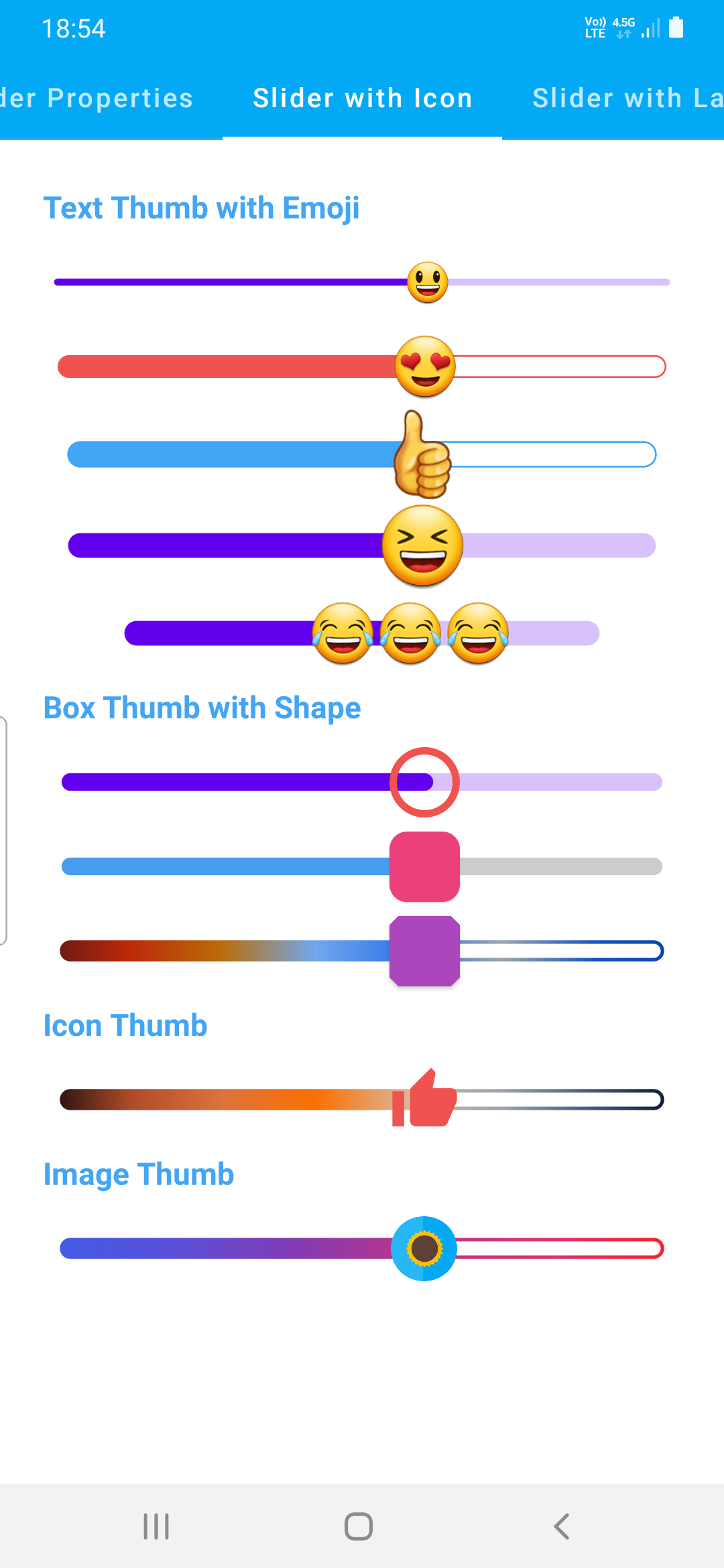

enum class SlotsEnum {
    Slider, Thumb
}

/**
 * [SubcomposeLayout] that measure [thumb] size to set Slider's track start and track width.
 * @param thumb thumb Composable
 * @param slider Slider composable that contains **thumb** and **track** of this Slider.
 */
@Composable
private fun SliderComposeLayout(
    modifier: Modifier = Modifier,
    thumb: @Composable () -> Unit,
    slider: @Composable (IntSize, Constraints) -> Unit
) {
    SubcomposeLayout(modifier = modifier) { constraints: Constraints ->

        // Subcompose(compose only a section) main content and get Placeable
        val thumbPlaceable: Placeable = subcompose(SlotsEnum.Thumb, thumb).map {
            it.measure(constraints)
        }.first()

        // Width and height of the thumb Composable
        val thumbSize = IntSize(thumbPlaceable.width, thumbPlaceable.height)

        // Whole Slider Composable
        val sliderPlaceable: Placeable = subcompose(SlotsEnum.Slider) {
            slider(thumbSize, constraints)
        }.map {
            it.measure(constraints)
        }.first()


        val sliderWidth = sliderPlaceable.width
        val sliderHeight = sliderPlaceable.height

        layout(sliderWidth, sliderHeight) {
            sliderPlaceable.placeRelative(0, 0)
        }
    }
}

    SliderComposeLayout(
        modifier = modifier
            .minimumTouchTargetSize()
            .requiredSizeIn(
                minWidth = ThumbRadius * 2,
                minHeight = ThumbRadius * 2,
            ),
        thumb = { thumb() }
    ) { thumbSize: IntSize, constraints: Constraints ->

        val isRtl = LocalLayoutDirection.current == LayoutDirection.Rtl

        val width = constraints.maxWidth.toFloat()
        val thumbRadiusInPx = (thumbSize.width / 2).toFloat()

        // Start of the track used for measuring progress,
        // it's line + radius of cap which is half of height of track
        // to draw this on canvas starting point of line
        // should be at trackStart + trackHeightInPx / 2 while drawing
        val trackStart: Float
        // End of the track that is used for measuring progress
        val trackEnd: Float
        val strokeRadius: Float
        with(LocalDensity.current) {

            strokeRadius = trackHeight.toPx() / 2
            trackStart = thumbRadiusInPx.coerceAtLeast(strokeRadius)
            trackEnd = width - trackStart
        }
    // Rest of the code
}
