As correctly pointed out by @darthbaba, <code>pyalluvial</code> expects the dataframe format to consist of frequencies matching different variable-type combinations. To give you an example of a valid input, each <code>Point</code> in each <code>Group</code> has been labelled as present (<code>1</code>) or absent (<code>0</code>):
<pre><code>df = pd.DataFrame({
 'Group': [1] * 6 + [2] * 6 + [3] * 6,
 'Point 1': [1, 1, 1, 1, 0, 0] * 3,
 'Point 2': [0, 1, 0, 1, 1, 0] * 3,
 'Point 3': [0, 0, 1, 1, 1, 1] * 3,
 'freq': [23, 11, 5, 7, 10, 12, 17, 3, 6, 17, 19, 20, 28, 4, 13, 8, 14, 9]
 })

fig = alluvial.plot(df=df, xaxis_names=['Point 1','Point 2', 'Point 3'], y_name='freq', alluvium='Group', ignore_continuity=False)
</code></pre>
<a href="https://i.stack.imgur.com/FbV3H.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/FbV3H.png" alt="enter image description here" /></a>
Clearly, the above code doesn't resolve the issue since <code>pyalluvial</code> has yet to support the inclusion of stacked bars, much like how it's implemented in <code>ggalluvial</code> (<a href="https://cran.r-project.org/web/packages/ggalluvial/vignettes/ggalluvial.html" rel="nofollow noreferrer">see</a> example #5). Therefore, unless you want to use <code>ggalluvial</code>, your best option IMO is to add the required functionality yourself. I'd start by modifying <a href="https://github.com/nekoumei/pyalluvial/blob/master/pyalluvial/alluvial.py" rel="nofollow noreferrer">line #85</a>.

Surprisingly little info out there regarding python and the pyalluvial package. I'm hoping to combine stacked bars and a corresponding alluvial in the same figure.
Using below, I have three unique groups, which is outlined in <code>Group</code>. I want to display the proportion of each <code>Group</code> for each unique <code>Point</code>. I have the data formatted this way as I need three separate stacked bar charts for each <code>Point</code>.
So overall (<code>Ove</code>) highlight the overall proportion taken from all three <code>Points</code>. <code>Group 1</code> makes up 70%, <code>Group 2</code> makes up 20%, <code>Group 3</code> makes up 10%. But the proportion of each group changes at different intervals <code>Points</code>. I'm hoping to show this like a standard stacked bar chart, but add the alluvial over the top.
<pre><code>import pandas as pd
import pyalluvial.alluvial as alluvial

df = pd.DataFrame({
 'Group': [1, 2, 3],
 'Ove': [0.7, 0.2, 0.1],
 'Point 1': [0.8, 0.1, 0.1],
 'Point 2': [0.6, 0.2, 0.2],
 'Point 3': [0.7, 0.3, 0.0],
 })

ax = alluvial.plot(
 df = df,
 xaxis_names = ['Group','Point 1','Point 2', 'Point 3'],
 y_name = 'Ove',
 alluvium = 'Group',
)
</code></pre>

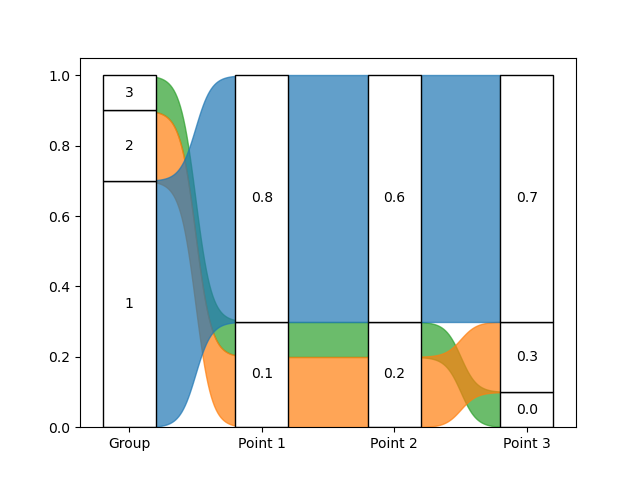

Output shows the overall group proportion (1st bar) being correct. But the following stacked bars with the proportions.
If I transform the df and put the Points as a single column, then I don't get 3 separate bars.
<a href="https://i.stack.imgur.com/9l4Yv.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/9l4Yv.png" alt="enter image description here" /></a>
