为论文的证书页制作信头
为论文的证书页制作信头
提问于 2021-06-29 16:03:08
我正试着写一封信，写一份证书，写一篇论文。我已经张贴了下面的MWE。
有两个问题我需要帮助
- 信头的单元格对齐是不适当的。我不知道怎么改正它。
- 我需要双线是红色的，我没能得到它。

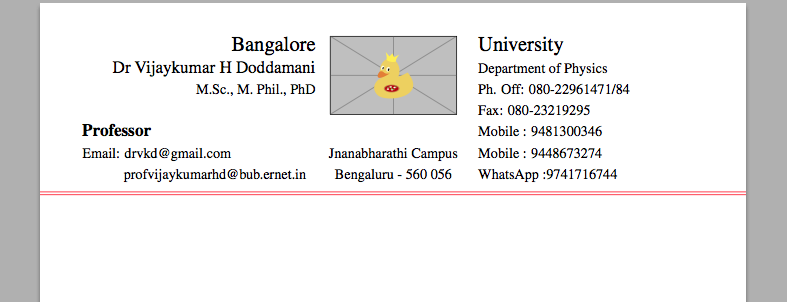

最后的输出应该类似于这个图像在这里输入图像描述
\documentclass[12 pt,a4 paper]{article}
\usepackage[top=1cm,left=1in,right=1 in,bottom=1in]{geometry}
\usepackage{times}
\usepackage{graphicx}
\usepackage{marvosym}
\usepackage[onehalfspacing]{setspace}
\usepackage{tikz}
\usetikzlibrary{calc}
\usepackage{fancyhdr}
\usepackage{xcolor}
\pagestyle{fancy}
\usepackage{multirow}
\fancyhf{}
\noindent
\makebox[0pt][l]{\rule[.7ex]{\linewidth}{#1}}%
\rule[.3ex]{\linewidth}{#1}}
\begin{document}
\pagestyle{empty}
\vspace{12 mm}
\begin{tabular}{c c c}
\multicolumn{1}{r}{{\Large Bangalore}} & \multirow{1}{*}{\includegraphics[width=0.175\linewidth]{BUB_Emblem}} & \multicolumn{1}{l}{{\Large University}}\\
%\multicolumn{1}{r}{\Huge{Bangalore}} & \multirow{1}{*}{\includegraphics[width=0.15\linewidth]{BUB_Emblem}} & \multicolumn{1}{l}{\Huge{University}}\\
\large{Dr Vijaykumar H Doddamani} & & \multicolumn{1}{l}{Department of Physics} \\
\multicolumn{1}{r}{M.Sc., M. Phil., PhD} && \multicolumn{1}{l}{Ph. Off: 080-22961471/84} \\
&&\multicolumn{1}{l}{Fax: 080-23219295}\\
\multicolumn{1}{l}{\textbf{\large Professor}} & & \multicolumn{1}{l}{Mobile : 9481300346} \\
\multicolumn{1}{l}{Email: drvkd@gmail.com} & Jnanabharathi Campus & \multicolumn{1}{l}{Mobile : 9448673274} \\
\multicolumn{1}{r}{profvijaykumarhd@bub.ernet.in} & Bengaluru - 560 056 & \multicolumn{1}{l}{WhatsApp :9741716744} \\
%
\end{tabular}
\vskip2mm
\vspace{2mm}
\doublerule[1pt]
\end{document}有了这段代码，这就是我得到的输出。在这里输入图像描述
我在这张图片箭头和宽度标注中放了箭头和注释
回答 1
Stack Overflow用户
回答已采纳
发布于 2021-06-29 16:26:21
\documentclass[12 pt,a4 paper]{article}
\usepackage[top=1cm,left=1in,right=1 in,bottom=1in]{geometry}
\usepackage[table]{xcolor}
\usepackage{times}
\usepackage{graphicx}
\usepackage{marvosym}
\usepackage[onehalfspacing]{setspace}
\usepackage{tikz}
\usetikzlibrary{calc}
\usepackage{fancyhdr}
\pagestyle{fancy}
\usepackage{multirow}
\fancyhf{}
\newcommand{\doublerule}[1][.4pt]{%
\noindent%
\makebox[0pt][l]{\rule[.7ex]{\linewidth}{#1}}%
\rule[.3ex]{\linewidth}{#1}}
\begin{document}
\pagestyle{empty}
\vspace{12 mm}
\centerline{%
\makebox[\paperwidth]{%
\begin{tabular}{@{\hspace{.08\paperwidth}} p{.32\paperwidth} p{.2\paperwidth} p{.32\paperwidth} @{\hspace{.08\paperwidth}} }
\multicolumn{1}{@{}r@{}}{\Large Bangalore} & \centering\multirow{1}{*}{\includegraphics[width=.9\linewidth]{example-image-duck}} & \Large University\\
\multicolumn{1}{@{}r@{}}{\large Dr Vijaykumar H Doddamani} & & Department of Physics\\
\multicolumn{1}{@{}r@{}}{M.Sc., M. Phil., PhD} && Ph. Off: 080-22961471/84 \\
&&Fax: 080-23219295\\
\textbf{\large Professor} & & Mobile : 9481300346 \\
Email: drvkd@gmail.com & \centering Jnanabharathi Campus & Mobile : 9448673274 \\
\hphantom{Email:} profvijaykumarhd@bub.ernet.in & \centering Bengaluru - 560 056 & WhatsApp :9741716744 \\[2mm]
\arrayrulecolor{red}\hline\hline
\end{tabular}%
}}
\end{document}
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/68182195
