问STM32 SD FATFS安装错误(FR_NOT_READY)
EN

Stack Overflow用户

提问于 2021-06-24 10:02:50

回答 1查看 1.2K关注 0票数 0

我实际上是想用STM32L486QGI6写在SD卡上。函数f_mount()返回FR_NOT_READY，无论SD是否被放置.

我已经检查了几十个CubeMX生成的教程和例子(检查引脚、拉下的SD_Detect、除CK、全局中断、40 the的时钟除以4外的其他引脚)。

下面是我正在使用的代码：

/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "fatfs.h"
#include <string.h>

/* USER CODE BEGIN PV */
FRESULT testing;
FRESULT res;
/* USER CODE END PV */
int main(void)
{
  /* USER CODE BEGIN 1 */
    uint32_t byteswritten, bytesread;                /* File write/read counts */
    uint8_t wtext[] = "STM32 FATFS works great!";    /* File write buffer */
    uint8_t rtext[_MAX_SS];                          /* File read buffer */
  /* USER CODE END 1 */
  /* MCU Configuration--------------------------------------------------------*/
  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();
  /* USER CODE BEGIN Init */
  /* USER CODE END Init */
  /* Configure the system clock */
  SystemClock_Config();
  /* USER CODE BEGIN SysInit */
  /* USER CODE END SysInit */
  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_DMA_Init();
  MX_SDMMC1_SD_Init();
  MX_FATFS_Init();
  /* USER CODE BEGIN 2 */
    res = f_mount(&SDFatFS, (const TCHAR *)SDPath, 1);
    const TCHAR tt[]="STM32.txt";
    testing = f_open(&SDFile, tt, FA_CREATE_ALWAYS | FA_WRITE);
    res = f_write(&SDFile, wtext, strlen((char *)wtext), (void *)&byteswritten);
    f_close(&SDFile);
  /* USER CODE END 2 */
  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */
    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief SDMMC1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_SDMMC1_SD_Init(void)
{

  /* USER CODE BEGIN SDMMC1_Init 0 */

  /* USER CODE END SDMMC1_Init 0 */

  /* USER CODE BEGIN SDMMC1_Init 1 */

  /* USER CODE END SDMMC1_Init 1 */
  hsd1.Instance = SDMMC1;
  hsd1.Init.ClockEdge = SDMMC_CLOCK_EDGE_RISING;
  hsd1.Init.ClockBypass = SDMMC_CLOCK_BYPASS_DISABLE;
  hsd1.Init.ClockPowerSave = SDMMC_CLOCK_POWER_SAVE_DISABLE;
  hsd1.Init.BusWide = SDMMC_BUS_WIDE_4B;
  hsd1.Init.HardwareFlowControl = SDMMC_HARDWARE_FLOW_CONTROL_ENABLE;
  hsd1.Init.ClockDiv = 4;
  /* USER CODE BEGIN SDMMC1_Init 2 */
  /* USER CODE END SDMMC1_Init 2 */
}

/**
  * Enable DMA controller clock
  */
static void MX_DMA_Init(void)
{

  /* DMA controller clock enable */
  __HAL_RCC_DMA2_CLK_ENABLE();

  /* DMA interrupt init */
  /* DMA2_Channel4_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA2_Channel4_IRQn, 2, 0);
  HAL_NVIC_EnableIRQ(DMA2_Channel4_IRQn);
  /* DMA2_Channel5_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA2_Channel5_IRQn, 2, 0);
  HAL_NVIC_EnableIRQ(DMA2_Channel5_IRQn);

}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOE_CLK_ENABLE();
  __HAL_RCC_GPIOC_CLK_ENABLE();
  __HAL_RCC_GPIOD_CLK_ENABLE();
  __HAL_RCC_GPIOG_CLK_ENABLE();
  HAL_PWREx_EnableVddIO2();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOE, GPIO_PIN_1|GPIO_PIN_0, GPIO_PIN_RESET);

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_SET);

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOB, GPIO_PIN_12, GPIO_PIN_SET);

  /*Configure GPIO pins : PE1 PE2 PE0 */
  GPIO_InitStruct.Pin = GPIO_PIN_1|GPIO_PIN_2|GPIO_PIN_0;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOE, &GPIO_InitStruct);

  /*Configure GPIO pin : SD_DETECT_Pin */
  GPIO_InitStruct.Pin = SD_DETECT_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_PULLDOWN;
  HAL_GPIO_Init(SD_DETECT_GPIO_Port, &GPIO_InitStruct);

  /*Configure GPIO pin : PB12 */
  GPIO_InitStruct.Pin = GPIO_PIN_12;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

}

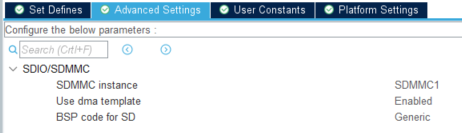

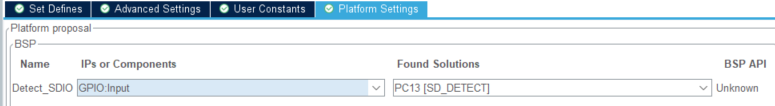

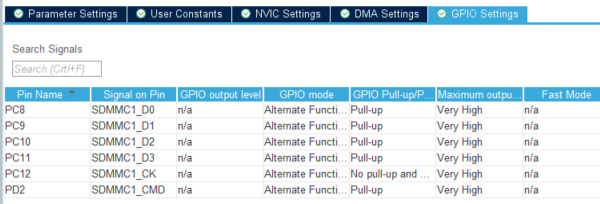

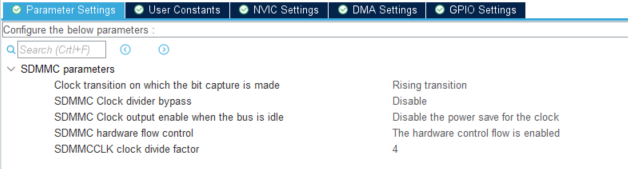

以及CubeMX配置：
