如何在TopAppBar版面中心对齐标题？
如何在TopAppBar版面中心对齐标题？
提问于 2021-05-12 04:36:46
TopAppBar(
backgroundColor = Color.Transparent,
elevation = 0.dp,
modifier= Modifier.fillMaxWidth(),
navigationIcon = {
IconButton(
onClick = { TODO },
enabled = true,
) {
Icon(
painter = painterResource(id = R.drawable.icon_back_arrow),
contentDescription = "Back",
)
}
}
},
title = {
Text(
modifier = if (action == null) Modifier.fillMaxWidth() else Modifier,
textAlign = if (action == null) TextAlign.Center else TextAlign.Start,
maxLines = 1,
text = "Hello"
)
},
actions = {
action?.run {
Text(
modifier = Modifier
.padding(horizontal = 16.dp)
.clickable(onClick = TODO),
color = Color.Green,
text ="Cancel",
)
}
} 我是jetpack的新手，如果操作为null，我希望将TopAppBar的标题对齐。标题不是对齐布局的中心。当没有navigationIcon时，它可以工作，但是添加navigationIcon显示稍微正确。怎样才能使标题文本位于版面的中心。
回答 9
Stack Overflow用户
回答已采纳
发布于 2021-05-12 08:23:01

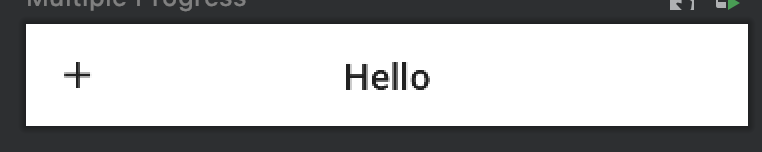

对于Material2，您必须使用TopAppBar的另一个构造函数，该构造函数没有预定义的内容槽，允许您自定义内容内部的布局。
你可以这样做：
val appBarHorizontalPadding = 4.dp
val titleIconModifier = Modifier.fillMaxHeight()
.width(72.dp - appBarHorizontalPadding)
TopAppBar(
backgroundColor = Color.Transparent,
elevation = 0.dp,
modifier= Modifier.fillMaxWidth()) {
//TopAppBar Content
Box(Modifier.height(32.dp)) {
//Navigation Icon
Row(titleIconModifier, verticalAlignment = Alignment.CenterVertically) {
CompositionLocalProvider(
LocalContentAlpha provides ContentAlpha.high,
) {
IconButton(
onClick = { },
enabled = true,
) {
Icon(
painter = painterResource(id = R.drawable.ic_add_24px),
contentDescription = "Back",
)
}
}
}
//Title
Row(Modifier.fillMaxSize(),
verticalAlignment = Alignment.CenterVertically) {
ProvideTextStyle(value = MaterialTheme.typography.h6) {
CompositionLocalProvider(
LocalContentAlpha provides ContentAlpha.high,
){
Text(
modifier = Modifier.fillMaxWidth(),
textAlign = TextAlign.Center,
maxLines = 1,
text = "Hello"
)
}
}
}
//actions
CompositionLocalProvider(LocalContentAlpha provides ContentAlpha.medium) {
Row(
Modifier.fillMaxHeight(),
horizontalArrangement = Arrangement.End,
verticalAlignment = Alignment.CenterVertically,
content = actions
)
}
}
}

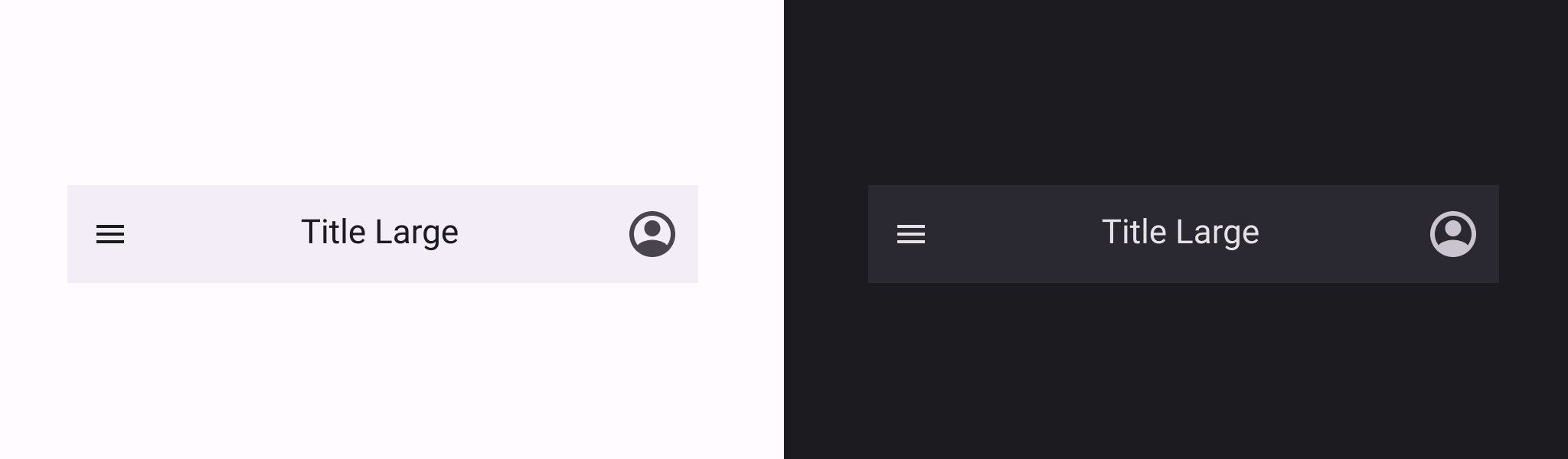

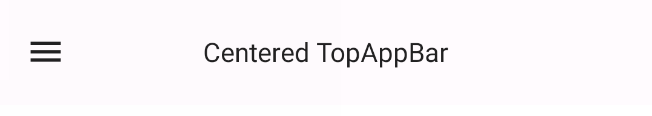

使用Material3，您可以简单地使用
CenterAlignedTopAppBar(
title = { Text("Centered TopAppBar") },
navigationIcon = {
IconButton(onClick = { /* doSomething() */ }) {
Icon(
imageVector = Icons.Filled.Menu,
contentDescription = "Localized description"
)
}
}
)
Stack Overflow用户
发布于 2022-03-19 22:49:26
如果使用Material3，也可以使用CenterAlignedTopAppBar。
fun CenterAlignedTopAppBar(
title: @Composable () -> Unit,
modifier: Modifier = Modifier,
navigationIcon: @Composable () -> Unit = {},
actions: @Composable RowScope.() -> Unit = {},
colors: TopAppBarColors = TopAppBarDefaults.centerAlignedTopAppBarColors(),
scrollBehavior: TopAppBarScrollBehavior? = null
) {
SingleRowTopAppBar(
modifier = modifier,
title = title,
titleTextStyle =
MaterialTheme.typography.fromToken(TopAppBarSmallTokens.HeadlineFont),
centeredTitle = true,
navigationIcon = navigationIcon,
actions = actions,
colors = colors,
scrollBehavior = scrollBehavior
)
}
Stack Overflow用户
发布于 2021-10-02 16:57:11

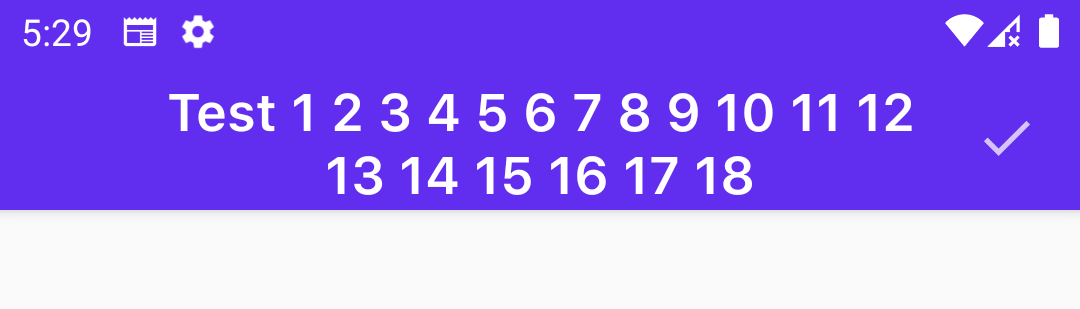

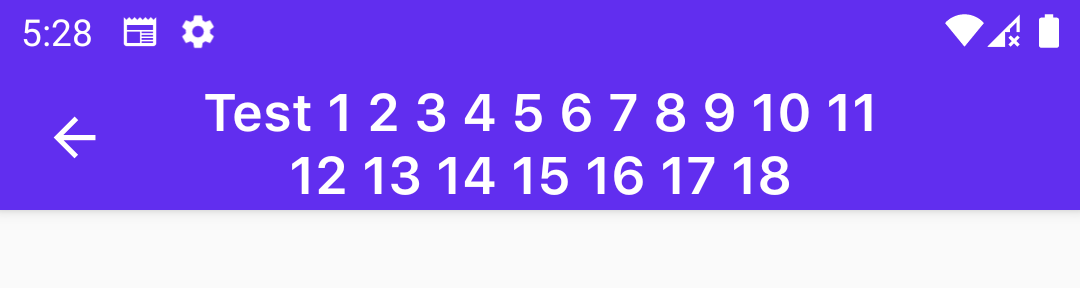

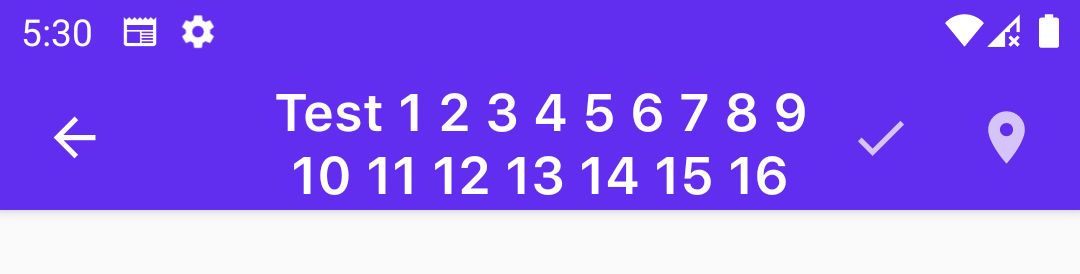

我稍微重做了一些本机实现。
只需要做两件事：
1.将此文件添加到项目中。这是对TopAppBar类的稍微修改的实现。https://gist.github.com/evansgelist/aadcd633e9b160f9f634c16e99ffe163
2.将代码中的CenterTopAppBar.替换为TopAppBar就这样！
Scaffold(
topBar = {
CenterTopAppBar(
title = {
Text(
textAlign = TextAlign.Center,
text = text,
)
},编辑扩展代码
val Number.toPx
get() = TypedValue.applyDimension(
TypedValue.COMPLEX_UNIT_DIP,
this.toFloat(),
Resources.getSystem().displayMetrics
)结果
