社区首页 >问答首页 >WebHID API:如何解析来自inputReport事件的数据？

问WebHID API:如何解析来自inputReport事件的数据？
EN

Stack Overflow用户
提问于 2021-04-08 23:34:59
回答 1查看 451关注 0票数 1

我试图抓取传感器输入从我的数字化器(X倾斜，Y倾斜，提示压力，提示开关，橡皮擦，钢笔，.etc)使用WebHID API。这就是我到目前为止所得到的：

index.js:

代码语言：javascript
运行
复制
page_log = text => {
  let p = document.createElement("p");
  p.textContent = text;
  log.appendChild(p);
};

let device;

if (!("hid" in navigator)) {
  page_log("WebHID is not available yet.");
}

navigator.hid.getDevices().then(devices => {
  if (devices.length == 0) {
    page_log(`No HID devices selected. Press the "request device" button.`);
    return;
  }
  if (devices.length > 1) {
    page_log(`You have multiple devices.`);
  }
  device = devices[0];
  page_log(`User previously selected "${device.productName}" HID device.`);
  page_log(`Now press "open device" button to receive input reports.`);
});

requestDeviceButton.onclick = async event => {
  document.body.style.display = "none";
  try {
    const filters = [
      {
        vendorId: 0x056a, // Wacom Co., Ltd
        productId: 0x00b1 //PTZ-630 [Intuos3 (6x8)]
      },
      {
        vendorId: 0x056a, // Wacom Co., Ltd
        productId: 0x00b2 //PTZ-930 [Intuos3 (9x12)]
      },
      {
        vendorId: 0x056a, // Wacom Co., Ltd
        productId: 0x00b3 //PTZ-1230 [Intuos3 (12x12)]
      },
      {
        vendorId: 0x056a, // Wacom Co., Ltd
        productId: 0x00b4 //PTZ-1231W [Intuos3 (12x19)]
      },
    ];

    [device] = await navigator.hid.requestDevice({ filters });
    if (!device) return;

    page_log(`User selected "${device.productName}" HID device.`);
    page_log(`Now press "open device" button to receive input reports.`);
  } finally {
    document.body.style.display = "";
  }
};


openButton.onclick = async event => {
  if (!device) return;

  await device.open().catch(console.error);
  page_log(`Waiting for user to press button...`);

  device.addEventListener("inputreport", event => {
    const { data, device, reportId } = event;

    let buffArray = new Uint8Array(data.buffer);
    console.log(buffArray);
    // console.log(device);

  });
};

控制台输出：

代码语言：javascript
运行
复制
index.js:72 Uint8Array(9) [224, 49, 125, 58, 74, 0, 35, 195, 85]
index.js:72 Uint8Array(9) [224, 49, 109, 58, 64, 0, 35, 194, 94]
index.js:72 Uint8Array(9) [224, 49, 94, 58, 43, 0, 35, 194, 102]
index.js:72 Uint8Array(9) [224, 49, 82, 58, 22, 0, 35, 193, 113]
index.js:72 Uint8Array(9) [224, 49, 52, 58, 1, 0, 35, 193, 123]
index.js:72 Uint8Array(9) [224, 49, 26, 57, 228, 0, 35, 192, 128]
index.js:72 Uint8Array(9) [224, 48, 253, 57, 190, 0, 35, 64, 141]
index.js:72 Uint8Array(9) [224, 48, 223, 57, 137, 0, 35, 65, 148]
index.js:72 Uint8Array(9) [224, 48, 203, 57, 90, 0, 35, 66, 159]
index.js:72 Uint8Array(9) [224, 48, 186, 57, 36, 0, 35, 66, 167]
index.js:72 Uint8Array(9) [224, 48, 177, 56, 242, 0, 35, 67, 174]
index.js:72 Uint8Array(9) [224, 48, 166, 56, 208, 0, 35, 196, 178]

如何找出每个数字对应的传感器？

我尝试过阅读WebHID规范和HID使用表，但是到目前为止我还无法找到我需要的信息来解密输出。

更新：

在安装了Wacom的官方驱动程序后，我在Windows上进行了测试，我从InputReport获得了更多的数据。

输出：(Windows / wacom驱动程序)

代码语言：javascript
运行
复制
index.js:73 reportId: 15
index.js:76 Uint8Array(10) [2, 224, 55, 229, 45, 137, 0, 30, 176, 195]
index.js:73 reportId: 15
index.js:76 Uint8Array(21) [2, 224, 55, 163, 45, 99, 0, 31, 49, 189, 15, 2, 224, 55, 98, 45, 69, 0, 31, 49, 190]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 29, 90, 238, 97, 50, 3, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 212, 254, 192, 249, 232, 28, 184, 136, 0, 0]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 241, 89, 197, 97, 30, 3, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 56, 255, 36, 250, 76, 29, 228, 137, 0, 0]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 162, 89, 144, 97, 30, 3, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 56, 255, 36, 250, 76, 29, 228, 137, 0, 0]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 136, 89, 123, 97, 22, 3, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 56, 255, 36, 250, 76, 29, 228, 137, 0, 0]
index.js:73 reportId: 15
index.js:76 Uint8Array(10) [2, 224, 55, 34, 45, 31, 0, 31, 178, 185]
index.js:73 reportId: 15
index.js:76 Uint8Array(32) [2, 224, 54, 215, 45, 2, 0, 32, 50, 183, 15, 2, 224, 54, 139, 44, 226, 0, 32, 179, 183, 15, 2, 224, 54, 62, 44, 187, 0, 33, 52, 178]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 27, 89, 51, 97, 14, 3, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 156, 255, 136, 250, 176, 29, 16, 139, 0, 0]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 171, 88, 237, 96, 6, 3, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 0, 0, 136, 250, 176, 29, 0, 0, 0, 0]
index.js:73 reportId: 7
index.js:76 Uint8Array(37) [32, 53, 88, 163, 96, 254, 2, 0, 0, 34, 8, 16, 0, 87, 126, 112, 8, 34, 8, 16, 0, 0, 0, 0, 0, 0, 0, 0, 0, 236, 250, 20, 30, 0, 0, 0, 0]
index.js:73 reportId: 15
index.js:76 Uint8Array(10) [2, 224, 53, 239, 44, 147, 0, 34, 54, 175]

注意:这次我记录了reportId，因为我现在得到了两个不同的。

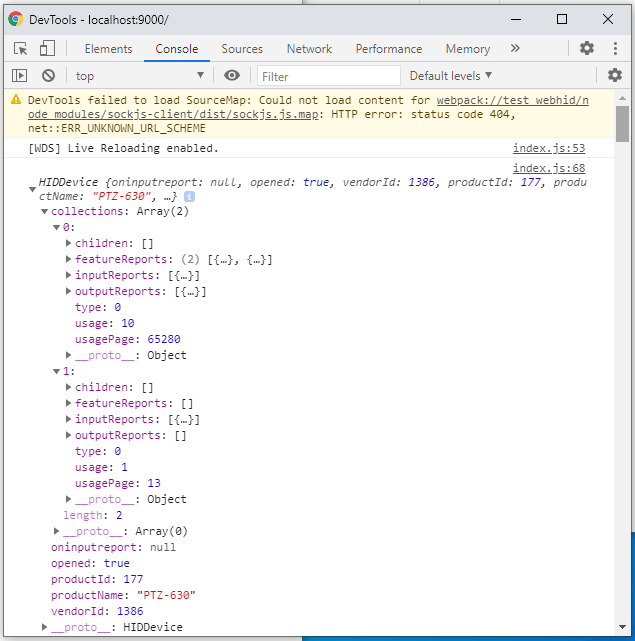

我还注意到HIDDevice.collections对象中的不同数据：

这一次，我在我的outputReports中得到了一些东西。

输出：(Linux用于比较)

代码语言：javascript
运行
复制
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 31, 174, 22, 67, 0, 38, 203, 177]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 31, 33, 21, 8, 0, 39, 204, 180]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 30, 165, 20, 8, 0, 40, 77, 183]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 30, 16, 19, 51, 0, 40, 206, 182]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 29, 134, 18, 97, 0, 41, 80, 181]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 29, 9, 17, 191, 0, 39, 80, 183]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 28, 210, 17, 27, 0, 36, 215, 184]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 28, 225, 16, 150, 0, 35, 86, 186]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 29, 45, 16, 15, 0, 33, 83, 184]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 29, 162, 15, 153, 0, 32, 83, 190]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 30, 110, 15, 51, 0, 32, 86, 195]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [224, 31, 96, 14, 214, 0, 31, 87, 199]
index.js:73 reportId: 2
index.js:74 Uint8Array(9) [160, 32, 212, 14, 142, 0, 26, 216, 202]

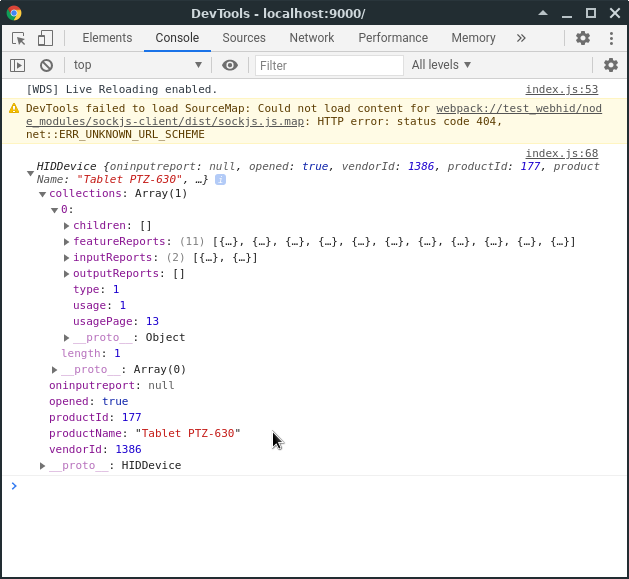

我在linux上获得的HIDDevice.collections也是：

​

因此，我仍然不明白如何使用featureReports、InputReports或OutputReports来映射数据。因此，我在Windows上从Wacom的驱动程序中得到的隐藏数据比linux多。

更新2：

我一直在查看Windows上的HIDDevice.collection对象，并将其与在Linux上运行usbhid-dump和hidrd-convert (使它们具有可读性)所获得的Report Descriptors进行比较。这就是我到目前为止发现的。

  • 看起来，我所需要看的只是带有适当reportID的reportID元素，因为我只是试图读取发送到主机的传感器数据。
  • 我查看items数组，看看报告发送了哪些数据。
代码语言：javascript
运行
复制
- I look at the index number of the item in `items` to know the order to extract the data from the DataView (my `data` variable).
- I look at `reportCount` and `reportSize` to know the shape of the data for that item in the DataView.
- I look at the _"Usage"_ each item to know what the data is for.
    - Unfortunately WebHID doesn't seem to expose _"Usage"_ on a per item bases (Like my _"Report Descriptors"_ from `usbhid-dump` shows). Instead it only exposes it on a per collection basis.
    - The "Usage" (if it was available) could be looked up in the [HID Usage Tables](https://usb.org/document-library/hid-usage-tables-122) by looking up the "Usage Page" by the hex value of `usagePage` for the `collection`, then doing the same for the given `usage` hex value.

示例：

代码语言：javascript
运行
复制
    if (reportId !== 7) return;
    console.log('reportId: ' + reportId);
    let zero_through_six = data.getUint8(0);


    let report_data = [
      (zero_through_six & 128) == 128,  //0 (1-bit)
      (zero_through_six & 64) == 64,    //1 (1-bit)
      (zero_through_six & 32) == 32,    //2 (1-bit)
      (zero_through_six & 16) == 16,    //3 (1-bit)
      (zero_through_six & 8) == 8,      //4 (1-bit)
      (zero_through_six & 4) == 4,      //5 (1-bit)
      zero_through_six & 3,             //6 (2-bits)
      data.getUint16(1), //7
      data.getUint16(3), //8
      data.getUint16(5), //9
      data.getUint16(7), //10
      data.getUint32(9), //11
      data.getBigUint64(13), //12
      data.getUint32(21), //13
      data.getUint16(23), //14
      data.getUint16(25), //15
      data.getUint16(27), //16
      data.getUint16(29), //17
      data.getUint16(31), //18
      data.getUint16(33), //19
    ];

    console.log(report_data);

  });

这是我在Windows版本中拆分数据和数组时所做的事情。第一项1-6为1位，items7为2位，项目为7-10 16位等.

同样，由于WebHID没有按项公开“使用”，所以每个项映射到的传感器/按钮仍然未知。至少在简单的单独测试之外，这在如此复杂的设备上很难做到。

更新3：

事实证明，我并不真的需要WebHID API作为我的用例(从我的数字化器获得传感器输入)。看起来PointerEvent和MouseEvent属性满足了我的需求。(真的，我应该先看一下实际(；一_一))，至少，我已经学会了如何使用WebHID API。

javascript
usb-hid
webhid
EN

回答 1

Stack Overflow用户

发布于 2021-04-13 07:57:20

我想https://web.dev/devices-introduction/会很有用，因为它解释了如何选择合适的API来与您选择的硬件设备进行通信。

很高兴你搞清楚了！

票数 2
EN
