问Python用交叉口检测形状

EN

import cv2 as cv
import numpy as np
from itertools import combinations

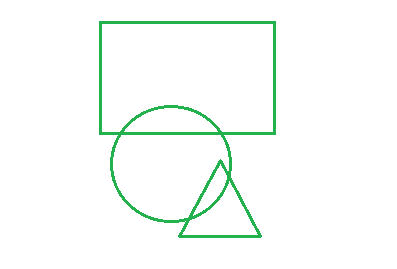

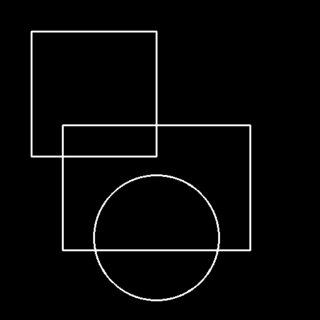

im = np.zeros((512, 512), dtype=np.uint8)
im = cv.rectangle(im, (100, 200), (400, 400), 255, 2)
im = cv.circle(im, (250, 380), 100, 255, 2)
im = cv.rectangle(im, (50, 50), (250, 250), 255, 2)

ret, bw = cv.threshold(im, 0, 255, cv.THRESH_BINARY_INV | cv.THRESH_OTSU)
ncomp, labels, stats, centroids = cv.connectedComponentsWithStats(bw)

def getNeighbors(labels, n):
    r = 4 # you might have to change this depending on outline thickness
    se = cv.getStructuringElement(cv.MORPH_CROSS, (2*r+1, 2*r+1))
    neighbors = cv.dilate((labels==n).astype(np.uint8), se)
    # ignore background, outline and the component of interest
    return np.setdiff1d(np.unique(labels[neighbors==1]), [0, 1, n])

def shapes(arr, i):
    p = arr.tolist()
    for r in range(1, len(p)+1):
        for l in list(combinations(p, r)):
            print l + (i, )

for i in range(2, ncomp):
    shapes(getNeighbors(labels, i), i)

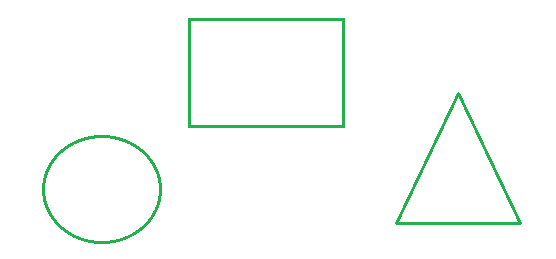

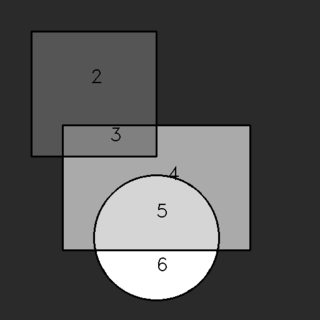

(3, 2)
(2, 3)
(4, 3)
(2, 4, 3)
(3, 4)
(5, 4)
(3, 5, 4)
(4, 5)
(6, 5)
(4, 6, 5)
(5, 6)

import cv2
import numpy as np


def get_parent_contour(contours, hierarchy):
    parent = hierarchy[0, :, 3]
    unique_parent, counts_parent = np.unique(parent, return_counts=True)

    parent_contour_id = -1
    max_area = 0

    for c in unique_parent:
        if c != -1:
            area = cv2.contourArea(contours[c])
            if area > max_area:
                max_area = area
                parent_contour_id = c

    return parent_contour_id, contours[parent_contour_id]


def get_child_contours(contours, hierarchy, parent_contour_id):
    parent = hierarchy[0, :, 3]

    # Select all contour whose parent is selected parent above
    child_contour_id = [i for i, v in enumerate(parent) if v == parent_contour_id]
    child_contours = [contours[i] for i in child_contour_id]

    return child_contour_id, child_contours


def smoothed(contour, dists, cutoff):
    smooth_con = []
    for a in range(len(dists)):
        if dists[a] < cutoff:
            smooth_con.append(contour[a])
    return np.asarray(smooth_con)


# get the distance list for an array of points
def distList(src, other):
    dists = []
    for point in src:
        point = point[0]  # drop extra brackets
        _, dist = closestPoint(point, other)
        dists.append(dist)
    return dists


# returns squared distance of two points
def squaredDist(one, two):
    dx = one[0] - two[0]
    dy = one[1] - two[1]
    return dx * dx + dy * dy


# find closest point (just do a linear search)
def closestPoint(point, arr):
    # init tracker vars
    closest = None
    best_dist = np.Inf

    # linear search
    for other in arr:
        other = other[0]  # remove extra brackets
        dist = squaredDist(point, other)
        if dist < best_dist:
            closest = other
            best_dist = dist
    return closest, best_dist


image = cv2.imread("image.png")
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)

_, threshold = cv2.threshold(gray, 200, 255, cv2.THRESH_BINARY_INV)
cv2.imshow("threshold", threshold)

contours, hierarchy = cv2.findContours(threshold, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)

blank_image = np.zeros_like(image)

if hierarchy is not None:

    for contour in contours:
        color = np.random.randint(0, 255, size=(3,))
        color = (int(color[0]), int(color[1]), int(color[2]))
        cv2.drawContours(blank_image, [contour], 0, color, 2)

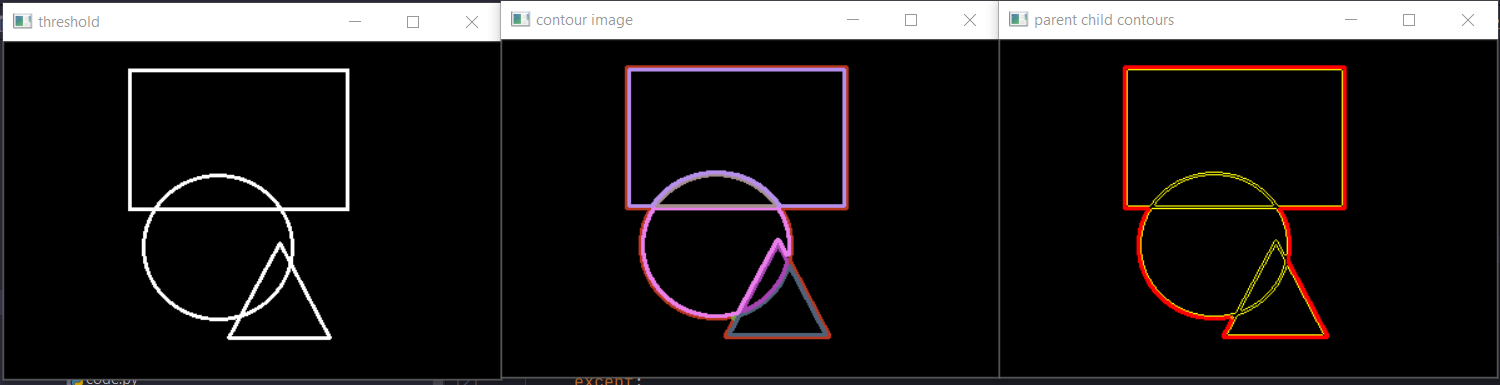

cv2.imshow("contour image", blank_image)

parent_contour_id, parent_contour = get_parent_contour(contours, hierarchy)
child_contour_ids, child_contours = get_child_contours(contours, hierarchy, parent_contour_id)

blank_image_2 = np.zeros_like(image)
cv2.drawContours(blank_image_2, [parent_contour], 0, (0, 0, 255), 2)

for child_cnt in child_contours:
    cv2.drawContours(blank_image_2, [child_cnt], 0, (0, 255, 255), 1)
cv2.imshow("parent child contours", blank_image_2)

for child_cnt in child_contours:

    one = parent_contour
    two = child_cnt

    # get distances
    one_dists = distList(one, two)
    two_dists = distList(two, one)
    try:
        # dump values greater than 10
        smooth_one = smoothed(one, one_dists, 35)
        smooth_two = smoothed(two, two_dists, 35)

        # draw new contour
        blank_image_3 = np.zeros_like(threshold)
        cv2.drawContours(blank_image_3, [smooth_one], -1, 255, -1)
        cv2.drawContours(blank_image_3, [smooth_two], -1, 0, -1)

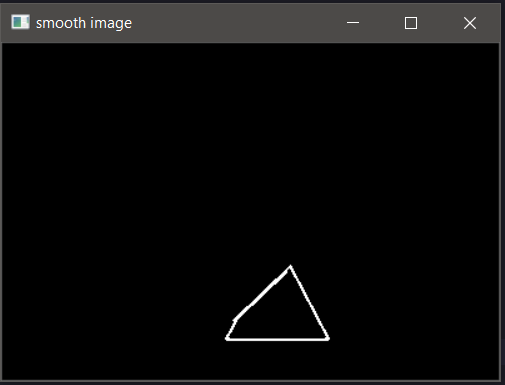

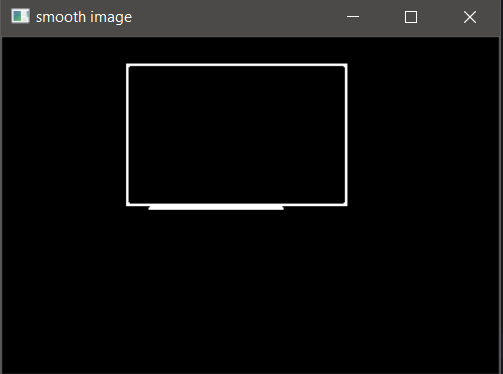

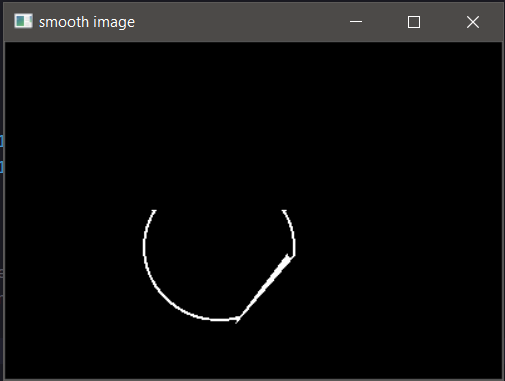

        cv2.imshow("smooth image", blank_image_3)

        # you can apply filters on smoothed contour image to accepting and reject smooth contour
        # And apply single shape detection algorithm on smoothed contour image to find shapes

    except:
        print("no near points. ")

    cv2.waitKey(0)

cv2.destroyAllWindows()
