问使用来自统一的OpenCV C++时内存泄漏
EN

Stack Overflow用户

提问于 2021-03-06 15:47:27

回答 1查看 396关注 0票数 0

我正在用OpenCV制作我的第一个C++插件。

但是，它有一些问题。

图像故障
内存泄漏

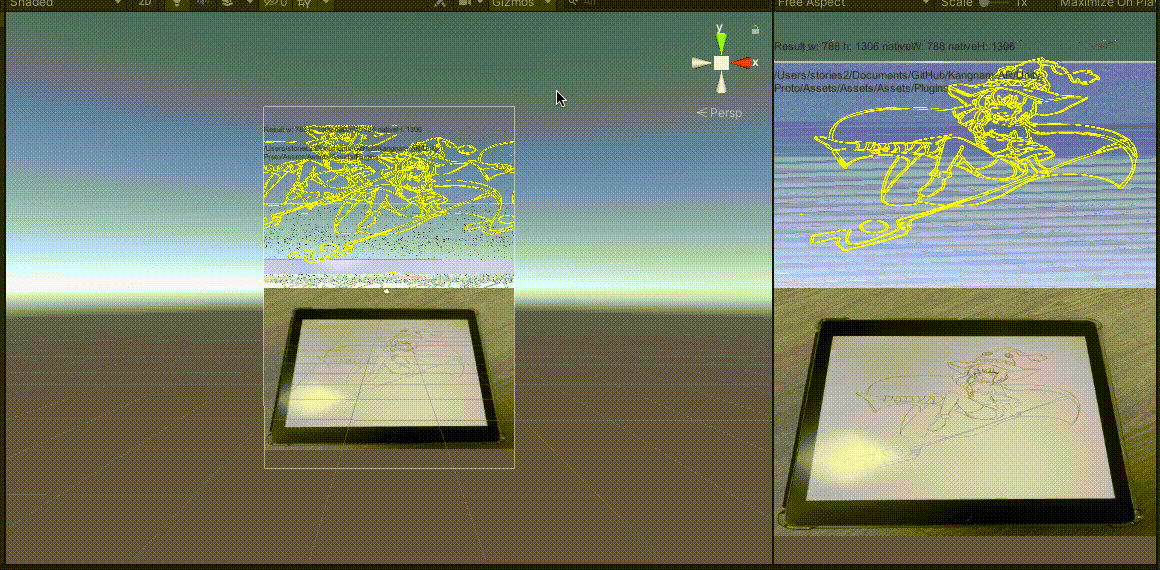

这就是它运行的样子。

预期行为

获取图纸文件，只输出画线。

来源

全源

Xcode OSX 12.4或Android本机Android 4.1.2

OpenCVPlugin.cpp

#include <iostream>
//https://www.vbflash.net/83
#include <opencv2/opencv.hpp>

using namespace std;
using namespace cv;

unsigned char* resultPicBuffer;
int picRows = 0;
int picCols = 0;

extern "C" {
    int ResultPicBufferRows();
    int ResultPicBufferCols();
    bool compareContourAreas (std::vector<cv::Point>, std::vector<cv::Point>);
    unsigned char* ExportPicFromDoc(int width, int height, unsigned char* buffer);
    void FreeBuffer();
}

void FreeBuffer() {
    if (picRows * picCols > 0) {
        fill_n(resultPicBuffer, picRows * picCols * 4, 0);
        delete [] resultPicBuffer;
    }
}

int ResultPicBufferRows() {
    return picRows;
}

int ResultPicBufferCols() {
    return picCols;
}

bool compareContourAreas (std::vector<cv::Point>, std::vector<cv::Point>);

unsigned char* ExportPicFromDoc(int width, int height, unsigned char* buffer) {

    Mat img(height, width, CV_8UC4, buffer);

    float maxImgWidth = 2000.0;
    float ratio = maxImgWidth / img.size().height;

    Mat smallImg;
    resize(img, smallImg, Size(int(img.size().width * ratio), maxImgWidth));

//        imshow("smallImg", smallImg);

    Mat gray;
    cvtColor(smallImg, gray, COLOR_BGR2GRAY);
//        imshow("gray", gray);

    Mat grayBlur;
    GaussianBlur(gray, grayBlur, Size(3, 3), BORDER_CONSTANT);
//        imshow("grayBlur", grayBlur);

    Mat edge;
    Canny(grayBlur, edge, 100, 200);
//        imshow("edge", edge);

    vector<vector<Point>> contours;
    vector<Vec4i> hierarchy;
    findContours( edge, contours, hierarchy, RETR_LIST, CHAIN_APPROX_SIMPLE );
    sort(contours.begin(), contours.end(), compareContourAreas);

    vector<vector<Point>> topContours = vector<vector<Point>>(contours.end() - 5, contours.end());
    Mat smallImg_copy = smallImg.clone();

    vector<Point> screenContours;

    for (unsigned long i = topContours.size() - 1; i >= 0; i--) {
        double peri = arcLength(topContours[i], true);
        vector<Point> approx;
        approxPolyDP(topContours[i], approx, 0.02 * peri, true);

        if (approx.size() == 4) {
            screenContours = approx;
            break;
        }

        vector<Point>().swap(approx);
    }

    if (screenContours.size() <= 0) {
        FreeBuffer();
        picRows = 0;
        picCols = 0;

        for (int i = 0; i < contours.size(); i++) {
            vector<Point>().swap(contours[i]);
        }
        vector<vector<Point>>().swap(contours);

        vector<Vec4i>().swap(hierarchy);

        for (int i = 0; i < topContours.size(); i++) {
            vector<Point>().swap(topContours[i]);
        }
        vector<vector<Point>>().swap(topContours);

        vector<Point>().swap(screenContours);

        smallImg_copy.release();
        edge.release();
        grayBlur.release();
        gray.release();
        smallImg.release();
        img.release();

        return 0;
    }

    vector<vector<Point>> screenContours_vec;
    screenContours_vec.push_back(screenContours);

    drawContours(smallImg_copy, screenContours_vec, -1, CV_RGB(0, 255, 0), 2);
//        imshow("contours", smallImg_copy);

    Point topLeft, topRight, bottomRight, bottomLeft;
    topLeft.x = 0x0fffffff;
    topLeft.y = 0x0fffffff;

    topRight.y = 0x7fffffff;

    for (unsigned long i = 0; i < screenContours.size(); i++) {
        if (topLeft.x + topLeft.y > screenContours[i].x + screenContours[i].y) {
            topLeft = screenContours[i];
        }

        if (topRight.y - topRight.x > screenContours[i].y - screenContours[i].x) {
            topRight = screenContours[i];
        }

        if (bottomRight.x + bottomRight.y < screenContours[i].x + screenContours[i].y) {
            bottomRight = screenContours[i];
        }

        if (bottomLeft.y - bottomLeft.x < screenContours[i].y - screenContours[i].x) {
            bottomLeft = screenContours[i];
        }
    }

    unsigned long padding = 10;
    topLeft.x += padding;
    topLeft.y += padding;
    topRight.x -= padding;
    topRight.y += padding;
    bottomLeft.x += padding;
    bottomLeft.y -= padding;
    bottomRight.x -= padding;
    bottomRight.y -= padding;

    unsigned long width1 = abs(topLeft.x - topRight.x), width2 = abs(bottomLeft.x - bottomRight.x),
            height1 = abs(topLeft.y - bottomLeft.y), height2 = abs(topRight.y - bottomRight.y);

    unsigned long maxWidth = max(width1, width2), maxHeight = max(height1, height2);

    vector<Point2f> srcRect;
    srcRect.push_back(topLeft);
    srcRect.push_back(topRight);
    srcRect.push_back(bottomLeft);
    srcRect.push_back(bottomRight);

    vector<Point2f> destRect;
    destRect.push_back(Point(0, 0));
    destRect.push_back(Point(maxWidth, 0));
    destRect.push_back(Point(0, maxHeight));
    destRect.push_back(Point(maxWidth, maxHeight));

    Mat perspectMat = getPerspectiveTransform(srcRect, destRect);
    Mat warpedImg;
    warpPerspective(smallImg, warpedImg, perspectMat, Size(maxWidth, maxHeight));
//        imshow("warpedImg", warpedImg);

    Mat warpedImgGray;
    cvtColor(warpedImg, warpedImgGray, COLOR_BGR2GRAY);
    adaptiveThreshold(warpedImgGray, warpedImgGray, 255, ADAPTIVE_THRESH_MEAN_C, THRESH_BINARY, 21, 10);
//        imshow("adapted", warpedImgGray);

    Mat edgePic;
    GaussianBlur(warpedImgGray, edgePic, Size(11, 11), BORDER_CONSTANT);
    Canny(edgePic, edgePic, 100, 200);
//        imshow("edgePic", edgePic);

    vector<vector<Point>> contoursPic;
    vector<Vec4i> hierarchyPic;
    findContours( edgePic, contoursPic, hierarchyPic, RETR_LIST, CHAIN_APPROX_SIMPLE );

    Mat edgePic_copy = warpedImg.clone();
    drawContours(edgePic_copy, contoursPic, -1, CV_RGB(0, 255, 0), 2);
//        imshow("edgePic_copy", edgePic_copy);

    Mat onlyContours = Mat(Size(edgePic_copy.cols, edgePic_copy.rows), CV_8UC4);
    drawContours(onlyContours, contoursPic, -1, CV_RGB(255, 255, 255), 2);

    cv::cvtColor(onlyContours, onlyContours, COLOR_RGB2BGRA);
//    std::vector<cv::Mat> bgra;
//    cv::split(onlyContours, bgra);
//    std::swap(bgra[0], bgra[3]);
//    std::swap(bgra[1], bgra[2]);
//    cvtColor(onlyContours, onlyContours, COLOR_BGR2GRAY);
//        imshow("onlyContours", onlyContours);
    int lastPicRows = picRows, lastPicCols = picCols;
    if (onlyContours.rows > 0 && onlyContours.rows != lastPicRows && onlyContours.cols > 0 && onlyContours.cols != lastPicCols) {
        FreeBuffer();
        picRows = onlyContours.rows;
        picCols = onlyContours.cols;
        resultPicBuffer = new unsigned char[picRows * picCols * 4];
    } else if (onlyContours.rows <= 0 || onlyContours.cols <= 0) {
        FreeBuffer();
        picRows = 0;
        picCols = 0;

        for (int i = 0; i < contours.size(); i++) {
            vector<Point>().swap(contours[i]);
        }
        vector<vector<Point>>().swap(contours);

        vector<Vec4i>().swap(hierarchy);

        for (int i = 0; i < topContours.size(); i++) {
            vector<Point>().swap(topContours[i]);
        }
        vector<vector<Point>>().swap(topContours);

        vector<Point>().swap(screenContours);

        for (int i = 0; i < screenContours_vec.size(); i++) {
            vector<Point>().swap(screenContours_vec[i]);
        }
        vector<vector<Point>>().swap(screenContours_vec);

        vector<Point2f>().swap(srcRect);

        vector<Point2f>().swap(destRect);

        for (int i = 0; i < contoursPic.size(); i++) {
            vector<Point>().swap(contoursPic[i]);
        }
        vector<vector<Point>>().swap(contoursPic);

        vector<Vec4i>().swap(hierarchyPic);

        onlyContours.release();
        edgePic_copy.release();
        edgePic.release();
        warpedImgGray.release();
        warpedImg.release();
        perspectMat.release();
        smallImg_copy.release();
        edge.release();
        grayBlur.release();
        gray.release();
        smallImg.release();
        img.release();

        return 0;
    }
//    picRows = onlyContours.rows;
//    picCols = onlyContours.cols;
//    resultPicBuffer = new unsigned char[picRows * picCols * 4];
    fill_n(resultPicBuffer, picRows * picCols * 4, 0);

//    globalMat = onlyContours.clone();

//    buffer = onlyContours.data;

//    size_t size = picRows * picCols * 3;
//    memcpy(resultPicBuffer, onlyContours.data, size);
//    memcpy(buffer, onlyContours.data, onlyContours.total() * onlyContours.elemSize());
    memcpy(resultPicBuffer, onlyContours.data, onlyContours.total() * onlyContours.elemSize());

    for (int i = 0; i < contours.size(); i++) {
        vector<Point>().swap(contours[i]);
    }
    vector<vector<Point>>().swap(contours);

    vector<Vec4i>().swap(hierarchy);

    for (int i = 0; i < topContours.size(); i++) {
        vector<Point>().swap(topContours[i]);
    }
    vector<vector<Point>>().swap(topContours);

    vector<Point>().swap(screenContours);

    for (int i = 0; i < screenContours_vec.size(); i++) {
        vector<Point>().swap(screenContours_vec[i]);
    }
    vector<vector<Point>>().swap(screenContours_vec);

    vector<Point2f>().swap(srcRect);

    vector<Point2f>().swap(destRect);

    for (int i = 0; i < contoursPic.size(); i++) {
        vector<Point>().swap(contoursPic[i]);
    }
    vector<vector<Point>>().swap(contoursPic);

    vector<Vec4i>().swap(hierarchyPic);

    onlyContours.release();
    edgePic_copy.release();
    edgePic.release();
    warpedImgGray.release();
    warpedImg.release();
    perspectMat.release();
    smallImg_copy.release();
    edge.release();
    grayBlur.release();
    gray.release();
    smallImg.release();
    img.release();

    return resultPicBuffer;
}

bool compareContourAreas ( std::vector<cv::Point> contour1, std::vector<cv::Point> contour2 ) {
    double i = fabs( contourArea(cv::Mat(contour1)) );
    double j = fabs( contourArea(cv::Mat(contour2)) );
    return ( i < j );
}

统一项目2019.4.20f1

TestController.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using System;
using System.Runtime.InteropServices;

public class TestController : MonoBehaviour
{
    public Text txt, txt2;
    public RawImage InImage;
    public RawImage OutImage;
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        txt.text = "Loading native lib";
        txt2.text = NativeAdapter.dllPath;
        GCHandle pixelHandle, resultPixelHandle;
        try {
            txt.text = "Native: " + NativeAdapter.FooTest().ToString();

            Texture2D rawImageTexture = (Texture2D)InImage.texture;
            Color32[] pixels = rawImageTexture.GetPixels32();

            pixelHandle = GCHandle.Alloc(pixels, GCHandleType.Pinned);
            IntPtr pixelPtr = pixelHandle.AddrOfPinnedObject();
            IntPtr testPtr = NativeAdapter.PicFromDoc(rawImageTexture.width, rawImageTexture.height, pixelPtr);

            int nativeH = NativeAdapter.PicBufferRows();
            int nativeW = NativeAdapter.PicBufferCols();
            int w = nativeW;
            int h = nativeH;

            txt.text = $"Result w: {w} h: {h} nativeW: {nativeW} nativeH: {nativeH}";

            Texture2D resultTexture = new Texture2D(w, h, TextureFormat.ARGB32, false);

            int bufferSize = w * h * 4;

            if (testPtr != IntPtr.Zero)
            {
                byte[] rawData = new byte[bufferSize];
                Marshal.Copy(testPtr, rawData, 0, bufferSize);

                resultTexture.LoadRawTextureData(rawData);
                resultTexture.Apply();
            }

            OutImage.texture = resultTexture;

        } catch (System.Exception e) {
            txt.text = e.Message;
            Debug.Log(e);
        } finally {
            if (pixelHandle != null) {
                pixelHandle.Free();
            }
            GC.Collect();
        }
    }
}

NativeAdapter.cs

using System.Collections;
using System.Collections.Generic;
using System.Runtime.InteropServices;
using System;
using UnityEngine;
using System.IO;

public class NativeAdapter
{
    #if !UNITY_EDITOR
        [DllImport("OpenCVPlugin")]
        private static extern int FooTestFunction_Internal();

        [DllImport("OpenCVPlugin")]
        private static extern int ResultPicBufferRows();

        [DllImport("OpenCVPlugin")]
        private static extern int ResultPicBufferCols();

        [DllImport("OpenCVPlugin")]
        private static extern IntPtr ExportPicFromDoc(int width, int height, IntPtr bufferAddr);

        [DllImport ("OpenCVPlugin")]
        private static extern void FlipImage(ref Color32[] rawImage, int width, int height);

        [DllImport ("OpenCVPlugin")]
        private static extern void ReturnGlobalMat(IntPtr data);

        [DllImport ("OpenCVPlugin")]
        private static extern void FreeBuffer();
    #elif UNITY_EDITOR
        [DllImport ("UnityPlugin")]
        private static extern int FooTestFunction_Internal();

        [DllImport ("UnityPlugin")]
        private static extern int ResultPicBufferRows();

        [DllImport ("UnityPlugin")]
        private static extern int ResultPicBufferCols();

        [DllImport ("UnityPlugin")]
        private static extern IntPtr ExportPicFromDoc(int width, int height, IntPtr bufferAddr);

        [DllImport ("UnityPlugin")]
        private static extern void TestMat(int width, int height, IntPtr bufferAddr);

        [DllImport ("UnityPlugin")]
        private static extern void FlipImage(ref Color32[] rawImage, int width, int height);

        [DllImport ("UnityPlugin")]
        private static extern void ReturnGlobalMat(IntPtr data);

        [DllImport ("UnityPlugin")]
        private static extern IntPtr GetResultPicBuffer();

        [DllImport ("UnityPlugin")]
        private static extern void FreeBuffer();
    #endif

    public static string dllPath;

    static NativeAdapter() {
        string currentPath = Environment.GetEnvironmentVariable("PATH", EnvironmentVariableTarget.Process);
        dllPath = Path.DirectorySeparatorChar + "Assets" + Path.DirectorySeparatorChar + "Plugins";
        #if UNITY_ANDROID
            dllPath = Application.dataPath + Path.DirectorySeparatorChar + "Assets" + Path.DirectorySeparatorChar  + "Assets" + Path.DirectorySeparatorChar + "Plugins";
        #endif
        Debug.Log("dllPath " + dllPath);
        Debug.Log("currentPath " + currentPath);
        Debug.Log("process " + EnvironmentVariableTarget.Process);

        if(currentPath.Contains(dllPath) == false)
        {
            #if !UNITY_EDITOR
                Debug.Log("env " + Environment.GetEnvironmentVariable("PATH"));
            #elif UNITY_EDITOR
                Environment.SetEnvironmentVariable("PATH", currentPath + Path.PathSeparator + dllPath, EnvironmentVariableTarget.Process);
                Debug.Log("env " + Environment.GetEnvironmentVariable("PATH"));
            #endif
        }
    }

    public static int FooTest() {
        return FooTestFunction_Internal();
    }

    public static int PicBufferRows() {
        return ResultPicBufferRows();
    }

    public static int PicBufferCols() {
        return ResultPicBufferCols();
    }

    public static IntPtr PicFromDoc(int width, int height, IntPtr bufferAddr) {
        return ExportPicFromDoc(width, height, bufferAddr);
    }

    public static void _TestMat(int width, int height, IntPtr bufferAddr) {
        #if UNITY_EDITOR
            TestMat(width, height, bufferAddr);
        #endif
    }

    public static void _FlipImage(ref Color32[] rawImage, int width, int height) {
        FlipImage(ref rawImage, width, height);
    }

    public static void _ReturnGlobalMat(IntPtr bufferAddr) {
        ReturnGlobalMat(bufferAddr);
    }

    public static IntPtr _GetResultPicBuffer() {
        #if UNITY_EDITOR
            return GetResultPicBuffer();
        #else
            return IntPtr.Zero;
        #endif
    }

    public static void _FreeBuffer() {
        FreeBuffer();
    }
}

编辑过的

修正了图像故障问题。但记忆还是漏了。

OpenCVPlugin.cpp

Mat onlyContours = Mat(Size(edgePic_copy.cols, edgePic_copy.rows), CV_8UC4, 0.0);
drawContours(onlyContours, contoursPic, -1, (255, 255, 255, 255), 2);

如果你对阿尔法通道使用Mat。您应该将alpha值设置为零，或者将Mat重置为零。

android

c++

opencv

unity3d

回答 1

Stack Overflow用户

回答已采纳

发布于 2021-03-07 03:29:55

我找到了解决办法。

“首先，”JohnFilleau说。我使用了几次new X[]，这可能会导致内存泄漏。

所以我删除了它，并使用了原始的缓冲区指针。

在OpenCVPlugin.cpp中

unsigned char* ExportPicFromDoc(int width, int height, unsigned char* buffer) {
...
memcpy(buffer, onlyContours.data, onlyContours.total() * onlyContours.elemSize());
...
}

其次，如果我创建Texture2D所有的框架，那么它将导致OOM。

所以请使用Resources.UnloadUnusedAssets()。提示

在TestController.cs中

void Update()
{
    ...
    Texture2D resultTexture = new Texture2D(w, h, TextureFormat.ARGB32, false);
    Resources.UnloadUnusedAssets(); // <-- Unload it *****

    int bufferSize = w * h * 4;

    if (bufferSize > 0)
    ...

所以内存泄漏解决了。我的程序运行得很好。所有的人。

票数 0

页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持

原文链接：

https://stackoverflow.com/questions/66507556

复制

相似问题

问使用来自统一的OpenCV C++时内存泄漏
EN

回答 1

Stack Overflow用户

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐

问使用来自统一的OpenCV C++时内存泄漏EN

回答 1

Stack Overflow用户

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐

问使用来自统一的OpenCV C++时内存泄漏
EN
