社区首页 >问答首页 >ActiveMQ在大量消息(数十毫安)上的性能较差

问ActiveMQ在大量消息(数十毫安)上的性能较差
EN

Stack Overflow用户
提问于 2021-02-04 00:14:40
回答 1查看 894关注 0票数 0
  • CentOS 7
  • 4芯，16 G RAM，500 SSD
  • ActiveMQ 5.15.4
  • OpenJDK运行时环境AdoptOpenJDK (构建11.0.10+9)

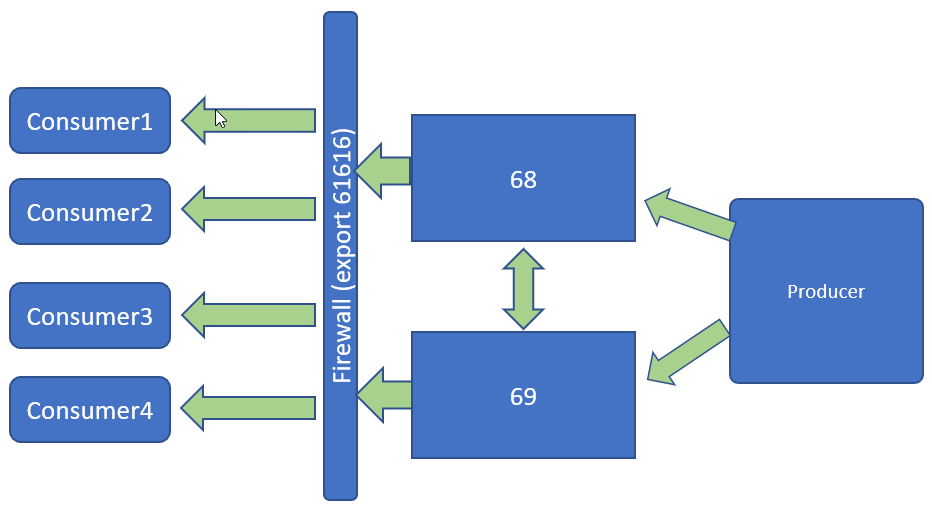

ActiveMQ体系结构

​

机器69和68是由网络代理构建的。68和69的activemq.xml是相同的，除了代理名称、主机名、IP等相关名称之外。

该体系结构中的主题：

  • TOPIC_A_ALL_DELIVERED
  • TOPIC_A_ALL_RECEIVED
  • TOPIC_A_NN_DELIVERED，NN=00-23
  • TOPIC_A_NN_RECEIVED，NN=00-23

持续天数:当前为2天，但预期目标为7天。这是如果使用者没有连接回以检索消息，则要等待多长时间才能终止消息。我使用这个config：<timeStampingBrokerPlugin ttlCeiling="172800000" zeroExpirationOverride="172800000"/>。

持久化存储: kahadb，限制大小为200 is

消息格式为XML，每个消息大小约为1K-3K字节。

Consumers

除了持久地订阅TOPIC_A_ALL_XXXXXX之外，每个使用者还根据自己的需求可持续地订阅其他主题，但我不知道使用者可以多快地使用这些数据。我也不知道他们是否真的订阅了所有的主题。我只知道有时候有些消费者因为调试代码而停止接收数据，然后再连接回去。

生产者

制片人计划每30分钟运行一次。每当生产者工作时，它只将数据放到一个MQ服务器上。目标MQ服务器依赖于故障转移连接协议。

每次生产者将超过800 K数量的XML消息放到主题中，从TOPIC_A开始。XML包含标记sit_id (00-23)和标记direction (DELIVERED或RECEIVED)，因此生产者将根据XML中的标记site_id和direction将每个XML放到相应的主题上。同时，生产者根据每个TOPIC_A_ALL_XXXXX中的direction标记将每个XML放入XML中。

根据上述数据，每天平均信息总量约为76,800,000。

症状

一开始没有任何信息在卡哈德语中。生产者将队列放入具有一个连接的单个MQ的速度高达600~700 msgs/秒。随着数据量的增加，发送消息的速度会减慢。它会慢到每秒3毫希，有时会被卡住。无论何时发生这种情况，都可以观察到以下情况：

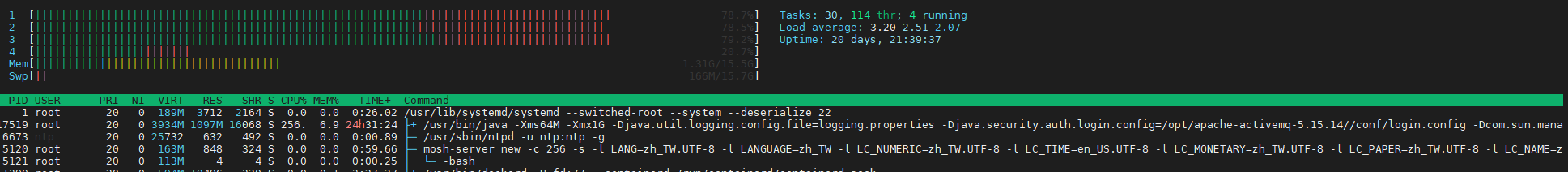

  1. 在htop中，一个活动进程持续消耗100%的CPU (有时高达200%)。

​

  1. 空闲内存正常(至少4~8GB)
  2. 消费者从两台MQ服务器上都得不到任何信息。

上述情况几乎每天都会发生。

如果我在那里等4-6小时，MQ服务器就会回来。生产者可以发送4xx~5xx msgs/秒，然后消费者可以接收数据。

这种循环每天都在进行。我真的不知道如何改善这种情况。有什么建议吗？

activemq.xml

代码语言：javascript
运行
复制
<beans
  xmlns="http://www.springframework.org/schema/beans"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  http://activemq.apache.org/schema/core http://activemq.apache.org/schema/core/activemq-core.xsd">

    <!-- Allows us to use system properties as variables in this configuration file -->
    <bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer" />

   <!-- Allows accessing the server log -->
    <bean id="logQuery" class="io.fabric8.insight.log.log4j.Log4jLogQuery"
          lazy-init="false" scope="singleton"
          init-method="start" destroy-method="stop">
    </bean>

    <!--
        The <broker> element is used to configure the ActiveMQ broker.
    -->
    <broker xmlns="http://activemq.apache.org/schema/core" brokerName="activemq-mdmcs02p-node1" dataDirectory="${activemq.data}" persistent="true" useJmx="true" populateJMSXUserID="true">
        <destinations>


        <topic physicalName="TOPIC_A.00.Delivered" />
        <topic physicalName="TOPIC_A.00.Received" />
        <topic physicalName="TOPIC_A.01.Delivered" />
        <topic physicalName="TOPIC_A.01.Received" />
        <topic physicalName="TOPIC_A.02.Delivered" />
        <topic physicalName="TOPIC_A.02.Received" />
        <topic physicalName="TOPIC_A.03.Delivered" />
        <topic physicalName="TOPIC_A.03.Received" />
        <topic physicalName="TOPIC_A.04.Delivered" />
        <topic physicalName="TOPIC_A.04.Received" />
        <topic physicalName="TOPIC_A.05.Delivered" />
        <topic physicalName="TOPIC_A.05.Received" />
        <topic physicalName="TOPIC_A.06.Delivered" />
        <topic physicalName="TOPIC_A.06.Received" />
        <topic physicalName="TOPIC_A.07.Delivered" />
        <topic physicalName="TOPIC_A.07.Received" />
        <topic physicalName="TOPIC_A.08.Delivered" />
        <topic physicalName="TOPIC_A.08.Received" />
        <topic physicalName="TOPIC_A.09.Delivered" />
        <topic physicalName="TOPIC_A.09.Received" />
        <topic physicalName="TOPIC_A.10.Delivered" />
        <topic physicalName="TOPIC_A.10.Received" />
        <topic physicalName="TOPIC_A.11.Delivered" />
        <topic physicalName="TOPIC_A.11.Received" />
        <topic physicalName="TOPIC_A.12.Delivered" />
        <topic physicalName="TOPIC_A.12.Received" />
        <topic physicalName="TOPIC_A.13.Delivered" />
        <topic physicalName="TOPIC_A.13.Received" />
        <topic physicalName="TOPIC_A.14.Delivered" />
        <topic physicalName="TOPIC_A.14.Received" />
        <topic physicalName="TOPIC_A.15.Delivered" />
        <topic physicalName="TOPIC_A.15.Received" />
        <topic physicalName="TOPIC_A.16.Delivered" />
        <topic physicalName="TOPIC_A.16.Received" />
        <topic physicalName="TOPIC_A.17.Delivered" />
        <topic physicalName="TOPIC_A.17.Received" />
        <topic physicalName="TOPIC_A.18.Delivered" />
        <topic physicalName="TOPIC_A.18.Received" />
        <topic physicalName="TOPIC_A.19.Delivered" />
        <topic physicalName="TOPIC_A.19.Received" />
        <topic physicalName="TOPIC_A.20.Delivered" />
        <topic physicalName="TOPIC_A.20.Received" />
        <topic physicalName="TOPIC_A.21.Delivered" />
        <topic physicalName="TOPIC_A.21.Received" />
        <topic physicalName="TOPIC_A.22.Delivered" />
        <topic physicalName="TOPIC_A.22.Received" />
        <topic physicalName="TOPIC_A.23.Delivered" />
        <topic physicalName="TOPIC_A.23.Received" />
        <topic physicalName="TOPIC_A_ALL.Delivered" />
        <topic physicalName="TOPIC_A_ALL.Received" />

        </destinations>

        <destinationPolicy>
            <policyMap>
              <policyEntries>
                <policyEntry topic=">" producerFlowControl="false" memoryLimit="4096mb" enableAudit="false" expireMessagesPeriod="60000" >
                    <!-- The constantPendingMessageLimitStrategy is used to prevent
                         slow topic consumers to block producers and affect other consumers
                         by limiting the number of messages that are retained
                         For more information, see:

                         http://activemq.apache.org/slow-consumer-handling.html

                    -->

                    <deadLetterStrategy>
                        <sharedDeadLetterStrategy processExpired="false"/>
                    </deadLetterStrategy>

                    <pendingMessageLimitStrategy>
                        <constantPendingMessageLimitStrategy limit="1000"/>
                    </pendingMessageLimitStrategy>

                    <networkBridgeFilterFactory>
                        <conditionalNetworkBridgeFilterFactory replayWhenNoConsumers="true"/>
                    </networkBridgeFilterFactory>

                </policyEntry>
              </policyEntries>
            </policyMap>
        </destinationPolicy>

    <!--
        <destinationInterceptors>
            <virtualDestinationInterceptor>
                <virtualDestinations>
                    <virtualTopic name=">" prefix="TOPIC_A.*" selectorAware="false"/>
                </virtualDestinations>
            </virtualDestinationInterceptor>
        </destinationInterceptors>
     -->

    <networkConnectors>
        <networkConnector uri="static:(tcp://192.168.11.68:61616)" userName="admin" password="XXXXX" dynamicOnly="true" prefetchSize="1" />
    </networkConnectors>

        <!--
            The managementContext is used to configure how ActiveMQ is exposed in
            JMX. By default, ActiveMQ uses the MBean server that is started by
            the JVM. For more information, see:

            http://activemq.apache.org/jmx.html
        -->
        <managementContext>
            <managementContext createConnector="true"/>
        </managementContext>

        <!--
            Configure message persistence for the broker. The default persistence
            mechanism is the KahaDB store (identified by the kahaDB tag).
            For more information, see:

            http://activemq.apache.org/persistence.html
        -->
        <persistenceAdapter>
            <kahaDB directory="/home/activemq/kahadb"
                    ignoreMissingJournalfiles="true"
                    checkForCorruptJournalFiles="true"
                    checksumJournalFiles="true"
                    enableJournalDiskSyncs="false"
             />
        </persistenceAdapter>


          <!--
            The systemUsage controls the maximum amount of space the broker will
            use before disabling caching and/or slowing down producers. For more information, see:
            http://activemq.apache.org/producer-flow-control.html
          -->
          <systemUsage>
            <systemUsage>
                <memoryUsage>
                    <memoryUsage percentOfJvmHeap="70" />
                </memoryUsage>
                <storeUsage>
                    <storeUsage limit="80 gb"/>
                </storeUsage>
                <tempUsage>
                    <tempUsage limit="40 gb"/>
                </tempUsage>
            </systemUsage>
        </systemUsage>

        <!--
        <sslContext>
            <sslContext
                keyStore="file:${activemq.base}conf/broker1.ks" keyStorePassword="P@ssw0rd"
             />
        </sslContext>
         -->

        <!--
            The transport connectors expose ActiveMQ over a given protocol to
            clients and other brokers. For more information, see:

            http://activemq.apache.org/configuring-transports.html
        -->
        <transportConnectors>
            <!-- DOS protection, limit concurrent connections to 1000 and frame size to 100MB -->
            <transportConnector name="openwire" uri="tcp://0.0.0.0:61616?maximumConnections=1000&amp;wireFormat.maxFrameSize=1048576000"/>
            <transportConnector name="nio" uri="nio://0.0.0.0:61617?trace=true"/>
            <!-- <transportConnector name="ssl" uri="ssl://0.0.0.0:61618?trace=true&amp;transport.enabledProtocols=TLSv1.2"/> -->

            <transportConnector name="amqp" uri="amqp://0.0.0.0:5672?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600&amp;transport.transformer=jms"/>
            <!-- <transportConnector name="amqp+ssl" uri="amqp://0.0.0.0:5673?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600&amp;transport.enabledProtocols=TLSv1.2"/> -->
            <!-- <transportConnector name="stomp" uri="stomp://0.0.0.0:61613?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/> -->
            <!-- <transportConnector name="mqtt" uri="mqtt://0.0.0.0:1883?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/> -->
            <!-- <transportConnector name="ws" uri="ws://0.0.0.0:61614?maximumConnections=1000&amp;wireFormat.maxFrameSize=104857600"/> -->
        </transportConnectors>

        <!-- destroy the spring context on shutdown to stop jetty -->
        <shutdownHooks>
            <bean xmlns="http://www.springframework.org/schema/beans" class="org.apache.activemq.hooks.SpringContextHook" />
        </shutdownHooks>

        <plugins>
            <!-- 86,400,000 ms = 1 day -->
            <timeStampingBrokerPlugin ttlCeiling="172800000" zeroExpirationOverride="172800000"/>

            <jaasAuthenticationPlugin configuration="activemq" />

            <authorizationPlugin>
                <map>
                    <authorizationMap>
                        <authorizationEntries>
                            <authorizationEntry queue=">" read="admins" write="admins" admin="admins" />
                            <authorizationEntry topic=">" read="admins" write="admins" admin="admins" />

                            <authorizationEntry topic="TOPIC_A.>" read="mdmsusers" write="mdmsusers" />
                            <authorizationEntry topic="TOPIC_A.Delivered" read="pwsusers" />
                            <authorizationEntry topic="ActiveMQ.Advisory.>" read="mdmsusers,pwsusers" write="mdmsusers,pwsusers" admin="mdmsusers,pwsusers"/>
                        </authorizationEntries>
                        <tempDestinationAuthorizationEntry>
                            <tempDestinationAuthorizationEntry read="admins" write="admins" admin="admins"/>
                        </tempDestinationAuthorizationEntry>
                    </authorizationMap>
                </map>
            </authorizationPlugin>
        </plugins>

    </broker>

    <!--
        Enable web consoles, REST and Ajax APIs and demos
        The web consoles requires by default login, you can disable this in the jetty.xml file

        Take a look at ${ACTIVEMQ_HOME}/conf/jetty.xml for more details
    -->
    <import resource="jetty.xml"/>

</beans>
activemq
performance
EN

回答 1

Stack Overflow用户

发布于 2021-02-05 15:01:50

我怀疑您正在遇到某种类型的组合流控制，快速生产者，慢消费者，未决消息限制或无效的客户注册问题，需要解决。甚至可能是ActiveMQ版本中的bug或优化。

建议的步骤：

  1. 升级到最新的5.15.x。有很多修复程序，并且对那么旧的构建进行故障排除是没有意义的。
  2. 在目的地上启用用于咨询信息的advisoryForFastProducer和advisoryForSlowConsumer。这将为您提供一个ActiveMQ.Advisory主题，以显示这些场景何时发生。
  3. 调查客户端和连接，确保它们都在clientId和suscriptionName中正确注册，以获得持久的订阅。记住:两个连接不能共享clientId+subscriptioName
  4. 考虑搬到虚拟主题。这是将消息发送到主题和使用者从队列读取信息的地方。对于流动所发生的事情，有更多的灵活性和可见度。此外，它还能让多个经纪公司直接分享订阅。
票数 0
