%matplotlib inline
import networkx as nx
import matplotlib.pyplot as plt
import numpy as np

# get the maximum vertex degree
max_deg = max(G.degree())
max_deg = max_deg[1]
print('maximum degree = {}'.format(max_deg))

# Create the set of possible colors.
num_colors = max_deg+1
colors = set(range(num_colors))

# We'll store the color of each node as an integer property called 'color'.  Start by initializing
# all the colors to -1 (meaning not yet colored)
for v in complete_graph.nodes():
    complete_graph.nodes[v]['color'] = -1

# loop over all nodes
for v in complete_graph.nodes():

    print('processing node {}'.format(v))

    # copy the possible colors
    possible = colors.copy()

    # find colors of neighbors
    nbrs = set([complete_graph.nodes[w]['color'] for w in complete_graph.neighbors(v) if complete_graph.nodes[w]['color']!= -1])

    # remove neighbor colors from the set of possible colors
    possible -= nbrs

    # pick a color for the current node
    c = next(iter(possible))

    print('  neighbor colors: ', nbrs)
    print('  possible colors: ', possible)
    print('  selected color:  ', c)

    #update the color
    complete_graph.nodes[v]['color'] = c

  processing node 0
  neighbor colors:  set()
  possible colors:  {0, 1, 2, 3, 4, 5, 6, 7, 8, 9}
  selected color:   0

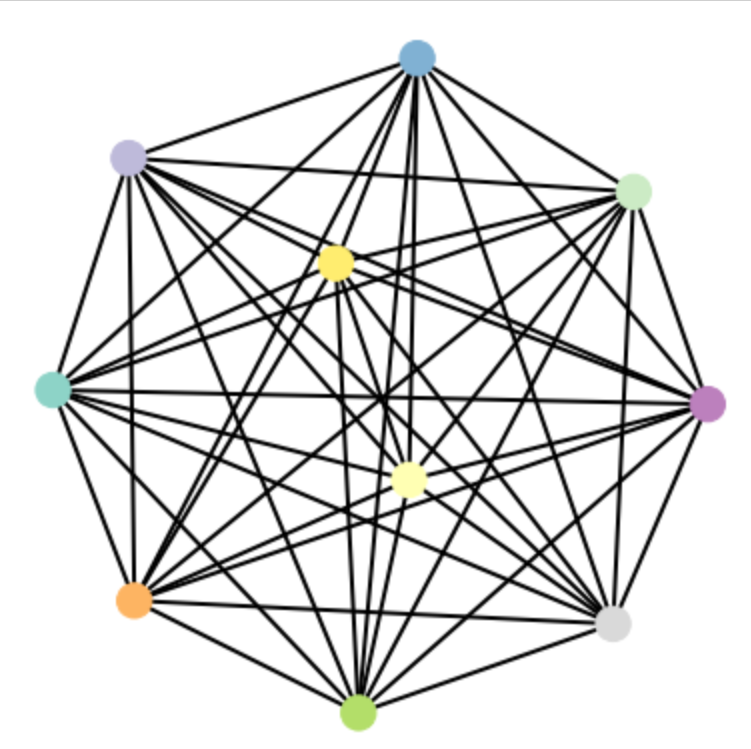

plt.figure(figsize=(5,5))
nx.draw(complete_graph,pos,node_color=[d['color'] for v,d in complete_graph.nodes(data=True)],width=2,cmap=plt.cm.Set3)

print(complete_graph.nodes(data=True))
[(0, {'color': 0}), (1, {'color': 1}), (2, {'color': 2}), (3, {'color': 3}), (4, {'color': 4}), (5, {'color': 5}), (6, {'color': 6}), (7, {'color': 7}), (8, {'color': 8}), (9, {'color': 9})]
