ggplot2:有条件地改变线型和颜色
ggplot2:有条件地改变线型和颜色
提问于 2020-11-24 14:32:25
我有以下数据：
df <- tribble(
~group, ~year, ~value,
"group1", "2010-2015", 70,
"group2", "2010-2015", 75,
"group1", "2015-2020", 72,
"group2", "2015-2020", 77,
"group1", "2020-2025", 74,
"group2", "2020-2025", 79,
"group1", "2025-2030", 76,
"group2", "2025-2030", 81)我想把画成x，年，y，值，按组着色，也就是说，
ggplot(df, aes(year, value, color = group, group = group)) +
geom_line(size = 1.1)但我希望“2020-2025年”和“2025年-2030年”成为虚线。
使用下面的代码，我得到了一个错误：“geom_path:如果您使用的是虚线或虚线，则颜色、大小和线型必须是直线上的常量。”
df %>%
mutate(projection = year %in% c("2020-2025", "2025-2030")) %>%
ggplot(aes(year, value, color = group, group = group)) +
geom_line(aes(linetype = projection), size = 1.1)回答 2
Stack Overflow用户
回答已采纳
发布于 2020-11-24 15:08:18
也许试试这个
library(tidyr)
library(dplyr)
library(ggplot2)
df %>%
mutate(projection = list("2010-2015" = F, "2015-2020" = c(T, F), "2020-2025" = T, "2025-2030" = T)[year]) %>%
unnest(projection) %>%
ggplot(aes(year, value, color = group, group = interaction(group, projection))) +

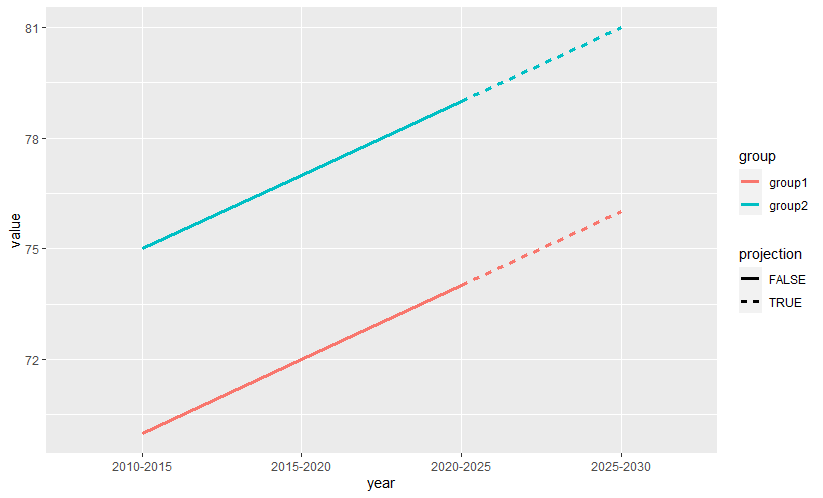

geom_line(aes(linetype = projection), size = 1.1)输出
另一种形式
df %>%
mutate(projection = list("2010-2015" = F, "2015-2020" = F, "2020-2025" = c(T, F), "2025-2030" = T)[year]) %>%
unnest(projection) %>%
ggplot(aes(year, value, color = group, group = interaction(group, projection))) +

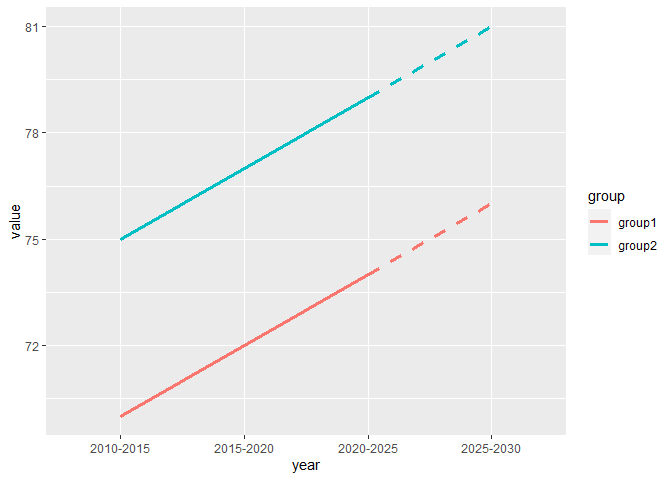

geom_line(aes(linetype = projection), size = 1.1)输出
Stack Overflow用户
发布于 2020-11-24 15:07:57
这可以通过两个geom_line层来实现，并过滤每个层要显示的数据：
library(tidyverse)
df <- tribble(
~group, ~year, ~value,
"group1", "2010-2015", 70,
"group2", "2010-2015", 75,
"group1", "2015-2020", 72,
"group2", "2015-2020", 77,
"group1", "2020-2025", 74,
"group2", "2020-2025", 79,
"group1", "2025-2030", 76,
"group2", "2025-2030", 81)
df1 <- df %>%
mutate(projection = year %in% c("2020-2025", "2025-2030"))
ggplot(mapping = aes(year, value, color = group, group = group)) +
geom_line(data = filter(df1, !year %in% c("2025-2030")), size = 1.1) +
geom_line(data = filter(df1, projection), size = 1.1, linetype = "dashed")
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/64988622
