SciChart (C# WPF)。TextAnnotation中绑定文本属性的问题
EN

Stack Overflow用户
提问于 2020-08-26 06:46:52
回答 1查看 216关注 0票数 1

我有一个简单的SciChart CompositeAnnotation:

代码语言:javascript
复制
 <s:CompositeAnnotation x:Class="KernelDensity.DensityAnnotation"
         xmlns:s="http://schemas.abtsoftware.co.uk/scichart"
         xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
         xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
         Canvas.ZIndex="1" MouseDoubleClick="DensityAnnotation_OnMouseDoubleClick">
<s:CompositeAnnotation.Annotations>
    <s:BoxAnnotation x:Name="DensityBoxArea" Background="#FFBADAFF" BorderBrush ="Black" BorderThickness="1" CoordinateMode="Relative" CornerRadius="1" Width="1" Height="1" Opacity="0.5" X1="0" X2="1" Y1="0" Y2="1" >
        <s:BoxAnnotation.Template>
            <ControlTemplate TargetType="s:BoxAnnotation">
                <Border x:Name="PART_BoxAnnotationRoot"
                        Margin="{TemplateBinding Margin}"
                        Background="{TemplateBinding Background}"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        BorderThickness="{TemplateBinding BorderThickness}"
                        CornerRadius="{TemplateBinding CornerRadius}">
                    <Image x:Name="DensityPlot" Width="Auto" Stretch="Fill"/>
                </Border>
            </ControlTemplate>
        </s:BoxAnnotation.Template>
    </s:BoxAnnotation>
    <s:TextAnnotation x:Name="SelectedSeriesTextAnnotation"
                      Background="Black"
                      CoordinateMode="Relative"
                      CornerRadius="3"
                      Foreground="White"
                      HorizontalAnchorPoint="Center"
                      X1="0.5"
                      Y1="0.5"
                      FontSize="14"
                      Text="{Binding SelectedSeriesTextAnnotationText}">
    </s:TextAnnotation>
</s:CompositeAnnotation.Annotations>
<s:CompositeAnnotation.ToolTip >
    <ToolTip Placement="Right">
        <TextBlock Text="{Binding SelectedSeriesTextAnnotationText}" FontSize="15" Foreground="Black"/>
    </ToolTip>
</s:CompositeAnnotation.ToolTip>
</s:CompositeAnnotation>

在这里,您可以看到TextAnnotation属性和TextBlock Text属性具有相同的绑定到我的视图模型属性。问题是,这种绑定对于ToolTip TextBlock文本属性是正确的,但是对于TextAnnotation文本属性则不起作用(就好像根本没有绑定一样)。我怎样才能解决这个问题?

EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2020-08-27 16:38:53

在诊断任何绑定问题时,首先要检查的是Visual输出窗口中是否有任何警告。在控制台/输出窗口中查找这样的行

System.Windows.Data信息: 10 :无法使用绑定检索值,并且不存在有效的回退值;使用默认值代替。BindingExpression:Path=IDontExist;DataItem=null;目标元素是‘TextBlock’(Name=);目标属性是‘Text’(输入‘String’)

如果输出窗口中没有BindingExpression错误,接下来要检查的是未能绑定的对象的DataContext。这是什么类型的?是在运行时设置的吗?

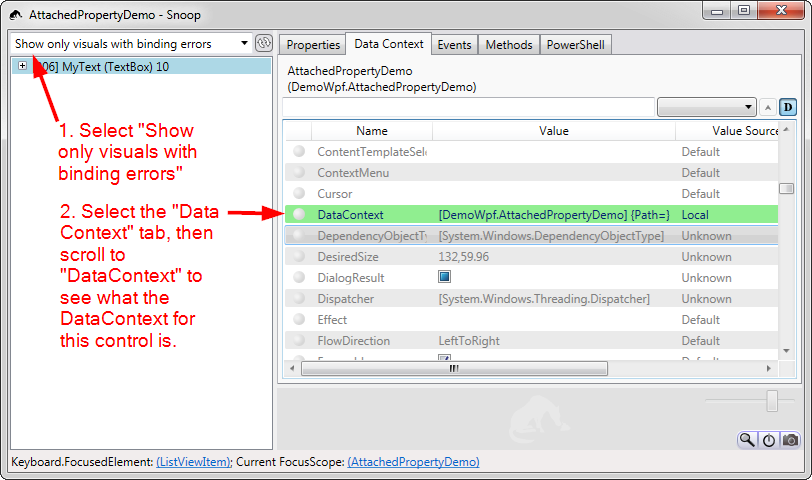

检查绑定的一个很好的工具是WPF Snoop。您可以悬停一个项目,并看到属性活动。您还可以在那里看到绑定错误。有一个相关的问题和答案,它展示了如何做到这一点。

如果存在绑定错误,则会显示为红色,您可以在运行时检查DataContext是否为null或错误类型。

票数 1
EN
