问Python/OpenCV -细菌团簇中质心的测定

EN

import cv2
import numpy as np
import os

kernel = np.array([[0, 0, 1, 0, 0],
                   [0, 1, 1, 1, 0],
                   [1, 1, 1, 1, 1],
                   [0, 1, 1, 1, 0],
                   [0, 0, 1, 0, 0]], dtype=np.uint8)


def e_d(image, it):
    image = cv2.erode(image, kernel, iterations=it)
    image = cv2.dilate(image, kernel, iterations=it)
    return image


path = r"(INSERT IMAGE DIRECTORY HERE)"
img_files = [file for file in os.listdir(path)]


def segment_index(index: int):
    segment_file(img_files[index])


def segment_file(img_file: str):
    img_path = path + "\\" + img_file
    print(img_path)
    img = cv2.imread(img_path)
    img = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
    # Applying adaptive mean thresholding
    th = cv2.adaptiveThreshold(img, 255, cv2.ADAPTIVE_THRESH_MEAN_C, cv2.THRESH_BINARY_INV, 11, 2)
    # Removing small noise
    th = e_d(th.copy(), 1)

    # Finding contours with RETR_EXTERNAL flag and removing undesired contours and
    # drawing them on a new image.
    cnt, hie = cv2.findContours(th, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)
    cntImg = th.copy()
    for contour in cnt:
        x, y, w, h = cv2.boundingRect(contour)
        # Eliminating the contour if its width is more than half of image width
        # (bacteria will not be that big).
        if w > img.shape[1] / 2:
            continue
        cntImg = cv2.drawContours(cntImg, [cv2.convexHull(contour)], -1, 255, -1)

    # Removing almost all the remaining noise.
    # (Some big circular noise will remain along with bacteria contours)
    cntImg = e_d(cntImg, 3)

    # Finding new filtered contours again
    cnt2, hie2 = cv2.findContours(cntImg, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)

    # Now eliminating circular type noise contours by comparing each contour's
    # extent of overlap with its enclosing circle.
    finalContours = []  # This will contain the final bacteria contours
    for contour in cnt2:
        # Finding minimum enclosing circle
        (x, y), radius = cv2.minEnclosingCircle(contour)
        center = (int(x), int(y))
        radius = int(radius)

        # creating a image with only this circle drawn on it(filled with white colour)
        circleImg = np.zeros(img.shape, dtype=np.uint8)
        circleImg = cv2.circle(circleImg, center, radius, 255, -1)

        # creating a image with only the contour drawn on it(filled with white colour)
        contourImg = np.zeros(img.shape, dtype=np.uint8)
        contourImg = cv2.drawContours(contourImg, [contour], -1, 255, -1)

        # White pixels not common in both contour and circle will remain white
        # else will become black.
        union_inter = cv2.bitwise_xor(circleImg, contourImg)

        # Finding ratio of the extent of overlap of contour to its enclosing circle.
        # Smaller the ratio, more circular the contour.
        ratio = np.sum(union_inter == 255) / np.sum(circleImg == 255)

        # Storing only non circular contours(bacteria)
        if ratio > 0.55:
            finalContours.append(contour)

    finalContours = np.asarray(finalContours)

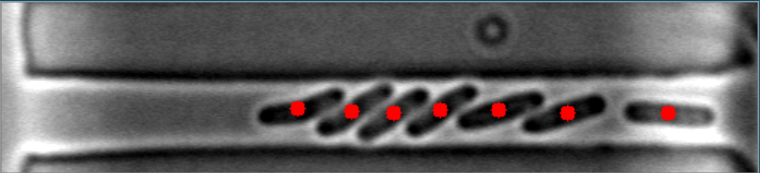

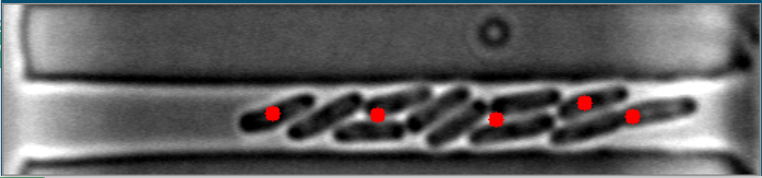

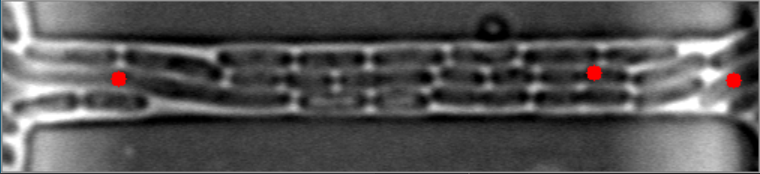

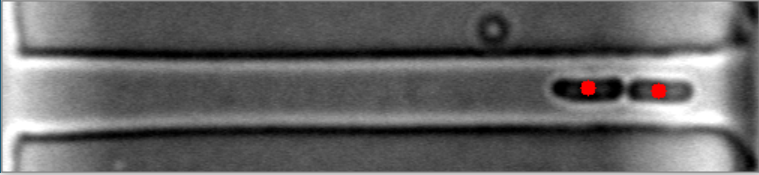

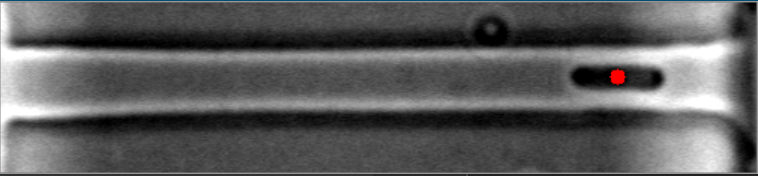

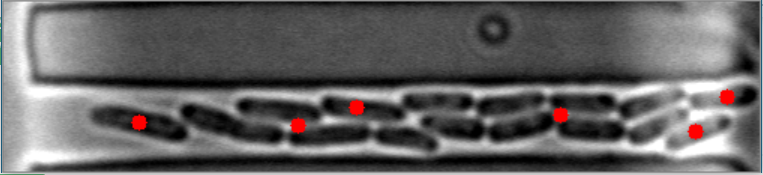

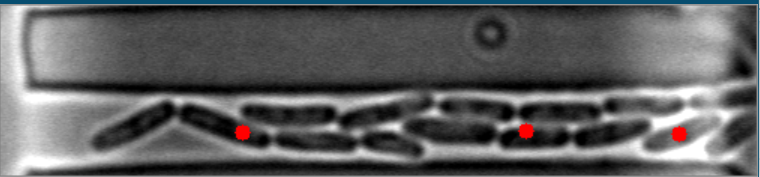

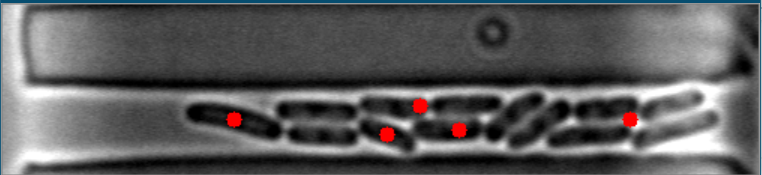

    # Finding center of bacteria and showing it.
    bacteriaImg = cv2.cvtColor(img, cv2.COLOR_GRAY2BGR)

    for bacteria in finalContours:
        M = cv2.moments(bacteria)
        cx = int(M['m10'] / M['m00'])
        cy = int(M['m01'] / M['m00'])

        bacteriaImg = cv2.circle(bacteriaImg, (cx, cy), 5, (0, 0, 255), -1)

    cv2.imshow("bacteriaImg", bacteriaImg)
    cv2.waitKey(0)

# Segment Each Image
for i in range(len(img_files)):
    segment_index(i)
