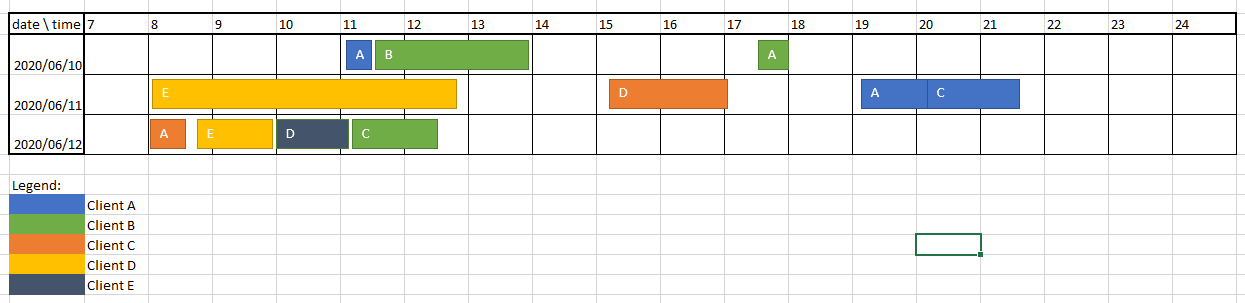

问如何在一个日期上创建一个具有多个起始点和结束点的条形图？

EN

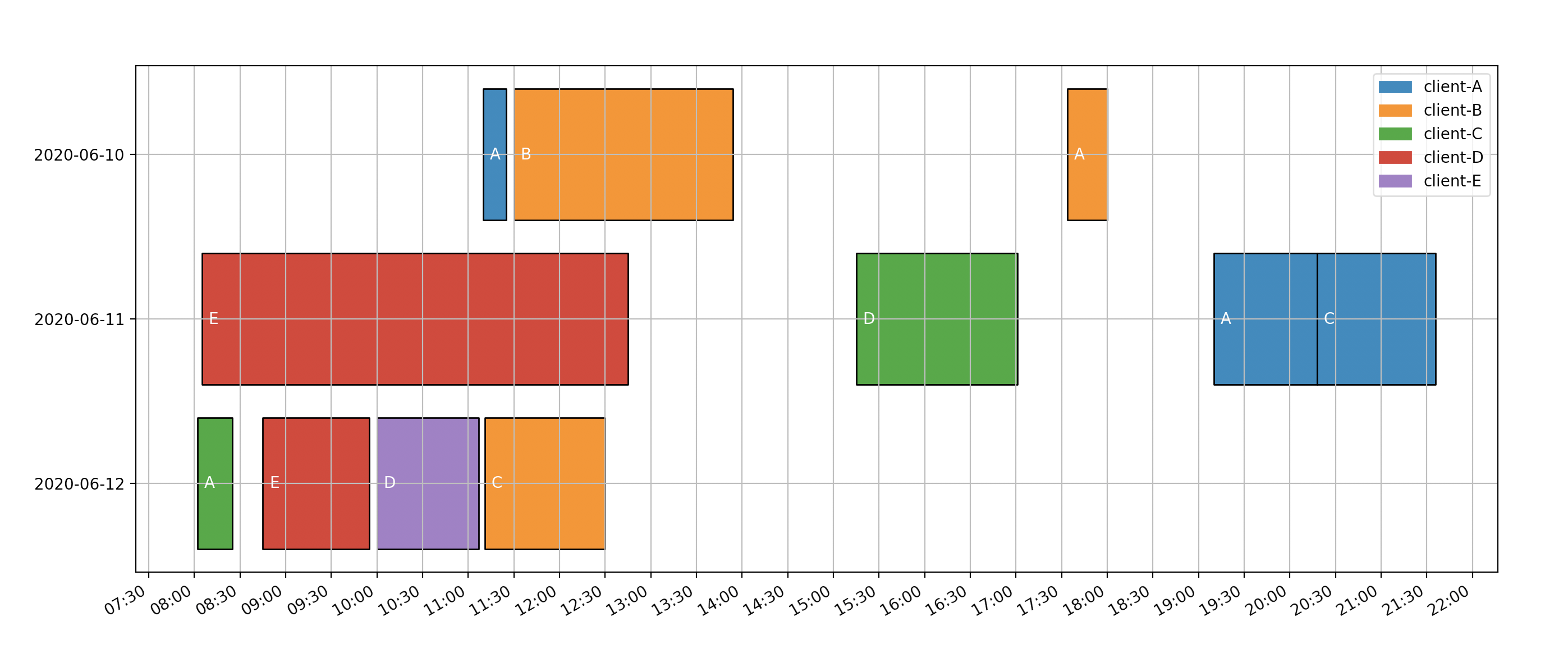

import numpy as np
import datetime as dt

import matplotlib.pyplot as plt
import matplotlib.dates as mdates
from matplotlib.collections import PolyCollection
import matplotlib.patches as mpatches

data = np.array(data)[1:, :]

days_list = sorted(list(set([date[:10] for date in data[:, 2]])))[::-1]
days = { day: i+1 for i, day in enumerate(days_list) }

clients = sorted(list(set(data[:, 0])))
colormapping = { client: f"C{i}" for i, client in enumerate(clients) }

start_times = [dt.datetime.strptime(date[11:], "%H:%M") for date in data[:, 2]]
end_times = [dt.datetime.strptime(date[11:], "%H:%M") for date in data[:, 3]]

verts, colors, texts = [], [], []
for i, d in enumerate(data):
    client, task, date_str = d[0], d[1], d[2]
    day_num = days[date_str[:10]]
    start_date = mdates.date2num(start_times[i])
    end_date = mdates.date2num(end_times[i])

    v = [(start_date, day_num - .4),
         (start_date, day_num + .4),
         (end_date, day_num + .4),
         (end_date, day_num - .4),
         (start_date, day_num - .4)
    ]
    verts.append(v)
    colors.append(colormapping[client])
    texts.append((start_date, day_num, task[-1].upper()))

# Make PolyCollection and scale
bars = PolyCollection(verts, facecolors=colors, edgecolors=("black",))
fig, ax = plt.subplots()
ax.add_collection(bars)
ax.autoscale()

# Set ticks to show every 30 minutes and in specific format
xticks = mdates.MinuteLocator(byminute=[0, 30])
ax.xaxis.set_major_locator(xticks)
ax.xaxis.set_major_formatter(mdates.DateFormatter("%H:%M"))
fig.autofmt_xdate()

# Set y-axis to be dates
ax.set_yticks(range(1, len(days_list) + 1))
ax.set_yticklabels(days_list)

# Add task text to plot
for (start_date, day_num, task) in texts:
    plt.text(start_date+.003, day_num-.03, task, color="w")

# Create legend based on clients
plt.legend(handles=[mpatches.Patch(color=color, label=client)
                    for client, color in colormapping.items()])

# Add grid and show
plt.grid()
plt.show()
