问C++ Win32为按钮显示具有透明背景的位图
EN

Stack Overflow用户
提问于 2020-04-20 18:03:15
回答 2查看 3.1K关注 0票数 0

我有一个按钮，这是子类，我希望它显示一个透明的背景位图。在搜索互联网时，我发现您必须使用函数AlphaBlend(我尝试过了，但这也不起作用)。我也看到了这个Visual 2013 C++中的位图透明度线程，我尝试了这些步骤，但是我做不到。只要我能得到带有透明背景图像的按钮，我就可以使用GDI或GDI+。示例：

​

​

这是我的代码--我知道它很乱，但是请拿出来，因为我尝试了很多事情来使它工作(有很多复制和粘贴)

更新:这是再次代码，但修剪没有所有的脂肪，是的，我尝试了WS_EX_LAYERED在这两个窗口。

代码语言：javascript
运行
复制
// CustomButton2.cpp : Defines the entry point for the application.
//

#include "framework.h"
#include "CustomButton2.h"
#include <commctrl.h>
#include <gdiplus.h>
#include <system_error>
#include "SkinClass/skin.h"
#define MAX_LOADSTRING 100
#define CRAPPY 567
#pragma comment(linker,"/manifestdependency:\"type='win32' name='Microsoft.Windows.Common-Controls' " "version='6.0.0.0' processorArchitecture='*' publicKeyToken='6595b64144ccf1df' language='*'\"")

// Global Variables:
HINSTANCE hInst;                                // current instance
WCHAR szTitle[MAX_LOADSTRING];                  // The title bar text
WCHAR szWindowClass[MAX_LOADSTRING];            // the main window class name
const char g_szClassName[] = "MyClassName";

// Forward declarations of functions included in this code module:
ATOM                MyRegisterClass(HINSTANCE hInstance);
void                RegisterClass1(HINSTANCE);
LRESULT CALLBACK    WndProc(HWND, UINT, WPARAM, LPARAM);





/// Turn given window into a layered window and load a bitmap from given resource ID
/// into it.
/// The window will be resized to fit the bitmap.
/// Bitmap must be 32bpp, top-down row order, premultiplied alpha.
///
/// \note For child windows, this requires Win 8 or newer OS
///       (and "supportedOS" element for Win 8 in application manifest)
///
/// \exception Throws std::system_error in case of any error.

void SetLayeredWindowFromBitmapResource(
    HWND hwnd, UINT bitmapResourceId, HINSTANCE hInstance = nullptr)
{
    // Enable "layered" mode for the child window. This enables full alpha channel
    // transparency.

    // GetWindowLong() won't reset the last error in case of success.
    // As we can't judge from the return value of GetWindowLong() alone if
    // the function was successful (0 may be returned even in case of
    // success), we must reset the last error to reliably detect errors.
    ::SetLastError(0);
    DWORD exStyle = ::GetWindowLong(hwnd, GWL_EXSTYLE);
    if (!exStyle)
    {
        // NOTE: Call GetLastError() IMMEDIATELY when a function's return value
        // indicates failure and it is documented that said function supports
        // GetLastError().
        // ANY other code (be it your own or library code) before the next line
        // must be avoided as it may invalidate the last error value.
        if (DWORD err = ::GetLastError())
            throw std::system_error(static_cast<int>(err),
                std::system_category(),
                "SetLayeredWindowFromBitmapResource: Could not get extended window style");
    }

    // SetWindowLong() won't reset the last error in case of success.
    // As we can't judge from the return value of GetWindowLong() alone if
    // the function was successful (0 may be returned even in case of
    // success), we must reset the last error to reliably detect errors.
    ::SetLastError(0);
    if (!::SetWindowLong(hwnd, GWL_EXSTYLE, exStyle | WS_EX_LAYERED))
    {
        if (DWORD err = ::GetLastError())
            throw std::system_error(static_cast<int>(err),
                std::system_category(),
                "SetLayeredWindowFromBitmapResource: Could not set extended window style");
    }

    // Use RAII ( https://en.wikipedia.org/wiki/Resource_acquisition_is_initialization )
    // to cleanup resources even in case of exceptions.
    // This greatly simplifies the code because now we don't have to manually cleanup the
    // resources at every location in the code where we throw an exception.
    struct Resources {
        HBITMAP hImage = nullptr;
        HGDIOBJ hOldImage = nullptr;
        HDC hMemDC = nullptr;

        // This destructor will be automatically called before the function
        // SetLayeredWindowFromBitmapResource() returns aswell as any locations
        // in the code where the "throw" keyword is used to throw an exception.
        ~Resources()
        {
            if (hMemDC)
            {
                if (hOldImage)
                    ::SelectObject(hMemDC, hOldImage);
                ::DeleteDC(hMemDC);
            }
            if (hImage)
                ::DeleteObject(hImage);
        }
    } res;

    // Make it possible to use nullptr as an argument for the hInstance parameter of
    // this function. This means we will load the resources from the current executable
    // (instead of another DLL).
    if (!hInstance)
        hInstance = ::GetModuleHandle(nullptr);

    // Load bitmap with alpha channel from resource.
    // Flag LR_CREATEDIBSECTION is required to create a device-independent bitmap that
    // preserves the alpha channel.
    res.hImage = reinterpret_cast<HBITMAP>(::LoadImage(
        hInstance, MAKEINTRESOURCE(bitmapResourceId), IMAGE_BITMAP,
        0, 0, LR_CREATEDIBSECTION));
    if (!res.hImage)
    {
        DWORD err = ::GetLastError();
        throw std::system_error(static_cast<int>(err),
            std::system_category(),
            "SetLayeredWindowFromBitmapResource: Could not load bitmap resource");
    }

    // Get bitmap information (width, height, etc.)
    BITMAP imgInfo{ 0 };
    if (!::GetObject(res.hImage, sizeof(imgInfo), &imgInfo))
    {
        DWORD err = ::GetLastError();
        throw std::system_error(static_cast<int>(err),
            std::system_category(),
            "SetLayeredWindowFromBitmapResource: Could not get bitmap information");
    }

    if (imgInfo.bmBitsPixel != 32 || imgInfo.bmPlanes != 1)
    {
        // Use a constant error value here because this is our own error condition.
        // Of course GetLastError() wouldn't return anything useful in this case.
        DWORD err = ERROR_INVALID_DATA;
        throw std::system_error(err, std::system_category(),
            "SetLayeredWindowFromBitmapResource: bitmap must be 32 bpp, single plane");
    }

    // Create a memory DC that will be associated with the image.
    // UpdateLayeredWindow() can't use image directly, it must be in a memory DC.
    res.hMemDC = ::CreateCompatibleDC(nullptr);
    if (!res.hMemDC)
    {
        DWORD err = ::GetLastError();
        throw std::system_error(static_cast<int>(err),
            std::system_category(),
            "SetLayeredWindowFromBitmapResource: Could not create memory DC");
    }

    res.hOldImage = ::SelectObject(res.hMemDC, res.hImage);
    if (!res.hOldImage)
    {
        DWORD err = ::GetLastError();
        throw std::system_error(static_cast<int>(err),
            std::system_category(),
            "SetLayeredWindowFromBitmapResource: Could not select bitmap into memory DC");
    }

    // Assign the image to the child window, making it transparent.
    SIZE size{ imgInfo.bmWidth, imgInfo.bmHeight };
    POINT ptSrc{ 0, 0 };
    BLENDFUNCTION blend{ AC_SRC_OVER, 0, 255, AC_SRC_ALPHA };
    if (!::UpdateLayeredWindow(hwnd, nullptr, nullptr, &size, res.hMemDC, &ptSrc,
        0, &blend, ULW_ALPHA))
    {
        DWORD err = ::GetLastError();
        throw std::system_error(static_cast<int>(err),
            std::system_category(),
            "SetLayeredWindowFromBitmapResource: Could not update layered window");
    }

    // Destructor of res object will cleanup resources here!
}



int APIENTRY wWinMain(_In_ HINSTANCE hInstance,
                     _In_opt_ HINSTANCE hPrevInstance,
                     _In_ LPWSTR    lpCmdLine,
                     _In_ int       nCmdShow)
{
    UNREFERENCED_PARAMETER(hPrevInstance);
    UNREFERENCED_PARAMETER(lpCmdLine);

    // TODO: Place code here.
    RegisterClass1(hInstance);
    HWND hWnd = CreateWindowExA(WS_EX_LAYERED, g_szClassName, "Scenes", WS_OVERLAPPEDWINDOW | WS_EX_LAYERED, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, NULL, NULL,
    hInstance, NULL);

    HWND hButton = CreateWindow(TEXT("BUTTON"), TEXT("START EDITING!"), WS_CHILD | WS_VISIBLE | BS_OWNERDRAW | WS_EX_LAYERED, 1, 1,228, 228,
        hWnd, (HMENU)CRAPPY, NULL, NULL);

    //SetLayeredWindowFromBitmapResource(hButton, ID_THECIRCLE, hInstance);
    SetLayeredWindowAttributes(hWnd, 0, 249, LWA_ALPHA);

    ShowWindow(hWnd, nCmdShow);
    UpdateWindow(hWnd);
    SetLayeredWindowFromBitmapResource(hButton, ID_THECIRCLE);

    MSG msg;

    // Main message loop:
    while (GetMessage(&msg, nullptr, 0, 0))
    {
            TranslateMessage(&msg);
            DispatchMessage(&msg);

    }

    return (int) msg.wParam;
}


//
//   FUNCTION: RegisterClass1()
//
//   PURPOSE: Registers the class
//
//   COMMENTS:
//
//
//
//

void RegisterClass1(HINSTANCE hInstance) {
    WNDCLASSEXA wc;
    wc.cbSize = sizeof(WNDCLASSEX);
    wc.cbClsExtra = 0;
    wc.cbWndExtra = 0;
    //wc.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
    wc.hbrBackground = CreateSolidBrush(RGB(255, 0, 0));
    wc.hCursor = LoadCursor(NULL, IDC_ARROW);
    wc.hIcon = LoadIcon(NULL, IDI_APPLICATION);
    wc.hIconSm = LoadIcon(NULL, IDI_APPLICATION);
    wc.hInstance = hInstance;
    wc.lpfnWndProc = WndProc;
    wc.lpszClassName = g_szClassName;
    wc.lpszMenuName = "MENU";
    wc.style = CS_HREDRAW | CS_VREDRAW;

    if (!RegisterClassEx(&wc))
    {
        MessageBox(NULL, "Window Registration Failed!", "Error!",
            MB_ICONEXCLAMATION | MB_OK);

    }

}



//
//  FUNCTION: WndProc(HWND, UINT, WPARAM, LPARAM)
//
//  PURPOSE: Processes messages for the main window.
//
//  WM_COMMAND  - process the application menu
//  WM_PAINT    - Paint the main window
//  WM_DESTROY  - post a quit message and return
//
//
LRESULT CALLBACK WndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
{
    switch (message)
    {
    case WM_COMMAND:
        {
            int wmId = LOWORD(wParam);
            // Parse the menu selections:
            switch (wmId)
            {
            case IDM_ABOUT:
                break;
            case IDM_EXIT:
                DestroyWindow(hWnd);
                break;
            default:
                return DefWindowProc(hWnd, message, wParam, lParam);
            }
        }
        break;
    case WM_PAINT:
        {
            PAINTSTRUCT ps;
            HDC hdc = BeginPaint(hWnd, &ps);
            // TODO: Add any drawing code that uses hdc here...
            EndPaint(hWnd, &ps);
        }
        break;
    case WM_DESTROY:
        PostQuitMessage(0);
        break;
    default:
        return DefWindowProc(hWnd, message, wParam, lParam);
    }
    return 0;
}
c++
winapi
bitmap
transparency
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2020-04-21 07:59:23

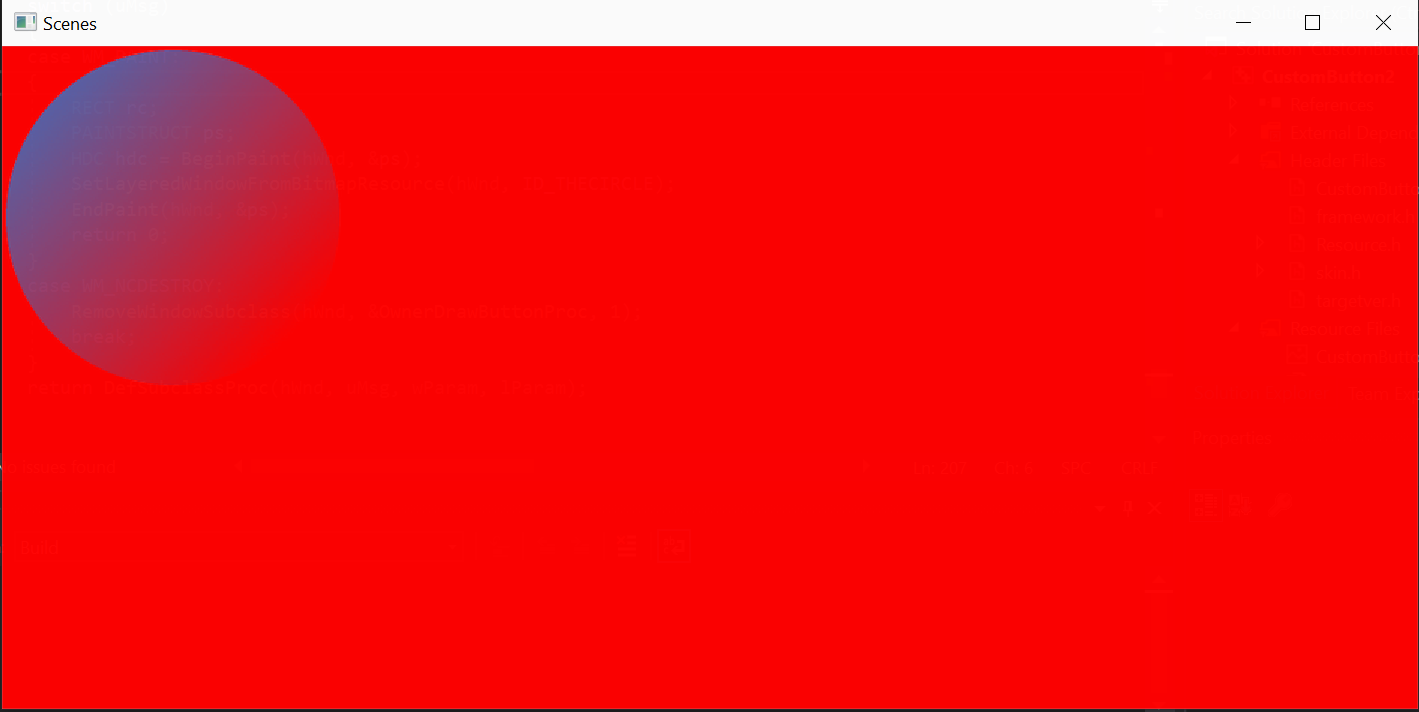

从窗口8开始，WS_EX_LAYERED可以用于子控件。

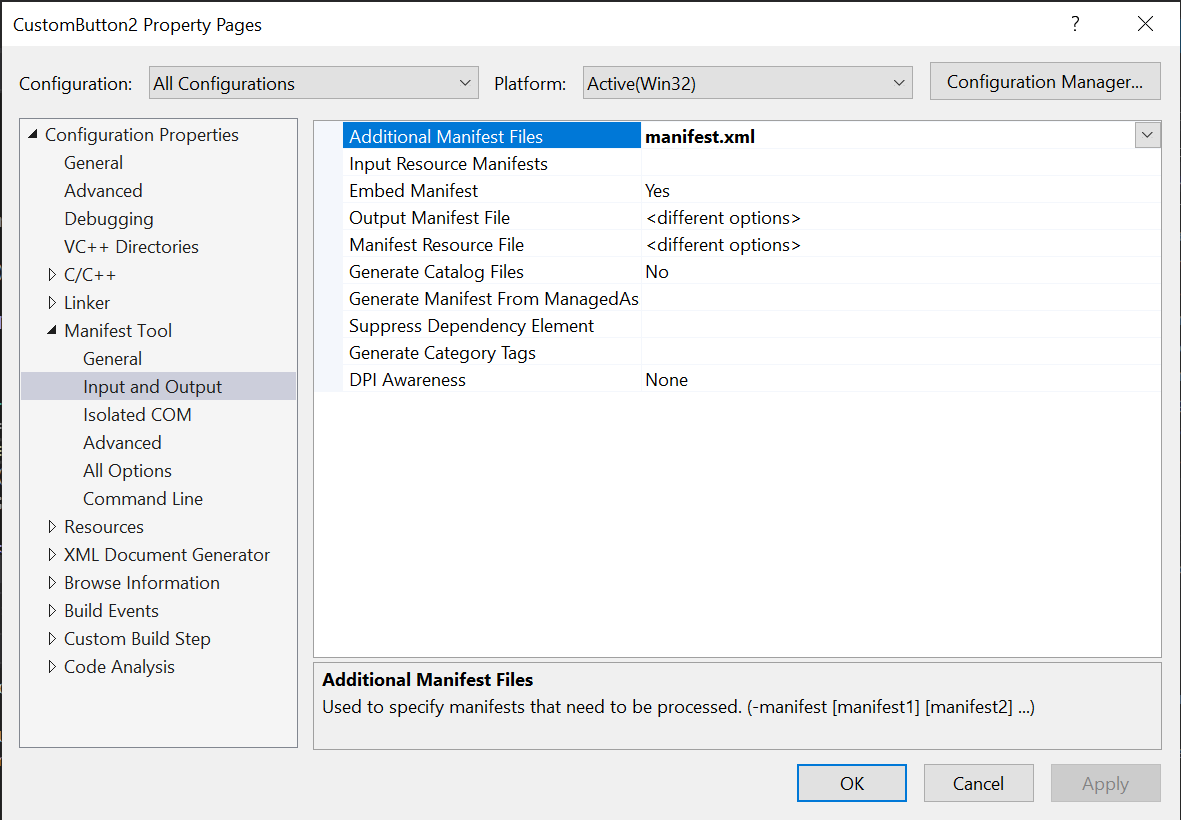

方法:需要一个清单文件来指定至少窗口8的兼容性(子层只支持窗口8)。

参考：针对Windows的应用程序

代码示例：(错误检查已被删除)

代码语言：javascript
运行
复制
// Test_CustomButton.cpp : Defines the entry point for the application.
//

#include "framework.h"
#include "Test_CustomButton.h"
#include <commctrl.h>
#include <system_error>

#pragma comment (lib,"Comctl32.lib")

#define MAX_LOADSTRING 100
#define IDC_OWNERDRAWBUTTON 101
#define CRAPPY 567

// Global Variables:
HINSTANCE hInst;                                // current instance
WCHAR szTitle[MAX_LOADSTRING];                  // The title bar text
WCHAR szWindowClass[MAX_LOADSTRING];            // the main window class name

// Forward declarations of functions included in this code module:
ATOM                MyRegisterClass(HINSTANCE hInstance);
BOOL                InitInstance(HINSTANCE, int);
LRESULT CALLBACK    WndProc(HWND, UINT, WPARAM, LPARAM);
INT_PTR CALLBACK    About(HWND, UINT, WPARAM, LPARAM);
LRESULT CALLBACK OwnerDrawButtonProc(HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, UINT_PTR uIdSubclass, DWORD_PTR dwRefData);

void SetLayeredWindowFromBitmapResource(
    HWND hwnd, UINT bitmapResourceId, HINSTANCE hInstance = nullptr)
{
    DWORD exStyle = ::GetWindowLong(hwnd, GWL_EXSTYLE);

    SetWindowLong(hwnd, GWL_EXSTYLE, exStyle | WS_EX_LAYERED);

    struct Resources {
        HBITMAP hImage = nullptr;
        HGDIOBJ hOldImage = nullptr;
        HDC hMemDC = nullptr;
        ~Resources()
        {
            if (hMemDC)
            {
                if (hOldImage)
                    ::SelectObject(hMemDC, hOldImage);
                ::DeleteDC(hMemDC);
            }
            if (hImage)
                ::DeleteObject(hImage);
        }
    } res;

    if (!hInstance)
        hInstance = ::GetModuleHandle(nullptr);

    res.hImage = reinterpret_cast<HBITMAP>(::LoadImage(
        hInstance, MAKEINTRESOURCE(bitmapResourceId), IMAGE_BITMAP,
        0, 0, LR_CREATEDIBSECTION));

    BITMAP imgInfo{ 0 };
    GetObject(res.hImage, sizeof(imgInfo), &imgInfo);

    res.hMemDC = ::CreateCompatibleDC(nullptr);
    res.hOldImage = ::SelectObject(res.hMemDC, res.hImage);

    // Assign the image to the child window, making it transparent.
    SIZE size{ imgInfo.bmWidth, imgInfo.bmHeight };
    POINT ptSrc{ 0, 0 };
    BLENDFUNCTION blend{ AC_SRC_OVER, 0, 200, AC_SRC_ALPHA };
    UpdateLayeredWindow(hwnd, nullptr, nullptr, &size, res.hMemDC, &ptSrc,
        0, &blend, ULW_ALPHA);

    // Destructor of res object will cleanup resources here!
}

int APIENTRY wWinMain(_In_ HINSTANCE hInstance,
                     _In_opt_ HINSTANCE hPrevInstance,
                     _In_ LPWSTR    lpCmdLine,
                     _In_ int       nCmdShow)
{
    UNREFERENCED_PARAMETER(hPrevInstance);
    UNREFERENCED_PARAMETER(lpCmdLine);

    LoadStringW(hInstance, IDS_APP_TITLE, szTitle, MAX_LOADSTRING);
    LoadStringW(hInstance, IDC_TESTCUSTOMBUTTON, szWindowClass, MAX_LOADSTRING);
    MyRegisterClass(hInstance);

    if (!InitInstance (hInstance, nCmdShow))
    {
        return FALSE;
    }

    HACCEL hAccelTable = LoadAccelerators(hInstance, MAKEINTRESOURCE(IDC_TESTCUSTOMBUTTON));

    MSG msg;

    while (GetMessage(&msg, nullptr, 0, 0))
    {
        if (!TranslateAccelerator(msg.hwnd, hAccelTable, &msg))
        {
            TranslateMessage(&msg);
            DispatchMessage(&msg);
        }
    }

    return (int) msg.wParam;
}

ATOM MyRegisterClass(HINSTANCE hInstance)
{
    WNDCLASSEXW wcex;

    wcex.cbSize = sizeof(WNDCLASSEX);

    wcex.style          = CS_HREDRAW | CS_VREDRAW;
    wcex.lpfnWndProc    = WndProc;
    wcex.cbClsExtra     = 0;
    wcex.cbWndExtra     = 0;
    wcex.hInstance      = hInstance;
    wcex.hIcon          = LoadIcon(hInstance, MAKEINTRESOURCE(IDI_TESTCUSTOMBUTTON));
    wcex.hCursor        = LoadCursor(nullptr, IDC_ARROW);
    wcex.hbrBackground  = (HBRUSH)(COLOR_WINDOW+1);
    wcex.lpszMenuName   = MAKEINTRESOURCEW(IDC_TESTCUSTOMBUTTON);
    wcex.lpszClassName  = szWindowClass;
    wcex.hIconSm        = LoadIcon(wcex.hInstance, MAKEINTRESOURCE(IDI_SMALL));

    return RegisterClassExW(&wcex);
}

BOOL InitInstance(HINSTANCE hInstance, int nCmdShow)
{
   hInst = hInstance; // Store instance handle in our global variable

   HWND hWnd = CreateWindowW(szWindowClass, szTitle, WS_OVERLAPPEDWINDOW,
      CW_USEDEFAULT, 0, CW_USEDEFAULT, 0, nullptr, nullptr, hInstance, nullptr);

   ShowWindow(hWnd, nCmdShow);
   UpdateWindow(hWnd);

   if (!hWnd)
   {
      return FALSE;
   }

   ShowWindow(hWnd, nCmdShow);
   UpdateWindow(hWnd);

   return TRUE;
}

LRESULT CALLBACK WndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
{

    switch (message)
    {
    case WM_CREATE:
    {
        HWND hButton = CreateWindowEx(0, L"button", NULL, WS_CHILD | WS_VISIBLE | BS_OWNERDRAW, 150, 50, 80, 80, hWnd, (HMENU)IDC_OWNERDRAWBUTTON, hInst, NULL);
        SetWindowSubclass(hButton, &OwnerDrawButtonProc, IDC_OWNERDRAWBUTTON, 0);
    }
    break;
    case WM_COMMAND:
        {
            int wmId = LOWORD(wParam);
            // Parse the menu selections:
            switch (wmId)
            {
            case IDM_ABOUT:
                DialogBox(hInst, MAKEINTRESOURCE(IDD_ABOUTBOX), hWnd, About);
                break;
            case IDM_EXIT:
                DestroyWindow(hWnd);
                break;
            default:
                return DefWindowProc(hWnd, message, wParam, lParam);
            }
        }
        break;
    case WM_PAINT:
        {
            PAINTSTRUCT ps;
            HDC hdc = BeginPaint(hWnd, &ps);
            // Used be test
            HPEN hPen = CreatePen(PS_SOLID, 2, RGB(255, 0, 0));
            SelectObject(hdc, hPen);
            MoveToEx(hdc, 150, 150, NULL);
            LineTo(hdc, 200, 60);
            LineTo(hdc, 250, 150);
            LineTo(hdc, 150, 150);
            EndPaint(hWnd, &ps);
        }
        break;
    case WM_DESTROY:
        PostQuitMessage(0);
        break;
    default:
        return DefWindowProc(hWnd, message, wParam, lParam);
    }
    return 0;
}

// Message handler for about box.
INT_PTR CALLBACK About(HWND hDlg, UINT message, WPARAM wParam, LPARAM lParam)
{
    UNREFERENCED_PARAMETER(lParam);
    switch (message)
    {
    case WM_INITDIALOG:
        return (INT_PTR)TRUE;

    case WM_COMMAND:
        if (LOWORD(wParam) == IDOK || LOWORD(wParam) == IDCANCEL)
        {
            EndDialog(hDlg, LOWORD(wParam));
            return (INT_PTR)TRUE;
        }
        break;
    }
    return (INT_PTR)FALSE;
}

LRESULT CALLBACK OwnerDrawButtonProc(HWND hWnd, UINT uMsg, WPARAM wParam,
    LPARAM lParam, UINT_PTR uIdSubclass, DWORD_PTR dwRefData)
{
    switch (uMsg)
    {
    case WM_PAINT:
    {
        RECT rc;
        PAINTSTRUCT ps;
        HDC hdc = BeginPaint(hWnd, &ps);
        SetLayeredWindowFromBitmapResource(hWnd, IDB_BITMAP1);
        EndPaint(hWnd, &ps);
        return 0;
    }
    case WM_NCDESTROY:
        RemoveWindowSubclass(hWnd, &OwnerDrawButtonProc, 1);
        break;
    }
    return DefSubclassProc(hWnd, uMsg, wParam, lParam);
}

调试：

​

​

注：

当我测试时，我发现需要满足以下条件：

  • 要加载的图像必须是32 bpp，自上而下的位图，加上预乘的alpha通道. 这是我给你考试的32 bpp图像。
  • 正如我在开始时所说的，您需要添加一个清单文件，您可以自己创建一个.manifest文件。然后将其添加到编译器中。
  • 您只需要将WS_EX_LAYERED样式添加到子控件中，因为您的要求是使按钮透明。
票数 1
EN

Stack Overflow用户

发布于 2020-04-21 18:23:33

在我的例子中，所提供的代码不起作用，因为它抛出了一个异常，并且我没有正确地添加清单文件。我想指出以下几点：

用gimp制作的位图图像不起作用；使用我在问题中链接的线程中建议的内容，这将是PixelFormer。在像素前的go "file“中，然后”导入“并选择您的文件(在我的例子中，它是透明的png的圆圈)。接下来，转到“导出”，并选择位图bmp (windows位图它会说)。一旦您这样做，已经8:R8:G8:B8 (32bpp)将被选中，您必须下一个勾选最后两个框“Pre相乘Alpha”和“自上而下的行顺序”。必须说的是，图像确实有一个alpha通道，而且是透明的。不要被蒙蔽在油漆中，你看到一个黑色的背景，你认为透明不存在--在那里，透明度是有效的.如果你打开它在photoshop (我想)或一个诡辩的图像编辑程序，你会看到一个透明的背景在您的图像。

manifest.xml

代码语言：javascript
运行
复制
<assembly xmlns="urn:schemas-microsoft-com:asm.v1" manifestVersion="1.0">
  <compatibility xmlns="urn:schemas-microsoft-com:compatibility.v1">
    <application>
        <!-- Windows 10 -->
        <supportedOS Id="{8e0f7a12-bfb3-4fe8-b9a5-48fd50a15a9a}"/>
        <!-- Windows 8.1 -->
        <supportedOS Id="{1f676c76-80e1-4239-95bb-83d0f6d0da78}"/>
        <!-- Windows 8 -->
        <supportedOS Id="{4a2f28e3-53b9-4441-ba9c-d69d4a4a6e38}"/>
        <!-- Windows 7 -->
        <supportedOS Id="{35138b9a-5d96-4fbd-8e2d-a2440225f93a}"/>
        <!-- Windows Vista -->
        <supportedOS Id="{e2011457-1546-43c5-a5fe-008deee3d3f0}"/>
    </application>
  </compatibility>
  <dependency>
    <dependentAssembly>
        <assemblyIdentity
            type="win32"
            name="Microsoft.Windows.Common-Controls"
            version="6.0.0.0"
            processorArchitecture="*"
            publicKeyToken="6595b64144ccf1df"
            language="*"
        />
    </dependentAssembly>
  </dependency>
</assembly>

复制上面的内容并将其保存为manifest.xml

我想指出的另一件事是添加一个清单输入文件:在我的例子中，我必须将它添加到C:\Users\Rubel\source\repos\CustomButton2\CustomButton2中，因此，无论谁将来要查看这个文件，都要用您的项目目录来替换；例如，C：\User\blah\source\repos\repos\blah\blah(使用您的东西的名称)。将清单文件粘贴到那里(目录中)。

然后，您必须将其添加到中。通过右键单击解决方案资源管理器中的项目(在我的例子中是CustomButton2 )并转到"Input“中的"Manifest”，您就可以做到这一点。在这里输入“附加清单文件”清单文件的路径(在我的例子中是manifest.xml，但是如果您正在跟踪，那么您的路径也应该是这样)

然后点击ok。

就是这样，如果您使用的代码(力求Sun - MSFT )，它应该可以工作。这是我的最后代码，如果有人感兴趣的话：

代码语言：javascript
运行
复制
// CustomButton2.cpp : Defines the entry point for the application.
//

#include "framework.h"
#include "CustomButton2.h"
#include <commctrl.h>
#include <gdiplus.h>
#include <system_error>
#define MAX_LOADSTRING 100
#define CRAPPY 567
#define IDC_OWNERDRAWBUTTON 101
#pragma comment(linker,"/manifestdependency:\"type='win32' name='Microsoft.Windows.Common-Controls' " "version='6.0.0.0' processorArchitecture='*' publicKeyToken='6595b64144ccf1df' language='*'\"")

// Global Variables:
HINSTANCE hInst;                                // current instance
WCHAR szTitle[MAX_LOADSTRING];                  // The title bar text
WCHAR szWindowClass[MAX_LOADSTRING];            // the main window class name
const char g_szClassName[] = "MyClassName";

// Forward declarations of functions included in this code module:
ATOM                MyRegisterClass(HINSTANCE hInstance);
void                RegisterClass1(HINSTANCE);
LRESULT CALLBACK    WndProc(HWND, UINT, WPARAM, LPARAM);
LRESULT CALLBACK OwnerDrawButtonProc(HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, UINT_PTR uIdSubclass, DWORD_PTR dwRefData);


void SetLayeredWindowFromBitmapResource(
    HWND hwnd, UINT bitmapResourceId, HINSTANCE hInstance = nullptr)
{
    DWORD exStyle = ::GetWindowLong(hwnd, GWL_EXSTYLE);

    SetWindowLong(hwnd, GWL_EXSTYLE, exStyle | WS_EX_LAYERED);

    struct Resources {
        HBITMAP hImage = nullptr;
        HGDIOBJ hOldImage = nullptr;
        HDC hMemDC = nullptr;
        ~Resources()
        {
            if (hMemDC)
            {
                if (hOldImage)
                    ::SelectObject(hMemDC, hOldImage);
                ::DeleteDC(hMemDC);
            }
            if (hImage)
                ::DeleteObject(hImage);
        }
    } res;

    if (!hInstance)
        hInstance = ::GetModuleHandle(nullptr);

    res.hImage = reinterpret_cast<HBITMAP>(::LoadImage(
        hInstance, MAKEINTRESOURCE(bitmapResourceId), IMAGE_BITMAP,
        0, 0, LR_CREATEDIBSECTION));

    BITMAP imgInfo{ 0 };
    GetObject(res.hImage, sizeof(imgInfo), &imgInfo);

    res.hMemDC = ::CreateCompatibleDC(nullptr);
    res.hOldImage = ::SelectObject(res.hMemDC, res.hImage);

    // Assign the image to the child window, making it transparent.
    SIZE size{ imgInfo.bmWidth, imgInfo.bmHeight };
    POINT ptSrc{ 0, 0 };
    BLENDFUNCTION blend{ AC_SRC_OVER, 0, 200, AC_SRC_ALPHA };
    UpdateLayeredWindow(hwnd, nullptr, nullptr, &size, res.hMemDC, &ptSrc,
        0, &blend, ULW_ALPHA);

    // Destructor of res object will cleanup resources here!
}




int APIENTRY wWinMain(_In_ HINSTANCE hInstance,
                     _In_opt_ HINSTANCE hPrevInstance,
                     _In_ LPWSTR    lpCmdLine,
                     _In_ int       nCmdShow)
{
    UNREFERENCED_PARAMETER(hPrevInstance);
    UNREFERENCED_PARAMETER(lpCmdLine);

    // TODO: Place code here.
    RegisterClass1(hInstance);
    HWND hWnd = CreateWindowExA(WS_EX_LAYERED, g_szClassName, "Scenes", WS_OVERLAPPEDWINDOW | WS_EX_LAYERED, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, NULL, NULL,
    hInstance, NULL);

    HWND hButton = CreateWindow(TEXT("BUTTON"), TEXT("START EDITING!"), WS_CHILD | WS_VISIBLE | BS_OWNERDRAW | WS_EX_LAYERED, 1, 1,228, 228,
        hWnd, (HMENU)CRAPPY, NULL, NULL);

    SetWindowSubclass(hButton, &OwnerDrawButtonProc, IDC_OWNERDRAWBUTTON, 0);
    //SetLayeredWindowFromBitmapResource(hButton, ID_THECIRCLE, hInstance);
    SetLayeredWindowAttributes(hWnd, 0, 249, LWA_ALPHA);

    ShowWindow(hWnd, nCmdShow);
    UpdateWindow(hWnd);
    //SetLayeredWindowFromBitmapResource(hButton, ID_THECIRCLE);

    MSG msg;

    // Main message loop:
    while (GetMessage(&msg, nullptr, 0, 0))
    {
            TranslateMessage(&msg);
            DispatchMessage(&msg);

    }

    return (int) msg.wParam;
}


//
//   FUNCTION: RegisterClass1()
//
//   PURPOSE: Registers the class
//
//   COMMENTS:
//
//
//
//

void RegisterClass1(HINSTANCE hInstance) {
    WNDCLASSEXA wc;
    wc.cbSize = sizeof(WNDCLASSEX);
    wc.cbClsExtra = 0;
    wc.cbWndExtra = 0;
    //wc.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
    wc.hbrBackground = CreateSolidBrush(RGB(255, 0, 0));
    wc.hCursor = LoadCursor(NULL, IDC_ARROW);
    wc.hIcon = LoadIcon(NULL, IDI_APPLICATION);
    wc.hIconSm = LoadIcon(NULL, IDI_APPLICATION);
    wc.hInstance = hInstance;
    wc.lpfnWndProc = WndProc;
    wc.lpszClassName = g_szClassName;
    wc.lpszMenuName = "MENU";
    wc.style = CS_HREDRAW | CS_VREDRAW;

    if (!RegisterClassEx(&wc))
    {
        MessageBox(NULL, "Window Registration Failed!", "Error!",
            MB_ICONEXCLAMATION | MB_OK);

    }

}



//
//  FUNCTION: WndProc(HWND, UINT, WPARAM, LPARAM)
//
//  PURPOSE: Processes messages for the main window.
//
//  WM_COMMAND  - process the application menu
//  WM_PAINT    - Paint the main window
//  WM_DESTROY  - post a quit message and return
//
//
LRESULT CALLBACK WndProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
{
    switch (message)
    {
    case WM_COMMAND:
        {
            int wmId = LOWORD(wParam);
            // Parse the menu selections:
            switch (wmId)
            {
            case IDM_ABOUT:
                break;
            case IDM_EXIT:
                DestroyWindow(hWnd);
                break;
            default:
                return DefWindowProc(hWnd, message, wParam, lParam);
            }
        }
        break;
    case WM_PAINT:
        {
            PAINTSTRUCT ps;
            HDC hdc = BeginPaint(hWnd, &ps);
            // TODO: Add any drawing code that uses hdc here...
            EndPaint(hWnd, &ps);
        }
        break;
    case WM_DESTROY:
        PostQuitMessage(0);
        break;
    default:
        return DefWindowProc(hWnd, message, wParam, lParam);
    }
    return 0;
}

LRESULT CALLBACK OwnerDrawButtonProc(HWND hWnd, UINT uMsg, WPARAM wParam,
    LPARAM lParam, UINT_PTR uIdSubclass, DWORD_PTR dwRefData)
{
    switch (uMsg)
    {
    case WM_PAINT:
    {
        RECT rc;
        PAINTSTRUCT ps;
        HDC hdc = BeginPaint(hWnd, &ps);
        SetLayeredWindowFromBitmapResource(hWnd, ID_THECIRCLE);
        EndPaint(hWnd, &ps);
        return 0;
    }
    case WM_NCDESTROY:
        RemoveWindowSubclass(hWnd, &OwnerDrawButtonProc, 1);
        break;
    }
    return DefSubclassProc(hWnd, uMsg, wParam, lParam);
}

正在运行的应用程序：

​

我知道这是冗长的，但我希望对遇到这件事的人来说很容易，这样他们就知道怎么做了。

票数 0
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/61329053

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
