SystemVerilog：$urandom_range给出超出范围的值
SystemVerilog：$urandom_range给出超出范围的值
提问于 2020-04-13 21:15:24
在ModelSim中，我遇到了一个奇怪的问题，我将输入变量设置为一个范围内的随机值，但出于某种原因，我得到了一个超出范围的值。我的所有代码都包含在下面，但基本行是：
write_addrs[i] = $urandom_range(1,NUM_ARCH_REGS);

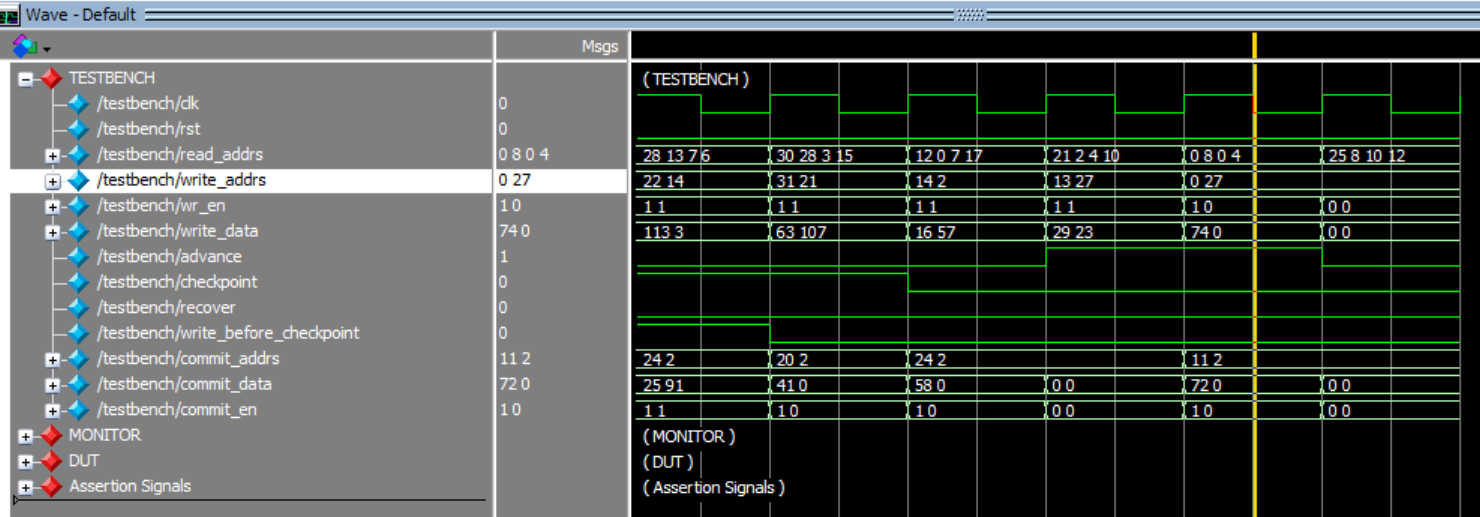

在ModelSim中，当它不应该被分配给0时(如波形所示；突出显示的信号).
让我困惑的是，除了在write_adresses块中设置初始信号时，除了之外，我从来没有将INITIAL_VECTOR_VALUES设置为零。我只使用显式排除数字0的范围的$urandom_range函数来修改变量。
我写入该变量的主要代码块如下：
initial begin : INITIAL_VECTOR_VALUES
advance = 0;
checkpoint = 0;
recover = 0;
write_before_checkpoint = 0;
for (int i = 0; i < NUM_READ_PORTS; i++)
read_addrs[i] = 0;
for (int i = 0; i < NUM_WRITE_PORTS; i++) begin
write_addrs[i] = 0; //<--------------------- HERE!!!
wr_en[i] = 0;
write_data[i] = 0;
commit_en[i] = 0;
commit_data[i] = 0;
commit_addrs[i]= 0;
end
end..。在这里：
task random_operations(int repeat_num);
//local vars
int operation_select, num_write, num_commit;
int current_checkpoints;
int loop_idx;
##5;
current_checkpoints = 0; //initialize
$display("Begin Random Operations @ %0t", $time());
while (loop_idx < repeat_num) begin
... other stuff ...
//operand select (sets the stimulus inputs)
for (int k = 0; k < num_write; k++) begin
write_addrs[k] = $urandom_range(1,NUM_ARCH_REGS); //<--------------------- HERE!!!
$display("%0t: num_write = %0d",$time(), num_write);
$display("%0t: write_addrs[%0d] = %0d", $time(), k, write_addrs[k]);
write_data[k] = $urandom_range(1,128);
wr_en[k] = 1;
end
...
loop_idx++;
##1;
//reset signals (reset stimulus inputs)
...
end : end_while
endtask : random_operations有人知道为什么会发生这种事吗？
参考码
`timescale 1ns/1ns
module testbench;
localparam int NUM_CHECKPOINTS = 8;
localparam int NUM_ARCH_REGS = 32;
localparam int NUM_READ_PORTS = 4;
localparam int NUM_WRITE_PORTS = 2;
logic clk;
logic rst;
initial begin : CLOCK_INIT
clk = 1'b0;
forever #5 clk = ~clk;
end
default clocking tb_clk @(posedge clk); endclocking
logic [$clog2(32)-1:0] read_addrs [4];
logic [$clog2(32)-1:0] write_addrs [2];
logic wr_en [2];
logic advance; //moves tail pointer forward
logic checkpoint; //moves head pointer forward
logic recover; //moves head pointer backward (to tail)
logic write_before_checkpoint;
logic [$clog2(32)-1:0] commit_addrs [2];
logic [$clog2(128)-1:0] commit_data [2];
logic commit_en [2];
logic [$clog2(128)-1:0] write_data [2];
logic [$clog2(128)-1:0] read_data [4];
logic [$clog2(128)-1:0] write_evict_data [2];
logic enable_assertions;
cfc_rat dut(.*);
shadow_rat rat_monitor(.*);
initial begin : INITIAL_VECTOR_VALUES
advance = 0;
checkpoint = 0;
recover = 0;
write_before_checkpoint = 0;
for (int i = 0; i < NUM_READ_PORTS; i++)
read_addrs[i] = 0;
for (int i = 0; i < NUM_WRITE_PORTS; i++) begin
write_addrs[i] = 0;
wr_en[i] = 0;
write_data[i] = 0;
commit_en[i] = 0;
commit_data[i] = 0;
commit_addrs[i]= 0;
end
end
task reset();
rst = 1;
##2;
rst = 0;
##1;
endtask : reset
task random_operations(int repeat_num);
//local vars
int operation_select, num_write, num_commit;
int current_checkpoints;
int loop_idx;
##5;
current_checkpoints = 0; //initialize
$display("Begin Random Operations @ %0t", $time());
while (loop_idx < repeat_num) begin
operation_select = (loop_idx < 5) ? 1 : ((dut.dfa.chkpt_empty) ? $urandom_range(0,1) : ((dut.dfa.chkpt_full) ? 1 : $urandom_range(0,2)));
num_write = $urandom_range(0,NUM_WRITE_PORTS);
num_commit = $urandom_range(0,NUM_WRITE_PORTS);
case (operation_select)
0: begin //checkpoint
if (current_checkpoints+1 < NUM_CHECKPOINTS) begin
$display("Checkpoint @ %0t", $time());
write_before_checkpoint = $urandom_range(0,1);
checkpoint = 1;
current_checkpoints++;
end
else begin
loop_idx--;
continue;
end
end
1: $display("Normal RW @ %0t",$time()); //no operation, only read and write
2: begin //advance
if (current_checkpoints > 0) begin
advance = 1;
$display("Advance @ %0t", $time());
current_checkpoints--;
end
else begin
loop_idx--;
continue;
end
end
3: begin //recover
$display("Recover @ %0t", $time());
recover = 1;
current_checkpoints = 0;
end
default:;
endcase // operation_select
//operand select (sets the stimulus inputs)
for (int k = 0; k < NUM_READ_PORTS; k++)
read_addrs[k] = $urandom_range(0,NUM_ARCH_REGS);
for (int k = 0; k < num_write; k++) begin
write_addrs[k] = $urandom_range(1,NUM_ARCH_REGS);
$display("%0t: num_write = %0d",$time(), num_write);
$display("%0t: write_addrs[%0d] = %0d", $time(), k, write_addrs[k]);
write_data[k] = $urandom_range(1,128);
wr_en[k] = 1;
end
for (int k = 0; k < num_commit; k++) begin
commit_addrs[k] = $urandom_range(1,NUM_ARCH_REGS);
commit_data[k] = $urandom_range(1,128);
commit_en[k] = 1;
end
loop_idx++;
##1;
//reset signals (reset stimulus inputs)
checkpoint = 0;
recover = 0;
advance = 0;
write_before_checkpoint = 0;
for (int i = 0; i < NUM_WRITE_PORTS; i++) begin
write_data[i] = 0;
wr_en[i] = 0;
end
for (int i = 0; i < NUM_READ_PORTS; i++)
read_addrs[i] = 0;
for (int i = 0; i < NUM_WRITE_PORTS; i++) begin
commit_en[i] = 0;
commit_data[i] = 0;
end
end : end_repeat
endtask : random_operations
initial begin : TEST_VECTORS
enable_assertions = 1; //for testing the monitor
reset();
random_operations(5000);
##10;
$display("Finished Successfuly! @ %0t",$time());
$finish;
end
endmodule回答 1
Stack Overflow用户
回答已采纳
发布于 2020-04-13 21:58:03
问题是$urandom_range(1, NUM_ARCH_REGS)将值从1返回到32。但是，write_addrs被声明为logic [4:0]，这意味着它只能接受0到31之间的值。当$urandom_range返回32 (与6'b10_000相同)时，代码中的赋值将其截断为5位，删除MSB，5'b0_0000存储在write_addrs中。
要解决这个问题，只允许随机值达到31。
更改：
write_addrs[k] = $urandom_range(1, NUM_ARCH_REGS);至：
write_addrs[k] = $urandom_range(1, NUM_ARCH_REGS-1);下面是一个演示这个问题的完整示例：
module tb;
localparam int NUM_ARCH_REGS = 32;
logic [$clog2(32)-1:0] write_addrs [2];
initial begin
repeat (100) begin
for (int k=0; k<2; k++) begin
write_addrs[k] = $urandom_range(1, NUM_ARCH_REGS);
$write("write_addrs[%0d]=%02d ", k, write_addrs[k]);
end
$display;
end
end
endmodule您看到的问题并不是ModelSim特有的；我可以在另外两个模拟器上看到它。
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/61196905
