当heketi端点不在pv和PVC的名称空间中时，glusterfs如何创建卷？
当heketi端点不在pv和PVC的名称空间中时，glusterfs如何创建卷？
提问于 2020-03-08 08:26:47
我有两个名称空间'runsdata‘和’监控‘。heketi和glusterfs的daemonSet荚都位于“runsdata”命名空间下。现在，我想在“监视”命名空间下创建Prometheus监视器。因为我需要存储普罗米修斯的数据。因此，我创建了PVC (在‘监控’ns下)和pv，在PVC yaml中，我声明存储库来创建相应的卷，以便为Prometheus提供存储。但是当我创建pv绑定并应用prometheus-server.yaml时。我知道错误：
Warning FailedMount 18m (x3 over 43m) kubelet, 172.16.5.151 Unable to attach or mount volumes: unmounted volumes=[prometheus-data-volume], unattached volumes=[prometheus-rules-volume prometheus-token-vcrr2 prometheus-data-volume prometheus-conf-volume]: timed out waiting for the condition
Warning FailedMount 13m (x5 over 50m) kubelet, 172.16.5.151 Unable to attach or mount volumes: unmounted volumes=[prometheus-data-volume], unattached volumes=[prometheus-token-vcrr2 prometheus-data-volume prometheus-conf-volume prometheus-rules-volume]: timed out waiting for the condition
Warning FailedMount 3m58s (x35 over 59m) kubelet, 172.16.5.151 MountVolume.NewMounter initialization failed for volume "data-prometheus-pv" : endpoints "heketi-storage-endpoints" not found从上面的日志中不难知道，storageClass无法找到创建卷的heketi端点。因为heketi端点位于“runsdata”之下。我该如何解决这个问题？
其他信息: 1. pv和pvc
apiVersion: v1
kind: PersistentVolume
metadata:
name: data-prometheus-pv
labels:
pv: data-prometheus-pv
release: stable
spec:
capacity:
storage: 2Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Recycle
storageClassName: runsdata-static-class
glusterfs:
endpoints: "heketi-storage-endpoints"
path: "runsdata-glusterfs-static-class"
readOnly: true
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: data-prometheus-claim
namespace: monitoring
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 2Gi
storageClassName: runsdata-static-class
selector:
matchLabels:
pv: data-prometheus-pv
release: stable[root@localhost online-prometheus]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
data-config-pv 1Gi RWX Retain Bound runsdata/data-config-claim runsdata-static-class 5d22h
data-mongo-pv 1Gi RWX Retain Bound runsdata/data-mongo-claim runsdata-static-class 4d4h
data-prometheus-pv 2Gi RWX Recycle Bound monitoring/data-prometheus-claim runsdata-static-class 151m
data-static-pv 1Gi RWX Retain Bound runsdata/data-static-claim runsdata-static-class 7d15h
pvc-02f5ce74-db7c-40ba-b0e1-ac3bf3ba1b37 3Gi RWX Delete Bound runsdata/data-test-claim runsdata-static-class 3d5h
pvc-085ec0f1-6429-4612-9f71-309b94a94463 1Gi RWX Delete Bound runsdata/data-file-claim runsdata-static-class 3d17h
[root@localhost online-prometheus]# kubectl get pvc -n monitoring
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
data-prometheus-claim Bound data-prometheus-pv 2Gi RWX runsdata-static-class 151m
[root@localhost online-prometheus]#- heketi和glusterfs
[root@localhost online-prometheus]# kubectl get pods -n runsdata|egrep "heketi|gluster"
glusterfs-5btbl 1/1 Running 1 11d
glusterfs-7gmbh 1/1 Running 3 11d
glusterfs-rmx7k 1/1 Running 7 11d
heketi-78ccdb6fd-97tkv 1/1 Running 2 10d
[root@localhost online-prometheus]#- storageClass定义
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: runsdata-static-class
provisioner: kubernetes.io/glusterfs
allowVolumeExpansion: true
reclaimPolicy: Delete
parameters:
resturl: "http://10.10.11.181:8080"
volumetype: "replicate:3"
restauthenabled: "true"
restuser: "admin"
restuserkey: "runsdata-gf-admin"
#secretNamespace: "runsdata"
#secretName: "heketi-secret"回答 1
Stack Overflow用户
发布于 2020-03-09 10:57:02

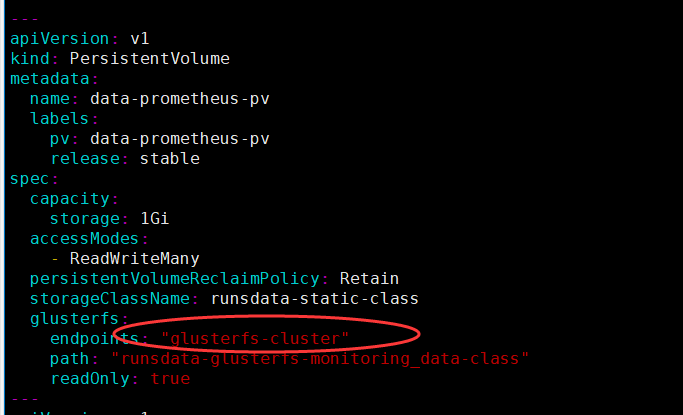

解决方案是在当前命名空间下创建端点和服务。然后，我们可以使用pv中的服务，如下所示：
[root@localhost gluster]# cat glusterfs-endpoints.yaml
---
kind: Endpoints
apiVersion: v1
metadata:
name: glusterfs-cluster
namespace: monitoring
subsets:
- addresses:
- ip: 172.16.5.150
- ip: 172.16.5.151
- ip: 172.16.5.152
ports:
- port: 1
protocol: TCP
[root@localhost gluster]# cat glusterfs-service.yaml
apiVersion: v1
kind: Service
metadata:
name: glusterfs-cluster
namespace: monitoring
spec:
ports:
- port: 1
[root@localhost gluster]#页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
