如何对齐条形图和两条线图？
如何对齐条形图和两条线图？
提问于 2020-02-10 18:15:26
我需要在同一张图中得到两张线图&条形图。两条线图都有相同的y轴，但条形图有一个不同的轴。
表格格式
Indicator Name 2011 2012 2013 2014 2015 2016 2017 2018 2019
Bank nonperforming loans to total gross loans (%) 3.8 3.6 5.5 4.2 3.2 2.6 2.4 3.4 4.2
Bank nonperforming loans to total net loans (%) 3 2.2 3.8 2.6 1.2 1.7 1.3 2.2 2.5
Bank Total gross loans ( LK Bn) 99 116.6 191 165 152.8 142.3 160.7 263.1 275.5 这是我的密码：
df.loc['Bank nonperforming loans to total gross loans (%)', years].plot(kind = 'line',color='mediumvioletred',marker ='o',
markerfacecolor ='blue',markersize=9,label = "NPL %")
df.loc['Bank nonperforming loans to total net loans (%)', years].plot(kind = 'line',color='blue',label = "SL")
plt.twinx()
df.loc['Bank Total gross loans (LK Bn)', years].plot(kind = 'Bar',color='brown',label = "chk")
plt.ylim([90,280])
plt.title('Immigration from Afghanistan')
plt.ylabel('NPL %')
plt.xlabel('years')

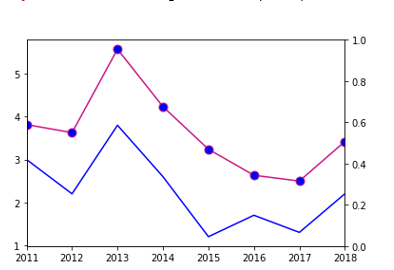

plt.legend()下面是我得到的图表，但它没有显示条形图。
回答 1
Stack Overflow用户
回答已采纳
发布于 2020-02-11 17:47:45
您的情况需要比DataFrame.plot可能提供的更多的控制。你需要定义你的情节的顺序:线条应该在条形图的顶部，但是在附加的情况下，你的条形线是在双轴上，这就产生了另一个问题。以下是您的问题的解决方案，主要基于这个answer。
代码：
import pandas as pd
import matplotlib.pyplot as plt
data = {
2011: [3.8, 3, 99],
2012: [3.6, 2.2, 116.6],
2013: [5.5, 3.8, 191],
2014: [4.2, 2.6, 165],
2015: [3.2, 1.2, 152.8],
2016: [2.6, 1.7, 142.3],
2017: [2.4, 1.3, 160.7],
2018: [3.4, 2.2, 263.1],
2019: [4.2, 2.5, 275.5],
}
df = pd.DataFrame(
data,
index=['Bank nonperforming loans to total gross loans (%)',
'Bank nonperforming loans to total net loans (%)',
'Bank Total gross loans (LK Bn)'],
columns=data.keys()
)
years = list(data.keys())
fig, ax = plt.subplots()
# axis for the bar
ax2 = ax.twinx()
ax2.set_ylim([90, 280])
# creating a cloned axis from ax for lines
# wee need this to put line plots on bars
ax1 = fig.add_axes(ax.get_position(), sharex=ax, sharey=ax)
ax1.set_facecolor('none')
ax1.set_axis_off()
ax1.set_xticks(years)
bar = ax2.bar(
years,
df.loc['Bank Total gross loans (LK Bn)'], color='brown',
label='chk',
)
line1, = ax1.plot(
df.loc['Bank nonperforming loans to total gross loans (%)', years],
color='mediumvioletred',
marker='o',
markerfacecolor='blue',
markersize=9,
label='NPL %',
)
line2, = ax1.plot(
df.loc['Bank nonperforming loans to total net loans (%)', years],
color='blue',
label='SL',
)
ax.set_title('Immigration from Afghanistan')
ax.set_ylabel('NPL %')
ax.set_xlabel('years')

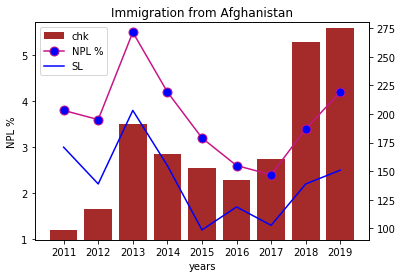

ax2.legend([bar, line1, line2], ['chk', 'NPL %', 'SL'])情节：
