社区首页 >问答首页 >使用Eureka向WebFlux注册微服务时遇到麻烦

问使用Eureka向WebFlux注册微服务时遇到麻烦
EN

Stack Overflow用户
提问于 2019-12-25 22:57:09
回答 2查看 6K关注 0票数 0

在Java + Spring应用程序上使用Netflix作为服务发现并获得HTTP: 503。当地址固定在代码上时，应用程序可以正常工作。

我试过：

SpringDeveloper - Spring开发者视频

安全无功微服务 -来自Okta开发人员的Spring网关

春云之手 -来自Packt的弹簧之手

由于我使用的是WebFlux，所以我需要在WebClient上使用一个@LoadBalanced

服务发现pom.xml

代码语言：javascript
运行
复制
<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.2.RELEASE</version>
</parent>

<properties>
        <java.version>11</java.version>
        <spring-cloud.version>Hoxton.RELEASE</spring-cloud.version>
</properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
        <dependency>
            <groupId>org.glassfish.jaxb</groupId>
            <artifactId>jaxb-runtime</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

服务发现属性：

代码语言：javascript
运行
复制
server.port=8761
eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false

服务发现main

代码语言：javascript
运行
复制
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class ServiceDiscoveryApplication {

    public static void main(String[] args) {
        SpringApplication.run(ServiceDiscoveryApplication.class, args);
    }
}

网关pom.xml (相同，并来自服务发现pom.xml )

代码语言：javascript
运行
复制
<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.projectreactor</groupId>
            <artifactId>reactor-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-commons</artifactId>
        </dependency>
    </dependencies>

网关application.properties

代码语言：javascript
运行
复制
eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false
spring.application.name=gateway
server.port=8080
spring.cloud.loadbalancer.ribbon.enabled=false

网关的配置类：

代码语言：javascript
运行
复制
@Component
public class LoadBalancers {

    @Bean
    public RouteLocator routeLocator(RouteLocatorBuilder routeLocatorBuilder){
        return routeLocatorBuilder.routes()
                .route("customer-service", route -> route.path("/customers")
                        .uri("lb://customer-service"))
                .route("property-service", route -> route.path("/property")
                        .uri("lb://property-service"))
                .build();
    }

    @Bean
    @LoadBalanced
    public WebClient.Builder loadBalancedWebClientBuilder(){
        return WebClient.builder();
    }

}

服务班：

代码语言：javascript
运行
复制
@Service
public class CustomerWebService {

    private static final String CUSTOMERS_WITH_ID = "/customers/{id}";
    private static final String CUSTOMER_ROOT_ENDPOINT = "/customers";

    private String baseUrl = "lb://customer-service/customers";

    @LoadBalanced
    private final WebClient.Builder webClient;

    public CustomerWebService(WebClient.Builder webClient) {
        this.webClient = webClient;
    }

    public Mono<Customer> findById(String id){
        return webClient.build()
                .get()
                .uri(baseUrl, id)
                .retrieve()
                .bodyToMono(Customer.class);
    }
}

当我尝试从提供者服务执行一个GET时，我得到以下信息：

代码语言：javascript
运行
复制
2019-12-25 20:23:13.737  INFO 9552 --- [main] o.s.b.web.embedded.netty.NettyWebServer  : Netty started on port(s): 8080
2019-12-25 20:23:13.738  INFO 9552 --- [main] .s.c.n.e.s.EurekaAutoServiceRegistration : Updating port to 8080
2019-12-25 20:23:14.082  INFO 9552 --- [main] b.c.i.webportal.WebportalApplication     : Started WebportalApplication in 4.582 seconds (JVM running for 5.051)
2019-12-25 20:23:35.015  WARN 9552 --- [ctor-http-nio-3] o.s.c.l.core.RoundRobinLoadBalancer      : No servers available for service: customer-service
2019-12-25 20:23:35.016  WARN 9552 --- [ctor-http-nio-3] eactorLoadBalancerExchangeFilterFunction : Load balancer does not contain an instance for the service customer-service
2019-12-25 20:23:35.077 ERROR 9552 --- [ctor-http-nio-3] a.w.r.e.AbstractErrorWebExceptionHandler : [e3de4777]  500 Server Error for HTTP GET "/v1/customers"

org.springframework.web.reactive.function.client.WebClientResponseException$ServiceUnavailable: 503 Service Unavailable from UNKNOWN
    at org.springframework.web.reactive.function.client.WebClientResponseException.create(WebClientResponseException.java:207) ~[spring-webflux-5.2.1.RELEASE.jar:5.2.1.RELEASE]
    Suppressed: reactor.core.publisher.FluxOnAssembly$OnAssemblyException:
Error has been observed at the following site(s):
    |_ checkpoint ? 503 from GET lb://customer-service/customers [DefaultWebClient]
    |_ checkpoint ? Handler br.com.imobiliariaype.webportal.controller.CustomerController#findAll() [DispatcherHandler]
    |_ checkpoint ? org.springframework.cloud.gateway.filter.WeightCalculatorWebFilter [DefaultWebFilterChain]
    |_ checkpoint ? org.springframework.boot.actuate.metrics.web.reactive.server.MetricsWebFilter [DefaultWebFilterChain]
    |_ checkpoint ? HTTP GET "/v1/customers" [ExceptionHandlingWebHandler]
Stack trace:

这是来自：http://localhost:8761/eureka/apps的输出

代码语言：javascript
运行
复制
<applications>
<versions__delta>1</versions__delta>
<apps__hashcode>UP_1_</apps__hashcode>
<application>
<name>CUSTOMER-SERVICE</name>
<instance>
<instanceId>WORKSTATION.mshome.net:customer-service:8060</instanceId>
<hostName>WORKSTATION.mshome.net</hostName>
<app>CUSTOMER-SERVICE</app>
<ipAddr>SOMEIP</ipAddr>
<status>UP</status>
<overriddenstatus>UNKNOWN</overriddenstatus>
<port enabled="true">8060</port>
<securePort enabled="false">443</securePort>
<countryId>1</countryId>
<dataCenterInfo class="com.netflix.appinfo.InstanceInfo$DefaultDataCenterInfo">
<name>MyOwn</name>
</dataCenterInfo>
<leaseInfo>
<renewalIntervalInSecs>30</renewalIntervalInSecs>
<durationInSecs>90</durationInSecs>
<registrationTimestamp>1577402896307</registrationTimestamp>
<lastRenewalTimestamp>1577403016236</lastRenewalTimestamp>
<evictionTimestamp>0</evictionTimestamp>
<serviceUpTimestamp>1577402895709</serviceUpTimestamp>
</leaseInfo>
<metadata>
<management.port>8060</management.port>
</metadata>
<homePageUrl>http://WORKSTATION.mshome.net:8060/</homePageUrl>
<statusPageUrl>http://WORKSTATION.mshome.net:8060/actuator/info</statusPageUrl>
<healthCheckUrl>http://WORKSTATION.mshome.net:8060/actuator/health</healthCheckUrl>
<vipAddress>customer-service</vipAddress>
<secureVipAddress>customer-service</secureVipAddress>
<isCoordinatingDiscoveryServer>false</isCoordinatingDiscoveryServer>
<lastUpdatedTimestamp>1577402896307</lastUpdatedTimestamp>
<lastDirtyTimestamp>1577402895638</lastDirtyTimestamp>
<actionType>ADDED</actionType>
</instance>
</application>
</applications>

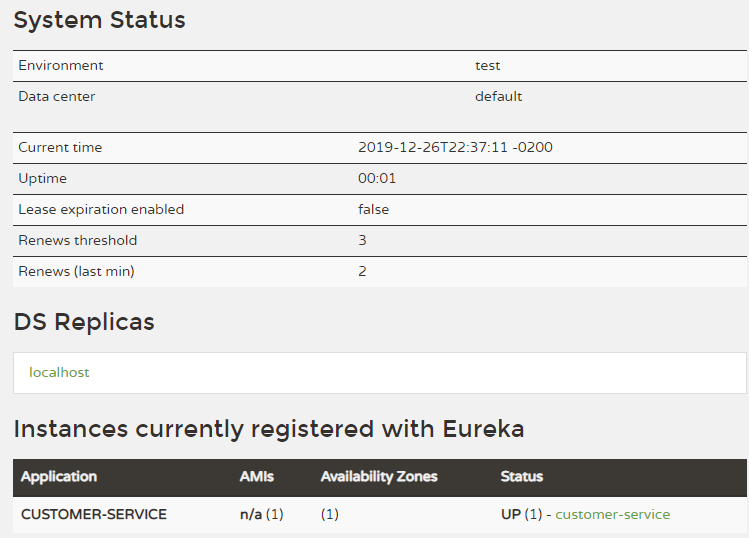

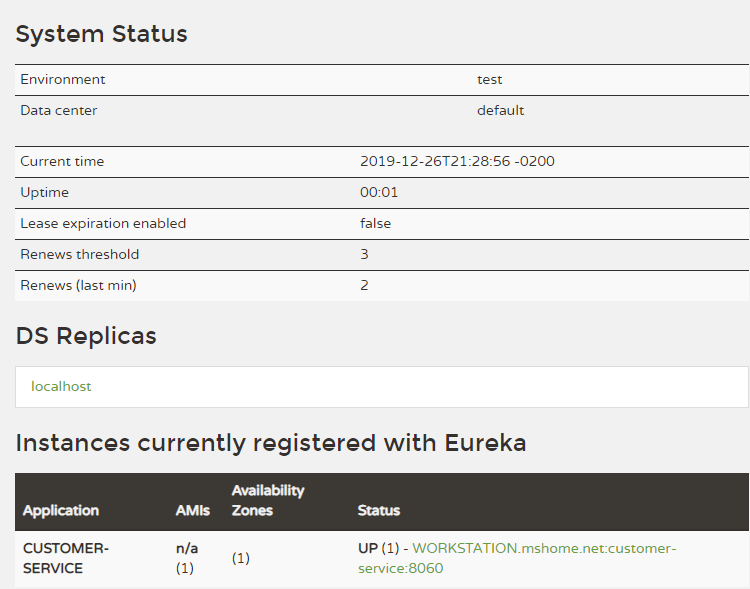

还有一张http://localhost:8761/的照片

变动后：

​

服务发现的日志：

代码语言：javascript
运行
复制
2019-12-26 22:46:14.690  INFO 20140 --- [      Thread-10] e.s.EurekaServerInitializerConfiguration : Started Eureka Server
2019-12-26 22:46:14.718  INFO 20140 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8761 (http) with context path ''
2019-12-26 22:46:14.719  INFO 20140 --- [           main] .s.c.n.e.s.EurekaAutoServiceRegistration : Updating port to 8761
2019-12-26 22:46:14.897  INFO 20140 --- [           main] b.c.i.s.ServiceDiscoveryApplication      : Started ServiceDiscoveryApplication in 4.839 seconds (JVM running for 5.348)
2019-12-26 22:46:26.374  INFO 20140 --- [nio-8761-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring DispatcherServlet 'dispatcherServlet'
2019-12-26 22:46:26.374  INFO 20140 --- [nio-8761-exec-1] o.s.web.servlet.DispatcherServlet        : Initializing Servlet 'dispatcherServlet'
2019-12-26 22:46:26.379  INFO 20140 --- [nio-8761-exec-1] o.s.web.servlet.DispatcherServlet        : Completed initialization in 5 ms
2019-12-26 22:46:26.530  INFO 20140 --- [nio-8761-exec-2] c.n.e.registry.AbstractInstanceRegistry  : Registered instance CUSTOMER-SERVICE/customer-service with status UP (replication=false)
2019-12-26 22:46:27.111  INFO 20140 --- [nio-8761-exec-3] c.n.e.registry.AbstractInstanceRegistry  : Registered instance CUSTOMER-SERVICE/customer-service with status UP (replication=true)

我正在研究的原始项目也可以在GitHub存储库中找到：

消费者微型服务客户服务发现服务发现网关API网关

java
spring
spring-webflux
netflix-eureka
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2019-12-27 03:58:24

对我来说很管用。不知道你的实现出了什么问题。

以下是我尝试过的：

由于我不确定您的customer-service项目，所以我使用以下文件创建了自己的项目：

CustomerServiceApplication

代码语言：javascript
运行
复制
@SpringBootApplication
@EnableDiscoveryClient
public class CustomerServiceApplication {

    public static void main(String[] args) {
        SpringApplication.run(CustomerServiceApplication.class, args);
    }

}

CustomerServiceController

代码语言：javascript
运行
复制
@RestController("/customers")
public class CustomerServiceController {

    @GetMapping("/{id}")
    public String getId(@PathVariable("id") String id) {
        return "Customer";
    }
}

application.properties

代码语言：javascript
运行
复制
server.port=8081
eureka.client.register-with-eureka=true
eureka.client.fetch-registry=true
spring.application.name=customer-service
eureka.instance.appname=customer-service

在Gateway应用程序中，我添加了以下文件：

CustomerWebService

代码语言：javascript
运行
复制
@Service
public class CustomerWebService {

    private static final String CUSTOMERS_WITH_ID = "/customers/{id}";
    private static final String CUSTOMER_ROOT_ENDPOINT = "/customers";

    private String baseUrl = "lb://customer-service/customers";

    @LoadBalanced
    private final WebClient.Builder webClient;

    public CustomerWebService(WebClient.Builder webClient) {
        this.webClient = webClient;
    }

    public Mono<String> findById(String id) {
        return webClient.build()
                .get()
                .uri(baseUrl, id)
                .retrieve()
                .bodyToMono(String.class);
    }
}

LoadBalancers

代码语言：javascript
运行
复制
@Component
public class LoadBalancers {

    @Bean
    public RouteLocator routeLocator(RouteLocatorBuilder routeLocatorBuilder) {
        return routeLocatorBuilder.routes()
                .route("customer-service", route -> route.path("/customers")
                        .uri("lb://customer-service"))
                .build();
    }

    @Bean
    @LoadBalanced
    public WebClient.Builder loadBalancedWebClientBuilder() {
        return WebClient.builder();
    }

}

InstanceListener -每30秒在eureka心跳上运行一次

代码语言：javascript
运行
复制
@Component
public class InstanceListener implements ApplicationListener<HeartbeatEvent> {

    @Autowired
    private CustomerWebService customerWebService;

    @Override
    public void onApplicationEvent(HeartbeatEvent event) {
        Mono<String> result = customerWebService.findById("id");
        result.subscribe(
                value -> System.out.println(value),
                error -> error.printStackTrace()
        );
    }
}

application.properties

代码语言：javascript
运行
复制
eureka.client.enabled=true
eureka.client.register-with-eureka=true
eureka.client.fetch-registry=true

每隔30秒，我就能看到调用发生在customer-service和Gateway上，在控制台中显示Customer值。

试一试我所做的，看看它是否有效。让我知道。谢谢

票数 3
EN

Stack Overflow用户

发布于 2020-05-15 07:28:54

我也遇到了同样的问题，并发现这是因为WebClient.Builder bean中缺少@LoadBalanced注释。我在应用程序类中定义如下所示：

代码语言：javascript
运行
复制
@SpringBootApplication
@EnableEurekaClient
public class MovieCatalogueServiceApplication {

    public static void main(String[] args) {
        SpringApplication.run(MovieCatalogueServiceApplication.class, args);
    }

    @Bean
    @LoadBalanced
    public WebClient.Builder getWebClientBuilder() {
        return WebClient.builder();
    }

}
票数 3
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/59482401

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
