问opencv python中如何实现缩放和旋转不变模板(特征)匹配和对象检测

EN

import cv2
import  numpy as np

image1 = cv2.imread("scale_ri.jpg")

scale_percent = 60  # percent of original size
width = int(image1.shape[1] * scale_percent / 100)
height = int(image1.shape[0] * scale_percent / 100)
dim = (width, height)
# resize image
image1 = cv2.resize(image1, dim, interpolation=cv2.INTER_AREA)

# template matching

# Convert it to grayscale
img_gray = cv2.cvtColor(image1, cv2.COLOR_BGR2GRAY)

# Read the template
template = cv2.imread('template.jpg', 0)

# Store width and heigth of template in w and h
w, h = template.shape[::-1]

# Perform match operations.
res = cv2.matchTemplate(img_gray, template, cv2.TM_CCOEFF_NORMED)

# Specify a threshold
threshold = 0.75

# Store the coordinates of matched area in a numpy array
loc = np.where(res >= threshold)

# Draw a rectangle around the matched region.
num=0

for pt in zip(*loc[::-1]):

    cv2.rectangle(image1, pt, (pt[0] + w, pt[1] + h), (0, 255, 255), 2)

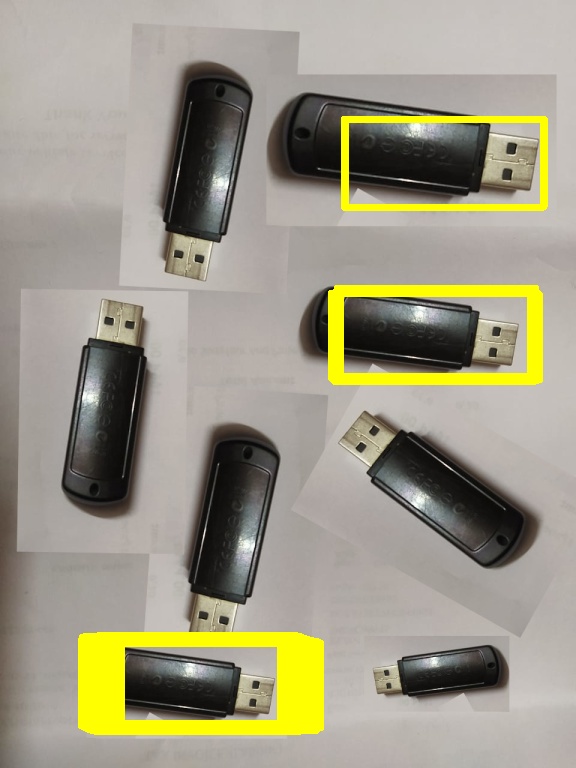

cv2.imwrite("output.jpg",image1)
cv2.imshow("output",image1)
cv2.waitKey(0)

import numpy as np
import cv2
from matplotlib import pyplot as plt

MIN_MATCH_COUNT = 2

img1 = cv2.imread('template.jpg',0)          # queryImage
img2 = cv2.imread('scale_ri.jpg',0) # trainImage

# Initiate SIFT detector
sift = cv2.xfeatures2d.SIFT_create()

# find the keypoints and descriptors with SIFT
kp1, des1 = sift.detectAndCompute(img1,None)
kp2, des2 = sift.detectAndCompute(img2,None)

FLANN_INDEX_KDTREE = 0
index_params = dict(algorithm = FLANN_INDEX_KDTREE, trees = 5)
search_params = dict(checks = 50)

flann = cv2.FlannBasedMatcher(index_params, search_params)

matches = flann.knnMatch(des1,des2,k=2)

# store all the good matches as per Lowe's ratio test.
good = []
for m,n in matches:
    if m.distance < 0.7*n.distance:
        good.append(m)
if len(good)>MIN_MATCH_COUNT:
    src_pts = np.float32([ kp1[m.queryIdx].pt for m in good ]).reshape(-1,1,2)
    dst_pts = np.float32([ kp2[m.trainIdx].pt for m in good ]).reshape(-1,1,2)

    M, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC,5.0)
    matchesMask = mask.ravel().tolist()

    h,w = img1.shape
    pts = np.float32([ [0,0],[0,h-1],[w-1,h-1],[w-1,0] ]).reshape(-1,1,2)
    dst = cv2.perspectiveTransform(pts,M)

    img2 = cv2.polylines(img2,[np.int32(dst)],True,255,3, cv2.LINE_AA)

else:
    print("Not enough matches are found - %d/%d" % (len(good),MIN_MATCH_COUNT))
    matchesMask = None
draw_params = dict(matchColor = (0,255,0), # draw matches in green color
                   singlePointColor = None,
                   matchesMask = matchesMask, # draw only inliers
                   flags = 2)

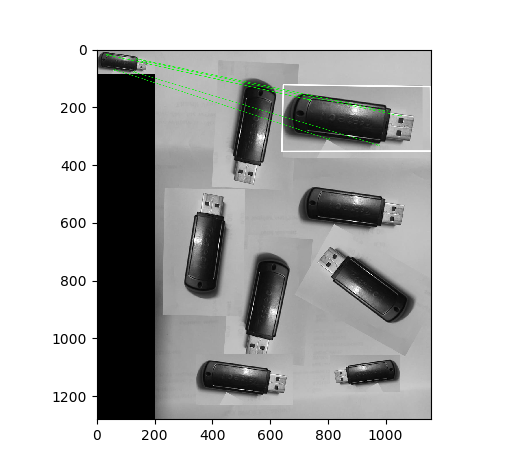

img3 = cv2.drawMatches(img1,kp1,img2,kp2,good,None,**draw_params)
#plt.savefig("output_pendrive.png")
plt.imshow(img3, 'gray'),plt.show()
