Physics.OverlapSphere未正确检测对撞机
EN

Stack Overflow用户
提问于 2019-11-01 17:00:19
回答 1查看 4.4K关注 0票数 0

我在联合学院做一个人工智能“迷你游戏”。我试图让简单的特工在一个可行走的网格内移动使用痛苦。现在我使用的是蜂群转向,我使用的是这篇文章中显示的方法。

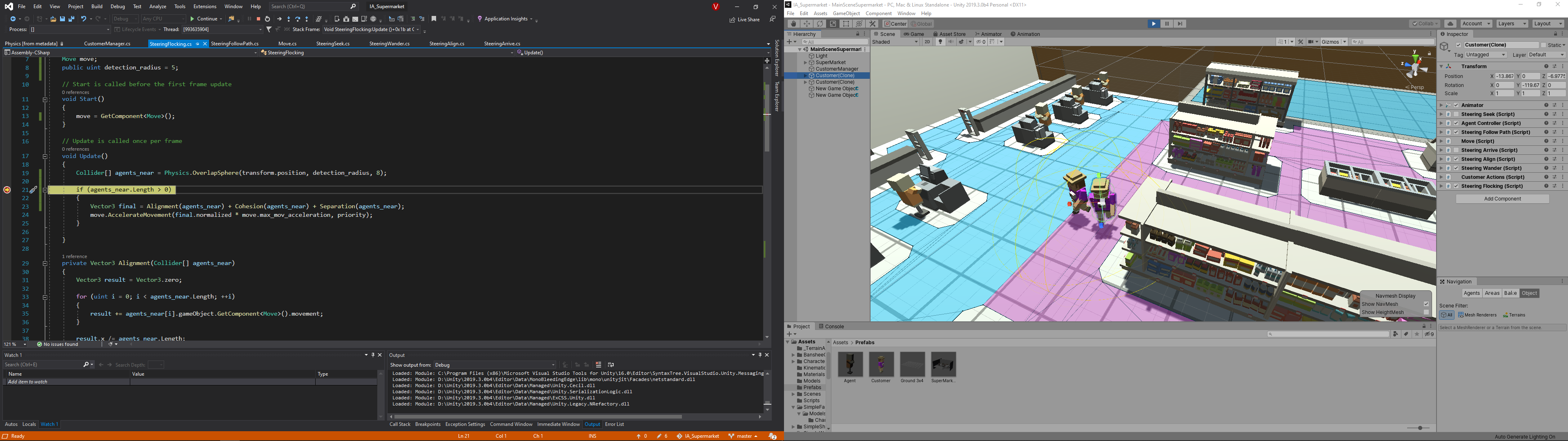

我遇到的问题是,正如您在图像中看到的那样,OverlapSphere函数没有正确返回对撞机:

这是我用来驾驶的密码。重叠球调用中的8是用于此转向的对撞机所在的层。

代码语言:javascript
运行
复制
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class SteeringFlocking : SteeringAbstract
{
    Move move;
    public uint detection_radius = 5;

    // Start is called before the first frame update
    void Start()
    {
        move = GetComponent<Move>();
    }

    // Update is called once per frame
    void Update()
    {
        Collider[] agents_near = Physics.OverlapSphere(transform.position, detection_radius, 8);

        if (agents_near.Length > 0)
        {
            Vector3 final = Alignment(agents_near) + Cohesion(agents_near) + Separation(agents_near);
            move.AccelerateMovement(final.normalized * move.max_mov_acceleration, priority);
        }

    }

    private Vector3 Alignment(Collider[] agents_near)
    {
        Vector3 result = Vector3.zero;

        for (uint i = 0; i < agents_near.Length; ++i)
        {
            result += agents_near[i].gameObject.GetComponent<Move>().movement;
        }

        result.x /= agents_near.Length;
        result.y /= agents_near.Length;
        result.z /= agents_near.Length;
        result.Normalize();

        return result;
    }

    private Vector3 Cohesion(Collider[] agents_near)
    {
        Vector3 result = Vector3.zero;

        for (uint i = 0; i < agents_near.Length; ++i)
        {
            result += agents_near[i].gameObject.transform.position;
        }

        result.x /= agents_near.Length;
        result.y /= agents_near.Length;
        result.z /= agents_near.Length;
        result = new Vector3(result.x - move.transform.position.x, result.y - move.transform.position.y, result.z - move.transform.position.z);
        result.Normalize();

        return result;
    }

    private Vector3 Separation(Collider[] agents_near)
    {
        Vector3 result = Vector3.zero;

        for (uint i = 0; i < agents_near.Length; ++i)
        {
            result += agents_near[i].gameObject.transform.position - move.transform.position;
        }

        result.x /= agents_near.Length;
        result.y /= agents_near.Length;
        result.z /= agents_near.Length;
        result *= -1;
        result.Normalize();

        return result;
    }

    private void OnDrawGizmos()
    {
        Gizmos.color = Color.yellow;
        Gizmos.DrawWireSphere(transform.position, detection_radius);
    }
}

预期的结果是OverlapSphere正确地返回其内部对撞机的数量。

EN

回答 1

Stack Overflow用户

发布于 2019-11-01 18:38:12

重叠球调用中的8是用于此转向的对撞机所在的层。

8和第8层的位掩码不是一回事。

8就是8。第8层的位掩码等于1<<8或256个。

此外,您的角色似乎不是在第8层,而是在第0层,因此当然您的OverlapSphere将返回零对撞机(除非子层位于另一层,屏幕截图并没有说明这一点)。

你会想要这样的:

代码语言:javascript
运行
复制
Collider[] agents_near = Physics.OverlapSphere(transform.position, detection_radius, 1<<8);

除了将您的对象更改为实际位于第8层之外(虽然我会选择另一个对象,因为Unity有硬编码的第8层的名称为Post Processing,它没有您想要的上下文值)。

代码语言:javascript
运行
复制
Collider[] agents_near = Physics.OverlapSphere(transform.position, detection_radius, 1<<0); //cast against layer 0.

见:

票数 2
