Python OpenCV如何应用径向/桶形失真?
EN

Stack Overflow用户
提问于 2020-01-16 19:46:14
回答 2查看 2.3K关注 0票数 2

很多关于消除径向(或桶形)变形的问题,但我该怎么加呢?

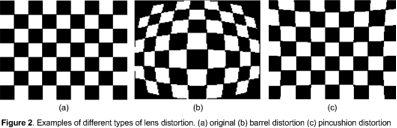

在视觉上,我想把我的输入(假设为图像(a) ),并扭曲它,就像图像(b):

理想情况下,我想要一个可调的“半径”参数来控制我得到的“多少失真”。根据我想要做的事情,看起来我只需要一个参数来控制‘失真半径’或任何它将被称为(如果我错了的话纠正我)。

如何使用OpenCV实现这一目标?我想这肯定是有可能的,因为很多人都试着用另一种方式去做这样的事情。我只是不太熟悉正确的数学操作和库调用。

任何帮助都很感激,干杯。

EN

回答 2

Stack Overflow用户

发布于 2022-09-08 15:01:45

下面的程序会产生桶形失真。

代码语言:javascript
运行
复制
from wand.image import Image
import numpy as np
import cv2

with Image(filename='Path/to/Img/') as img:
    print(img.size)
    img.virtual_pixel = 'transparent'
    img.distort('barrel', (0.1, 0.0, 0.0, 1.0)) # play around these values to create distortion
    img.save(filename='filname.png')
    # convert to opencv/numpy array format
    img_opencv = np.array(img)

# display result with opencv
cv2.imshow("BARREL", img_opencv)
cv2.waitKey(0)
cv2.destroyAllWindows()
票数 0
EN

Stack Overflow用户

发布于 2022-09-08 17:25:19

这里有一种方法,通过创建X和Y失真映射,然后使用cv.remap()来进行扭曲,从而在Python/OpenCV中生成桶形或枕形畸变。

输入:

代码语言:javascript
运行
复制
import numpy as np
import cv2 as cv
import math

img = cv.imread('lena.jpg')

# grab the dimensions of the image
(h, w, _) = img.shape

# set up the x and y maps as float32
map_x = np.zeros((h, w), np.float32)
map_y = np.zeros((h, w), np.float32)

scale_x = 1
scale_y = 1
center_x = w/2
center_y = h/2
radius = w/2
#amount = -0.75   # negative values produce pincushion
amount = 0.75   # positive values produce barrel

# create map with the barrel pincushion distortion formula
for y in range(h):
    delta_y = scale_y * (y - center_y)
    for x in range(w):
        # determine if pixel is within an ellipse
        delta_x = scale_x * (x - center_x)
        distance = delta_x * delta_x + delta_y * delta_y
        if distance >= (radius * radius):
            map_x[y, x] = x
            map_y[y, x] = y
        else:
            factor = 1.0
            if distance > 0.0:
                factor = math.pow(math.sin(math.pi * math.sqrt(distance) / radius / 2), amount)
            map_x[y, x] = factor * delta_x / scale_x + center_x
            map_y[y, x] = factor * delta_y / scale_y + center_y


# do the remap
dst = cv.remap(img, map_x, map_y, cv.INTER_LINEAR)

# save the result
#cv.imwrite('lena_pincushion.jpg',dst)
cv.imwrite('lena_barrel.jpg',dst)

# show the result
cv.imshow('src', img)
cv.imshow('dst', dst)

cv.waitKey(0)
cv.destroyAllWindows()

桶(正数):

针垫(负值):

票数 0
