社区首页 >问答首页 >SwiftUI使用onDrag和onDrop在一个LazyGrid中重新排序项目？

问SwiftUI使用onDrag和onDrop在一个LazyGrid中重新排序项目？
EN

Stack Overflow用户

提问于 2020-06-27 06:53:34

回答 6查看 18.9K关注 0票数 46

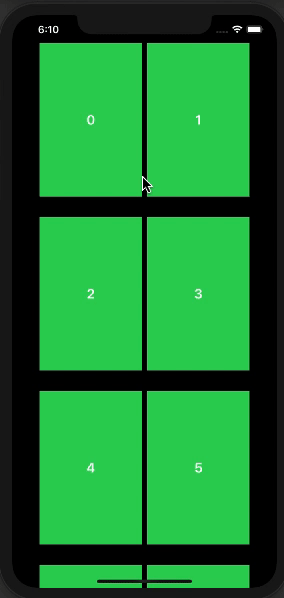

我想知道是否可以使用View.onDrag和View.onDrop手动在一个LazyGrid中添加拖放重新排序？

虽然我能够使用onDrag使每个项目都是可拖动的，但我不知道如何实现删除部分。

下面是我正在试验的代码：

import SwiftUI

//MARK: - Data

struct Data: Identifiable {
    let id: Int
}

//MARK: - Model

class Model: ObservableObject {
    @Published var data: [Data]

    let columns = [
        GridItem(.fixed(160)),
        GridItem(.fixed(160))
    ]

    init() {
        data = Array<Data>(repeating: Data(id: 0), count: 100)
        for i in 0..<data.count {
            data[i] = Data(id: i)
        }
    }
}

//MARK: - Grid

struct ContentView: View {
    @StateObject private var model = Model()

    var body: some View {
        ScrollView {
            LazyVGrid(columns: model.columns, spacing: 32) {
                ForEach(model.data) { d in
                    ItemView(d: d)
                        .id(d.id)
                        .frame(width: 160, height: 240)
                        .background(Color.green)
                        .onDrag { return NSItemProvider(object: String(d.id) as NSString) }
                }
            }
        }
    }
}

//MARK: - GridItem

struct ItemView: View {
    var d: Data

    var body: some View {
        VStack {
            Text(String(d.id))
                .font(.headline)
                .foregroundColor(.white)
        }
    }
}

谢谢!

collectionview

xcode12

ios

swift

swiftui

回答 6

Stack Overflow用户

回答已采纳

发布于 2020-08-16 15:12:22

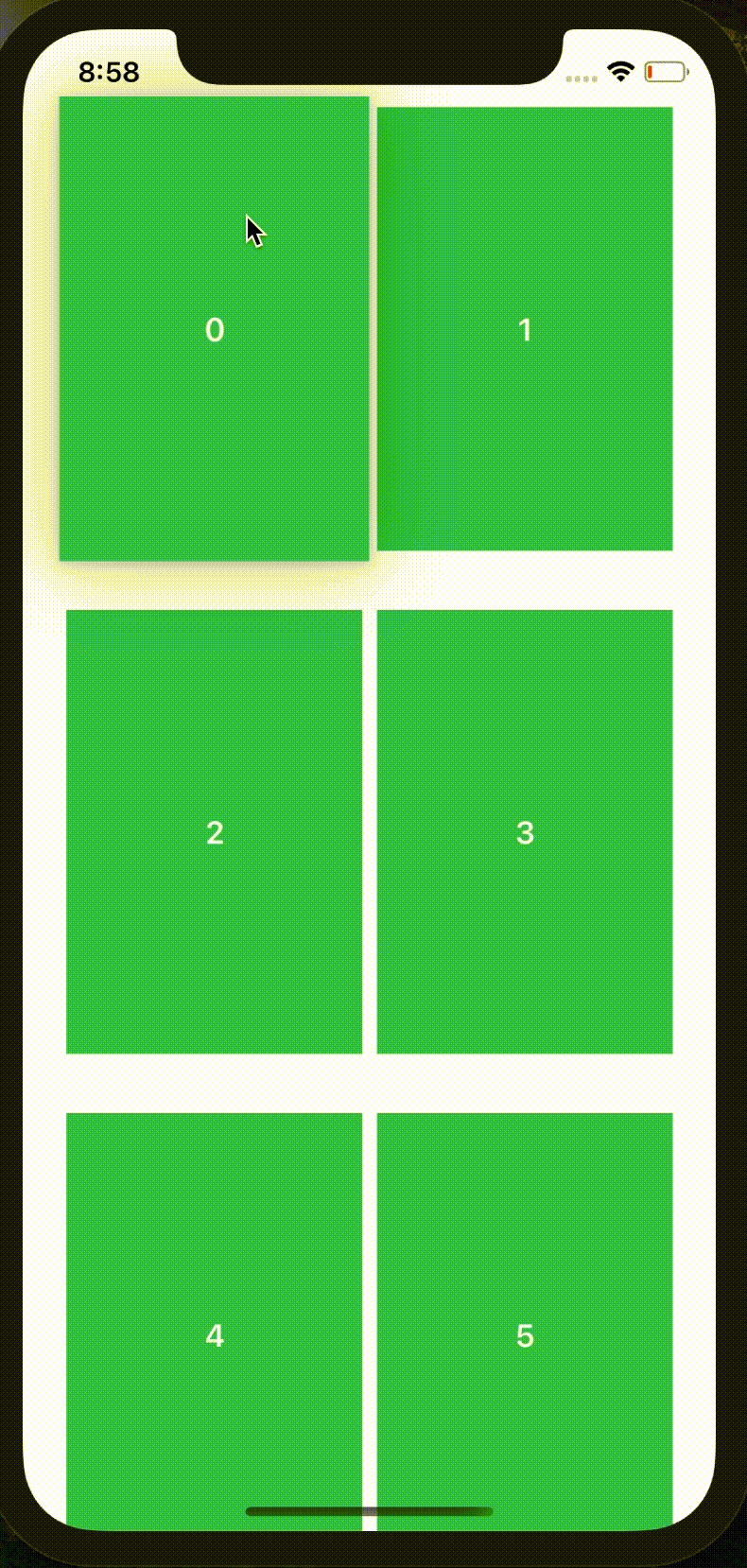

SwiftUI 2.0

这里完成了可能的方法的简单演示(没有对其进行太多的调优，`因为代码增长得很快，而不是演示)。

重要的一点是：( a)重新排序不假设等待删除，因此应该动态跟踪；( b)为了避免使用坐标跳舞--通过网格项视图处理drop更简单；( c)在数据模型中查找要移动的内容并执行此操作，因此SwiftUI可以自己动画视图。

用Xcode 12b3 / iOS 14测试

import SwiftUI
import UniformTypeIdentifiers

struct GridData: Identifiable, Equatable {
    let id: Int
}

//MARK: - Model

class Model: ObservableObject {
    @Published var data: [GridData]

    let columns = [
        GridItem(.fixed(160)),
        GridItem(.fixed(160))
    ]

    init() {
        data = Array(repeating: GridData(id: 0), count: 100)
        for i in 0..<data.count {
            data[i] = GridData(id: i)
        }
    }
}

//MARK: - Grid

struct DemoDragRelocateView: View {
    @StateObject private var model = Model()

    @State private var dragging: GridData?

    var body: some View {
        ScrollView {
           LazyVGrid(columns: model.columns, spacing: 32) {
                ForEach(model.data) { d in
                    GridItemView(d: d)
                        .overlay(dragging?.id == d.id ? Color.white.opacity(0.8) : Color.clear)
                        .onDrag {
                            self.dragging = d
                            return NSItemProvider(object: String(d.id) as NSString)
                        }
                        .onDrop(of: [UTType.text], delegate: DragRelocateDelegate(item: d, listData: $model.data, current: $dragging))
                }
            }.animation(.default, value: model.data)
        }
    }
}

struct DragRelocateDelegate: DropDelegate {
    let item: GridData
    @Binding var listData: [GridData]
    @Binding var current: GridData?

    func dropEntered(info: DropInfo) {
        if item != current {
            let from = listData.firstIndex(of: current!)!
            let to = listData.firstIndex(of: item)!
            if listData[to].id != current!.id {
                listData.move(fromOffsets: IndexSet(integer: from),
                    toOffset: to > from ? to + 1 : to)
            }
        }
    }

    func dropUpdated(info: DropInfo) -> DropProposal? {
        return DropProposal(operation: .move)
    }

    func performDrop(info: DropInfo) -> Bool {
        self.current = nil
        return true
    }
}

//MARK: - GridItem

struct GridItemView: View {
    var d: GridData

    var body: some View {
        VStack {
            Text(String(d.id))
                .font(.headline)
                .foregroundColor(.white)
        }
        .frame(width: 160, height: 240)
        .background(Color.green)
    }
}

编辑

下面是如何修复在任何网格项之外放置的永不消失的拖动项：

struct DropOutsideDelegate: DropDelegate {
    @Binding var current: GridData?

    func performDrop(info: DropInfo) -> Bool {
        current = nil
        return true
    }
}

struct DemoDragRelocateView: View {
    ...

    var body: some View {
        ScrollView {
            ...
        }
        .onDrop(of: [UTType.text], delegate: DropOutsideDelegate(current: $dragging))
    }
}

票数 84

Stack Overflow用户

发布于 2021-08-28 11:38:16

下面是我的解决方案(基于Asperi的答案)，对于那些寻求ForEach通用方法的人，将视图抽象为

struct ReorderableForEach<Content: View, Item: Identifiable & Equatable>: View {
    let items: [Item]
    let content: (Item) -> Content
    let moveAction: (IndexSet, Int) -> Void

    // A little hack that is needed in order to make view back opaque
    // if the drag and drop hasn't ever changed the position
    // Without this hack the item remains semi-transparent
    @State private var hasChangedLocation: Bool = false

    init(
        items: [Item],
        @ViewBuilder content: @escaping (Item) -> Content,
        moveAction: @escaping (IndexSet, Int) -> Void
    ) {
        self.items = items
        self.content = content
        self.moveAction = moveAction
    }

    @State private var draggingItem: Item?

    var body: some View {
        ForEach(items) { item in
            content(item)
                .overlay(draggingItem == item && hasChangedLocation ? Color.white.opacity(0.8) : Color.clear)
                .onDrag {
                    draggingItem = item
                    return NSItemProvider(object: "\(item.id)" as NSString)
                }
                .onDrop(
                    of: [UTType.text],
                    delegate: DragRelocateDelegate(
                        item: item,
                        listData: items,
                        current: $draggingItem,
                        hasChangedLocation: $hasChangedLocation
                    ) { from, to in
                        withAnimation {
                            moveAction(from, to)
                        }
                    }
                )
        }
    }
}

DragRelocateDelegate基本上保持不变，尽管我使它更通用、更安全：

struct DragRelocateDelegate<Item: Equatable>: DropDelegate {
    let item: Item
    var listData: [Item]
    @Binding var current: Item?
    @Binding var hasChangedLocation: Bool

    var moveAction: (IndexSet, Int) -> Void

    func dropEntered(info: DropInfo) {
        guard item != current, let current = current else { return }
        guard let from = listData.firstIndex(of: current), let to = listData.firstIndex(of: item) else { return }

        hasChangedLocation = true

        if listData[to] != current {
            moveAction(IndexSet(integer: from), to > from ? to + 1 : to)
        }
    }

    func dropUpdated(info: DropInfo) -> DropProposal? {
        DropProposal(operation: .move)
    }

    func performDrop(info: DropInfo) -> Bool {
        hasChangedLocation = false
        current = nil
        return true
    }
}

最后，这里是实际用法：

ReorderableForEach(items: itemsArr) { item in
    SomeFancyView(for: item)
} moveAction: { from, to in
    itemsArr.move(fromOffsets: from, toOffset: to)
}

票数 21

Stack Overflow用户

发布于 2021-01-01 15:15:02

上面的优秀解决方案还提出了一些额外的问题，因此，我可以在1月1日提出一些宿醉的问题(例如，为自己不够雄辩而道歉)：

如果您选择一个网格项并释放它(要取消)，则该视图不会被重置。

我添加了一个bool，它检查视图是否已经被拖动，如果没有，那么它一开始就没有隐藏视图。这有点麻烦，因为它并没有真正重置，它只是推迟隐藏视图，直到它知道您想要拖动它。也就是说，如果你拖得很快，你可以在视图隐藏之前看到它。

如果将网格项放置在视图之外，则不会重置视图。

通过添加dropOutside委托，已经部分解决了这个问题，但是SwiftUI不会触发它，除非您有一个背景视图(比如颜色)，我认为这引起了一些混乱。因此，我添加了一个灰色背景，以说明如何正确触发它。

希望这对任何人都有帮助

import SwiftUI
import UniformTypeIdentifiers

struct GridData: Identifiable, Equatable {
    let id: String
}

//MARK: - Model

class Model: ObservableObject {
    @Published var data: [GridData]

    let columns = [
        GridItem(.flexible(minimum: 60, maximum: 60))
    ]

    init() {
        data = Array(repeating: GridData(id: "0"), count: 50)
        for i in 0..<data.count {
            data[i] = GridData(id: String("\(i)"))
        }
    }
}

//MARK: - Grid

struct DemoDragRelocateView: View {
    @StateObject private var model = Model()

    @State private var dragging: GridData? // I can't reset this when user drops view ins ame location as drag started
    @State private var changedView: Bool = false

    var body: some View {
        VStack {
            ScrollView(.vertical) {
               LazyVGrid(columns: model.columns, spacing: 5) {
                    ForEach(model.data) { d in
                        GridItemView(d: d)
                            .opacity(dragging?.id == d.id && changedView ? 0 : 1)
                            .onDrag {
                                self.dragging = d
                                changedView = false
                                return NSItemProvider(object: String(d.id) as NSString)
                            }
                            .onDrop(of: [UTType.text], delegate: DragRelocateDelegate(item: d, listData: $model.data, current: $dragging, changedView: $changedView))

                    }
                }.animation(.default, value: model.data)
            }
        }
        .frame(maxWidth:.infinity, maxHeight: .infinity)
        .background(Color.gray.edgesIgnoringSafeArea(.all))
        .onDrop(of: [UTType.text], delegate: DropOutsideDelegate(current: $dragging, changedView: $changedView))
    }
}

struct DragRelocateDelegate: DropDelegate {
    let item: GridData
    @Binding var listData: [GridData]
    @Binding var current: GridData?
    @Binding var changedView: Bool

    func dropEntered(info: DropInfo) {

        if current == nil { current = item }

        changedView = true

        if item != current {
            let from = listData.firstIndex(of: current!)!
            let to = listData.firstIndex(of: item)!
            if listData[to].id != current!.id {
                listData.move(fromOffsets: IndexSet(integer: from),
                    toOffset: to > from ? to + 1 : to)
            }
        }
    }

    func dropUpdated(info: DropInfo) -> DropProposal? {
        return DropProposal(operation: .move)
    }

    func performDrop(info: DropInfo) -> Bool {
        changedView = false
        self.current = nil
        return true
    }

}

struct DropOutsideDelegate: DropDelegate {
    @Binding var current: GridData?
    @Binding var changedView: Bool

    func dropEntered(info: DropInfo) {
        changedView = true
    }
    func performDrop(info: DropInfo) -> Bool {
        changedView = false
        current = nil
        return true
    }
}

//MARK: - GridItem

struct GridItemView: View {
    var d: GridData

    var body: some View {
        VStack {
            Text(String(d.id))
                .font(.headline)
                .foregroundColor(.white)
        }
        .frame(width: 60, height: 60)
        .background(Circle().fill(Color.green))
    }
}

票数 5
