问Mulesoft安全属性Config键不读取变量
EN

Stack Overflow用户
提问于 2020-10-06 21:45:28
回答 2查看 6.2K关注 0票数 1

我正在尝试构建一个使用安全属性Config的Mulesoft应用程序。我创建了一个settings.unencrypted.yaml文件，如下所示：

代码语言：javascript
运行
复制
sftp_username: "unencryptedUsername"
sftp_password: "unencryptedPassword"
sftpUrl: "unencryptedUrl"

然后运行以下命令java -cp .\secure-properties-tool.jar com.mulesoft.tools.SecurePropertiesTool file encrypt AES CBC secretKey .\settings.unencrypted.yaml .\settings.yaml，该命令生成带有加密字符串的yaml文件。然后在Mulesoft内部添加了一个安全属性Config，如下所示：

​

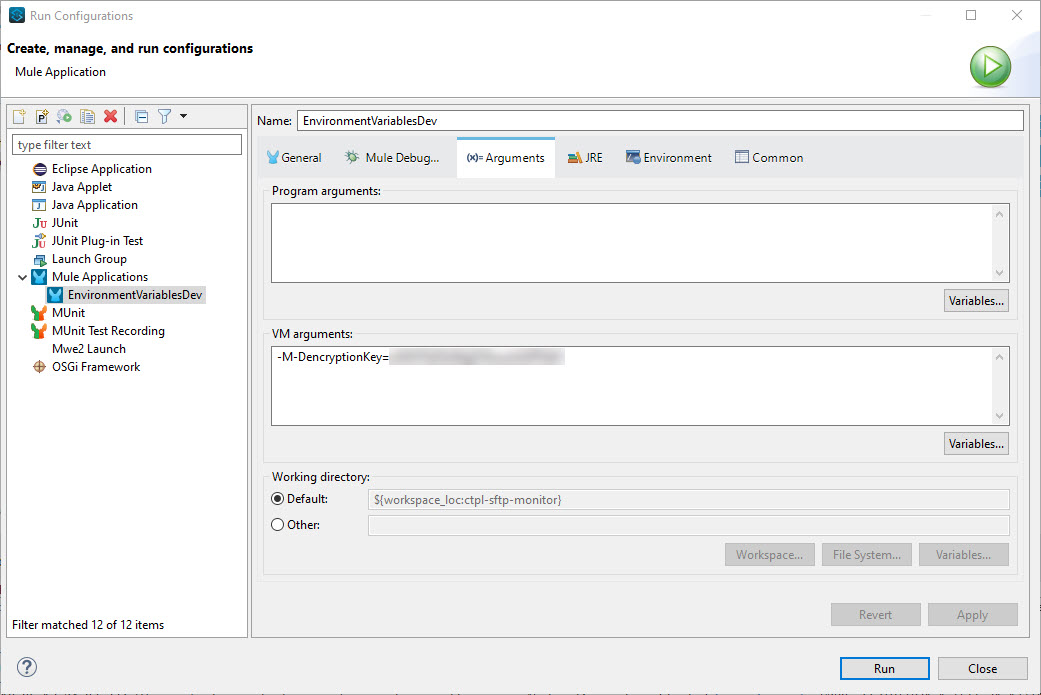

接下来，我将${encryptionKey}添加到运行配置中，如下所示：

​

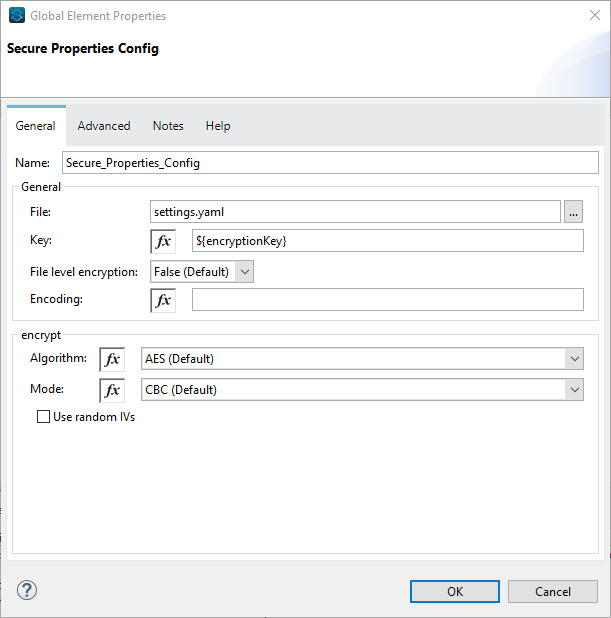

现在，我向流中添加一个SFTP "On New或Updated“项。在这里，我尝试按以下方式配置SFTP服务器：

​

当我单击“”时，会得到以下错误：

代码语言：javascript
运行
复制
org.mule.tooling.client.api.exception.DeploymentException: Couldn't deploy the application
  org.mule.tooling.client.api.exception.DeploymentException: Couldn't deploy the application
  org.mule.tooling.agent.rest.client.exceptions.ToolingServiceAPIException: HTTP 500 Internal Server Error. org.mule.tooling.agent.rest.client.exceptions.model.ErrorEntity@5cbbc3ae[errorType=class java.lang.RuntimeException,errorMessage=Failed to deploy tooling artifact: [application(0feb8b7f-cd8c-46d9-aa0f-f1a746676a39)(C:\StudioWorkspace\.tooling\sftp-monitor8c572465-009e-48e7-9fdf-8cc690b44827)]. Cause: org.mule.runtime.deployment.model.api.DeploymentInitException: PropertyNotFoundException: Couldn't find configuration property value for key ${encryptionKey} from properties provider environment properties provider - within resolver Deployment properties trying to process key encryptionKey - within resolver global-properties configuration attributes trying to process key encryptionKey - within resolver environment properties provider trying to process key encryptionKey,errorDetail=java.lang.RuntimeException: Failed to deploy tooling artifact: [application(0feb8b7f-cd8c-46d9-aa0f-f1a746676a39)(C:\StudioWorkspace\.tooling\sftp-monitor8c572465-009e-48e7-9fdf-8cc690b44827)]. Cause: org.mule.runtime.deployment.model.api.DeploymentInitException: PropertyNotFoundException: Couldn't find configuration property value for key ${encryptionKey} from properties provider environment properties provider - within resolver Deployment properties trying to process key encryptionKey - within resolver global-properties configuration attributes trying to process key encryptionKey - within resolver environment properties provider trying to process key encryptionKey
    at com.mulesoft.agent.services.tooling.MuleAgentToolingService.deployToolingArtifact(MuleAgentToolingService.java:426)
    at com.mulesoft.agent.services.tooling.MuleAgentToolingService.deployToolingApplication(MuleAgentToolingService.java:260)
    at com.mulesoft.agent.external.handlers.tooling.ToolingRequestHandler.lambda$deployToolingApplication$4(ToolingRequestHandler.java:203)
    at com.mulesoft.agent.util.ResponseHelper.response(ResponseHelper.java:88)
    at com.mulesoft.agent.external.handlers.tooling.ToolingRequestHandler.deployToolingApplication(ToolingRequestHandler.java:202)
    at sun.reflect.GeneratedMethodAccessor66.invoke(Unknown Source)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at org.glassfish.jersey.server.model.internal.ResourceMethodInvocationHandlerFactory$1.invoke(ResourceMethodInvocationHandlerFactory.java:81)
    at org.glassfish.jersey.server.model.internal.AbstractJavaResourceMethodDispatcher$1.run(AbstractJavaResourceMethodDispatcher.java:151)
    at org.glassfish.jersey.server.model.internal.AbstractJavaResourceMethodDispatcher.invoke(AbstractJavaResourceMethodDispatcher.java:171)
    at org.glassfish.jersey.server.model.internal.JavaResourceMethodDispatcherProvider$ResponseOutInvoker.doDispatch(JavaResourceMethodDispatcherProvider.java:152)
    at org.glassfish.jersey.server.model.internal.AbstractJavaResourceMethodDispatcher.dispatch(AbstractJavaResourceMethodDispatcher.java:104)
    at org.glassfish.jersey.server.model.ResourceMethodInvoker.invoke(ResourceMethodInvoker.java:387)
    at org.glassfish.jersey.server.model.ResourceMethodInvoker.apply(ResourceMethodInvoker.java:331)
    at org.glassfish.jersey.server.model.ResourceMethodInvoker.apply(ResourceMethodInvoker.java:103)
    at org.glassfish.jersey.server.ServerRuntime$1.run(ServerRuntime.java:271)
    at org.glassfish.jersey.internal.Errors$1.call(Errors.java:271)
    at org.glassfish.jersey.internal.Errors$1.call(Errors.java:267)
    at org.glassfish.jersey.internal.Errors.process(Errors.java:315)
    at org.glassfish.jersey.internal.Errors.process(Errors.java:297)
    at org.glassfish.jersey.internal.Errors.process(Errors.java:267)
    at org.glassfish.jersey.process.internal.RequestScope.runInScope(RequestScope.java:297)
    at org.glassfish.jersey.server.ServerRuntime.process(ServerRuntime.java:254)
    at org.glassfish.jersey.server.ApplicationHandler.handle(ApplicationHandler.java:1028)
    at org.glassfish.jersey.servlet.WebComponent.service(WebComponent.java:372)
    at org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:381)
    at org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:344)
    at org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:221)
    at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:876)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1623)
    at com.mulesoft.agent.rest.RequestLoggingFilter.doFilter(RequestLoggingFilter.java:95)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1610)
    at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:540)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:146)
    at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:548)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:257)
    at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:1711)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:255)
    at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1347)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:203)
    at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:480)
    at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:1678)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:201)
    at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1249)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:144)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
    at org.eclipse.jetty.server.Server.handle(Server.java:505)
    at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:370)
    at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:267)
    at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:305)
    at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:103)
    at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:117)
    at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:781)
    at org.eclipse.jetty.util.thread.QueuedThreadPool$Runner.run(QueuedThreadPool.java:917)
    at java.lang.Thread.run(Thread.java:748)
  Caused by: com.google.common.util.concurrent.UncheckedExecutionException: org.mule.runtime.deployment.model.api.DeploymentInitException: PropertyNotFoundException: Couldn't find configuration property value for key ${encryptionKey} from properties provider environment properties provider - within resolver Deployment properties trying to process key encryptionKey - within resolver global-properties configuration attributes trying to process key encryptionKey - within resolver environment properties provider trying to process key encryptionKey
    at com.google.common.cache.LocalCache$Segment.get(LocalCache.java:2050)
    at com.google.common.cache.LocalCache.get(LocalCache.java:3951)
    at com.google.common.cache.LocalCache$LocalManualCache.get(LocalCache.java:4870)
    at com.mulesoft.agent.services.tooling.MuleAgentToolingService$ApplicationArtifactDeployer.deploy(MuleAgentToolingService.java:613)
    at com.mulesoft.agent.services.tooling.MuleAgentToolingService$ApplicationArtifactDeployer.deploy(MuleAgentToolingService.java:574)
    at com.mulesoft.agent.services.tooling.MuleAgentToolingService.deployToolingArtifact(MuleAgentToolingService.java:416)
    ... 56 more
  Caused by: org.mule.runtime.deployment.model.api.DeploymentInitException: PropertyNotFoundException: Couldn't find configuration property value for key ${encryptionKey} from properties provider environment properties provider - within resolver Deployment properties trying to process key encryptionKey - within resolver global-properties configuration attributes trying to process key encryptionKey - within resolver environment properties provider trying to process key encryptionKey
  Caused by: org.mule.runtime.core.api.config.ConfigurationException: Couldn't find configuration property value for key ${encryptionKey} from properties provider environment properties provider - within resolver Deployment properties trying to process key encryptionKey - within resolver global-properties configuration attributes trying to process key encryptionKey - within resolver environment properties provider trying to process key encryptionKey
  Caused by: org.mule.runtime.config.internal.dsl.model.config.PropertyNotFoundException: Couldn't find configuration property value for key ${encryptionKey} from properties provider environment properties provider - within resolver Deployment properties trying to process key encryptionKey - within resolver global-properties configuration attributes trying to process key encryptionKey - within resolver environment properties provider trying to process key encryptionKey
  ,additionalProperties={}]
    at org.mule.tooling.agent.rest.client.exceptions.ToolingServiceAPIException.newToolingServiceAPIException(ToolingServiceAPIException.java:82)
    at org.mule.tooling.agent.rest.client.exceptions.ToolingServiceAPIException.newToolingServiceAPIException(ToolingServiceAPIException.java:67)
    at org.mule.tooling.agent.rest.client.tooling.applications.Applications.put(Applications.java:101)
    at org.mule.tooling.agent.rest.client.RestAgentToolingService.lambda$deployApplication$5(RestAgentToolingService.java:211)
    at org.mule.tooling.agent.rest.client.service.ServiceFunction.serviceCallWrapper(ServiceFunction.java:28)
    at org.mule.tooling.agent.rest.client.RestAgentToolingService.deployApplication(RestAgentToolingService.java:210)
    at org.mule.tooling.agent.RuntimeToolingService.deployApplication(RuntimeToolingService.java:106)
    at org.mule.tooling.client.internal.metadata.AbstractRuntimeToolingServiceDecorator.deployApplication(AbstractRuntimeToolingServiceDecorator.java:75)
    at org.mule.tooling.client.internal.application.FileSystemArtifactDeployer.lambda$new$2(FileSystemArtifactDeployer.java:61)
    at org.mule.tooling.client.internal.application.FileSystemArtifactDeployer.doInternalDeploy(FileSystemArtifactDeployer.java:81)
    at org.mule.tooling.client.internal.application.AbstractArtifactDeployer.deploy(AbstractArtifactDeployer.java:59)
    at org.mule.tooling.client.internal.application.DefaultApplication.evaluateWithRemoteApplication(DefaultApplication.java:118)
    at org.mule.tooling.client.internal.ApplicationConnectivityTestingService.doTestConnection(ApplicationConnectivityTestingService.java:45)
    at org.mule.tooling.client.internal.AbstractConnectivityTestingService.testConnection(AbstractConnectivityTestingService.java:44)
    at org.mule.tooling.client.internal.AbstractConnectivityTestingService.invokeMethod(AbstractConnectivityTestingService.java:57)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at org.mule.tooling.client.bootstrap.internal.reflection.Dispatcher$ToolingCallable.call(Dispatcher.java:241)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)

    at org.mule.tooling.agent.rest.client.RestAgentToolingService.deployApplication(RestAgentToolingService.java:226)
    at org.mule.tooling.agent.RuntimeToolingService.deployApplication(RuntimeToolingService.java:106)
    at org.mule.tooling.client.internal.metadata.AbstractRuntimeToolingServiceDecorator.deployApplication(AbstractRuntimeToolingServiceDecorator.java:75)
    at org.mule.tooling.client.internal.application.FileSystemArtifactDeployer.lambda$new$2(FileSystemArtifactDeployer.java:61)
    at org.mule.tooling.client.internal.application.FileSystemArtifactDeployer.doInternalDeploy(FileSystemArtifactDeployer.java:81)
    at org.mule.tooling.client.internal.application.AbstractArtifactDeployer.deploy(AbstractArtifactDeployer.java:59)
    at org.mule.tooling.client.internal.application.DefaultApplication.evaluateWithRemoteApplication(DefaultApplication.java:118)
    at org.mule.tooling.client.internal.ApplicationConnectivityTestingService.doTestConnection(ApplicationConnectivityTestingService.java:45)
    at org.mule.tooling.client.internal.AbstractConnectivityTestingService.testConnection(AbstractConnectivityTestingService.java:44)
    at org.mule.tooling.client.internal.AbstractConnectivityTestingService.invokeMethod(AbstractConnectivityTestingService.java:57)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at org.mule.tooling.client.bootstrap.internal.reflection.Dispatcher$ToolingCallable.call(Dispatcher.java:241)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)

当我硬编码安全属性Config中的密钥时，一切都可以工作。为什么我不能访问传入的变量作为我的密钥？

mule
mule-studio
mule-component
mulesoft
EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2020-10-10 10:35:26

在此之前，我们都认为.properties文件键值在测试连接期间作为属性参数传递时不支持。加密的安全属性配置也是如此。

我最近观察到，您不必通过运行时部署应用程序来使正常工作。您可以在不实际部署应用程序的情况下测试连接并获取元数据。

要做到这一点，请尝试在global-property中添加global elements中的属性键和值。

在XML global elements部分中搜索global-property。

在您的示例中，您需要添加encryptionKey作为密钥名，yourKey作为全局属性的加密密钥。对于任何其他键值属性，也应遵循相同的规定。

此外，您不必始终在全局属性中传递encryptionkey。只需编辑studio文件夹中的-DencryptionKey=yourKey.文件并添加anypointstudio.ini您还可以在运行配置中的“环境属性”选项卡中传递它。但最后一种方法不能总是得到保证。

代码语言：javascript
运行
复制
Cheers ! It's gonna work fine.

备注

大多数mule工作室版本，让它是Mule 3.x.x或4.x.x，并不完全支持Test Connections、Auto Run、Data Sense等特性。

票数 4
EN

Stack Overflow用户

发布于 2020-10-08 14:37:30

不幸的是，无法在Test中使用Run配置。

测试连接实际上只适用于纯文本，因为它是一个简单的设计时工具。

如果您正常运行应用程序，它应该按照设计的方式工作。

我所知道的唯一解决办法是使用所需属性的环境变量启动Studio。但即便如此，当使用“测试连接”时，应用程序本身也没有启动，因此无法访问上下文，如安全属性等。

票数 1
EN
