问基于matlab的遮挡叶分水岭分割算法

EN

function wateralgo(img)

F=imread(img);

F=im2double(F);

%Converting RGB image to Intensity Image
r=F(:,:,1);
g=F(:,:,2);
b=F(:,:,3);
I=(r+g+b)/3;
imshow(I);

%Applying Gradient
hy = fspecial('sobel');
hx = hy';
Iy = imfilter(double(I), hy, 'replicate');
Ix = imfilter(double(I), hx, 'replicate');
gradmag = sqrt(Ix.^2 + Iy.^2);
figure, imshow(gradmag,[]), title('Gradient magnitude (gradmag)');

L = watershed(gradmag);
Lrgb = label2rgb(L);
figure, imshow(Lrgb), title('Watershed transform of gradient magnitude (Lrgb)');

se = strel('disk',20);
Io = imopen(I, se);
figure, imshow(Io), title('Opening (Io)');
Ie = imerode(I, se);
Iobr = imreconstruct(Ie, I);
figure, imshow(Iobr), title('Opening-by-reconstruction (Iobr)');

Ioc = imclose(Io, se);
figure, imshow(Ioc), title('Opening-closing (Ioc)');

Iobrd = imdilate(Iobr, se);
Iobrcbr = imreconstruct(imcomplement(Iobrd), imcomplement(Iobr));
Iobrcbr = imcomplement(Iobrcbr);
figure, imshow(Iobrcbr), title('Opening-closing by reconstruction (Iobrcbr)');

fgm = imregionalmin(Iobrcbr);
figure, imshow(fgm), title('Regional maxima of opening-closing by reconstruction (fgm)');

I2 = I;
I2(fgm) = 255;
figure, imshow(I2), title('Regional maxima superimposed on original image (I2)');

se2 = strel(ones(7,7));
fgm2 = imclose(fgm, se2);
fgm3 = imerode(fgm2, se2);
fgm4 = bwareaopen(fgm3, 20);
I3 = I;
I3(fgm4) = 255;
figure, imshow(I3), title('Modified regional maxima superimposed on original image (fgm4)');

bw = im2bw(Iobrcbr, graythresh(Iobrcbr));
figure, imshow(bw), title('Thresholded opening-closing by reconstruction (bw)');

D = bwdist(bw);
DL = watershed(D);
bgm = DL == 0;
figure, imshow(bgm), title('Watershed ridge lines (bgm)');

gradmag2 = imimposemin(gradmag, bgm | fgm4);
L = watershed(gradmag2);
I4 = I;
I4(imdilate(L == 0, ones(3, 3)) | bgm | fgm4) = 255;
figure, imshow(I4), title('Markers and object boundaries superimposed on original image (I4)');

Lrgb = label2rgb(L, 'jet', 'w', 'shuffle');
figure, imshow(Lrgb), title('Colored watershed label matrix (Lrgb)');

figure, imshow(I), hold on
himage = imshow(Lrgb);
set(himage, 'AlphaData', 0.3);

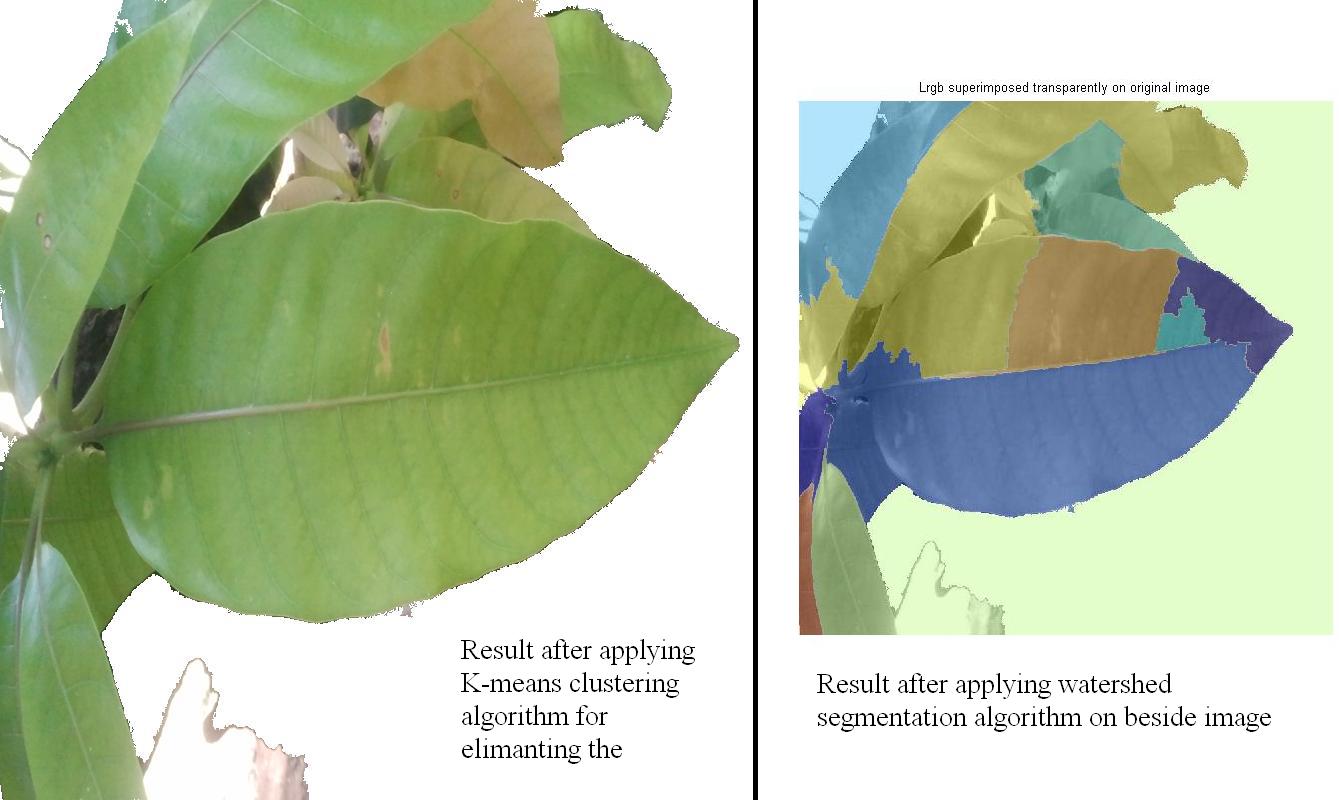

title('Lrgb superimposed transparently on original image');
end
