A quick web search suggests that Wireshark is being used with customized plugins (provided by Jennic ?).

The string "Jennic Sniffer protocol" is not found in the current Wireshark sources which suggests strongly that a customized version of Wireshark is being used.

So: i suspect you'll need to consult with the vendor and/or the vendor documentation (which I note discusses various configuration preferences).

<hr>

In any case, it's basically impossible to say much without being able to analyze the actual capture; based only on the screen shots I'll just say the following.

The expert window says "We don't support encryption with protocol [version ?]"

Does that refer to the frame 322 that you've highlighted. If so, the message means just what it says (assuming that the attempted dissection is valid).

The "malformed" messages mean that the dissector(s) are unable to make sense of the data.

Bigger picture: Given the various "malformeds"and the warning about decryption not being supported, anything is possible...

Again, your best approach might be to consult with the vendor.

blocks|key|1567069|text|您的Wireshark屏幕截图显示您正在使用Wireshark+1.6.5+(或基于Wireshark1.6.5的定制版本)，该版本现在已经超过5年了。根据Wireshark的生命周期维基页面，对Wireshark1.6的支持于2013年6月7日结束。|type|unstyled|depth|inlineStyleRanges|entityRanges|offset|length|data|1567070|从那时起就出现了IEEE802.15.4分解器的许多更新，因此，更新后的解剖可能很有可能对您现在感兴趣的数据进行剖析。|1567071|我建议您更新您的Wireshark版本。|1567072|entityMap|0|LINK|mutability|MUTABLE|url|https://www.wireshark.org/news/20120110.html|1|https://wiki.wireshark.org/Development/LifeCycle|2|https://code.wireshark.org/review/gitweb?p=wireshark.git;a=history;f=epan/dissectors/packet-ieee802154.c;h=7cd95e0fbb71409e6ceee613fe33a40a0aeebb23;hb=HEAD|3|https://www.wireshark.org/#download^0|M|F|0|2G|4|1|0|8|K|2|0|8|9|3|0^^$0|@$1|2|3|4|5|6|7|V|8|@]|9|@$A|W|B|X|1|Y]|$A|Z|B|10|1|11]]|C|$]]|$1|D|3|E|5|6|7|12|8|@]|9|@$A|13|B|14|1|15]]|C|$]]|$1|F|3|G|5|6|7|16|8|@]|9|@$A|17|B|18|1|19]]|C|$]]|$1|H|3|-4|5|6|7|1A|8|@]|9|@]|C|$]]]|I|$J|$5|K|L|M|C|$N|O]]|P|$5|K|L|M|C|$N|Q]]|R|$5|K|L|M|C|$N|S]]|T|$5|K|L|M|C|$N|U]]]]

Your Wireshark screenshots indicate that you're using <a href="https://www.wireshark.org/news/20120110.html" rel="nofollow noreferrer">Wireshark 1.6.5</a> (or a customized version based on Wireshark 1.6.5), which is over 5 years old now. According to Wireshark's <a href="https://wiki.wireshark.org/Development/LifeCycle" rel="nofollow noreferrer">Lifecycle</a> wiki page, support for Wireshark 1.6 ended on June 7, 2013.

There have been <a href="https://code.wireshark.org/review/gitweb?p=wireshark.git;a=history;f=epan/dissectors/packet-ieee802154.c;h=7cd95e0fbb71409e6ceee613fe33a40a0aeebb23;hb=HEAD" rel="nofollow noreferrer">many updates to the IEEE 802.15.4 dissector</a> since then and as such, there's probably a very good chance that the updated dissector dissects the data you're interested in now.

I would recommend that you update your version of <a href="https://www.wireshark.org/#download" rel="nofollow noreferrer">Wireshark</a>.

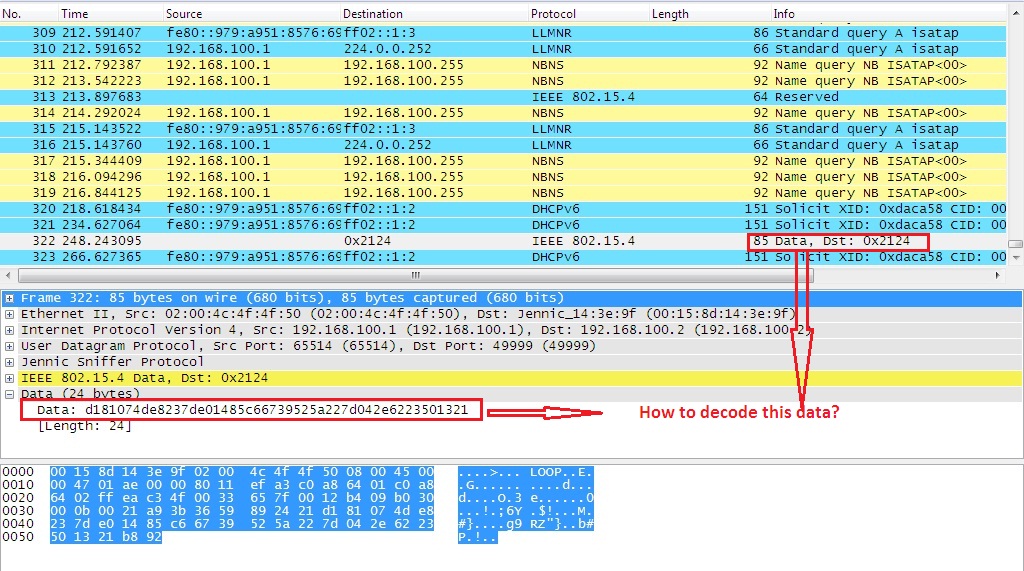

We are capturing traffic using JN5148EK010 nodes via WireShark. The packets received are shown in the screenshot provided.

<ol>
<li>I want to know how to decode the data</li>

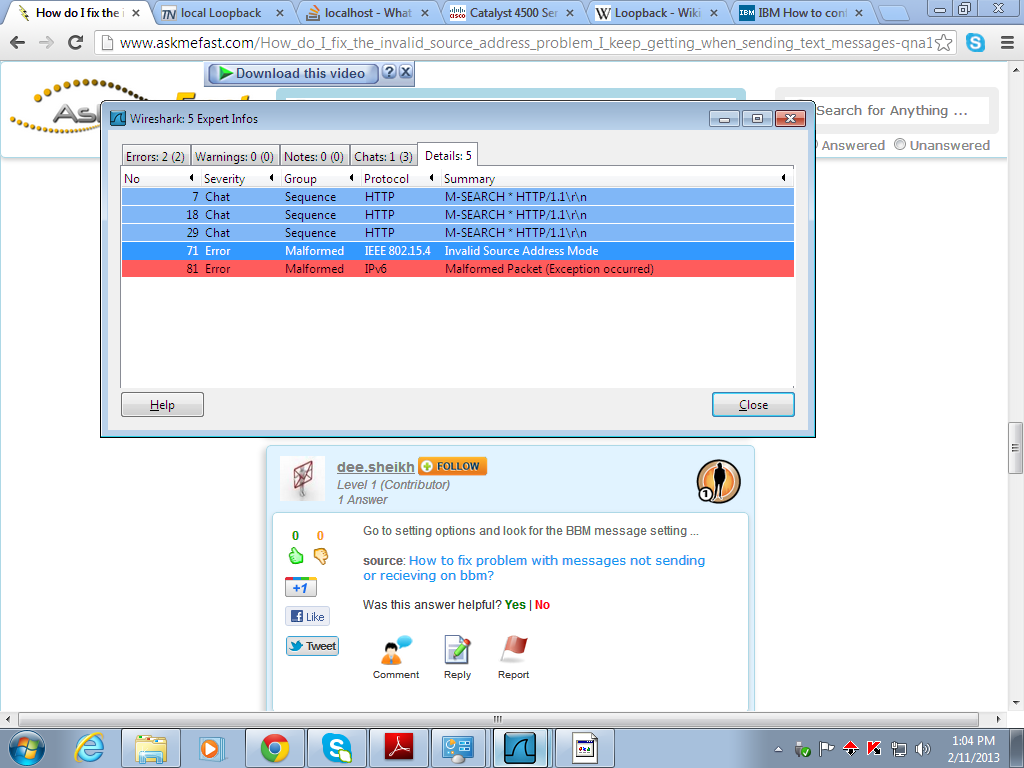

<li>An error occurs afer capturing a few packets, whose screen shot is also provided. How to resolve this error?</li>
<li>List item</li>
</ol>

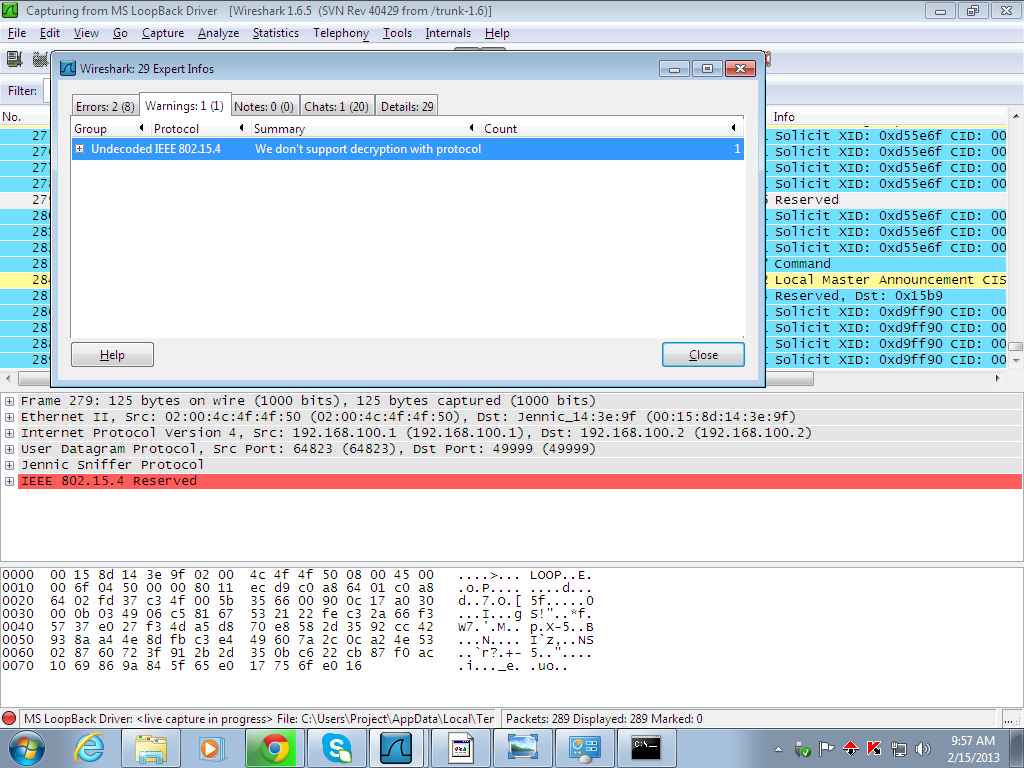

Another error (please refer to third screenshot) occured.

How to resolve that?

<img src="https://i.stack.imgur.com/GbGlR.jpg" alt="enter image description here">
<img src="https://i.stack.imgur.com/den37.png" alt="enter image description here">

<img src="https://i.stack.imgur.com/r4jAp.png" alt="enter image description here">

How to decode a packet received through WireShark & resolving some errors
