社区首页 >问答首页 >如何自定义WPF带4.5 (样式、模板等)

问如何自定义WPF带4.5 (样式、模板等)
EN

Stack Overflow用户
提问于 2013-07-05 11:41:41
回答 3查看 11K关注 0票数 11

我尝试从.Net Framework4.5中自定义.Net，以便它可以与表达式暗主题一起使用(暗颜色类似于混合的默认主题)。我试过以下想法，但到目前为止没有任何进展：

  • 改变彩带的背景:将只改变主颜色，但留下所有其他光泽的颜色，突出颜色等。
  • 更改样式和模板:我找不到丝带4.5的任何默认模板。我试图通过像ShowMeTheTemplate这样的工具来获取它们，但是它们似乎使用了一些内部类。
  • 为VS2012定制混合模板:我总是得到一个错误“复制模板失败”。
  • 使用来自.net 8的RibbonControlLibrary 4色带: RibbonWindow在Windows 8中看起来很难看(参见WPF RibbonWindow + Windows 8-控件框看起来很糟糕)，我无法解决这个问题

如有任何帮助将不胜感激，欢迎所有建议。

c#
wpf
templates
styles
ribbon
EN

回答 3

Stack Overflow用户

发布于 2014-11-17 16:19:00

我能够使用给我看看模板提取一个完全工作的模板。为此，我将其修改为从"System.Windows.Controls.Ribbon“(而不是主框架程序集)中提取模板。

它给了我以下几点：

https://gist.github.com/drayde/75526b570a266f5f8f38 (太长而不能粘贴在这里)

只需将其添加到您的资源中，并按如下方式使用：

代码语言：javascript
运行
复制
    <Ribbon Template="{StaticResource ribbonTemplate}">
       ...
    </Ribbon>

通过修改模板，您应该可以完全控制带状的显示方式。

票数 7
EN

Stack Overflow用户

发布于 2014-11-14 16:57:03

您可以通过在带状上设置属性来更改两种颜色：

代码语言：javascript
运行
复制
<ribbon:Ribbon x:Name="Ribbon"
                  Background="Khaki"
                  BorderBrush="Brown"
                  MouseOverBackground="LightCoral"
                  MouseOverBorderBrush="Coral"
                  PressedBackground="LightGreen"
                  PressedBorderBrush="Green"
                  CheckedBackground="LightBlue"
                  CheckedBorderBrush="Blue"
                  FocusedBackground="LightSlateGray"
                  FocusedBorderBrush="SlateBlue">

这并不是一个好看的例子，而是展示了如何做到这一点。

会对如何重新设计感兴趣.

票数 5
EN

Stack Overflow用户

发布于 2019-08-20 16:33:36

我跟随这个答案从VS获得一个模板。

它以类似OP描述的方式失败了。

然后，我用@Andreas中的gist对缺失的部分{Binding (0)}进行了修补。

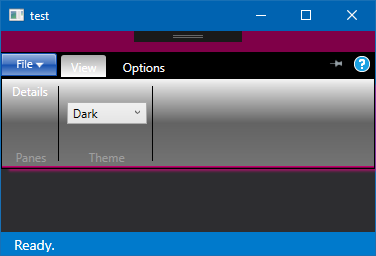

为了进行测试，我将视图中的所有颜色属性设置为黑色，在新创建的模板中设置为50%的洋红。

​

​

大约在这个时候，我准备放弃System.Controls.Windows.Ribbon，试试Fluent.Ribbon.

模板：

代码语言：javascript
运行
复制
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                xmlns:mwt="clr-namespace:Microsoft.Windows.Themes;assembly=PresentationFramework.Classic"
                xmlns:swcrp="clr-namespace:System.Windows.Controls.Ribbon.Primitives;assembly=System.Windows.Controls.Ribbon"
                xmlns:s="clr-namespace:System;assembly=mscorlib">

<!-- Template Colors -->

<SolidColorBrush x:Key="GroupsInnerBorderBrush" Color="#60FFFFFF"/>
<SolidColorBrush x:Key="QatTopHostBorderBrush1" Color="#66CCCCCC"/>
<SolidColorBrush x:Key="QatTopHostBorderBrush2" Color="#77222222"/>
<SolidColorBrush x:Key="QatTopHostBorderBrush3" Color="#81444444"/>
<SolidColorBrush x:Key="QatTopHostBorderBrush4" Color="#69EEEEEE"/>

<!-- #71000000 -->
<s:Byte x:Key="r">#00</s:Byte>
<s:Byte x:Key="g">#00</s:Byte>
<s:Byte x:Key="b">#00</s:Byte>
<s:Byte x:Key="a">#71</s:Byte>
<Color x:Key="DropShadowColor" R="{StaticResource r}" G="{StaticResource g}" B="{StaticResource b}" A="{StaticResource a}"/>

<LinearGradientBrush x:Key="GroupsBorderBackgroundBrush" EndPoint="0.5,1" StartPoint="0.5,0">
    <GradientStop Color="#EEFFFFFF" Offset="0"/>
    <GradientStop Color="#BBFFFFFF" Offset="0.1"/>
    <GradientStop Color="#05FFFFFF" Offset="0.5"/>
    <GradientStop Color="#20FFFFFF" Offset="1"/>
</LinearGradientBrush>
<LinearGradientBrush x:Key="TitleBarBackgroundBrush" EndPoint="0.5,1" StartPoint="0.5,0">
    <GradientStop Color="#EEFFFFFF" Offset="0"/>
    <GradientStop Color="#BBFFFFFF" Offset="0.1"/>
    <GradientStop Color="#05FFFFFF" Offset="0.5"/>
    <GradientStop Color="#20FFFFFF" Offset="1"/>
</LinearGradientBrush>

<!-- Template -->

<ControlTemplate x:Key="RibbonTemplate" TargetType="{x:Type Ribbon}">
    <Grid SnapsToDevicePixels="True">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="Auto"/>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="Auto"/>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="Auto"/>
        </Grid.RowDefinitions>
        <Border x:Name="BackgroundBorder" Grid.ColumnSpan="3" Grid.Row="1" Grid.RowSpan="3"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        Background="{TemplateBinding Background}"/>
        <Border Grid.ColumnSpan="3" Grid.Row="1">
            <Popup x:Name="PART_ITEMSPRESENTERPOPUP" AllowsTransparency="True"
                           IsOpen="{Binding IsDropDownOpen, RelativeSource={RelativeSource TemplatedParent}}"
                           PopupAnimation="{DynamicResource {x:Static SystemParameters.MenuPopupAnimationKey}}">
                <mwt:SystemDropShadowChrome x:Name="Shdw" Color="Transparent" RenderOptions.ClearTypeHint="Enabled"
                                                    FocusVisualStyle="{x:Null}" Focusable="True" Margin="0,0,5,5">
                    <Border x:Name="CollapsedPopupBackgroundBorder" Background="{TemplateBinding Background}">
                        <ContentControl x:Name="popupItemsPresenterHost" KeyboardNavigation.DirectionalNavigation="Cycle"
                                                Focusable="False" Margin="0,1,0,0" KeyboardNavigation.TabNavigation="Cycle"/>
                    </Border>
                </mwt:SystemDropShadowChrome>
            </Popup>
        </Border>
        <ContentControl x:Name="mainItemsPresenterHost" Grid.ColumnSpan="3" Focusable="False" Grid.Row="2">
            <Border x:Name="groupsBorder" BorderThickness="1,0,1,1" Height="91" SnapsToDevicePixels="True"
                            BorderBrush="{TemplateBinding BorderBrush}"
                            Background="{StaticResource GroupsBorderBackgroundBrush}">
                <Border BorderThickness="0,0,0,1" Margin="0,0,0,1" SnapsToDevicePixels="True"
                                BorderBrush="{StaticResource GroupsInnerBorderBrush}">
                    <ItemsPresenter x:Name="ItemsPresenter"/>
                </Border>
            </Border>
        </ContentControl>
        <Border x:Name="QatBottomHost" Grid.ColumnSpan="3" Grid.Row="3" BorderBrush="{TemplateBinding BorderBrush}">
            <ContentPresenter x:Name="QatBottomHostContentPresenter" IsHitTestVisible="True"
                                      HorizontalAlignment="Left" VerticalAlignment="Center"/>
        </Border>
        <Border x:Name="titleBarBackground" BorderThickness="0,0,0,1" Grid.ColumnSpan="3" Visibility="Collapsed"
                        BorderBrush="{TemplateBinding BorderBrush}"
                        Background="{StaticResource TitleBarBackgroundBrush}"/>
        <DockPanel Grid.ColumnSpan="3" Grid.Column="0" Height="22" LastChildFill="True">
            <ContentControl x:Name="windowButtonPlaceHolder" DockPanel.Dock="Right" Focusable="False"
                                    IsHitTestVisible="False" Margin="3,0,0,0" Width="35">
                <ContentControl.Visibility>
                    <TemplateBinding Property="IsHostedInRibbonWindow">
                        <TemplateBindingExtension.Converter>
                            <BooleanToVisibilityConverter />
                        </TemplateBindingExtension.Converter>
                    </TemplateBinding>
                </ContentControl.Visibility>
            </ContentControl>
            <ContentControl x:Name="windowIconPadding" DockPanel.Dock="Left" Focusable="False"
                                    IsHitTestVisible="False" Margin="0,0,3,0" Width="16"/>
            <swcrp:RibbonTitlePanel x:Name="PART_TitlePanel">
                <Grid x:Name="QatTopHost">
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="Auto"/>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="Auto"/>
                    </Grid.ColumnDefinitions>
                    <Border x:Name="QatTopHostLeftBorder" BorderBrush="{StaticResource QatTopHostBorderBrush1}"
                                    BorderThickness="1,0,1,0.9" Background="{StaticResource QatTopHostBorderBrush2}" Grid.Column="0"
                                    CornerRadius="0,0,2,2" Margin="8,2,0,2" Width="3"/>

                    <ContentPresenter x:Name="QatTopHostContentPresenter" Grid.Column="1" IsHitTestVisible="True"
                                              Content="{TemplateBinding QuickAccessToolBar}"/>

                    <Border x:Name="QatTopHostRightBorder" BorderBrush="{StaticResource QatTopHostBorderBrush1}"
                                    BorderThickness="1,0,1,0.9" Background="{StaticResource QatTopHostBorderBrush2}" Grid.Column="2"
                                    CornerRadius="0,0,2,2" Margin="0,2,1,2" Width="3"/>
                </Grid>

                <ContentPresenter x:Name="PART_TitleHost" ContentTemplate="{TemplateBinding TitleTemplate}"
                                          Content="{TemplateBinding Title}" ContentSource="Title"
                                          TextElement.Foreground="{DynamicResource {x:Static SystemColors.ActiveCaptionTextBrushKey}}"
                                          TextElement.FontWeight="{DynamicResource {x:Static SystemFonts.CaptionFontWeightKey}}"
                                          TextElement.FontSize="{DynamicResource {x:Static SystemFonts.CaptionFontSizeKey}}"
                                          TextElement.FontFamily="{DynamicResource {x:Static SystemFonts.CaptionFontFamilyKey}}"
                                          HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                          IsHitTestVisible="False" Margin="3,0" MinWidth="75" MinHeight="22">

                    <ContentPresenter.Resources>
                        <DataTemplate x:Key="{DataTemplateKey DataType={x:Type s:String}}" DataType="{x:Type s:String}">
                            <TextBlock x:Name="titleTextBlock" HorizontalAlignment="{TemplateBinding HorizontalAlignment}"
                                               Margin="0,-2,0,0" Text="{TemplateBinding Content}" TextTrimming="CharacterEllipsis"/>
                            <DataTemplate.Triggers>
                                <MultiDataTrigger>
                                    <MultiDataTrigger.Conditions>
                                        <Condition Binding="{Binding Path=(SystemParameters.IsGlassEnabled)}" Value="True"/>
                                        <Condition Binding="{Binding IsHostedInRibbonWindow, RelativeSource={RelativeSource FindAncestor,
                                                    AncestorLevel=1, AncestorType={x:Type Ribbon}}}" Value="True"/>
                                    </MultiDataTrigger.Conditions>
                                    <Setter Property="Effect" TargetName="titleTextBlock">
                                        <Setter.Value>
                                            <DropShadowEffect BlurRadius="5" Color="White" ShadowDepth="0"/>
                                        </Setter.Value>
                                    </Setter>
                                </MultiDataTrigger>
                                <DataTrigger Binding="{Binding Path=(SystemParameters.IsGlassEnabled)}" Value="False">
                                    <Setter Property="Margin" TargetName="titleTextBlock" Value="0"/>
                                    <Setter Property="VerticalAlignment" TargetName="titleTextBlock" Value="Center"/>
                                </DataTrigger>
                                <DataTrigger Binding="{Binding Path=(SystemParameters.HighContrast)}" Value="True">
                                    <Setter Property="Margin" TargetName="titleTextBlock" Value="0,1,0,0"/>
                                </DataTrigger>
                                <MultiDataTrigger>
                                    <MultiDataTrigger.Conditions>
                                        <Condition Binding="{Binding Path=(SystemParameters.UxThemeName)}" Value="AeroLite"/>
                                        <Condition Binding="{Binding Path=(SystemParameters.IsGlassEnabled)}" Value="False"/>
                                        <Condition Binding="{Binding IsHostedInRibbonWindow, RelativeSource={RelativeSource FindAncestor,
                                                    AncestorLevel=1, AncestorType={x:Type Ribbon}}}" Value="True"/>
                                        <Condition Binding="{Binding WindowState, RelativeSource={RelativeSource FindAncestor,
                                                    AncestorLevel=1, AncestorType={x:Type RibbonWindow}}}" Value="Normal"/>
                                    </MultiDataTrigger.Conditions>
                                    <Setter Property="Margin" TargetName="titleTextBlock" Value="0,0,0,7"/>
                                </MultiDataTrigger>
                            </DataTemplate.Triggers>
                        </DataTemplate>
                    </ContentPresenter.Resources>
                </ContentPresenter>
                <RibbonContextualTabGroupItemsControl x:Name="PART_ContextualTabGroupItemsControl"
                                                              HorizontalAlignment="Center" IsHitTestVisible="True"
                                                              WindowChrome.IsHitTestVisibleInChrome="True"/>
            </swcrp:RibbonTitlePanel>
        </DockPanel>
        <ContentPresenter x:Name="applicationMenu" Content="{TemplateBinding ApplicationMenu}" Grid.Row="1" VerticalAlignment="Top"/>
        <RibbonTabHeaderItemsControl x:Name="TabHeaderItemsControl" Grid.Column="1"
                                             HorizontalAlignment="Left" Margin="1,1,1,0" Grid.Row="1" VerticalAlignment="Top"/>
        <ContentPresenter x:Name="PART_HelpPane" ContentTemplate="{TemplateBinding HelpPaneContentTemplate}"
                                  Content="{TemplateBinding HelpPaneContent}" Grid.Column="2" ContentSource="HelpPaneContent"
                                  HorizontalAlignment="Right" Grid.Row="1" VerticalAlignment="Top"/>
    </Grid>
    <ControlTemplate.Triggers>
        <Trigger Property="IsCollapsed" Value="True">
            <Setter Property="Visibility" TargetName="applicationMenu" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="QatBottomHost" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="QatTopHost" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="mainItemsPresenterHost" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="TabHeaderItemsControl" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="PART_HelpPane" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="PART_ContextualTabGroupItemsControl" Value="Collapsed"/>
            <Setter Property="MinWidth" TargetName="PART_TitleHost" Value="0"/>
        </Trigger>
        <MultiTrigger>
            <MultiTrigger.Conditions>
                <Condition Property="IsCollapsed" Value="True"/>
                <Condition Property="IsHostedInRibbonWindow" Value="False"/>
            </MultiTrigger.Conditions>
            <Setter Property="Visibility" Value="Collapsed"/>
        </MultiTrigger>
        <Trigger Property="ShowQuickAccessToolBarOnTop" Value="False">
            <Setter Property="Content" TargetName="QatTopHostContentPresenter" Value="{x:Null}"/>
            <Setter Property="Visibility" TargetName="QatTopHost" Value="Collapsed"/>
            <Setter Property="Content" TargetName="QatBottomHostContentPresenter"
                            Value="{Binding QuickAccessToolBar, RelativeSource={RelativeSource TemplatedParent}}"/>
            <Setter Property="BorderThickness" TargetName="BackgroundBorder" Value="0,0,0,1"/>
        </Trigger>
        <MultiDataTrigger>
            <MultiDataTrigger.Conditions>
                <Condition Binding="{Binding QuickAccessToolBar.HasItems, RelativeSource={RelativeSource Self}}" Value="False"/>
                <Condition Binding="{Binding QuickAccessToolBar.CustomizeMenuButton, RelativeSource={RelativeSource Self}}" Value="{x:Null}"/>
            </MultiDataTrigger.Conditions>
            <Setter Property="Visibility" TargetName="QatTopHost" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="QatBottomHost" Value="Collapsed"/>
        </MultiDataTrigger>
        <Trigger Property="IsMinimized" Value="True">
            <Setter Property="Content" TargetName="mainItemsPresenterHost" Value="{x:Null}"/>
            <Setter Property="Visibility" TargetName="mainItemsPresenterHost" Value="Collapsed"/>
            <Setter Property="Content" TargetName="popupItemsPresenterHost" Value="{Binding ElementName=groupsBorder}"/>
            <Setter Property="BorderThickness" TargetName="BackgroundBorder" Value="0,0,0,1"/>
        </Trigger>
        <Trigger Property="WindowIconVisibility" Value="Collapsed">
            <Setter Property="Visibility" TargetName="windowIconPadding" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="QatTopHostLeftBorder" Value="Collapsed"/>
        </Trigger>
        <MultiTrigger>
            <MultiTrigger.Conditions>
                <Condition Property="IsMinimized" Value="True"/>
                <Condition Property="ShowQuickAccessToolBarOnTop" Value="False"/>
            </MultiTrigger.Conditions>
            <Setter Property="BorderThickness" TargetName="QatBottomHost" Value="0,1,0,0"/>
        </MultiTrigger>
        <Trigger Property="IsHostedInRibbonWindow" Value="False">
            <Setter Property="Grid.Row" TargetName="BackgroundBorder" Value="0"/>
            <Setter Property="Grid.RowSpan" TargetName="BackgroundBorder" Value="4"/>
            <Setter Property="Visibility" TargetName="titleBarBackground" Value="Visible"/>
            <Setter Property="Visibility" TargetName="windowIconPadding" Value="Collapsed"/>
            <Setter Property="Visibility" TargetName="QatTopHostLeftBorder" Value="Collapsed"/>
        </Trigger>
        <Trigger Property="IsDropDownOpen" Value="True">
            <Setter Property="BorderThickness" TargetName="BackgroundBorder" Value="0"/>
        </Trigger>
        <Trigger Property="HasDropShadow" SourceName="PART_ITEMSPRESENTERPOPUP" Value="True">
            <Setter Property="Color" TargetName="Shdw" Value="{StaticResource DropShadowColor}"/>
        </Trigger>
        <MultiDataTrigger>
            <MultiDataTrigger.Conditions>
                <Condition Binding="{Binding IsActive, RelativeSource={RelativeSource FindAncestor,
                            AncestorLevel=1, AncestorType={x:Type RibbonWindow}}}" Value="False"/>
                <Condition Binding="{Binding Path=(SystemParameters.IsGlassEnabled)}" Value="False"/>
                <Condition Binding="{Binding IsHostedInRibbonWindow, RelativeSource={RelativeSource Self}}" Value="True"/>
            </MultiDataTrigger.Conditions>
            <Setter Property="TextElement.Foreground" TargetName="PART_TitleHost"
                            Value="{DynamicResource {x:Static SystemColors.InactiveCaptionTextBrushKey}}"/>
        </MultiDataTrigger>
        <DataTrigger Binding="{Binding Path=(SystemParameters.UxThemeName)}" Value="Aero">
            <Setter Property="Margin" TargetName="QatTopHost" Value="0,-3,0,0"/>
            <Setter Property="Margin" TargetName="QatTopHostLeftBorder" Value="3,3,0,5"/>
            <Setter Property="Background" TargetName="QatTopHostLeftBorder" Value="{StaticResource QatTopHostBorderBrush3}"/>
            <Setter Property="BorderBrush" TargetName="QatTopHostLeftBorder" Value="{StaticResource QatTopHostBorderBrush4}"/>
            <Setter Property="Margin" TargetName="QatTopHostRightBorder" Value="0,3,1,5"/>
            <Setter Property="Background" TargetName="QatTopHostRightBorder" Value="{StaticResource QatTopHostBorderBrush3}"/>
            <Setter Property="BorderBrush" TargetName="QatTopHostRightBorder" Value="{StaticResource QatTopHostBorderBrush4}"/>
        </DataTrigger>
        <MultiDataTrigger>
            <MultiDataTrigger.Conditions>
                <Condition Binding="{Binding Path=(SystemParameters.UxThemeName)}" Value="Aero"/>
                <Condition Binding="{Binding WindowState, RelativeSource={RelativeSource FindAncestor,
                            AncestorLevel=1, AncestorType={x:Type RibbonWindow}}}" Value="Maximized"/>
            </MultiDataTrigger.Conditions>
            <Setter Property="Margin" TargetName="QatTopHost" Value="0"/>
        </MultiDataTrigger>
    </ControlTemplate.Triggers>
</ControlTemplate>
票数 3
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/17488075

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
