用google对iOS进行标记聚类？
用google对iOS进行标记聚类？
提问于 2013-11-24 14:20:58

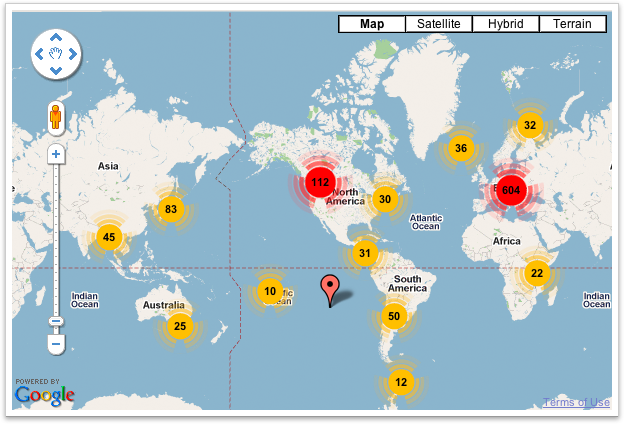

我在我的iOS应用程序中使用Google，我需要对彼此非常接近的标记进行分组--基本上需要使用标记聚类，就像附在附件url中所显示的那样。我能够在Android中获得这个功能，但是我没有找到iOS Google的任何库。
或建议一种实现自定义库的方法吗？
(这张图片的来源)
回答 3
Stack Overflow用户
发布于 2013-11-28 17:04:06
要理解这个双映射解决方案的基本概念，请看一下这个WWDC 2011视频 ( 22'30)。Map代码是直接从这个视频中提取出来的，除了我在几个注释中描述的一些事情之外。Google解决方案只是一种适应。
主思想：一个映射是隐藏的，包含每个注释，包括合并的注释(在我的代码中是allAnnotationMapView)。另一个是可见的，如果它是单个的，则只显示集群的注释或注释(在我的代码中是mapView)。
第二个主要思想：我将可见地图(加上一个边距)划分为正方形，每个批注都合并到一个注释中。
我为Google使用的代码(请注意，当markers属性在GMSMapView类上可用时，我编写了这个代码。它不再是了，但是您可以跟踪添加到自己数组中的所有标记，并使用这个数组而不是调用mapView.markers)：
- (void)loadView {
[super loadView];
self.mapView = [[GMSMapView alloc] initWithFrame:self.view.frame];
self.mapView.delegate = self;
self.allAnnotationMapView = [[GMSMapView alloc] initWithFrame:self.view.frame]; // can't be zero or you'll have weard results (I don't remember exactly why)
self.view = self.mapView;
UIPinchGestureRecognizer* pinchRecognizer = [[UIPinchGestureRecognizer alloc] initWithTarget:self action:@selector(didZoom:)];
[pinchRecognizer setDelegate:self];
[self.mapView addGestureRecognizer:pinchRecognizer];
}
- (void)didZoom:(UIGestureRecognizer*)gestureRecognizer {
if (gestureRecognizer.state == UIGestureRecognizerStateEnded){
[self updateVisibleAnnotations];
}
}
- (float)distanceFrom:(CGPoint)point1 to:(CGPoint)point2 {
CGFloat xDist = (point2.x - point1.x);
CGFloat yDist = (point2.y - point1.y);
return sqrt((xDist * xDist) + (yDist * yDist));
}
- (NSSet *)annotationsInRect:(CGRect)rect forMapView:(GMSMapView *)mapView {
GMSProjection *projection = self.mapView.projection; //always take self.mapView because it is the only one zoomed on screen
CLLocationCoordinate2D southWestCoordinates = [projection coordinateForPoint:CGPointMake(rect.origin.x, rect.origin.y + rect.size.height)];
CLLocationCoordinate2D northEastCoordinates = [projection coordinateForPoint:CGPointMake(rect.origin.x + rect.size.width, rect.origin.y)];
NSMutableSet *annotations = [NSMutableSet set];
for (GMSMarker *marker in mapView.markers) {
if (marker.position.latitude < southWestCoordinates.latitude || marker.position.latitude >= northEastCoordinates.latitude) {
continue;
}
if (marker.position.longitude < southWestCoordinates.longitude || marker.position.longitude >= northEastCoordinates.longitude) {
continue;
}
[annotations addObject:marker.userData];
}
return annotations;
}
- (GMSMarker *)viewForAnnotation:(PointMapItem *)item forMapView:(GMSMapView *)mapView{
for (GMSMarker *marker in mapView.markers) {
if (marker.userData == item) {
return marker;
}
}
return nil;
}
- (void)updateVisibleAnnotations {
static float marginFactor = 1.0f;
static float bucketSize = 100.0f;
CGRect visibleMapRect = self.view.frame;
CGRect adjustedVisibleMapRect = CGRectInset(visibleMapRect, -marginFactor * visibleMapRect.size.width, -marginFactor * visibleMapRect.size.height);
double startX = CGRectGetMinX(adjustedVisibleMapRect);
double startY = CGRectGetMinY(adjustedVisibleMapRect);
double endX = CGRectGetMaxX(adjustedVisibleMapRect);
double endY = CGRectGetMaxY(adjustedVisibleMapRect);
CGRect gridMapRect = CGRectMake(0, 0, bucketSize, bucketSize);
gridMapRect.origin.y = startY;
while(CGRectGetMinY(gridMapRect) <= endY) {
gridMapRect.origin.x = startX;
while (CGRectGetMinX(gridMapRect) <= endX) {
NSSet *allAnnotationsInBucket = [self annotationsInRect:gridMapRect forMapView:self.allAnnotationMapView];
NSSet *visibleAnnotationsInBucket = [self annotationsInRect:gridMapRect forMapView:self.mapView];
NSMutableSet *filteredAnnotationsInBucket = [[allAnnotationsInBucket objectsPassingTest:^BOOL(id obj, BOOL *stop) {
BOOL isPointMapItem = [obj isKindOfClass:[PointMapItem class]];
BOOL shouldBeMerged = NO;
if (isPointMapItem) {
PointMapItem *pointItem = (PointMapItem *)obj;
shouldBeMerged = pointItem.shouldBeMerged;
}
return shouldBeMerged;
}] mutableCopy];
NSSet *notMergedAnnotationsInBucket = [allAnnotationsInBucket objectsPassingTest:^BOOL(id obj, BOOL *stop) {
BOOL isPointMapItem = [obj isKindOfClass:[PointMapItem class]];
BOOL shouldBeMerged = NO;
if (isPointMapItem) {
PointMapItem *pointItem = (PointMapItem *)obj;
shouldBeMerged = pointItem.shouldBeMerged;
}
return isPointMapItem && !shouldBeMerged;
}];
for (PointMapItem *item in notMergedAnnotationsInBucket) {
[self addAnnotation:item inMapView:self.mapView animated:NO];
}
if(filteredAnnotationsInBucket.count > 0) {
PointMapItem *annotationForGrid = (PointMapItem *)[self annotationInGrid:gridMapRect usingAnnotations:filteredAnnotationsInBucket];
[filteredAnnotationsInBucket removeObject:annotationForGrid];
annotationForGrid.containedAnnotations = [filteredAnnotationsInBucket allObjects];
[self removeAnnotation:annotationForGrid inMapView:self.mapView];
[self addAnnotation:annotationForGrid inMapView:self.mapView animated:NO];
if (filteredAnnotationsInBucket.count > 0){
// [self.mapView deselectAnnotation:annotationForGrid animated:NO];
}
for (PointMapItem *annotation in filteredAnnotationsInBucket) {
// [self.mapView deselectAnnotation:annotation animated:NO];
annotation.clusterAnnotation = annotationForGrid;
annotation.containedAnnotations = nil;
if ([visibleAnnotationsInBucket containsObject:annotation]) {
CLLocationCoordinate2D actualCoordinate = annotation.coordinate;
[UIView animateWithDuration:0.3 animations:^{
annotation.coordinate = annotation.clusterAnnotation.coordinate;
} completion:^(BOOL finished) {
annotation.coordinate = actualCoordinate;
[self removeAnnotation:annotation inMapView:self.mapView];
}];
}
}
}
gridMapRect.origin.x += bucketSize;
}
gridMapRect.origin.y += bucketSize;
}
}
- (PointMapItem *)annotationInGrid:(CGRect)gridMapRect usingAnnotations:(NSSet *)annotations {
NSSet *visibleAnnotationsInBucket = [self annotationsInRect:gridMapRect forMapView:self.mapView];
NSSet *annotationsForGridSet = [annotations objectsPassingTest:^BOOL(id obj, BOOL *stop) {
BOOL returnValue = ([visibleAnnotationsInBucket containsObject:obj]);
if (returnValue) {
*stop = YES;
}
return returnValue;
}];
if (annotationsForGridSet.count != 0) {
return [annotationsForGridSet anyObject];
}
CGPoint centerMapPoint = CGPointMake(CGRectGetMidX(gridMapRect), CGRectGetMidY(gridMapRect));
NSArray *sortedAnnotations = [[annotations allObjects] sortedArrayUsingComparator:^(id obj1, id obj2) {
CGPoint mapPoint1 = [self.mapView.projection pointForCoordinate:((PointMapItem *)obj1).coordinate];
CGPoint mapPoint2 = [self.mapView.projection pointForCoordinate:((PointMapItem *)obj2).coordinate];
CLLocationDistance distance1 = [self distanceFrom:mapPoint1 to:centerMapPoint];
CLLocationDistance distance2 = [self distanceFrom:mapPoint2 to:centerMapPoint];
if (distance1 < distance2) {
return NSOrderedAscending;
}
else if (distance1 > distance2) {
return NSOrderedDescending;
}
return NSOrderedSame;
}];
return [sortedAnnotations objectAtIndex:0];
return nil;
}
- (void)addAnnotation:(PointMapItem *)item inMapView:(GMSMapView *)mapView {
[self addAnnotation:item inMapView:mapView animated:YES];
}
- (void)addAnnotation:(PointMapItem *)item inMapView:(GMSMapView *)mapView animated:(BOOL)animated {
GMSMarker *marker = [[GMSMarker alloc] init];
GMSMarkerAnimation animation = kGMSMarkerAnimationNone;
if (animated) {
animation = kGMSMarkerAnimationPop;
}
marker.appearAnimation = animation;
marker.title = item.title;
marker.icon = [[AnnotationsViewUtils getInstance] imageForItem:item];
marker.position = item.coordinate;
marker.map = mapView;
marker.userData = item;
// item.associatedMarker = marker;
}
- (void)addAnnotations:(NSArray *)items inMapView:(GMSMapView *)mapView {
[self addAnnotations:items inMapView:mapView animated:YES];
}
- (void)addAnnotations:(NSArray *)items inMapView:(GMSMapView *)mapView animated:(BOOL)animated {
for (PointMapItem *item in items) {
[self addAnnotation:item inMapView:mapView];
}
}
- (void)removeAnnotation:(PointMapItem *)item inMapView:(GMSMapView *)mapView {
// Try to make that work because it avoid loopigng through all markers each time we just want to delete one...
// Plus, your associatedMarker property should be weak to avoid memory cycle because userData hold strongly the item
// GMSMarker *marker = item.associatedMarker;
// marker.map = nil;
for (GMSMarker *marker in mapView.markers) {
if (marker.userData == item) {
marker.map = nil;
}
}
}
- (void)removeAnnotations:(NSArray *)items inMapView:(GMSMapView *)mapView {
for (PointMapItem *item in items) {
[self removeAnnotation:item inMapView:mapView];
}
}几个注意事项：
PointMapItem是我的注释数据类(如果我们使用Map，则为id<MKAnnotation>)。- 这里我在
PointMapItem上使用了一个PointMapItem属性，因为有一些注释我不想合并。如果您不需要这样做，请删除正在使用它的部分，或者将所有注释的shouldBeMerged设置为YES。不过，如果不想合并用户位置，则应该保留类测试！ - 当您想要添加注释时，将它们添加到隐藏的
allAnnotationMapView中并调用updateVisibleAnnotation。updateVisibleAnnotation方法负责选择要合并的注释和要显示的注释。然后将注释添加到可见的mapView中。
对于Map Kit，我使用以下代码：
- (void)didZoom:(UIGestureRecognizer*)gestureRecognizer {
if (gestureRecognizer.state == UIGestureRecognizerStateEnded){
[self updateVisibleAnnotations];
}
}
- (void)updateVisibleAnnotations {
static float marginFactor = 2.0f;
static float bucketSize = 50.0f;
MKMapRect visibleMapRect = [self.mapView visibleMapRect];
MKMapRect adjustedVisibleMapRect = MKMapRectInset(visibleMapRect, -marginFactor * visibleMapRect.size.width, -marginFactor * visibleMapRect.size.height);
CLLocationCoordinate2D leftCoordinate = [self.mapView convertPoint:CGPointZero toCoordinateFromView:self.view];
CLLocationCoordinate2D rightCoordinate = [self.mapView convertPoint:CGPointMake(bucketSize, 0) toCoordinateFromView:self.view];
double gridSize = MKMapPointForCoordinate(rightCoordinate).x - MKMapPointForCoordinate(leftCoordinate).x;
MKMapRect gridMapRect = MKMapRectMake(0, 0, gridSize, gridSize);
double startX = floor(MKMapRectGetMinX(adjustedVisibleMapRect) / gridSize) * gridSize;
double startY = floor(MKMapRectGetMinY(adjustedVisibleMapRect) / gridSize) * gridSize;
double endX = floor(MKMapRectGetMaxX(adjustedVisibleMapRect) / gridSize) * gridSize;
double endY = floor(MKMapRectGetMaxY(adjustedVisibleMapRect) / gridSize) * gridSize;
gridMapRect.origin.y = startY;
while(MKMapRectGetMinY(gridMapRect) <= endY) {
gridMapRect.origin.x = startX;
while (MKMapRectGetMinX(gridMapRect) <= endX) {
NSSet *allAnnotationsInBucket = [self.allAnnotationMapView annotationsInMapRect:gridMapRect];
NSSet *visibleAnnotationsInBucket = [self.mapView annotationsInMapRect:gridMapRect];
NSMutableSet *filteredAnnotationsInBucket = [[allAnnotationsInBucket objectsPassingTest:^BOOL(id obj, BOOL *stop) {
BOOL isPointMapItem = [obj isKindOfClass:[PointMapItem class]];
BOOL shouldBeMerged = NO;
if (isPointMapItem) {
PointMapItem *pointItem = (PointMapItem *)obj;
shouldBeMerged = pointItem.shouldBeMerged;
}
return shouldBeMerged;
}] mutableCopy];
NSSet *notMergedAnnotationsInBucket = [allAnnotationsInBucket objectsPassingTest:^BOOL(id obj, BOOL *stop) {
BOOL isPointMapItem = [obj isKindOfClass:[PointMapItem class]];
BOOL shouldBeMerged = NO;
if (isPointMapItem) {
PointMapItem *pointItem = (PointMapItem *)obj;
shouldBeMerged = pointItem.shouldBeMerged;
}
return isPointMapItem && !shouldBeMerged;
}];
for (PointMapItem *item in notMergedAnnotationsInBucket) {
[self.mapView addAnnotation:item];
}
if(filteredAnnotationsInBucket.count > 0) {
PointMapItem *annotationForGrid = (PointMapItem *)[self annotationInGrid:gridMapRect usingAnnotations:filteredAnnotationsInBucket];
[filteredAnnotationsInBucket removeObject:annotationForGrid];
annotationForGrid.containedAnnotations = [filteredAnnotationsInBucket allObjects];
[self.mapView addAnnotation:annotationForGrid];
//force reload of the image because it's not done if annotationForGrid is already present in the bucket!!
MKAnnotationView* annotationView = [self.mapView viewForAnnotation:annotationForGrid];
NSString *imageName = [AnnotationsViewUtils imageNameForItem:annotationForGrid selected:NO];
UILabel *countLabel = [[UILabel alloc] initWithFrame:CGRectMake(15, 2, 8, 8)];
[countLabel setFont:[UIFont fontWithName:POINT_FONT_NAME size:10]];
[countLabel setTextColor:[UIColor whiteColor]];
[annotationView addSubview:countLabel];
imageName = [AnnotationsViewUtils imageNameForItem:annotationForGrid selected:NO];
annotationView.image = [UIImage imageNamed:imageName];
if (filteredAnnotationsInBucket.count > 0){
[self.mapView deselectAnnotation:annotationForGrid animated:NO];
}
for (PointMapItem *annotation in filteredAnnotationsInBucket) {
[self.mapView deselectAnnotation:annotation animated:NO];
annotation.clusterAnnotation = annotationForGrid;
annotation.containedAnnotations = nil;
if ([visibleAnnotationsInBucket containsObject:annotation]) {
CLLocationCoordinate2D actualCoordinate = annotation.coordinate;
[UIView animateWithDuration:0.3 animations:^{
annotation.coordinate = annotation.clusterAnnotation.coordinate;
} completion:^(BOOL finished) {
annotation.coordinate = actualCoordinate;
[self.mapView removeAnnotation:annotation];
}];
}
}
}
gridMapRect.origin.x += gridSize;
}
gridMapRect.origin.y += gridSize;
}
}
- (id<MKAnnotation>)annotationInGrid:(MKMapRect)gridMapRect usingAnnotations:(NSSet *)annotations {
NSSet *visibleAnnotationsInBucket = [self.mapView annotationsInMapRect:gridMapRect];
NSSet *annotationsForGridSet = [annotations objectsPassingTest:^BOOL(id obj, BOOL *stop) {
BOOL returnValue = ([visibleAnnotationsInBucket containsObject:obj]);
if (returnValue) {
*stop = YES;
}
return returnValue;
}];
if (annotationsForGridSet.count != 0) {
return [annotationsForGridSet anyObject];
}
MKMapPoint centerMapPoint = MKMapPointMake(MKMapRectGetMinX(gridMapRect), MKMapRectGetMidY(gridMapRect));
NSArray *sortedAnnotations = [[annotations allObjects] sortedArrayUsingComparator:^(id obj1, id obj2) {
MKMapPoint mapPoint1 = MKMapPointForCoordinate(((id<MKAnnotation>)obj1).coordinate);
MKMapPoint mapPoint2 = MKMapPointForCoordinate(((id<MKAnnotation>)obj2).coordinate);
CLLocationDistance distance1 = MKMetersBetweenMapPoints(mapPoint1, centerMapPoint);
CLLocationDistance distance2 = MKMetersBetweenMapPoints(mapPoint2, centerMapPoint);
if (distance1 < distance2) {
return NSOrderedAscending;
}
else if (distance1 > distance2) {
return NSOrderedDescending;
}
return NSOrderedSame;
}];
return [sortedAnnotations objectAtIndex:0];
}两者都应该工作正常，但如果你有任何问题，请随时问！
Stack Overflow用户
发布于 2014-06-11 23:07:54
经过长时间的研究，我终于找到了一个很棒的人。
非常感谢DDRBoxman。
查看他的github：https://github.com/DDRBoxman/google-maps-ios-utils
他最近推出了一些代码示例。
当我想管理他的项目时，我遇到了一些问题。我刚刚删除了Google，并按照完整的Google教程集成了Google。然后，没有更多的问题，我能够运行应用程序。不要忘记将API密钥放在AppDelegate.m中。
接下来的几天，我将使用这个库，如果我发现了一些bug，我会通知您。
编辑#1：这些天我在集群上做了很多工作。我的最后一种方法是集成MKMapView，在MKMapView上创建集群(比在上创建集群要容易得多)，并将Google集成到MKMapView项目中。与以前的方法相比，这种方法的性能更好。
编辑#2：我不知道您是使用领域还是计划使用它，但是它们为地图集群提供了一个非常好的解决方案：https://realm.io/news/building-an-ios-clustered-map-view-in-objective-c/
Stack Overflow用户
发布于 2014-05-29 11:11:14
我有一个应用程序来处理这个问题，下面是代码
- 循环数组中的所有标记(ns字典)
- 使用gmsmapview.projection获取CGPoint，以确定标记是否应该组合在一起
3我用100分进行测试，响应时间比较满意。
如果变焦电平差大于0.5，地图将重新绘制；
-(float)distance :(CGPoint)pointA point:(CGPoint) pointB{
return sqrt( (pow((pointA.x - pointB.x),2) + pow((pointA.y-pointB.y),2)));
}
-(void)mapView:(GMSMapView *)mapView didChangeCameraPosition:(GMSCameraPosition *)position{
float currentZoomLevel = mapView.camera.zoom;
if (fabs(currentZoomLevel- lastZoomLevel_)>0.5){
lastZoomLevel_ = currentZoomLevel;
markersGroupArray_ = [[NSMutableArray alloc] init];
for (NSDictionary *photo in photoArray_){
float coordx = [[photo objectForKey:@"coordx"]floatValue];
float coordy = [[photo objectForKey:@"coordy"] floatValue];
CLLocationCoordinate2D coord = CLLocationCoordinate2DMake(coordx, coordy);
CGPoint currentPoint = [mapView.projection pointForCoordinate:coord];
if ([markersGroupArray_ count] == 0){
NSMutableArray *array = [[NSMutableArray alloc] initWithObjects:photo, nil];
[markersGroupArray_ addObject:array];
}
else{
bool flag_groupadded = false;
int counter= 0;
for (NSMutableArray *array in markersGroupArray_){
for (NSDictionary *marker in array){
float mcoordx = [[marker objectForKey:@"coordx"]floatValue];
float mcoordy = [[marker objectForKey:@"coordy"]floatValue];
CLLocationCoordinate2D mcoord = CLLocationCoordinate2DMake(mcoordx, mcoordy);
CGPoint mpt = [mapView.projection pointForCoordinate:mcoord];
if ([self distance:mpt point:currentPoint] <30){
flag_groupadded = YES;
break;
}
}
if (flag_groupadded){
break;
}
counter++;
}
if (flag_groupadded){
if ([markersGroupArray_ count]>counter){
NSMutableArray *groupArray = [markersGroupArray_ objectAtIndex:counter];
[groupArray insertObject:photo atIndex:0];
[markersGroupArray_ replaceObjectAtIndex:counter withObject:groupArray];
}
}
else if (!flag_groupadded){
NSMutableArray * array = [[NSMutableArray alloc]initWithObjects:photo, nil];
[markersGroupArray_ addObject:array];
}
}
} // for loop for photoArray
// display group point
[mapView clear];
photoMarkers_ = [[NSMutableArray alloc] init];
for (NSArray *array in markersGroupArray_){
NSLog(@"arry count %d",[array count]);
NSDictionary *item = [array objectAtIndex:0];
float coordx = [[item objectForKey:@"coordx"]floatValue];
float coordy = [[item objectForKey:@"coordy"] floatValue];
CLLocationCoordinate2D coord = CLLocationCoordinate2DMake(coordx, coordy);
GMSMarker *marker = [[GMSMarker alloc] init];
marker.position = coord;
marker.map = mapView;
[photoMarkers_ addObject:marker];
marker = nil;
}
NSLog(@"markers %@",photoMarkers_);
} // zoomlevel diffference thersold
}页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/20175605
复制相关文章
相似问题
腾讯云开发者
