半透明JLabel没有正确显示背景
EN

Stack Overflow用户
提问于 2013-12-03 20:52:48
回答 2查看 2.9K关注 0票数 1

我有以下几句话:

代码语言:javascript
运行
复制
        label.setBackground(new java.awt.Color(0, 150, 0, 50));

我把它放在MouseAdapter中的一个MouseAdapter方法中。

基本上,我想让标签突出自己的半透明绿色时,我点击它。

我在一个面板中有几个标签,都添加了这个MouseAdapter。

我的问题是:

-When我点击标签,它显示半透明的绿色,但它显示的是另一个JLabel的背景,而不是我点击的那个。

无论我单击哪个标签,它总是绘制相同标签的背景。

-Whenever我点击一个标签,它重复相同的背景。-Weirdly,每次我点击一个JLabel,绿色的不透明度似乎都会增加,好像每次我点击一个新的JLabel时,它都在自己上面涂上半透明的绿色。

关于发生了什么有什么建议吗?我应该试着在这上面贴一个SSCCE吗?或者我错过了一个简单的答案。我还没有发布SSCCE的原因是我的代码很大,并且分布在多个文件中,所以我必须先把它修剪掉。

EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2013-12-03 21:16:25

有关可能的问题和几个解决方案,请参见透明背景

票数 2
EN

Stack Overflow用户

发布于 2013-12-03 21:38:44

Swing只具有不透明或透明组件的概念,它本身不知道如何处理不透明的组件,而是具有半透明的背景色。就Swing而言,组件是不透明的,因此它不会绘制组件下面的内容。

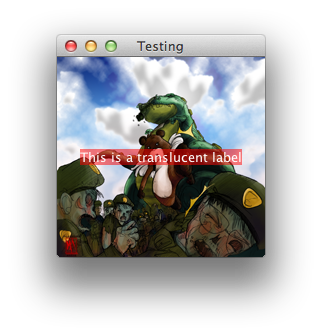

通常,我会提供一个alpha值,然后应用到一个坚实的背景中,但是在这个例子中,我只是用你提供的任何背景颜色填充背景,所以除非你提供一个半透明的颜色,否则它将被填充一个坚实的颜色。

代码语言:javascript
运行
复制
import java.awt.Color;
import java.awt.EventQueue;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.GridBagLayout;
import java.io.File;
import java.io.IOException;
import javax.imageio.ImageIO;
import javax.swing.Icon;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.UIManager;
import javax.swing.UnsupportedLookAndFeelException;

public class TestTranslucentLabel {

    public static void main(String[] args) {
        new TestTranslucentLabel();
    }

    public TestTranslucentLabel() {
        EventQueue.invokeLater(new Runnable() {
            @Override
            public void run() {
                try {
                    UIManager.setLookAndFeel(UIManager.getSystemLookAndFeelClassName());
                } catch (ClassNotFoundException | InstantiationException | IllegalAccessException | UnsupportedLookAndFeelException ex) {
                    ex.printStackTrace();
                }

                try {
                    TranslucentLabel label = new TranslucentLabel("This is a translucent label");
                    label.setBackground(new Color(255, 0, 0, 128));
                    label.setForeground(Color.WHITE);

                    JLabel background = new JLabel();
                    background.setIcon(new ImageIcon(ImageIO.read(new File("/Users/swhitehead/Dropbox/MegaTokyo/Rampage_Small.png"))));
                    background.setLayout(new GridBagLayout());
                    background.add(label);

                    JFrame frame = new JFrame("Testing");
                    frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
                    frame.add(background);
                    frame.pack();
                    frame.setLocationRelativeTo(null);
                    frame.setVisible(true);
                } catch (IOException exp) {
                    exp.printStackTrace();
                }
            }
        });
    }

    public class TranslucentLabel extends JLabel {

        public TranslucentLabel(String text, Icon icon, int horizontalAlignment) {
            super(text, icon, horizontalAlignment);
        }

        public TranslucentLabel(String text, int horizontalAlignment) {
            super(text, horizontalAlignment);
        }

        public TranslucentLabel(String text) {
            super(text);
        }

        public TranslucentLabel(Icon image, int horizontalAlignment) {
            super(image, horizontalAlignment);
        }

        public TranslucentLabel(Icon image) {
            super(image);
        }

        public TranslucentLabel() {
            super();
        }

        @Override
        public boolean isOpaque() {
            return false;
        }

        @Override
        protected void paintComponent(Graphics g) {
            Graphics2D g2d = (Graphics2D) g.create();
            g2d.setColor(getBackground());
            g2d.fillRect(0, 0, getWidth(), getHeight());
            super.paintComponent(g2d);
            g2d.dispose();
        }
    }
}
票数 2
EN
