FreeType2 -字体大小更小
EN

Stack Overflow用户
提问于 2014-04-09 15:30:32
回答 1查看 786关注 0票数 1

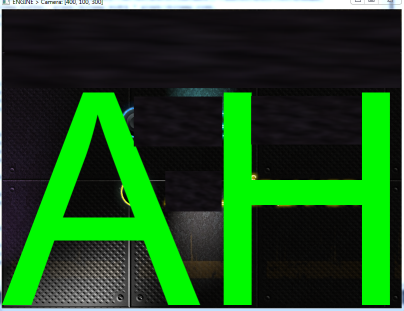

我正在使用FreeType2进行渲染。我的问题是字体大小。我有原点0,0在左上角,字体大小设置为完全高度的屏幕。我呈现的结果可以从图片中看到。

为什么字体没有填满我整个窗口的高度?

我的渲染代码:

代码语言:javascript
运行
复制
int devW, devH;
    device->GetViewport(&devW, &devH);

    float sx = 2.0f / static_cast<float>(devW);
    float sy = 2.0f / static_cast<float>(devH);

    x = MyMath::MyMathUtils::MapRange(0, 1, -1, 1, x);
    y = MyMath::MyMathUtils::MapRange(0, 1, -1, 1, y);


    MyStringWide wText = MyStringWide(text);
    this->fontQuad->PrepareForRender();
    for (int i = 0; i < wText.GetLength(); i++)
    {
        int znak = wText[i];

        unsigned long c = FT_Get_Char_Index(this->fontFace, znak);
        FT_Error error = FT_Load_Glyph(this->fontFace, c, FT_LOAD_RENDER);


        FT_GlyphSlot glyph = this->fontFace->glyph;

        MyStringAnsi textureName = "Font_Renderer_Texture";
        textureName += "_";
        textureName += znak;

        if (GetTexturePoolInstance()->ExistTexture(textureName) == false)
        {
            GetTexturePoolInstance()->AddTexture2D(textureName,
                glyph->bitmap.buffer, glyph->bitmap.width * glyph->bitmap.rows,
                MyGraphics::A8,
                glyph->bitmap.width, glyph->bitmap.rows,
                false,
                true);
        }



        float x2 = x + glyph->bitmap_left * sx;
        float y2 = -y - glyph->bitmap_top * sy;
        float w = glyph->bitmap.width * sx;
        float h = glyph->bitmap.rows * sy;


        this->fontQuad->GetEffect()->SetVector4("cornersData", MyMath::Vector4(x2, y2, w, h));
        this->fontQuad->GetEffect()->SetVector4("fontColor", fontColor);
        this->fontQuad->GetEffect()->SetVector4("texCoordData", MyMath::Vector4(0, 0, 1, 1));
        this->fontQuad->GetEffect()->SetTexture("fontTexture", textureName);

        this->fontQuad->RenderEffect("classic", 0, this->fontQuad->GetNumVertices(), 0, this->fontQuad->GetNumPrimitives());

        x += (glyph->advance.x >> 6) * sx;
        y += (glyph->advance.y >> 6) * sy;

    }
EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2014-04-09 15:48:34

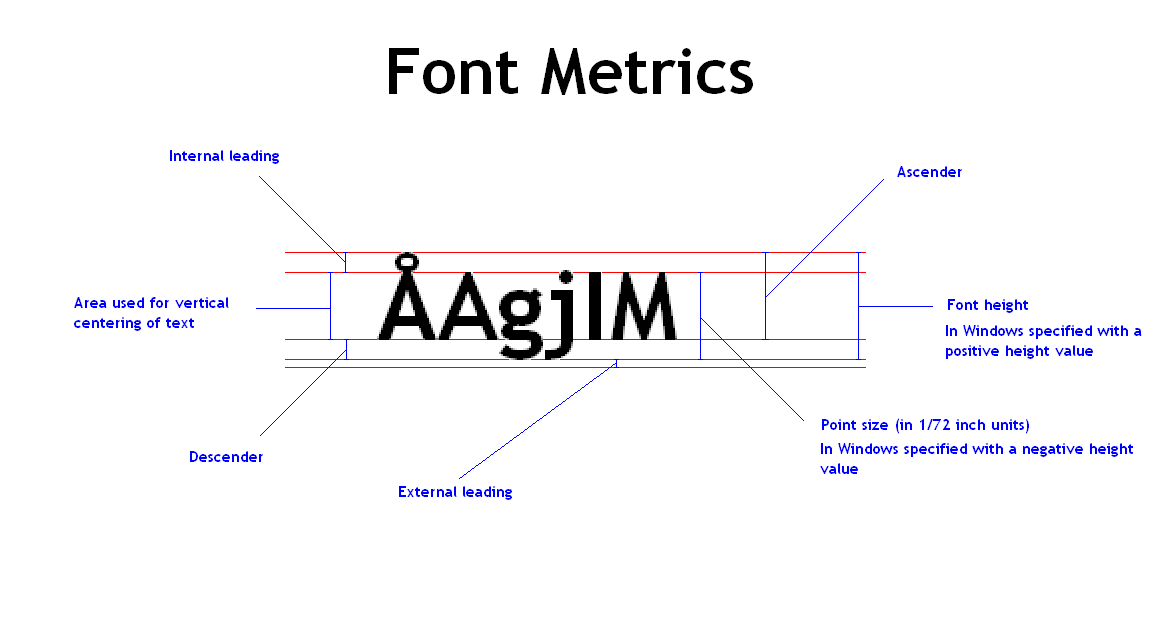

您需要使用更完整的文本进行测试才能理解问题。字形由内部引导、上升、下降组成。你想要的是你的计算似乎是阿斯登。另外,你必须问问自己,你是否想支持像“安赫拉”或小写字母"p“这样的文本。

票数 5
