支持H5Attributes中的基本数据类型?
EN

Stack Overflow用户
提问于 2014-06-18 10:10:00
回答 2查看 93关注 0票数 1

我正在试用无数的测试版hdf5工具包。

目前,我看到H5Attributes只支持无数个数组。是否有计划将其扩展到基本数据类型(例如字符串),作为最终版本的一部分?

H5包装器是否提供了将任何功能扩展到特定数据类型的功能?

EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2014-07-27 21:40:00

当然,ILNumerics内部使用来自HDF的官方HDF5库。H5Attributes在HDF5中对应于数据集,其限制是不能部分I/O,而且H5Attributes是普通数组!通过假设存储为标量的数组提供了对基本(标量)元素类型的支持。

字符串是一个完全不同的故事:字符串通常是可变长度的数据类型。就HDF5而言,字符串是元素类型Char的数组。字符串中的字符数决定数组的长度。为了将字符串存储到dataset或属性中,您必须将其单个字符存储为数组的元素。在ILNumerics中,可以将字符串转换为ILArrray或ILArray (用于ASCII数据),并将其存储到dataset/属性中。

请参阅以下测试用例,该测试用例将字符串作为值存储到属性中,并将内容读入字符串。

免责声明:这是我们内部测试套件的一部分。您将无法直接编译该示例,因为它取决于可能不可用的几个函数的存在。但是,您将能够理解如何将字符串存储到数据集和属性中:

代码语言:javascript
运行
复制
public void StringASCIAttribute() {
    string file = "deleteA0001.h5";
    string val = "This is a long string to be stored into an attribute.\r\n";
    // transfer string into ILArray<Char>
    ILArray<Char> A = ILMath.array<Char>(' ', 1, val.Length);
    for (int i = 0; i < val.Length; i++) {
        A.SetValue(val[i], 0, i);
    }
    // store the string as attribute of a group
    using (var f = new H5File(file)) {
        f.Add(new H5Group("grp1") {
            Attributes = {
                { "title", A }
            }
        });
    }
    // check by reading back
    // read back
    using (var f = new H5File(file)) {
        // must exist in the file
        Assert.IsTrue(f.Get<H5Group>("grp1").Attributes.ContainsKey("title"));
        // check size
        var attr = f.Get<H5Group>("grp1").Attributes["title"];
        Assert.IsTrue(attr.Size == ILMath.size(1, val.Length));

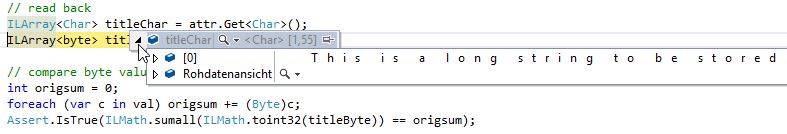

        // read back
        ILArray<Char> titleChar = attr.Get<Char>();
        ILArray<byte> titleByte = attr.Get<byte>();

        // compare byte values (sum)
        int origsum = 0;
        foreach (var c in val) origsum += (Byte)c;
        Assert.IsTrue(ILMath.sumall(ILMath.toint32(titleByte)) == origsum);

        StringBuilder title = new StringBuilder(attr.Size[1]);
        for (int i = 0; i < titleChar.Length; i++) {
            title.Append(titleChar.GetValue(i));
        }
        Assert.IsTrue(title.ToString() == val);
    }
}

这会将任意字符串存储为'Char-array‘,并将其存储到HDF5属性中,并且对H5Dataset也同样有效。

票数 1
EN

Stack Overflow用户

发布于 2016-06-10 06:57:35

作为另一种解决方案,您可以使用HDF5DotNet (http://hdf5.net/default.aspx)包装器将属性写入字符串:

代码语言:javascript
运行
复制
H5.open()
Uri destination = new Uri(@"C:\yourFileLocation\FileName.h5");
//Create an HDF5 file
H5FileId fileId = H5F.create(destination.LocalPath, H5F.CreateMode.ACC_TRUNC);
//Add a group to the file
H5GroupId groupId = H5G.create(fileId, "groupName");

string myString = "String attribute";
byte[] attrData = Encoding.ASCII.GetBytes(myString);

//Create an attribute of type STRING attached to the group
H5AttributeId attrId = H5A.create(groupId, "attributeName", H5T.create(H5T.CreateClass.STRING, attrData.Length),
               H5S.create(H5S.H5SClass.SCALAR));
//Write the string into the attribute
H5A.write(attributeId, H5T.create(H5T.CreateClass.STRING, attrData.Length), new H5Array<byte>(attrData));

H5A.close(attributeId);
H5G.close(groupId);
H5F.close(fileId);
H5.close();
票数 0
EN
