You can use a FlowlayoutPanel and a new Chatbubble usercontrol.

First you need to add a new usercontrol to your project. Call it <code>ChatBubble</code>.
It's basically up to you if you use the <code>Control</code> class or the <code>UserControl</code> class. I used <code>Control</code> in my example by accident but it doesn't make much of a difference.
The type is defined in the automatically created .Desiger. file by Visual Studio.

No define some properties of the control

<pre><code>Public Class ChatBubble
 'The "Inherits Control/Usercontrol statement is found in the designer

 Public Enum LeftRight
 Left = 0
 Right = 1
 End Enum
 Public Property Orientation As LeftRight
 Public Property BackBrush As Brush
</code></pre>

Orientation defines if the chat bubble is left or right aligned, Backbrush is the background color of the bubble.

A constructor is used to set some more parameters of the control

<pre><code>Public Sub New()
 InitializeComponent()
 SetStyle(ControlStyles.ResizeRedraw, True) 'Redraw the control on resize
 SetStyle(ControlStyles.OptimizedDoubleBuffer, True) 'Double buffer the drawing
 SetStyle(ControlStyles.AllPaintingInWmPaint, True) 'Used to draw the control yourself
 SetStyle(ControlStyles.UserPaint, True) 'Used to draw the control yourself
 BackBrush = Brushes.Blue 'Default values
 Orientation = LeftRight.Left 'Default values
 Me.Padding = New Padding(5) 'Default values
End Sub
</code></pre>

The default text property is used for the chat text.

Now you actually need to draw the control

<pre><code>Protected Overrides Sub OnPaint(ByVal e As System.Windows.Forms.PaintEventArgs)
 MyBase.OnPaint(e)
 'Smooth the output
 e.Graphics.SmoothingMode = Drawing2D.SmoothingMode.AntiAlias
 'Measure the size of your content
 Dim textSize As SizeF = e.Graphics.MeasureString(Me.Text, Me.Font)

 'Ellipse defines the extents of the bubble
 Dim Ellipse As Rectangle
 'Setup the ellipse depending on the orientation
 'Include margins (5 inside, padding of the control outside)
 If Orientation = LeftRight.Left Then
 Ellipse = New Rectangle(Me.ClientRectangle.Left + Me.Padding.Left, Me.ClientRectangle.Top + Me.Padding.Top, _
 textSize.Width + 10, Me.ClientRectangle.Height - Me.Padding.Bottom - Me.Padding.Top)
 Else
 Ellipse = New Rectangle(Me.ClientRectangle.Right - (textSize.Width + 10) - Me.Padding.Right, Me.ClientRectangle.Top + Me.Padding.Top, _
 textSize.Width + 10, Me.ClientRectangle.Height - Me.Padding.Bottom - Me.Padding.Top)
 End If
 'Define the text's location, center top/bottom
 Dim TextLocation As Point = New Point(Ellipse.Left + 5, CInt(Me.ClientSize.Height / 2 - textSize.Height / 2))
 'Draw the bubble
 e.Graphics.FillEllipse(BackBrush, Ellipse)
 'Draw the string
 e.Graphics.DrawString(Me.Text, Me.Font, Brushes.White, TextLocation)
End Sub
</code></pre>

This is a very rough example. You can autosize your control depending on your text, include text wrapping, but this basically does what you want.
Add the bubbles to a Top/Bottom Flowlayoutpanel like this:

<pre><code>Public Class Form1

 Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
 'flp is the flowlayoutpanel

 Static count As Integer = 1

 Dim b As New ChatBubble
 With b
 .Text = "Hello World " &amp; count.ToString
 .Orientation = If(count Mod 2 = 0, ChatBubble.LeftRight.Left, ChatBubble.LeftRight.Right)
 .Size = New Size(flp.Width, 30)
 End With

 flp.Controls.Add(b)
 count += 1
 End Sub

 Private Sub flp_Resize(sender As Object, e As EventArgs) Handles flp.Resize
 For Each c As Control In flp.Controls
 c.Width = flp.Width
 Next
 End Sub
End Class
</code></pre>

Sample output:

<img src="https://i.stack.imgur.com/IX82o.png" alt="enter image description here">

blocks|key|2367860|text|尝试为消息弹出创建自定义表单，并将自定义区域添加到该窗体中。因此，当消息出现时，应该像这样调用气球消息。|type|unstyled|depth|inlineStyleRanges|entityRanges|data|2367861|BalloonMessage+balloon+As+New+BalloonMessage(Message+=+"My+Message+goes+here.",+IsRecipient+=+true,+Locantion=+new+Point(x,y))
ballon.Show()

//Balloon+Message+Form
Public+Class+BalloonMessage+
Inherits+Form
++++Public+Sub+New(Message+As+String,+IsRecipient+As+Boolean,+Location+As+Point)
+++++++++Initialization()
+++++++++Me.Location+=+Location
+++++++++Me.rtf.Text+=+Message
+++++++++Me.Region+=+new+Region(getRegion(IsRecipient))
++++End+Sub

++++Private+Function+getRegion(IsRecipient+As+Boolean)+As+GraphicsPath
++++++++Dim+gp+As+New+GraphicsPath
++++++++//Place+condition+to+create+balloon+point+position+either+left+or+right
++++++++return+gp
++++End+Function

End+Class|code-block|syntax|javascript|2367862|从Region阅读更多关于MSDN和自定义形状窗体和控件的信息|offset|length|style|CODE|2367863|或者，您可以将PNG透明图像设置为BalloonMessage窗体，并将背景色设置为绿色或蓝色，然后为该窗体设置与背景色相同的BackgroundTransperancy。这是使您的窗口形成自定义形状的最简单方法。|2367864|将DoubleBuffer属性设置为true，以使BalloonMessage窗体光滑。|2367865|entityMap|0|LINK|mutability|MUTABLE|url|http://msdn.microsoft.com/en-us/library/aa289517%2528v=vs.71%2529.aspx^0|0|0|1|6|D|4|0|0|0|1|C|P|E|0^^$0|@$1|2|3|4|5|6|7|Y|8|@]|9|@]|A|$]]|$1|B|3|C|5|D|7|Z|8|@]|9|@]|A|$E|F]]|$1|G|3|H|5|6|7|10|8|@$I|11|J|12|K|L]]|9|@$I|13|J|14|1|15]]|A|$]]|$1|M|3|N|5|6|7|16|8|@]|9|@]|A|$]]|$1|O|3|P|5|6|7|17|8|@$I|18|J|19|K|L]|$I|1A|J|1B|K|L]]|9|@]|A|$]]|$1|Q|3|-4|5|6|7|1C|8|@]|9|@]|A|$]]]|R|$S|$5|T|U|V|A|$W|X]]]]

Try to create custom form for message popup and add the custom region to that form. So, when the message comes the balloon message should be call like this.

<pre><code>BalloonMessage balloon As New BalloonMessage(Message = "My Message goes here.", IsRecipient = true, Locantion= new Point(x,y))
ballon.Show()

//Balloon Message Form
Public Class BalloonMessage
Inherits Form
 Public Sub New(Message As String, IsRecipient As Boolean, Location As Point)
 Initialization()
 Me.Location = Location
 Me.rtf.Text = Message
 Me.Region = new Region(getRegion(IsRecipient))
 End Sub

 Private Function getRegion(IsRecipient As Boolean) As GraphicsPath
 Dim gp As New GraphicsPath
 //Place condition to create balloon point position either left or right
 return gp
 End Function

End Class
</code></pre>

Read more about <code>Region</code> and Custom Shaped Forms and Controls from <a href="http://msdn.microsoft.com/en-us/library/aa289517%28v=vs.71%29.aspx" rel="nofollow">MSDN</a>

Or you can set PNG transparent image to your BalloonMessage Form and set the background color to Green or Blue then set BackgroundTransperancy for that form same as Background color. This is the easiest way to make your window form custom shaped.

Set <code>DoubleBuffer</code> property to true to make your <code>BalloonMessage</code> form smooth.

blocks|key|215116|text|您可以使用图像和文本框来实现这一点，只需将其与泡沫相结合即可。|type|unstyled|depth|inlineStyleRanges|entityRanges|data|215117|​|215118|📷|atomic|offset|length|215119|215120|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://pbs.twimg.com/media/CSjxdDHVAAAJ7uV.png|imageAlt^0|0|0|0|1|0|0|0^^$0|@$1|2|3|4|5|6|7|S|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|T|8|@]|9|@]|A|$]]|$1|D|3|E|5|F|7|U|8|@]|9|@$G|V|H|W|1|X]]|A|$]]|$1|I|3|C|5|6|7|Y|8|@]|9|@]|A|$]]|$1|J|3|-4|5|6|7|Z|8|@]|9|@]|A|$]]]|K|$L|$5|M|N|O|A|$P|Q|R|-4]]]]

You can use image and textbox for this just combine it to looks like bubble.

<img src="https://pbs.twimg.com/media/CSjxdDHVAAAJ7uV.png" alt="Screenshot 1">

First, I would like to state that I am fairly new to the whole chat-bubble concept.

I have done quite a bit of research and have come up void in results pertaining to how this can be done in a WinForms desktop application.

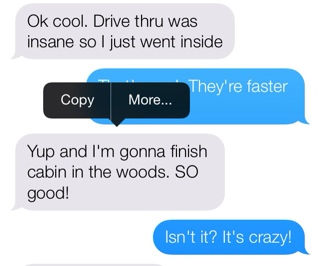

The concept is rather simple (and common, especially in mobile devices)

<img src="https://i.stack.imgur.com/FhToP.jpg" alt="enter image description here">

I would like to do this (ideally in a RichTextBox). Please remember, this is a WinForms application, so XAML components will not work. This is a chat layout issue only. Sending/receiving/displaying the messages is already done, I just need to know how to wrap those messages inside a bubble (left or right depending on communication direction), and display that in the form -- in a normal chat flow (currently using RichTextBox, and colorizing the name).

Thanks in advance.

How to do Chat Bubbles in VB.NET WinForms application
