作为实现UICollisionBehaviour的一部分,我为屏幕边缘设置了边界。然后,我添加了一些视图,最后将一个UIPanGestureRecognizer附加到其中一个视图中。
现在,我可以用我的拖曳的视图来推开较小的视图。

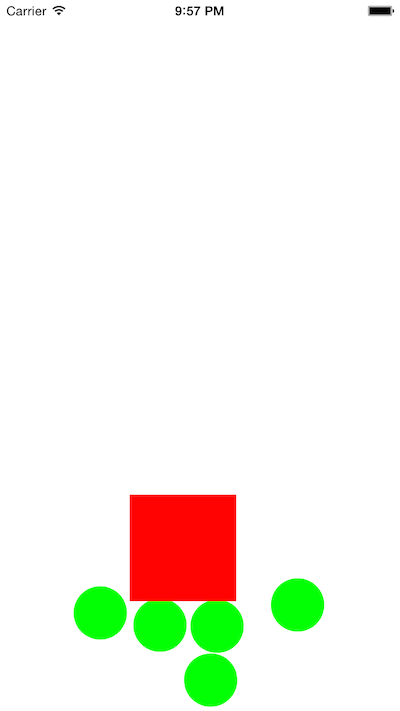

问题:如果我将一个较小的视图转角,并继续将它推到屏幕边缘,它最终会滑过边界,被困在另一边。我用来打和推其他视图的“锤子视图”也会被困在边界里。也就是说,它被粘在/不能拖到屏幕的侧面。
我做了一个很小的例子,看看我是否能复制它,当我有很少的观点,没有冲突的行为,观点仍然是通过边界。要么UIDynamics不能很好地处理,要么(更可能)我配置错了。
下面的小例子是奇怪的行为:
class ViewController: UIViewController {
var animator: UIDynamicAnimator?
var collisionBehaviour: UICollisionBehavior?
var panBehaviour: UIAttachmentBehavior?
override func viewDidLoad() {
super.viewDidLoad()
}
override func viewWillAppear(animated: Bool) {
super.viewWillAppear(animated)
setup()
}
func setup() {
//setup collisionBehaviour and animator
collisionBehaviour = UICollisionBehavior()
collisionBehaviour!.collisionMode = UICollisionBehaviorMode.allZeros
animator = UIDynamicAnimator(referenceView: view)
//add boundaries
collisionBehaviour!.addBoundaryWithIdentifier("verticalMin", fromPoint: CGPointMake(0, 0), toPoint: CGPointMake(0, CGRectGetHeight(view.frame)))
collisionBehaviour!.addBoundaryWithIdentifier("verticalMax", fromPoint: CGPointMake(CGRectGetMaxX(view.frame), 0), toPoint: CGPointMake(CGRectGetMaxX(view.frame), CGRectGetHeight(view.frame)))
collisionBehaviour!.addBoundaryWithIdentifier("horizontalMin", fromPoint: CGPointMake(0, CGRectGetMaxY(view.frame)), toPoint: CGPointMake(CGRectGetMaxX(view.frame), CGRectGetMaxY(view.frame)))
collisionBehaviour!.addBoundaryWithIdentifier("horizontalMax", fromPoint: CGPointMake(0, 0), toPoint: CGPointMake(CGRectGetMaxX(view.frame), 0))
// collisionBehaviour!.translatesReferenceBoundsIntoBoundary = true // same effect as the above boundaries
//setup up some round views to push around
for i in 0..<5 {
let ball = UIView(frame: CGRectMake(0, 30, 50, 50))
ball.center = view.center
ball.backgroundColor = UIColor.greenColor()
ball.layer.cornerRadius = CGRectGetWidth(ball.frame) * 0.5
view.addSubview(ball)
collisionBehaviour!.addItem(ball)
}
//setup a hammer view which can be dragged and used to squeze the ball views of the screen
let hammer = UIView(frame: CGRectMake(0, 0, 100, 100))
hammer.backgroundColor = UIColor.redColor()
view.addSubview(hammer)
collisionBehaviour!.addItem(hammer)
let noRotationBehaviour = UIDynamicItemBehavior(items: [hammer])
noRotationBehaviour.allowsRotation = false
animator!.addBehavior(noRotationBehaviour)
let panGestureRecognizer = UIPanGestureRecognizer(target: self, action: Selector("handlePan:"))
hammer.addGestureRecognizer(panGestureRecognizer)
//"start" the collision detection
animator!.addBehavior(collisionBehaviour!)
}
//Move the hammer around
func handlePan(recognizer: UIPanGestureRecognizer) {
if let view = recognizer.view {
let location = recognizer.locationInView(self.view)
switch recognizer.state {
case .Began:
panBehaviour = UIAttachmentBehavior(item: view, attachedToAnchor: location)
animator!.addBehavior(panBehaviour!)
println("begin")
case .Changed:
panBehaviour!.anchorPoint = location
println("change \(location)")
case .Ended:
println("ended")
animator!.removeBehavior(panBehaviour!)
default:
println("done")
}
}
}
override func didReceiveMemoryWarning() {
super.didReceiveMemoryWarning()
// Dispose of any resources that can be recreated.
}}
谢谢你的帮助。
发布于 2015-07-22 02:36:15
好消息:你没做错什么。坏消息:这是预期的行为。你的锤子把视图推到参考边界上,直到它最终突破,因为你的模型的物理说,这是它应该做的。参考边界不是一个不能跨越的边界,它只定义了一个你的物理规则一致适用的区域。
这并不是真正的文档,但是UICollisionBehavior的页面声明:
设置动态项的初始位置时,必须确保其边界不相交任何冲突边界。这种错位项的动画行为未定义。
这只是部分正确,在您的情况下(和我的情况一样),如果一个项在初始化后超出了边界,那么它的行为也是未定义的。

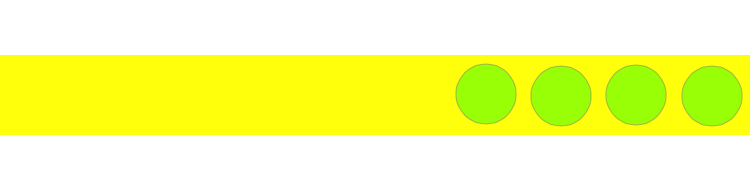

我试着在视野的右边安排一组球。在最右边的球下有一个锚点。黄色视图是参考视图,一切都很好.

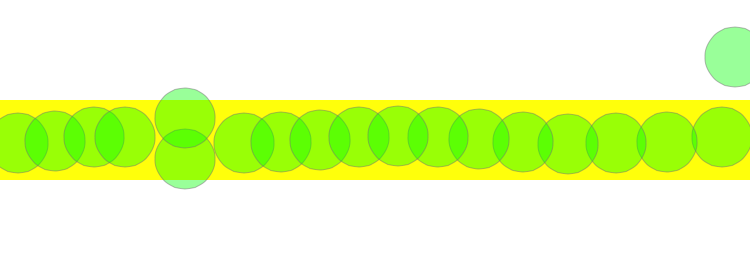

但是,当我增加了更多的球,他们指出他们不能再适应,他们会开始弹出。事实上,在右上角的图像弹出的底部中心,并围绕参考视图逆时针滚动,以接近锚点。

UPDATE:作为解决方案,您可以设置collisionBehaviors的collisionDelegate,捕获碰撞的开始和结束,然后将视图移回边界,远离锤子,使其看起来就像逃脱了一样。
正如您已经知道的,translatesReferenceBoundsIntoBoundary等同于一组addBoundaryWithIdentifier调用。
使用:
collisionBehaviour!.translatesReferenceBoundsIntoBoundary = true 与:
//add boundaries
collisionBehaviour!.addBoundaryWithIdentifier("verticalMin", fromPoint: CGPointMake(0, 0), toPoint: CGPointMake(0, CGRectGetHeight(view.frame)))
collisionBehaviour!.addBoundaryWithIdentifier("verticalMax", fromPoint: CGPointMake(CGRectGetMaxX(view.frame), 0), toPoint: CGPointMake(CGRectGetMaxX(view.frame), CGRectGetHeight(view.frame)))
collisionBehaviour!.addBoundaryWithIdentifier("horizontalMin", fromPoint: CGPointMake(0, CGRectGetMaxY(view.frame)), toPoint: CGPointMake(CGRectGetMaxX(view.frame), CGRectGetMaxY(view.frame)))
collisionBehaviour!.addBoundaryWithIdentifier("horizontalMax", fromPoint: CGPointMake(0, 0), toPoint: CGPointMake(CGRectGetMaxX(view.frame), 0))https://stackoverflow.com/questions/27973250
