有序排序格图
有序排序格图
提问于 2015-01-29 23:39:55
我正试图从我的数据集中创建一个“治疗”和“日”之间交互作用的条形图。我希望“治疗”按以下顺序排列：“在”之前“、”期间“、”之后“，我也希望”第一天“和”第二天“之前、”在“期间”和“之后”相邻“，而不是让每个”日“聚在一起。这是我的数据集：
structure(list(Name = structure(c(9L, 9L, 5L, 5L, 14L, 14L, 15L,
15L, 1L, 1L, 7L, 7L, 12L, 12L, 2L, 2L, 11L, 11L, 16L, 16L, 13L,
13L, 6L, 6L, 8L, 8L, 3L, 3L, 4L, 4L, 10L, 10L, 9L, 9L, 5L, 5L,
14L, 14L, 15L, 15L, 1L, 1L, 7L, 7L, 12L, 12L, 2L, 2L, 11L, 11L,
16L, 16L, 13L, 13L, 6L, 6L, 8L, 8L, 3L, 3L, 4L, 4L, 10L, 10L,
9L, 9L, 5L, 5L, 14L, 14L, 15L, 15L, 1L, 1L, 7L, 7L, 12L, 12L,
2L, 2L, 11L, 11L, 16L, 16L, 13L, 13L, 6L, 6L, 8L, 8L, 3L, 3L,
4L, 4L, 10L, 10L), .Label = c("DSGW", "DSOR", "DSYB", "GSWP",
"LSGL", "LSLL", "OSLL", "PSYP", "PSYR", "RSBB", "RSBP", "RSYY",
"WSGG", "WSPB", "WSRR", "WSRW"), class = "factor"), Day = c(1L,
2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L,
2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L,
2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L,
2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L,
2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L,
2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L),
Treatment = structure(c(2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L,
2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L,
2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 3L, 3L, 3L, 3L, 3L, 3L, 3L,
3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L,
3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 3L, 1L, 1L, 1L, 1L, 1L,
1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L,
1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L), .Label = c("After",
"Before", "During"), class = "factor"), Behavior = c(3040L,
3219L, 2378L, 3529L, 3135L, 3702L, 2868L, 3035L, 1614L, 833L,
1255L, 1224L, 1569L, 1433L, 1567L, 1448L, 1197L, 1619L, 1543L,
1309L, 1738L, 1378L, 1362L, 1603L, 1109L, 1073L, 570L, 822L,
815L, 1166L, 0L, 835L, 3060L, 2815L, 2875L, 3394L, 3009L,
3274L, 2350L, 2455L, 972L, 815L, 983L, 1033L, 1520L, 1477L,
1461L, 1395L, 1242L, 1368L, 1637L, 1275L, 1646L, 1546L, 1064L,
971L, 596L, 1461L, 1276L, 1272L, 872L, 1026L, 1249L, 592L,
2277L, 3022L, 2997L, 3495L, 2591L, 3447L, 2479L, 2701L, 175L,
452L, 1287L, 1355L, 1252L, 1501L, 1371L, 1147L, 1465L, 1003L,
1510L, 0L, 1744L, 1026L, 959L, 898L, 1529L, 1092L, 417L,
289L, 40L, 762L, 1495L, 896L)), .Names = c("Name", "Day",
"Treatment", "Behavior"), class = "data.frame", row.names = c(NA,
-96L))下面是我用来生成当前数字的脚本：
ggplot(perch1, aes(x = interaction(Treatment,Day), y = Behavior, fill = factor(Day)))回答 2
Stack Overflow用户
回答已采纳
发布于 2015-01-30 01:41:04
另一种选择是使用facet包装在一个单独的面板中绘制每个处理。
ggplot(df, aes(x = factor(Day), y = Behavior, fill = factor(Day))) +
geom_bar(stat = 'identity') + facet_wrap(~Treatment, nrow = 1) 这不会在X轴上标记您的交互，而是将它放在面板标题中。
Stack Overflow用户
发布于 2015-01-30 00:00:48

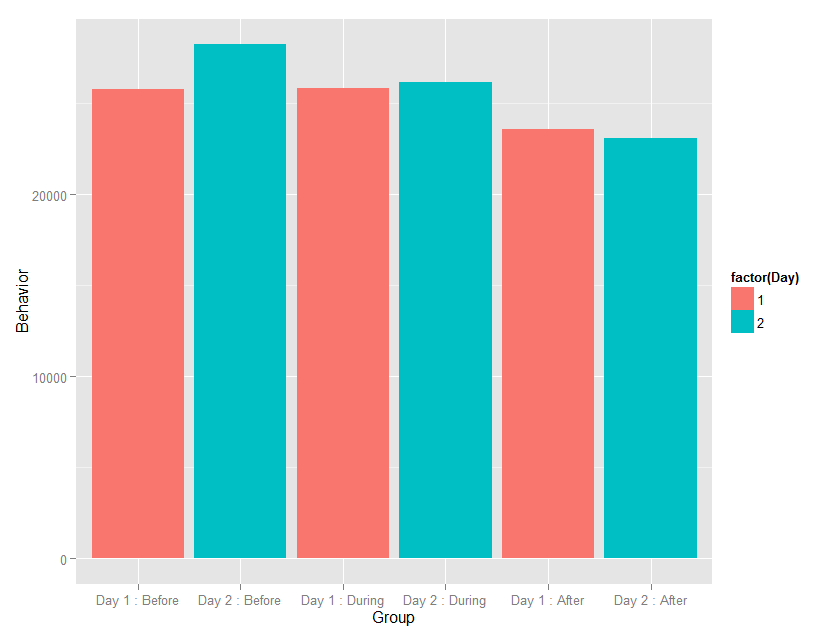

一种选择是向data.frame中添加一个新列，并手动指定级别的顺序，而不是乱搞interaction：
library(ggplot2)
##
df$Group <- factor(
paste0(df$Day," : ",df$Treatment),
paste0(rep(1:2,3)," : ",
rep(c("Before","During","After"),each=2)))
##
R> ggplot(
df,
aes(x=Group,
y=Behavior,
fill=factor(Day)))+
geom_bar(stat='identity')+
scale_x_discrete(
labels=paste0("Day ",levels(df$Group)))
