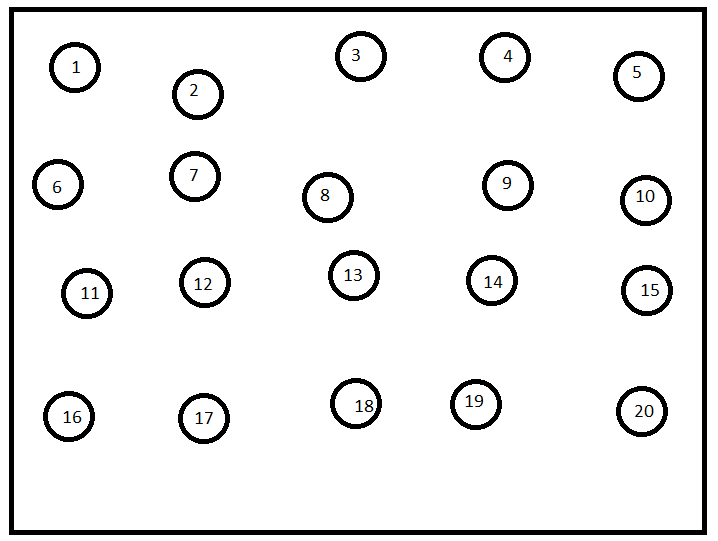

问从左上角到右下角排序坐标

EN

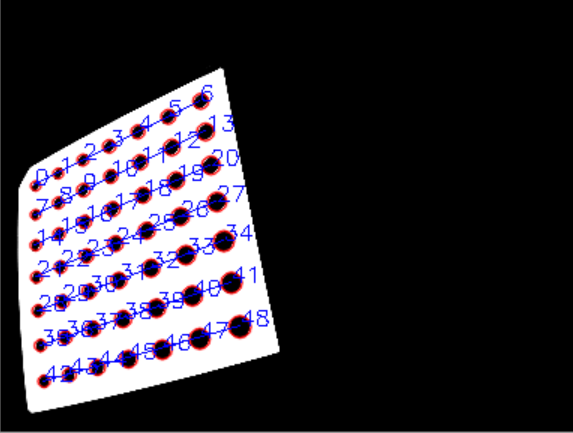

#detect the keypoints
detector = cv2.SimpleBlobDetector_create(params)
keypoints = detector.detect(img)
img_with_keypoints = cv2.drawKeypoints(img, keypoints, np.array([]), (0, 0, 255),
cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)

points = []
keypoints_to_search = keypoints[:]
while len(keypoints_to_search) > 0:
    a = sorted(keypoints_to_search, key=lambda p: (p.pt[0]) + (p.pt[1]))[0]  # find upper left point
    b = sorted(keypoints_to_search, key=lambda p: (p.pt[0]) - (p.pt[1]))[-1]  # find upper right point

    cv2.line(img_with_keypoints, (int(a.pt[0]), int(a.pt[1])), (int(b.pt[0]), int(b.pt[1])), (255, 0, 0), 1)

    # convert opencv keypoint to numpy 3d point
    a = np.array([a.pt[0], a.pt[1], 0])
    b = np.array([b.pt[0], b.pt[1], 0])

    row_points = []
    remaining_points = []
    for k in keypoints_to_search:
        p = np.array([k.pt[0], k.pt[1], 0])
        d = k.size  # diameter of the keypoint (might be a theshold)
        dist = np.linalg.norm(np.cross(np.subtract(p, a), np.subtract(b, a))) / np.linalg.norm(b)   # distance between keypoint and line a->b
        if d/2 > dist:
            row_points.append(k)
        else:
            remaining_points.append(k)

    points.extend(sorted(row_points, key=lambda h: h.pt[0]))
    keypoints_to_search = remaining_points

interface Node {x: number; y: number; width:number; height:number;}
const sortedNodes = (nodeArray:Node[]) => {
    let sortedNodes:Node[] = []; // this is the return value
    let availableNodes = [...nodeArray]; // make copy of input array
    while(availableNodes.length > 0){
        // find y value of topmost node in availableNodes. (Change this to a reduce if you want.)
        let minY = Number.MAX_SAFE_INTEGER;
        for (const node of availableNodes){
            minY = Math.min(minY, node.y)
        }
        // find nodes in top row: assume a node is in the top row when its distance from minY
        // is less than its height
        const topRow:Node[] = [];
        const otherRows:Node[] = [];
        for (const node of availableNodes){
            if (Math.abs(minY - node.y) <= node.height){
                topRow.push(node);
            } else {
                otherRows.push(node);
            }
        }
        topRow.sort((a,b) => a.x - b.x); // we have the top row: sort it by x
        sortedNodes = [...sortedNodes,...topRow] // append nodes in row to sorted nodes
        availableNodes = [...otherRows] // update available nodes to exclude handled rows
    }
    return sortedNodes;
};

if (Math.abs(minY - node.y) <= node.height)
