如何用Android中的Google按类别隐藏/显示一组标记?
EN

Stack Overflow用户
提问于 2015-10-08 03:39:22
回答 3查看 3.5K关注 0票数 6

我想做一些类似于在安卓系统中做就在这里的事情。我需要做的是将组标记分成不同的组,并为每个组设置复选框。

当我在复选框上勾选和取消勾选时,应该显示并隐藏标记。

这是我的MapsActivity.java文件。

代码语言:javascript
运行
复制
public class MapsActivity extends FragmentActivity {

//Restaurants
private final LatLng LOCATION_DINEMORE = new LatLng(6.9270786,79.861243);
private final LatLng LOCATION_BARISTA = new LatLng(6.0334009,80.218384);

//Hotels
private final LatLng LOCATION_AVENRA = new LatLng(7.211111,79.838610);
private final LatLng LOCATION_MOUNTBATTEN = new LatLng(7.296411,80.635012);

private GoogleMap mMap; // Might be null if Google Play services APK is not available.

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_maps);
    setUpMapIfNeeded();

    // Give text to buttons
    Button buttonloc1 = (Button)findViewById(R.id.btnLoc1);
    buttonloc1.setText("Dinemore");

    Button buttonloc2 = (Button)findViewById(R.id.btnLoc2);
    buttonloc2.setText("Barista");

    Button buttoncity = (Button)findViewById(R.id.btnCity);
    buttoncity.setText("My Location");

    Button buttonremove = (Button)findViewById(R.id.removeMarker);
    buttonremove.setText("Remove");

   /* Location myLocation = mMap.getMyLocation();

    mMap.addMarker(new MarkerOptions()
                    .position(new LatLng(myLocation.getLatitude(), myLocation.getLongitude()))
                    .title("Hi I'm Here..:D")
    );*/

    // Marker to Dinemore
    mMap.addMarker(new MarkerOptions()
                    .position(LOCATION_DINEMORE)
                    .title("Dinemore")
                    .icon(BitmapDescriptorFactory.defaultMarker(BitmapDescriptorFactory.HUE_ROSE))
    );

    // Marker to Barista
    mMap.addMarker(new MarkerOptions()
                    .position(LOCATION_BARISTA)
                    .title("Barista Lavazza")
                    .icon(BitmapDescriptorFactory.defaultMarker(BitmapDescriptorFactory.HUE_ROSE))
    );

    // Marker to Avenra Garden Hotel
    mMap.addMarker(new MarkerOptions()
                    .position(LOCATION_AVENRA)
                    .title("Avenra Garden")
                    .icon(BitmapDescriptorFactory.defaultMarker(BitmapDescriptorFactory.HUE_YELLOW))
    );

    // Marker to Mounbatten Bunglow
    mMap.addMarker(new MarkerOptions()
                    .position(LOCATION_MOUNTBATTEN)
                    .title("Mounbatten Bunglow")
                    .icon(BitmapDescriptorFactory.defaultMarker(BitmapDescriptorFactory.HUE_YELLOW))
    );

    //When touch again on the map marker title will hide
    mMap.setOnInfoWindowClickListener(new GoogleMap.OnInfoWindowClickListener() {
        @Override
        public void onInfoWindowClick(Marker marker) {

        }
    });

    ArrayList<Marker> category1=new ArrayList<>();
    ArrayList<Marker> category2=new ArrayList<>();

    for (int i=0; i< category1.size(); i++){
        category1.get(i).remove();
    }

}

@Override
protected void onResume() {
    super.onResume();
    setUpMapIfNeeded();
}

public void onClick_City(View v){
    mMap.setMyLocationEnabled(true);
}

// When click on this button, Map shows the place of Dinemore
public void onClick_Loc1(View v) {
    mMap.setMapType(GoogleMap.MAP_TYPE_NORMAL);
    CameraUpdate update = CameraUpdateFactory.newLatLngZoom(LOCATION_DINEMORE,10);
    mMap.animateCamera(update);
}

// When click on this button, Map shows the place of Barista
public void onClick_Loc2(View v) {
    mMap.setMapType(GoogleMap.MAP_TYPE_NORMAL);
    CameraUpdate update = CameraUpdateFactory.newLatLngZoom(LOCATION_BARISTA,10);
    mMap.animateCamera(update);
}

// To rmove All the Markers
public void onClick_Remove(View v){
    mMap.clear();
}

private void setUpMapIfNeeded() {
    // Do a null check to confirm that we have not already instantiated the map.
    if (mMap == null) {
        // Try to obtain the map from the SupportMapFragment.
        mMap = ((SupportMapFragment) getSupportFragmentManager().findFragmentById(R.id.map))
                .getMap();
        // Check if we were successful in obtaining the map.
        if (mMap != null) {
            setUpMap();
        }
    }
}

/**
 * This is where we can add markers or lines, add listeners or move the camera. In this case, we
 * just add a marker near Africa.
 * <p/>
 * This should only be called once and when we are sure that {@link #mMap} is not null.
 */
private void setUpMap() {
    mMap.addMarker(new MarkerOptions().position(new LatLng(0, 0)).title("Marker"));
}

}

这是我的activity_maps.xml文件。

代码语言:javascript
运行
复制
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="10dip"
android:paddingLeft="10dip"
android:paddingRight="10dip"
android:paddingTop="10dip"
tools:context=".MapsActivity">

<Button
    android:id="@+id/btnLoc1"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_toRightOf="@+id/btnCity"
    android:layout_alignParentTop="true"
    android:onClick="onClick_Loc1"/>

<fragment
    android:id="@+id/map"
    android:name="com.google.android.gms.maps.SupportMapFragment"
    android:layout_below="@+id/btnLoc1"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    />

<Button
    android:id="@+id/btnCity"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_toRightOf="@+id/btnLoc2"
    android:layout_alignParentTop="true"
    android:onClick="onClick_City"/>

<Button
    android:id="@+id/btnLoc2"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_alignParentLeft="true"
    android:layout_alignParentTop="true"
    android:onClick="onClick_Loc2"/>

<Button
    android:id="@+id/removeMarker"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_alignParentRight="true"
    android:layout_alignParentTop="true"
    android:onClick="onClick_Remove"/>

<CheckBox android:id="@+id/checkbox_restaurant"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_toRightOf="@+id/btnLoc1"
    android:text="Restaurants"
    android:onClick="onCheckboxClicked"/>

<CheckBox android:id="@+id/checkbox_hotels"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_toRightOf="@+id/checkbox_restaurant"
    android:text="Hotels"
    android:onClick="onCheckboxClicked"/>

我该怎么做?

提前谢谢。

EN

回答 3

Stack Overflow用户

回答已采纳

发布于 2015-10-08 05:24:11

这里有一些隐藏的问题。您需要将不同的任务分开:

  1. 在餐厅检查中添加餐厅标记
  2. 删除餐厅上的标志
  3. 在条形检查中添加条形标记
  4. 删除条形图上的条形标记

你需要保存一个餐馆和酒吧的列表,一个包含餐厅表格和酒吧表格的SQLite数据库将是一个很好的选择。

您可以查询数据库并填充POJO对象列表,并在选中复选框时使用这些列表生成标记。

然后,您需要保留一个单独的标记列表,以便当复选框未选中时,您可以从地图中删除标记。

下面是一个简单的示例,我将其与硬编码值快速组合在一起,稍后您将需要添加数据库部分。

代码语言:javascript
运行
复制
public class CheckMapActivity extends AppCompatActivity
        implements OnMapReadyCallback {

    GoogleMap googleMap;
    List<MapLocation> restaurantList;
    List<MapLocation> barList;
    List<Marker> restaurantMarkers = new ArrayList<>();
    List<Marker> barMarkers = new ArrayList<>();

    @Override
    protected void onCreate (Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_check_map);

        //Eventually load from a database
        //Hard coded here for now
        restaurantList = new ArrayList<>();
        barList =  new ArrayList<>();

        MapLocation r1 = new MapLocation(37.78344,-122.42578, "Restaurant One" );
        MapLocation r2 = new MapLocation(37.7876965,-122.4106738, "Restaurant Two" );
        restaurantList.add(r1);
        restaurantList.add(r2);

        MapLocation b1 = new MapLocation(37.7866028,-122.4044511, "Bar One" );
        MapLocation b2 = new MapLocation(37.7864459,-122.4090323, "Bar Two" );
        barList.add(b1);
        barList.add(b2);

        CheckBox checkRestaurants = (CheckBox) findViewById(R.id.checkRestaurants);
        checkRestaurants.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton compoundButton, boolean b) {
                if (b){
                    showRestaurants();
                } else {
                    hideRestaurants();
                }
            }
        });

        CheckBox checBars = (CheckBox) findViewById(R.id.checkBars);
        checBars.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton compoundButton, boolean b) {
                if (b) {
                    showBars();
                } else {
                    hideBars();
                }
            }
        });
    }

    @Override
    protected void onResume() {
        super.onResume();

        SupportMapFragment mapFragment = (SupportMapFragment) getSupportFragmentManager()
                .findFragmentById(R.id.map);

        mapFragment.getMapAsync(this);
    }

    @Override
    public void onMapReady(GoogleMap map) {

        googleMap = map;
        setUpMap();
    }

    public void setUpMap() {

        googleMap.setMapType(GoogleMap.MAP_TYPE_HYBRID);
        googleMap.setMyLocationEnabled(true);
        googleMap.getUiSettings().setZoomControlsEnabled(true);

    }

    public void showRestaurants() {

        restaurantMarkers.clear();
        for (MapLocation loc : restaurantList){
            Marker marker = googleMap.addMarker(new MarkerOptions()
                    .position(new LatLng(loc.lat, loc.lon))
                    .title(loc.title)
                    .icon(BitmapDescriptorFactory.defaultMarker(BitmapDescriptorFactory.HUE_MAGENTA)));

            CameraPosition cameraPosition = new CameraPosition.Builder()
                    .target(new LatLng(loc.lat, loc.lon)).zoom(12).build();
            googleMap.animateCamera(CameraUpdateFactory
                    .newCameraPosition(cameraPosition));

            restaurantMarkers.add(marker);
        }
    }

    public void showBars() {

        barMarkers.clear();
        for (MapLocation loc : barList){
            Marker marker = googleMap.addMarker(new MarkerOptions()
                    .position(new LatLng(loc.lat, loc.lon))
                    .title(loc.title)
                    .icon(BitmapDescriptorFactory.defaultMarker(BitmapDescriptorFactory.HUE_BLUE)));

            CameraPosition cameraPosition = new CameraPosition.Builder()
                    .target(new LatLng(loc.lat, loc.lon)).zoom(12).build();
            googleMap.animateCamera(CameraUpdateFactory
                    .newCameraPosition(cameraPosition));

            barMarkers.add(marker);
        }
    }

    public void hideRestaurants(){
        for (Marker marker : restaurantMarkers){
            marker.remove();
        }
    }

    public void hideBars(){
        for (Marker marker : barMarkers){
            marker.remove();
        }
    }

    //POJO to hold locations:
    public class MapLocation {
        public MapLocation(double lt, double ln, String t){
            lat = lt;
            lon = ln;
            title = t;
        }
        public double lat;
        public double lon;
        public String title;
    }

}

下面是布局,activity_check_map.xml:

代码语言:javascript
运行
复制
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
    android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    android:paddingBottom="@dimen/activity_vertical_margin"
    tools:context="com.daniel.tabstest.CheckMapActivity">

    <fragment
        android:id="@+id/map"
        class="com.google.android.gms.maps.SupportMapFragment"
        android:layout_width="match_parent"
        android:layout_height="500dp"/>

    <LinearLayout
        android:layout_alignBottom="@+id/map"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:orientation="vertical">

        <CheckBox
            android:id="@+id/checkRestaurants"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Restaurants" />
        <CheckBox
            android:id="@+id/checkBars"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Bars" />

    </LinearLayout>
</RelativeLayout>

结果:

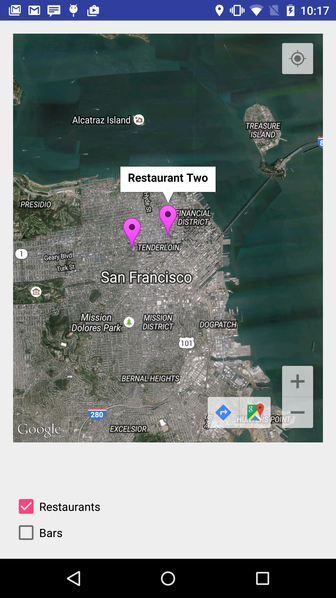

检查过的餐馆:

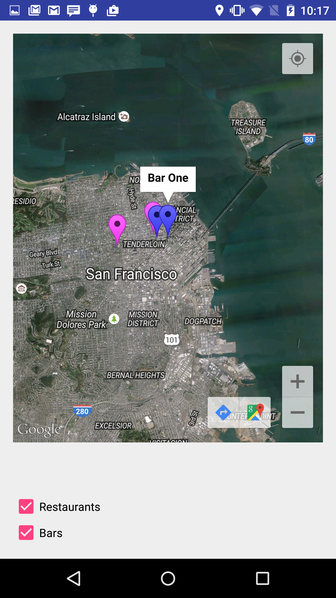

检查的餐馆和酒吧:

已检查的酒吧:

没有经过检查:

票数 8
EN

Stack Overflow用户

发布于 2015-10-08 04:31:47

你必须根据类别获取标记的数组列表,

代码语言:javascript
运行
复制
 ArrayList<Marker> category1=new ArrayList<>();
 ArrayList<Marker> category2=new ArrayList<>();

而不是将您的制造者添加到此数组列表中,在单击“删除”事件之后,请编写以下内容

代码语言:javascript
运行
复制
for (int i=0; i< category1.size(); i++){
        category1.get(i).setVisibility(false);
    }

我认为这是有帮助的

票数 1
EN

Stack Overflow用户

发布于 2015-10-08 05:21:26

参考如下:https://stackoverflow.com/a/14508886/3134215

您可以使用marker.setVisible()显示/隐藏标记。

票数 0
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接:

https://stackoverflow.com/questions/33006206

复制
相关文章

相似问题

领券
问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
