问CoordinatorLayout在另一个CoordinatorLayout中
EN

Stack Overflow用户

提问于 2015-12-09 14:32:29

回答 8查看 15.6K关注 0票数 41

CorodinatorLayout在另一个CoordinatorLayout中，这样滚动子视图也应该滚动父CoordinatorLayout。

我有一个带有coordinatorLayout的ViewPager，它包含不同的Fragment，以便在Scroll上隐藏tabLayout

我有另一个coordinatorLayout，它有一个viewPager。此fragment在父片段的ViewPager (父Coordinator layout)中膨胀。

问题是onScrolling，childViewpager中的子片段只反映在子fragment的coordinator layout中，而不是在我需要隐藏tablayout的父coordinator layout中。

结构如下：

CoordinatorLayout(p) ->(tablayout(p) & ViewPager(p) -> CoordinatorLayout(c)  ->(tablayout(c) & ViewPAger(c) ->recyclerView(cc)))

p -> parent;

c -> child; cc -> child to child

如何在滚动回收视图将影响两个协调器布局，以便工具栏表格布局(P)将得到隐藏。

android-viewpager

android-coordinatorlayout

android-appbarlayout

android

回答 8

Stack Overflow用户

发布于 2016-06-06 14:38:20

我知道这是个老问题。但是我搜索了很长一段时间，希望在一个片段中包含一个CoordinatorLayout，这个片段在另一个CoordinatorLayout中。

我稍微修改了dev.bmax的答案，以调用两个协调器布局，并调用两个布局的附加行为。

这是我的解决方案。

@SuppressWarnings("unused")
public class NestedCoordinatorLayout extends CoordinatorLayout implements NestedScrollingChild {

    private NestedScrollingChildHelper mChildHelper;

    public NestedCoordinatorLayout(Context context) {
        super(context);
        mChildHelper = new NestedScrollingChildHelper(this);
        setNestedScrollingEnabled(true);
    }

    public NestedCoordinatorLayout(Context context, AttributeSet attrs) {
        super(context, attrs);
        mChildHelper = new NestedScrollingChildHelper(this);
        setNestedScrollingEnabled(true);
    }

    public NestedCoordinatorLayout(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        mChildHelper = new NestedScrollingChildHelper(this);
        setNestedScrollingEnabled(true);
    }

    @Override
    public boolean onStartNestedScroll(View child, View target, int     nestedScrollAxes) {
        /* Enable the scrolling behavior of our own children */
        boolean tHandled = super.onStartNestedScroll(child, target, nestedScrollAxes);
        /* Enable the scrolling behavior of the parent's other children  */
        return startNestedScroll(nestedScrollAxes) || tHandled;
    }

    @Override
    public void onStopNestedScroll(View target) {
        /* Disable the scrolling behavior of our own children */
        super.onStopNestedScroll(target);
        /* Disable the scrolling behavior of the parent's other children  */
        stopNestedScroll();
    }

    @Override
    public void onNestedPreScroll(View target, int dx, int dy, int[] consumed) {
        int[][] tConsumed = new int[2][2];
        super.onNestedPreScroll(target, dx, dy, tConsumed[0]);
        dispatchNestedPreScroll(dx, dy, tConsumed[1], null);
        consumed[0] = tConsumed[0][0] + tConsumed[1][0];
        consumed[1] = tConsumed[0][1] + tConsumed[1][1];
    }

    @Override
    public void onNestedScroll(View target, int dxConsumed, int dyConsumed,
                           int dxUnconsumed, int dyUnconsumed) {
        super.onNestedScroll(target, dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed);
        dispatchNestedScroll(dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed, null);
    }

    @Override
    public boolean onNestedPreFling(View target, float velocityX, float velocityY) {
        boolean tHandled = super.onNestedPreFling(target, velocityX, velocityY);
        return dispatchNestedPreFling(velocityX, velocityY) || tHandled;
    }

    @Override
    public boolean onNestedFling(View target, float velocityX, float velocityY, boolean consumed) {
        boolean tHandled = super.onNestedFling(target, velocityX, velocityY, consumed);
        return dispatchNestedFling(velocityX, velocityY, consumed) || tHandled;
    }

    @Override
    public void setNestedScrollingEnabled(boolean enabled) {
        mChildHelper.setNestedScrollingEnabled(enabled);
    }

    @Override
    public boolean isNestedScrollingEnabled() {
        return mChildHelper.isNestedScrollingEnabled();
    }

    @Override
    public boolean startNestedScroll(int axes) {
        return mChildHelper.startNestedScroll(axes);
    }

    @Override
    public void stopNestedScroll() {
        mChildHelper.stopNestedScroll();
    }

    @Override
    public boolean hasNestedScrollingParent() {
        return mChildHelper.hasNestedScrollingParent();
    }

    @Override
    public boolean dispatchNestedScroll(int dxConsumed, int dyConsumed, int dxUnconsumed,
                                    int dyUnconsumed, int[] offsetInWindow) {
        return mChildHelper.dispatchNestedScroll(dxConsumed, dyConsumed, dxUnconsumed,
                dyUnconsumed, offsetInWindow);
    }

    @Override
    public boolean dispatchNestedPreScroll(int dx, int dy, int[] consumed, int[] offsetInWindow) {
        return mChildHelper.dispatchNestedPreScroll(dx, dy, consumed, offsetInWindow);
    }

    @Override
    public boolean dispatchNestedFling(float velocityX, float velocityY, boolean consumed) {
        return mChildHelper.dispatchNestedFling(velocityX, velocityY, consumed);
    }

    @Override
    public boolean dispatchNestedPreFling(float velocityX, float velocityY) {
        return mChildHelper.dispatchNestedPreFling(velocityX, velocityY);
    }
}

票数 50

Stack Overflow用户

发布于 2016-05-31 08:28:09

下面是嵌套协调器布局的一个简单实现。

/**
 * This variation of CoordinatorLayout also serves as a nested scrolling child,
 * which supports passing nested scrolling operations to it's parent when it's
 * own nested scrolling is locked.
 */
public class NestedCoordinatorLayout extends CoordinatorLayout implements NestedScrollingChild {

    private NestedScrollingChildHelper mChildHelper;
    private volatile boolean mPassToParent;

    public NestedCoordinatorLayout(Context context) {
        super(context);
        mChildHelper = new NestedScrollingChildHelper(this);
        setNestedScrollingEnabled(true);
    }

    public NestedCoordinatorLayout(Context context, AttributeSet attrs) {
        super(context, attrs);
        mChildHelper = new NestedScrollingChildHelper(this);
        setNestedScrollingEnabled(true);
    }

    public NestedCoordinatorLayout(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        mChildHelper = new NestedScrollingChildHelper(this);
        setNestedScrollingEnabled(true);
    }

    /**
     * Locks the nested scrolling. Further scroll events will
     * be passed to the nested scrolling parent.
     */
    public void lockNestedScrolling() {
        mPassToParent = true;
    }

    /**
     * Unlocks the nested scrolling. Further scroll events will
     * be dispatched to this layout's own scrolling children.
     */
    public void unlockNestedScrolling() {
        mPassToParent = false;
    }

    /*
     * NestedScrollingParent implementation
     */

    @Override
    public boolean onStartNestedScroll(View child, View target, int nestedScrollAxes) {
        /* Enable the scrolling behavior of our own children */
        super.onStartNestedScroll(child, target, nestedScrollAxes);
        /* Enable the scrolling behavior of the parent's other children  */
        startNestedScroll(nestedScrollAxes);
        /* Start tracking the current scroll */
        return true;
    }

    @Override
    public void onStopNestedScroll(View target) {
        /* Disable the scrolling behavior of our own children */
        super.onStopNestedScroll(target);
        /* Disable the scrolling behavior of the parent's other children  */
        stopNestedScroll();
    }

    @Override
    public void onNestedPreScroll(View target, int dx, int dy, int[] consumed) {
        if (mPassToParent) {
            dispatchNestedPreScroll(dx, dy, consumed, null);
        } else {
            super.onNestedPreScroll(target, dx, dy, consumed);
        }
    }

    @Override
    public void onNestedScroll(View target, int dxConsumed, int dyConsumed,
                               int dxUnconsumed, int dyUnconsumed) {
        if (mPassToParent) {
            dispatchNestedScroll(dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed, null);
        } else {
            super.onNestedScroll(target, dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed);
        }
    }

    @Override
    public boolean onNestedPreFling(View target, float velocityX, float velocityY) {
        if (mPassToParent) {
            return dispatchNestedPreFling(velocityX, velocityY);
        } else {
            return super.onNestedPreFling(target, velocityX, velocityY);
        }
    }

    @Override
    public boolean onNestedFling(View target, float velocityX, float velocityY, boolean consumed) {
        if (mPassToParent) {
            return dispatchNestedFling(velocityX, velocityY, consumed);
        } else {
            return super.onNestedFling(target, velocityX, velocityY, consumed);
        }
    }

    /*
     * NestedScrollingChild implementation
     */

    @Override
    public void setNestedScrollingEnabled(boolean enabled) {
        mChildHelper.setNestedScrollingEnabled(enabled);
    }

    @Override
    public boolean isNestedScrollingEnabled() {
        return mChildHelper.isNestedScrollingEnabled();
    }

    @Override
    public boolean startNestedScroll(int axes) {
        return mChildHelper.startNestedScroll(axes);
    }

    @Override
    public void stopNestedScroll() {
        mChildHelper.stopNestedScroll();
    }

    @Override
    public boolean hasNestedScrollingParent() {
        return mChildHelper.hasNestedScrollingParent();
    }

    @Override
    public boolean dispatchNestedScroll(int dxConsumed, int dyConsumed, int dxUnconsumed,
                                        int dyUnconsumed, int[] offsetInWindow) {
        return mChildHelper.dispatchNestedScroll(dxConsumed, dyConsumed, dxUnconsumed,
                dyUnconsumed, offsetInWindow);
    }

    @Override
    public boolean dispatchNestedPreScroll(int dx, int dy, int[] consumed, int[] offsetInWindow) {
        return mChildHelper.dispatchNestedPreScroll(dx, dy, consumed, offsetInWindow);
    }

    @Override
    public boolean dispatchNestedFling(float velocityX, float velocityY, boolean consumed) {
        return mChildHelper.dispatchNestedFling(velocityX, velocityY, consumed);
    }

    @Override
    public boolean dispatchNestedPreFling(float velocityX, float velocityY) {
        return mChildHelper.dispatchNestedPreFling(velocityX, velocityY);
    }
}

票数 11

Stack Overflow用户

发布于 2020-03-10 08:18:37

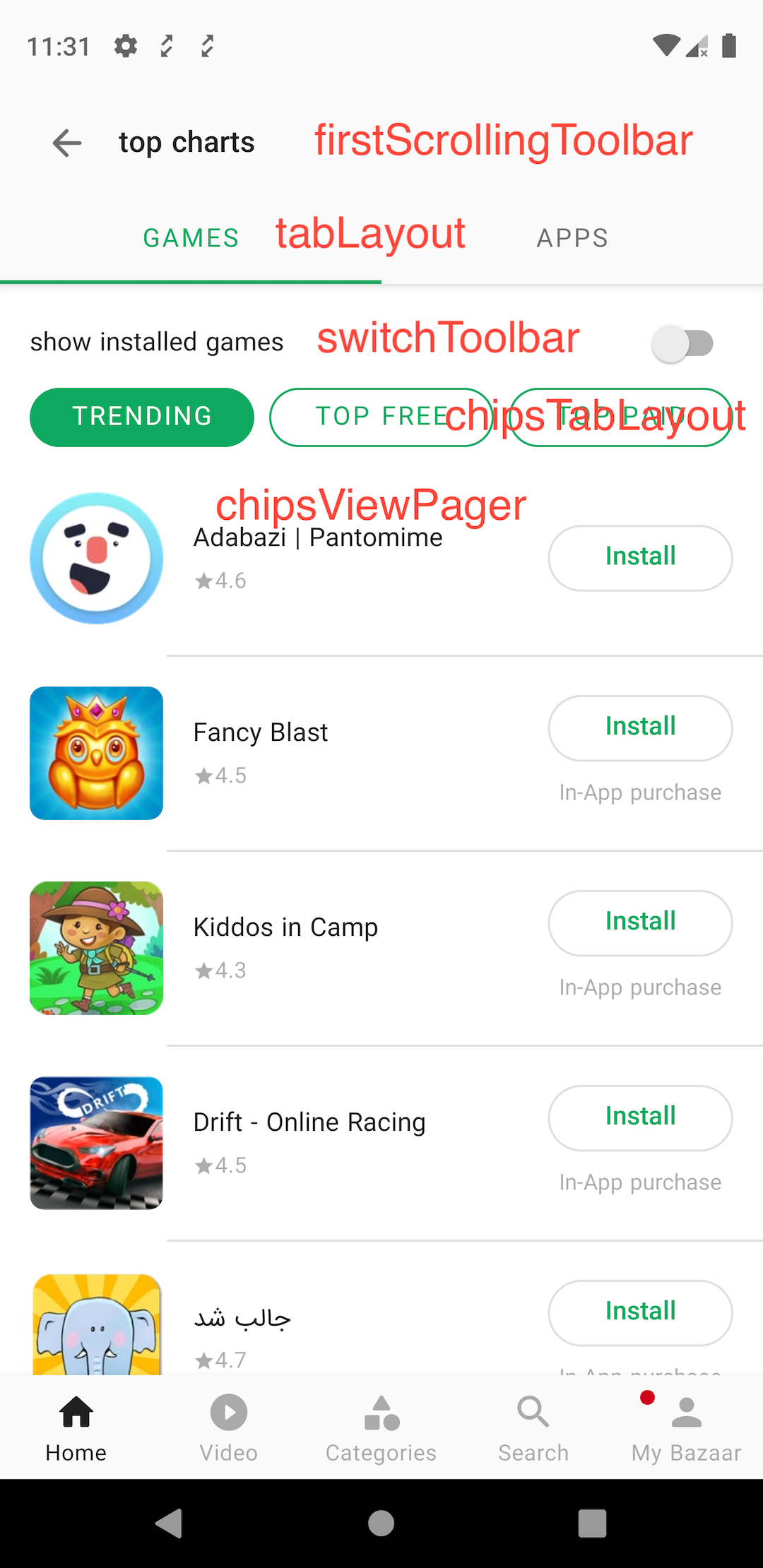

Kotlin版本的NestedCoordinator布局使用与多点scrollFlags为NestedCoordinatorLayouts基于@fabian 回答。

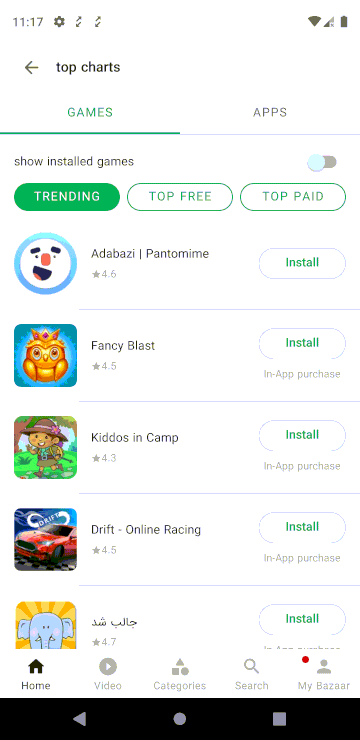

您将看到的beHavior是这样的someThing：

和NestedCoordinatorLayout实现

import android.content.Context
import android.util.AttributeSet
import android.view.View
import androidx.coordinatorlayout.widget.CoordinatorLayout
import androidx.core.view.NestedScrollingChild
import androidx.core.view.NestedScrollingChildHelper

class NestedCoordinatorLayout @JvmOverloads constructor(
    context: Context,
    attrs: AttributeSet? = null,
    defStyleAttr: Int = 0
) : CoordinatorLayout(context, attrs, defStyleAttr), NestedScrollingChild {

    private var mChildHelper: NestedScrollingChildHelper = NestedScrollingChildHelper(this)

    init {
        isNestedScrollingEnabled = true
    }

    override fun onNestedPreScroll(
        target: View,
        dx: Int,
        dy: Int,
        consumed: IntArray,
        type: Int
    ) {
        val tConsumed = Array(2) { IntArray(2) }
        super.onNestedPreScroll(target, dx, dy, consumed, type)
        dispatchNestedPreScroll(dx, dy, tConsumed[1], null)
        consumed[0] = tConsumed[0][0] + tConsumed[1][0]
        consumed[1] = tConsumed[0][1] + tConsumed[1][1]
    }

    override fun onNestedScroll(
        target: View,
        dxConsumed: Int,
        dyConsumed: Int,
        dxUnconsumed: Int,
        dyUnconsumed: Int,
        type: Int
    ) {
        super.onNestedScroll(target, dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed, type)
        dispatchNestedScroll(dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed, null)
    }

    override fun onStopNestedScroll(target: View, type: Int) {
        /* Disable the scrolling behavior of our own children */
        super.onStopNestedScroll(target, type)
        /* Disable the scrolling behavior of the parent's other children  */
        stopNestedScroll()
    }

    override fun onStartNestedScroll(child: View, target: View, nestedScrollAxes: Int, type: Int): Boolean {
        /* Enable the scrolling behavior of our own children */
        val tHandled = super.onStartNestedScroll(child, target, nestedScrollAxes, type)
        /* Enable the scrolling behavior of the parent's other children  */
        return startNestedScroll(nestedScrollAxes) || tHandled
    }

    override fun onStartNestedScroll(child: View, target: View, nestedScrollAxes: Int): Boolean {
        /* Enable the scrolling behavior of our own children */
        val tHandled = super.onStartNestedScroll(child, target, nestedScrollAxes)
        /* Enable the scrolling behavior of the parent's other children  */
        return startNestedScroll(nestedScrollAxes) || tHandled
    }

    override fun onStopNestedScroll(target: View) {
        /* Disable the scrolling behavior of our own children */
        super.onStopNestedScroll(target)
        /* Disable the scrolling behavior of the parent's other children  */
        stopNestedScroll()
    }

    override fun onNestedPreScroll(target: View, dx: Int, dy: Int, consumed: IntArray) {
        val tConsumed = Array(2) { IntArray(2) }
        super.onNestedPreScroll(target, dx, dy, tConsumed[0])
        dispatchNestedPreScroll(dx, dy, tConsumed[1], null)
        consumed[0] = tConsumed[0][0] + tConsumed[1][0]
        consumed[1] = tConsumed[0][1] + tConsumed[1][1]
    }

    override fun onNestedScroll(
        target: View,
        dxConsumed: Int,
        dyConsumed: Int,
        dxUnconsumed: Int,
        dyUnconsumed: Int
    ) {
        super.onNestedScroll(target, dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed)
        dispatchNestedScroll(dxConsumed, dyConsumed, dxUnconsumed, dyUnconsumed, null)
    }

    override fun onNestedPreFling(
        target: View,
        velocityX: Float,
        velocityY: Float
    ): Boolean {
        val tHandled = super.onNestedPreFling(target, velocityX, velocityY)
        return dispatchNestedPreFling(velocityX, velocityY) || tHandled
    }

    override fun onNestedFling(
        target: View,
        velocityX: Float,
        velocityY: Float,
        consumed: Boolean
    ): Boolean {
        val tHandled = super.onNestedFling(target, velocityX, velocityY, consumed)
        return dispatchNestedFling(velocityX, velocityY, consumed) || tHandled
    }

    override fun isNestedScrollingEnabled(): Boolean {
        return mChildHelper.isNestedScrollingEnabled
    }

    override fun setNestedScrollingEnabled(enabled: Boolean) {
        mChildHelper.isNestedScrollingEnabled = enabled
    }

    override fun startNestedScroll(axes: Int): Boolean {
        return mChildHelper.startNestedScroll(axes)
    }

    override fun stopNestedScroll() {
        mChildHelper.stopNestedScroll()
    }

    override fun hasNestedScrollingParent() = mChildHelper.hasNestedScrollingParent()

    override fun dispatchNestedScroll(
        dxConsumed: Int,
        dyConsumed: Int,
        dxUnconsumed: Int,
        dyUnconsumed: Int,
        offsetInWindow: IntArray?
    ): Boolean {
        return mChildHelper.dispatchNestedScroll(
            dxConsumed, dyConsumed, dxUnconsumed,
            dyUnconsumed, offsetInWindow
        )
    }

    override fun dispatchNestedPreScroll(
        dx: Int,
        dy: Int,
        consumed: IntArray?,
        offsetInWindow: IntArray?
    ): Boolean {
        return mChildHelper.dispatchNestedPreScroll(dx, dy, consumed, offsetInWindow)
    }

    override fun dispatchNestedFling(
        velocityX: Float,
        velocityY: Float,
        consumed: Boolean
    ): Boolean {
        return mChildHelper.dispatchNestedFling(velocityX, velocityY, consumed)
    }

    override fun dispatchNestedPreFling(velocityX: Float, velocityY: Float): Boolean {
        return mChildHelper.dispatchNestedPreFling(velocityX, velocityY)
    }
}

您的XML文件实现类似于：

<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout>

    <com.google.android.material.appbar.AppBarLayout>

        <androidx.appcompat.widget.Toolbar
            android:id="@+id/firstScrollingToolbar"
            app:layout_scrollFlags="snap|scroll|enterAlways"/>

    </com.google.android.material.appbar.AppBarLayout>

    <androidx.coordinatorlayout.widget.CoordinatorLayout
        app:layout_behavior="@string/appbar_scrolling_view_behavior">

        <com.google.android.material.appbar.AppBarLayout>

            <androidx.appcompat.widget.Toolbar
                android:id="@+id/tabLayout"
                app:layout_collapseMode="pin" />

        </com.google.android.material.appbar.AppBarLayout>

        <widget.NestedCoordinatorLayout
            app:layout_behavior="@string/appbar_scrolling_view_behavior">

            <ViewPager
                android:id="@+id/chipsViewPager"
                app:layout_behavior="@string/appbar_scrolling_view_behavior" />

            <com.google.android.material.appbar.AppBarLayout>

                <androidx.appcompat.widget.Toolbar
                    android:id="@+id/switchToolbar"
                    app:layout_scrollFlags="enterAlways|snap|scroll">
                    <androidx.appcompat.widget.SwitchCompat />
                </androidx.appcompat.widget.Toolbar>

                <androidx.appcompat.widget.Toolbar
                    android:id="@+id/chipsTabLayout"
                    app:layout_collapseMode="pin"/>

            </com.google.android.material.appbar.AppBarLayout>

        </widget.NestedCoordinatorLayout>

    </androidx.coordinatorlayout.widget.CoordinatorLayout>

</androidx.coordinatorlayout.widget.CoordinatorLayout>

这是实现的布局层次结构的视觉视图：

这个视频可以让你更好地了解安卓视图层次结构是如何工作的。

票数 9

页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持

原文链接：

https://stackoverflow.com/questions/34181372

复制

相似问题

问CoordinatorLayout在另一个CoordinatorLayout中
EN

回答 8

Stack Overflow用户

Stack Overflow用户

Stack Overflow用户

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐

问CoordinatorLayout在另一个CoordinatorLayout中EN

回答 8

Stack Overflow用户

Stack Overflow用户

Stack Overflow用户

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐

问CoordinatorLayout在另一个CoordinatorLayout中
EN
