瓷砖布局错误
瓷砖布局错误
提问于 2016-03-03 19:25:27
我创建了一个int数组的级别。
using UnityEngine;
using System.Collections;
public class Level1 : MonoBehaviour
{
int[][] level = new int[][]
{
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 83, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0},
new int[] { 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16, 16}
};
public Transform tile00;
public Transform tile16;
public Transform tile38;
int rows = 12;
int cols = 32;
void Start ()
{
BuildLevel ();
}
void BuildLevel(){
int i, j;
GameObject dynamicParent = GameObject.Find ("DynamicObjects");
for(i=0; i<rows; i++)
{
for(j=0; j<cols; j++)
{
Transform toCreate = null;
Debug.Log (i + " , " + j + " " + level[i][j]);
if (level[i][j] == 0)
toCreate = tile00;
if (level[i][j] == 83)
toCreate = tile38;;
if (level[i][j] == 16)
toCreate = tile16;
Vector3 v3 = new Vector3(16-j, 6-i, 0);
Transform newObject = Instantiate(toCreate, v3, Quaternion.identity) as Transform;
newObject.parent = dynamicParent.transform;
}
}
}

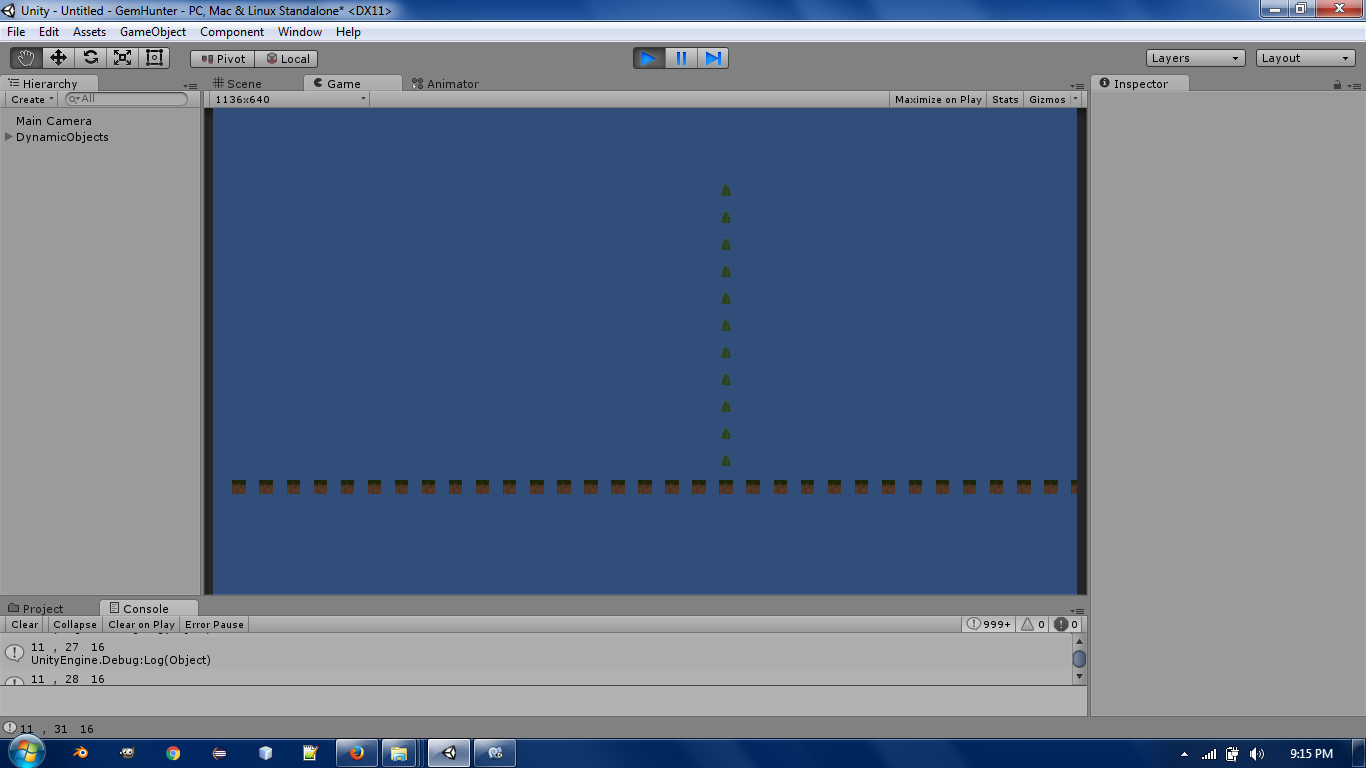

}输出屏幕如下所示：
瓷砖是50×50。我改变了瓷砖的尺寸，改变了X和Y的位置。我什么都试过了，但是我发现没有solution.Could，你给我一个ideea，好吗？
对于水平瓷砖，我想要获得的布局是(图像是用油漆处理的)：
回答 1
Stack Overflow用户
回答已采纳
发布于 2016-03-05 14:38:48
最有可能的答案是因为这一行
Vector3 v3 = new Vector3(16-j, 6-i, 0);你说你的图像是50x50Px。假设您没有将像素更改为您的sprite的单位属性，这将使这些图像在X&Y轴上占用0.5个单元的空间。
现在，在你的计算中，这是正在发生的事情。
迭代1- (i = 0，j= 0)。位置= Vector3(16，6，0)
迭代2- (i = 0，j= 1)。位置= Vector3(15，6，0)
..。
迭代33 -(i = 1，j= 0)。位置= Vector3(16，5，0)
现在，迭代1和迭代2之间的X值的差异是1单位。我们已经确定这些雪碧将只占用0.5单位，因为他们的大小。
在迭代1和迭代33的Y轴上也是一样的。差1单位，每幅图像只占0.5个单位。
因此，要么将图像更改为100 x 100 px，要么将像素更改为单位。
