您可能知道,全球平台卡规范定义了一个名为Get Data的命令,用于从智能卡中检索一些信息。
https://github.com/martinpaljak/GlobalPlatformPro是与智能卡通信的流行工具之一。当我使用这个工具在卡上列出已安装的小程序时,我有以下输出:
D:\3-TestTools\SmartCard>GP -list -d -v -i
//Useless Info Censored
ATR: 3B6800000073C84012009000
//Select APDU Command
A>> T=0 (4+0000) 00A40400 00
A<< (0018+2) (48ms) 6F108408A000000003000000A5049F6501FF 9000
***** Card info:
A>> T=0 (4+0000) 80CA9F7F 00
A<< (0045+2) (65ms) 9F7F2A4250010C425102902610116000099A5A0AF9425211694253117E00000000000000000000000000000000 9000
Card CPLC:
ICFabricator: 4250
ICType: 010C
OperatingSystemID: 4251
OperatingSystemReleaseDate: 0290
OperatingSystemReleaseLevel: 2610
ICFabricationDate: 1160
ICSerialNumber: 00099A5A
ICBatchIdentifier: 0AF9
ICModuleFabricator: 4252
ICModulePackagingDate: 1169
ICCManufacturer: 4253
ICEmbeddingDate: 117E
ICPrePersonalizer: 0000
ICPrePersonalizationEquipmentDate: 0000
ICPrePersonalizationEquipmentID: 00000000
ICPersonalizer: 0000
ICPersonalizationDate: 0000
ICPersonalizationEquipmentID: 00000000
***** CARD DATA
A>> T=0 (4+0000) 80CA0066 00
A<< (0078+2) (95ms) 664C734A06072A864886FC6B01600C060A2A864886FC6B02020101630906072A864886FC6B03640B06092A864886FC6B040215650B0609
2B8510864864020103660C060A2B060104012A026E0102 9000
GlobalPlatform card
Version: 2.1.1
TAG3: 1.2.840.114283.3
SCP version: SCP_02_15
TAG5: 1.3.656.840.100.2.1.3
TAG6: 1.3.6.1.4.1.42.2.110.1.2
***** KEY INFO
A>> T=0 (4+0000) 80CA00E0 00
A<< (0020+2) (47ms) E012C00401018010C00402018010C00403018010 9000
VER:1 ID:1 TYPE:DES3 LEN:16
VER:1 ID:2 TYPE:DES3 LEN:16
VER:1 ID:3 TYPE:DES3 LEN:16
//Useless Info Censored
正如您在上面看到的,该工具使用以下APDU命令从卡中提取Card Info
、Card Data
和Key Info
:
80 CA 9F 7F
80 CA 00 66
80 CA 00 E0
问题:
E0
和66
,但是标签9F 7F
没有!规格在哪里?Card Data
(Tag 66

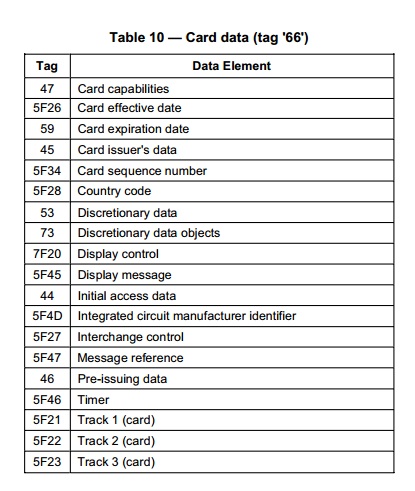

)的格式在ISO/IEC 7816第6部分中得到了定义。但在本文件中,只有如下表格:
正如您在上面看到的,这个表的内容与我在GPP工具输出中看到的输出非常不同。如何解释输出(获取数据APDU命令响应)?
发布于 2016-06-05 20:44:08
(全球平台2.2.1和ISO/IEC 7816-6:2004)
- Defined in Global Platform (see section 11.3.3.1 and tables 11-27 and 11-28).
- Defined in ISO 7816-6 -- it may contain tag '73' called "Discretionary Data Objects" described as "Concatenation of data objects not defined in ISO/IEC 7816" (see Table 6).
- Global Platform defines the contents of tag '73' within tag '66' (Card data) as "Card Recognition Data" (see section 7.4.1.3, appendix H.2 and Table H-1). This definition is in line with ISO 7816.
- Defined in "Visa Integrated Circuit Card / Card Specification" which is not public (but might be found using google). The Open Platform 2.0.1 (predecessor of GP) defines that CPLC should be retrievable with the `GET DATA` command -- but it does not tell the particular tag.
希望这能带来一些sense...good的好运!
