用ListViewItem隐藏或显示VisualStateManager堆栈
用ListViewItem隐藏或显示VisualStateManager堆栈
提问于 2016-06-17 06:05:54
我不太熟悉VisualStateManager在C# UWP，我需要您的帮助，以隐藏或显示在我的ListViewItem堆栈面板。
<ListView.ItemTemplate>
<DataTemplate>
<Grid Width="500">
<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition />
</Grid.RowDefinitions>
<StackPanel Orientation="Horizontal">
<Image Height="45" Width="45" Margin="0,8,0,8" Source="../../Assets/ViewBox.png" Stretch="UniformToFill"/>
<StackPanel Orientation="Vertical" VerticalAlignment="Top" Margin="8,8,0,0">
<TextBlock Text="Test" Style="{StaticResource BaseTextBlockStyle}" />
<TextBlock Text="test1" Margin="0,4,8,0" Style="{StaticResource BodyTextBlockStyle}" />
</StackPanel>
</StackPanel>
<StackPanel x:Name="EDITOR_PANEL" Grid.Row="1" Orientation="Horizontal" Visibility="Collapsed">
<Button Content="Edit" />
<Button Content="Delete" />
</StackPanel>
<VisualStateManager.VisualStateGroups>
<VisualStateGroup x:Name="CommonStates">
<VisualState x:Name="Normal">
<Storyboard>
<PointerUpThemeAnimation Storyboard.TargetName="ContentPresenter" />
</Storyboard>
</VisualState>
<VisualState x:Name="Selected">
<VisualState.Setters>
<Setter Target="EDITOR_PANEL.Visibility" Value="Visible"></Setter>
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
</VisualStateManager.VisualStateGroups>
</Grid>
</DataTemplate>
</ListView.ItemTemplate>我想做的是这样的：

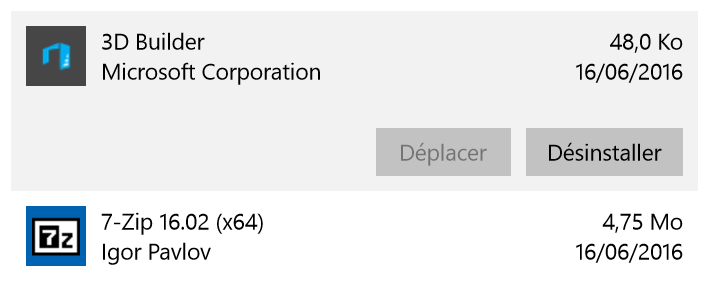

当我选择列表视图中的一个项时，它会显示带有两个按钮的EDITOR_PANEL，如果选择另一个按钮，则前面选择的项会折叠，而当前项则显示EDITOR_PANEL等等。
你有什么想法吗？
回答 1
Stack Overflow用户
回答已采纳
发布于 2016-06-20 13:58:00
一种解决方案是创建一个UserControl，其中包含要在ListViewItem中公开的所有控件。
然后，从后面的代码中可以更新VisualState上的ListView事件SelectionChanged。
下面是一个工作示例：
UserControl视图：
<UserControl
x:Class="App4.EditablePanel"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="using:App4"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
d:DesignHeight="300"
d:DesignWidth="400">
<Grid Width="500">
<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition />
</Grid.RowDefinitions>
<StackPanel Orientation="Horizontal">
<Image Height="45" Width="45" Margin="0,8,0,8" Source="../../Assets/ViewBox.png" Stretch="UniformToFill"/>
<StackPanel Orientation="Vertical" VerticalAlignment="Top" Margin="8,8,0,0">
<TextBlock Text="{Binding Title}" Style="{StaticResource BaseTextBlockStyle}" />
<TextBlock Text="{Binding Headline}" Margin="0,4,8,0" Style="{StaticResource BodyTextBlockStyle}" />
</StackPanel>
</StackPanel>
<StackPanel x:Name="EDITOR_PANEL" Grid.Row="1" Orientation="Horizontal" Visibility="Collapsed">
<Button Content="Edit" />
<Button Content="Delete" />
</StackPanel>
<VisualStateManager.VisualStateGroups>
<VisualStateGroup x:Name="CommonStates">
<VisualState x:Name="Normal">
</VisualState>
<VisualState x:Name="Selected">
<VisualState.Setters>
<Setter Target="EDITOR_PANEL.Visibility" Value="Visible"></Setter>
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
</VisualStateManager.VisualStateGroups>
</Grid>
</UserControl>UserControl代码背后：
public sealed partial class EditablePanel : UserControl
{
public EditablePanel()
{
this.InitializeComponent();
}
public void SetInEditMode()
{
VisualStateManager.GoToState(this, "Selected", true);
}
public void SetInViewMode()
{
VisualStateManager.GoToState(this, "Normal", true);
}
}MainPage视图：
<Page
x:Class="App4.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="using:App4"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
DataContext="{Binding RelativeSource={RelativeSource Self}}">
<ListView ItemsSource="{Binding Items}" SelectionChanged="ListView_SelectionChanged">
<ListView.ItemTemplate>
<DataTemplate>
<local:EditablePanel></local:EditablePanel>
</DataTemplate>
</ListView.ItemTemplate>
</ListView>
</Page>后面的MainPage代码：
public sealed partial class MainPage : Page
{
private List<Item> items;
public MainPage()
{
items = new List<Item>()
{
new Item() { Title = "3D Build", Headline="MS Corp" },
new Item() { Title = "7Zip", Headline="Igor Pavlov" },
new Item() { Title = "Photoshop", Headline = "Adobe"}
};
this.InitializeComponent();
}
public List<Item> Items { get { return items; } }
private void ListView_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
var lv = sender as ListView;
if (e.RemovedItems.Count > 0)
{
foreach (var item in e.RemovedItems)
{
var container = lv.ContainerFromItem(item) as ListViewItem;
var panel = container.ContentTemplateRoot as EditablePanel;
panel.SetInViewMode();
}
}
if (e.AddedItems.Count > 0)
{
foreach (var item in e.AddedItems)
{
var container = lv.ContainerFromItem(item) as ListViewItem;
var panel = container.ContentTemplateRoot as EditablePanel;
panel.SetInEditMode();
}
}
}
}
public class Item
{
public string Title { get; set; }
public string Headline { get; set; }
}页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/37874238
