社区首页 >问答首页 >蒙面UIVisualEffectView在iOS 10上不起作用

问蒙面UIVisualEffectView在iOS 10上不起作用
EN

Stack Overflow用户

提问于 2016-09-16 07:08:12

回答 5查看 5.2K关注 0票数 11

我开发了一款应用程序，它使用UIBlurEffectView在iOS 9和更低版本上工作得很好，但是当我升级我的设备(其中几个，而不仅仅是一个设备)时，模糊消失了，而不是模糊，因为某种原因出现了半透明的视图。

这门课有什么变化吗？有人知道为什么吗？

我的代码(视图是使用PocketSVG API获取的SVG文件中的一个形状)：

 let blur: UIBlurEffect = UIBlurEffect(style: .Light)
let ev: UIVisualEffectView = UIVisualEffectView(effect: blur)
ev.translatesAutoresizingMaskIntoConstraints = false
self.addSubview(ev)

ev.rightAnchor.constraintEqualToAnchor(self.rightAnchor).active = true
ev.bottomAnchor.constraintEqualToAnchor(self.bottomAnchor).active = true
ev.leftAnchor.constraintEqualToAnchor(self.leftAnchor).active = true
ev.heightAnchor.constraintEqualToAnchor(self.heightAnchor, multiplier: 1.5).active = true

let myPath: CGPathRef = PocketSVG.pathFromSVGFileNamed("CategoriesBar").takeUnretainedValue()

var transform: CGAffineTransform = CGAffineTransformMakeScale(self.frame.size.width / 754.0, self.frame.size.height / 220.0)

let transformedPath: CGPathRef = CGPathCreateMutableCopyByTransformingPath(myPath, &transform)!

let myShapeLayer = CAShapeLayer()
myShapeLayer.path = transformedPath
self.layer.mask = myShapeLayer

Leo的答案代码：

你的建议不起作用，下面是代码

 override func layoutSubviews() {

        let blur: UIBlurEffect = UIBlurEffect(style: .Light)
        let ev: UIVisualEffectView = UIVisualEffectView(effect: blur)
        ev.translatesAutoresizingMaskIntoConstraints = false
        self.addSubview(ev)

        ev.rightAnchor.constraintEqualToAnchor(self.rightAnchor).active = true
        ev.bottomAnchor.constraintEqualToAnchor(self.bottomAnchor).active = true
        ev.leftAnchor.constraintEqualToAnchor(self.leftAnchor).active = true
        ev.heightAnchor.constraintEqualToAnchor(self.heightAnchor, multiplier: 1.5).active = true

        let myPath: CGPathRef = PocketSVG.pathFromSVGFileNamed("CategoriesBar").takeUnretainedValue()

        var transform: CGAffineTransform = CGAffineTransformMakeScale(self.frame.size.width / 754.0, self.frame.size.height / 220.0)

        let transformedPath: CGPathRef = CGPathCreateMutableCopyByTransformingPath(myPath, &transform)!

        let myShapeLayer = CAShapeLayer()
        myShapeLayer.path = transformedPath
        self.layer.mask = myShapeLayer

        let myMaskedView = UIView(frame: ev.frame)
        myMaskedView.layer.mask = myShapeLayer
        ev.maskView = myMaskedView
}

Konrad Siemczyk应答代码

override func layoutSubviews() {

        let blur: UIBlurEffect = UIBlurEffect(style: .Light)
        let ev: UIVisualEffectView = UIVisualEffectView(effect: blur)
        ev.frame = self.bounds
        ev.translatesAutoresizingMaskIntoConstraints = false
        self.addSubview(ev)

        ev.rightAnchor.constraintEqualToAnchor(self.rightAnchor).active = true
        ev.bottomAnchor.constraintEqualToAnchor(self.bottomAnchor).active = true
        ev.leftAnchor.constraintEqualToAnchor(self.leftAnchor).active = true
        ev.heightAnchor.constraintEqualToAnchor(self.heightAnchor, multiplier: 1.5).active = true

        let myPath: CGPathRef = PocketSVG.pathFromSVGFileNamed("CategoriesBar").takeUnretainedValue()
        var transform: CGAffineTransform = CGAffineTransformMakeScale(self.frame.size.width / 754.0, self.frame.size.height / 220.0)

        let transformedPath: CGPathRef = CGPathCreateMutableCopyByTransformingPath(myPath, &transform)!

        let myShapeLayer = CAShapeLayer()
        myShapeLayer.path = transformedPath
        //self.layer.mask = myShapeLayer
        myShapeLayer.fillRule = kCAFillRuleEvenOdd

        let myMaskedView = UIView(frame: self.frame)
        myMaskedView.backgroundColor = UIColor.blackColor()
        myMaskedView.layer.mask = myShapeLayer
        ev.maskView = myMaskedView
    }

ios

iphone

swift

cocoa-touch

uiview

回答 5

Stack Overflow用户

发布于 2016-09-21 08:51:33

嘿在实施这个之前..。

TLDR:请先检查此解决方案：

https://stackoverflow.com/a/67939549/2829540

..。尽管这些示例适用于较早版本的iOS，看起来较新的版本需要一个层而不是一个视图，但这个答案可能不像预期的那样有效。您可能需要为旧版本实现此解决方案，对于较新版本则需要实现链接解决方案。

为ObjectiveC用户提供的.

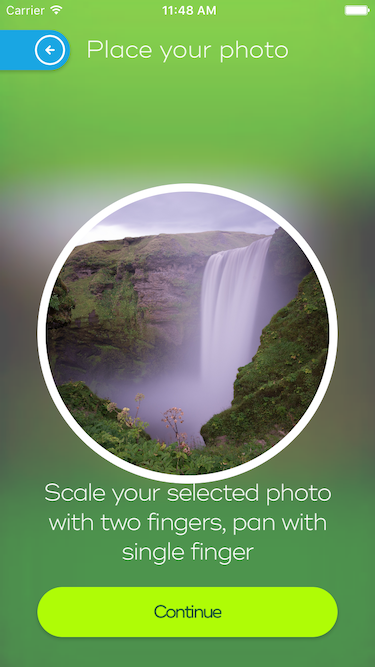

下面是iOS 10的一个工作示例，最后我还附加了结果视图。稍后，我将在顶部添加白色边框。裁剪的圆圈掩蔽在代码中，如果您喜欢的话，可以按原样使用它。

// "self" in here is an UIView that contains some images inside.
{
  UIBlurEffect *blurEffect = [UIBlurEffect effectWithStyle:UIBlurEffectStyleLight];
  UIVisualEffectView *blurredEffectView = [[UIVisualEffectView alloc] initWithEffect:blurEffect];

  CGRect frame = self.frame;
  frame.origin = CGPointMake (0, 0);

  blurredEffectView.frame = frame;
  [self addSubview:blurredEffectView];

  UIView *maskView = [[UIView alloc] initWithFrame:frame];
  maskView.backgroundColor = [UIColor blackColor];

  __weak UIView *weak = self;
  maskView.layer.mask = ({ // This mask draws a rectangle and crops a circle inside it.
    __strong UIView *strong = weak;

    CGRect roundedRect = CGRectMake (
      0,
      0,
      strong.frame.size.width * 0.8f,
      strong.frame.size.width * 0.8f
    );
    roundedRect.origin.x = strong.frame.size.width / 2 - roundedRect.size.width / 2;
    roundedRect.origin.y = strong.frame.size.height / 2 - roundedRect.size.height / 2;

    CGFloat cornerRadius = roundedRect.size.height / 2.0f;

    UIBezierPath *path        = [UIBezierPath bezierPathWithRect:self.bounds];
    UIBezierPath *croppedPath = [UIBezierPath bezierPathWithRoundedRect:roundedRect cornerRadius:cornerRadius];
    [path appendPath:croppedPath];
    [path setUsesEvenOddFillRule:YES];

    CAShapeLayer *mask = [CAShapeLayer layer];
    mask.path     = path.CGPath;
    mask.fillRule = kCAFillRuleEvenOdd;
    mask;
  });

  blurredEffectView.maskView = maskView;
}

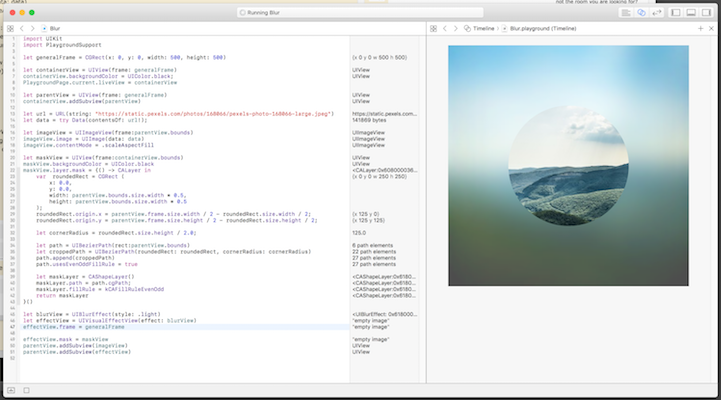

因此，这与Swift 3在操场上进行测试的代码相同.

这是在下载url时使用一次尝试，所以它是同步的。

import UIKit
import PlaygroundSupport

let generalFrame = CGRect(x: 0, y: 0, width: 500, height: 500)

let containerView = UIView(frame: generalFrame)
containerView.backgroundColor = UIColor.black;
PlaygroundPage.current.liveView = containerView

let parentView = UIView(frame: generalFrame)
containerView.addSubview(parentView)

let url = URL(string: "https://static.pexels.com/photos/168066/pexels-photo-168066-large.jpeg")
let data = try Data(contentsOf: url!);

let imageView = UIImageView(frame:parentView.bounds)
imageView.image = UIImage(data: data)
imageView.contentMode = .scaleAspectFill

let maskView = UIView(frame:parentView.bounds)
maskView.backgroundColor = UIColor.black
maskView.layer.mask = {() -> CALayer in
    var  roundedRect = CGRect (
        x: 0.0,
        y: 0.0,
        width: parentView.bounds.size.width * 0.5,
        height: parentView.bounds.size.width * 0.5
    );
    roundedRect.origin.x = parentView.frame.size.width / 2 - roundedRect.size.width / 2;
    roundedRect.origin.y = parentView.frame.size.height / 2 - roundedRect.size.height / 2;

    let cornerRadius = roundedRect.size.height / 2.0;

    let path = UIBezierPath(rect:parentView.bounds)
    let croppedPath = UIBezierPath(roundedRect: roundedRect, cornerRadius: cornerRadius)
    path.append(croppedPath)
    path.usesEvenOddFillRule = true

    let maskLayer = CAShapeLayer()
    maskLayer.path = path.cgPath;
    maskLayer.fillRule = kCAFillRuleEvenOdd
    return maskLayer
}()

let blurView = UIBlurEffect(style: .light)
let effectView = UIVisualEffectView(effect: blurView)
effectView.frame = generalFrame

effectView.mask = maskView
parentView.addSubview(imageView)
parentView.addSubview(effectView)

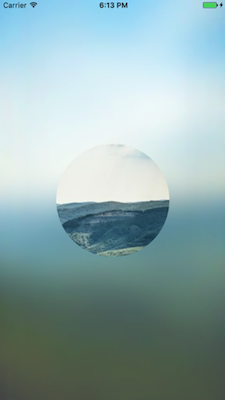

和视图控制器中的工作示例：

这个先下载一个图像，然后附加模糊效果。

import UIKit

class ViewController: UIViewController {

  func addTheBlurView(data :Data) {

    let generalFrame = self.view.bounds;
    let parentView = UIView(frame: generalFrame)
    self.view.addSubview(parentView)

    let imageView = UIImageView(frame: parentView.bounds)
    imageView.image = UIImage(data: data)
    imageView.contentMode = .scaleAspectFill

    let maskView = UIView(frame: parentView.bounds)
    maskView.backgroundColor = UIColor.black
    maskView.layer.mask = {
      () -> CALayer in
      var roundedRect = CGRect(
          x: 0.0,
          y: 0.0,
          width: parentView.bounds.size.width * 0.5,
          height: parentView.bounds.size.width * 0.5
          );
      roundedRect.origin.x = parentView.frame.size.width / 2 - roundedRect.size.width / 2;
      roundedRect.origin.y = parentView.frame.size.height / 2 - roundedRect.size.height / 2;

      let cornerRadius = roundedRect.size.height / 2.0;

      let path = UIBezierPath(rect: parentView.bounds)
      let croppedPath = UIBezierPath(roundedRect: roundedRect, cornerRadius: cornerRadius)
      path.append(croppedPath)
      path.usesEvenOddFillRule = true

      let maskLayer = CAShapeLayer()
      maskLayer.path = path.cgPath;
      maskLayer.fillRule = kCAFillRuleEvenOdd
      return maskLayer
    }()

    let blurView = UIBlurEffect(style: .light)
    let effectView = UIVisualEffectView(effect: blurView)
    effectView.frame = generalFrame

    effectView.mask = maskView
    parentView.addSubview(imageView)
    parentView.addSubview(effectView)

  }

  override func viewDidLoad() {
    debugPrint("Running...")

    super.viewDidLayoutSubviews();

    // Lets load an image first, so blur looks cool
    let url = URL(string: "https://static.pexels.com/photos/168066/pexels-photo-168066-large.jpeg")

    URLSession.shared.dataTask(with: url!) {
      (data, response, error) in

      if error != nil {
        print(error)
        return
      }

      DispatchQueue.main.async(execute: {
        self.addTheBlurView(data: data!)
      })

    }.resume()

  }
}

OBJECTIVEC版本

游乐场版

VIEWCONTROLLER版本

票数 6

Stack Overflow用户

发布于 2016-09-25 13:41:27

如果您正在寻找SWIFT3.0中的蒙面视图和模糊解决方案，请查看下面的代码：

class func addBlurredView(_ forView: UIView, centeredElement: UIView) {
    let blur = UIVisualEffectView(effect: UIBlurEffect(style: .light))
    blur.frame = forView.frame
    blur.isUserInteractionEnabled = false
    forView.addSubview(blur)

    let radius = centeredElement.bounds.width / 2
    let path = UIBezierPath (
        roundedRect: blur.frame,
        cornerRadius: 0)
    let circle = UIBezierPath (
        roundedRect: CGRect(origin: CGPoint(x: centeredElement.frame.origin.x, y: centeredElement.frame.origin.y),
                             size: centeredElement.frame.size), cornerRadius: radius)
    path.append(circle)
    path.usesEvenOddFillRule = true

    let maskLayer = CAShapeLayer()
    maskLayer.path = path.cgPath
    maskLayer.fillRule = kCAFillRuleEvenOdd

    let maskView = UIView(frame: forView.frame)
    maskView.backgroundColor = UIColor.black
    maskView.layer.mask = maskLayer

    blur.mask = maskView
}

票数 2

Stack Overflow用户

发布于 2021-06-11 15:18:49

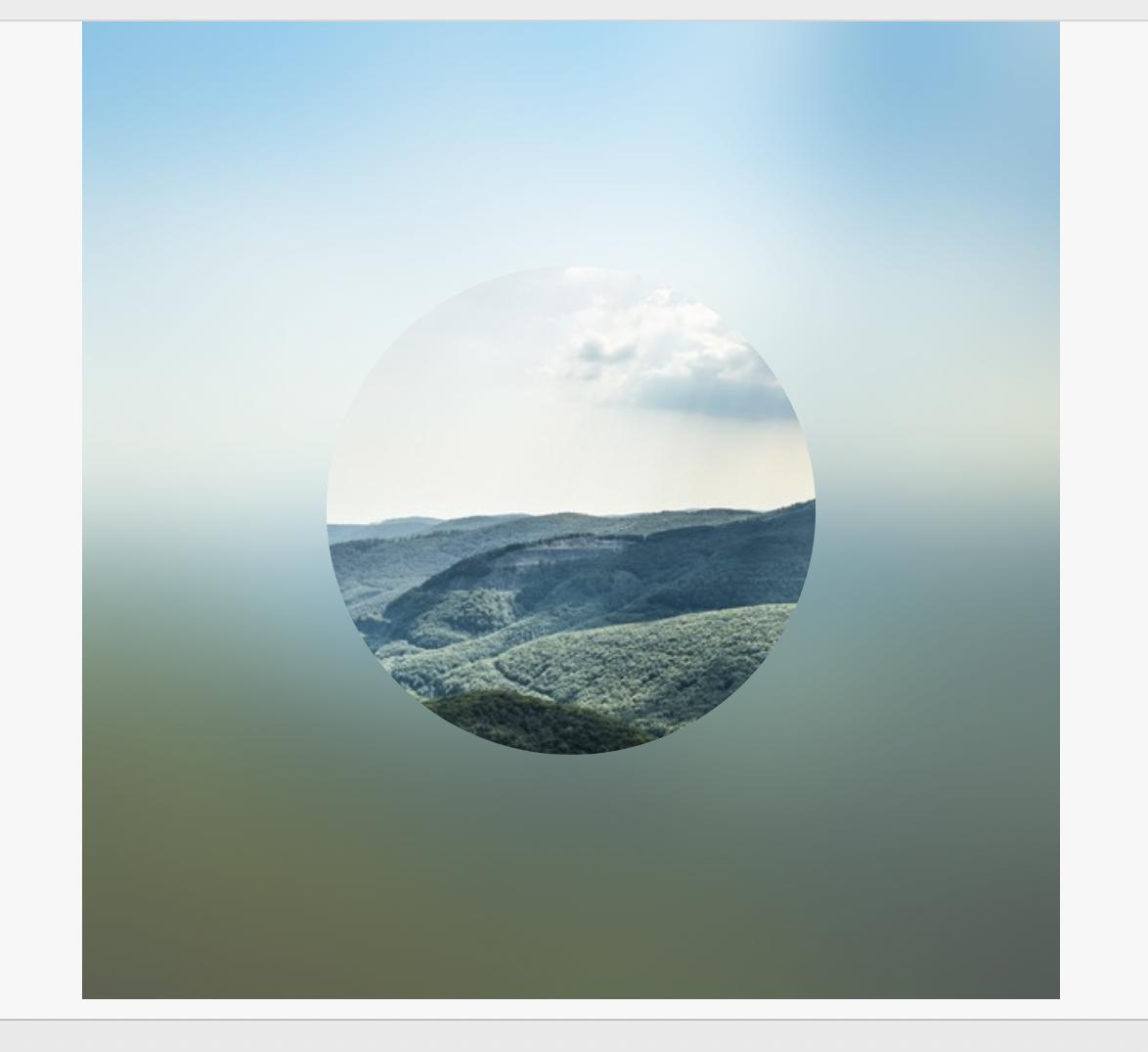

由于@emrahgunduz的回答，我成功地将上面的代码更新为SWIFT5.2。

import UIKit
import PlaygroundSupport

let generalFrame = CGRect(x: 0, y: 0, width: 500, height: 500)
let containerView = UIView(frame: generalFrame)
containerView.backgroundColor = UIColor.black;

PlaygroundPage.current.liveView = containerView

let parentView = UIView(frame: generalFrame)
containerView.addSubview(parentView)

let url = URL(string: "https://static.pexels.com/photos/168066/pexels-photo-168066-large.jpeg")
let data = try Data(contentsOf: url!);

let imageView = UIImageView(frame:parentView.bounds)
imageView.image = UIImage(data: data)
imageView.contentMode = .scaleAspectFill
var  roundedRect = CGRect (
    x: 0.0,
    y: 0.0,
    width: parentView.bounds.size.width * 0.5,
    height: parentView.bounds.size.width * 0.5
);
roundedRect.origin.x = parentView.frame.size.width / 2 - roundedRect.size.width / 2;
roundedRect.origin.y = parentView.frame.size.height / 2 - roundedRect.size.height / 2;
let cornerRadius = roundedRect.size.height / 2.0;
let path = UIBezierPath(rect:parentView.bounds)
let croppedPath = UIBezierPath(roundedRect: roundedRect, cornerRadius: cornerRadius)
path.append(croppedPath)
path.usesEvenOddFillRule = true

let maskLayer = CAShapeLayer()
maskLayer.path = path.cgPath;
maskLayer.fillRule = CAShapeLayerFillRule.evenOdd
let blurView = UIBlurEffect(style: .light)
let effectView = UIVisualEffectView(effect: blurView)

effectView.frame = generalFrame
effectView.layer.mask = maskLayer

parentView.addSubview(imageView)
parentView.addSubview(effectView)

票数 2
