小提琴曲形叠层条形图
小提琴曲形叠层条形图
提问于 2016-11-08 07:32:37

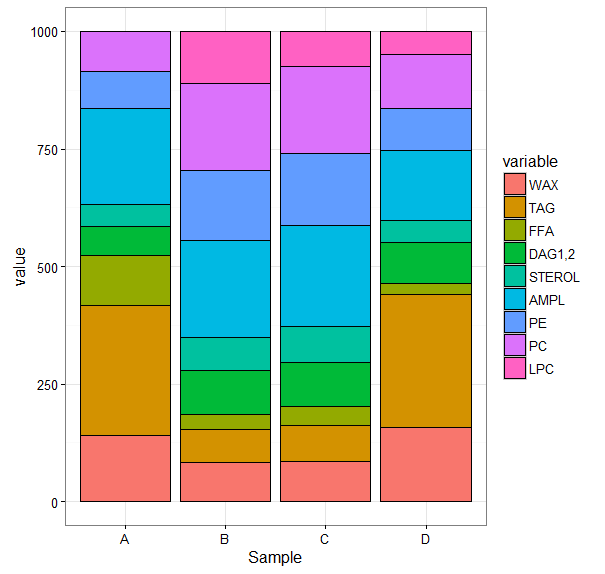

也许这是个愚蠢的想法，也可能是脑电波。我有4个不同物种的脂质类数据集。数据是成比例的，和是1000。我想形象化每个物种中每一个类别的比例差异。通常，堆叠栏是这里的方法，但是有几个类，而且它变得不可解释，因为只有底层类共享一个基线(见下文)。

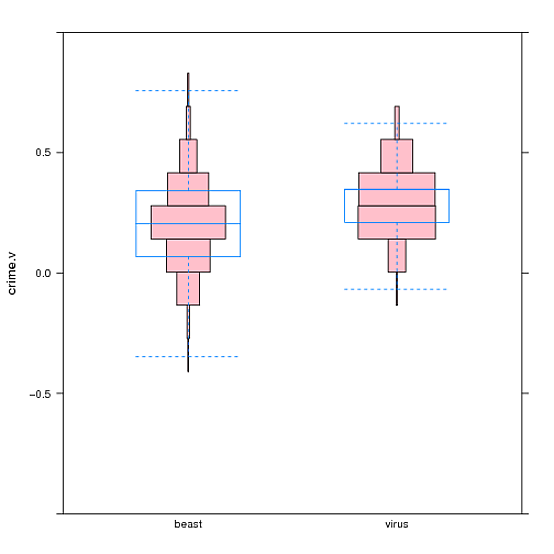

这似乎是一群坏家伙最好的选择，派和甜甜圈的图表就是嘲笑。然后，我受到了这个创作Symmetrical, violin plot-like histogram?的启发，它创造了一种堆积分布的小提琴情节(见下文)。
我想知道这是否可以被转换成一个堆叠的小提琴，这样每个片段代表一个完整的变量。就我的数据而言，物种‘A’和‘D’将在标记段周围“脂肪”，而‘瘦’在甾醇段。这种方式的比例被描绘水平，并始终有一个共同的基线。有什么想法？
数据：
structure(list(Sample = c("A", "A", "A", "B", "B", "B", "C",
"C", "C", "D", "D"), WAX = c(83.7179798600773, 317.364310355766,
20.0147496567679, 93.0194886619568, 78.7886829173726, 79.3445694220837,
91.0020522660375, 88.1542855137005, 78.3313314713951, 78.4449591023115,
236.150030864875), TAG = c(67.4640254081232, 313.243238213156,
451.287867136276, 76.308508343969, 40.127554151831, 91.1910102221636,
61.658394708941, 104.617259648364, 60.7502685224869, 80.8373642262043,
485.88633863193), FFA = c(41.0963382465756, 149.264019576272,
129.672579626868, 51.049208042632, 13.7282635713804, 30.0088572108344,
47.8878116348504, 47.9564218319094, 30.3836532949481, 34.8474205480686,
10.9218910757234), `DAG1,2` = c(140.35876401479, 42.4556176551009,
0, 0, 144.993393432366, 136.722412691012, 0, 140.027443968931,
137.579074961889, 129.935353616471, 46.6128854387559), STEROL = c(73.0144390122309,
24.1680929257195, 41.8258704279641, 78.906816661241, 67.5678558060943,
66.7150537517493, 82.4794113296791, 76.7443442992891, 68.9357008866253,
64.5444668132533, 29.8342694785768), AMPL = c(251.446564854412,
57.8713327050339, 306.155806819949, 238.853696442419, 201.783872969561,
175.935515655693, 234.169038776536, 211.986239116884, 196.931330316831,
222.658181144794, 73.8944654414811), PE = c(167.99718650752,
43.3839497916674, 22.1937177530762, 150.315149187176, 153.632530721031,
141.580725482114, 164.215442147509, 155.113323256627, 143.349000132624,
128.504657216928, 50.6281347160092), PC = c(174.904702096271,
52.2494387772846, 28.8494085790995, 191.038328534942, 190.183655117756,
175.33290326259, 199.2632149392, 175.400682364295, 176.64926273487,
163.075864395099, 66.071984352649), LPC = c(0, 0, 0, 120.508804125665,
109.194191312608, 103.16895230176, 119.324634197247, 0, 107.09037767833,
97.151732936871, 0)), class = c("tbl_df", "tbl", "data.frame"
), row.names = c(NA, -11L), .Names = c("Sample", "WAX", "TAG",
"FFA", "DAG1,2", "STEROL", "AMPL", "PE", "PC", "LPC"))回答 1
Stack Overflow用户
回答已采纳
发布于 2016-11-08 08:06:35
这本质上是一个水平条形图：
library(reshape2)
DFm <- melt(DF, id.vars = "Sample")
DFm1 <- DFm
DFm1$value <- -DFm1$value
DFm <- rbind(DFm, DFm1)
ggplot(DFm, aes(x = "A", y = value / 10, fill = variable, color = variable)) +
geom_bar(stat = "identity", position = "dodge") +
coord_flip() +
theme_minimal() +
facet_wrap(~ Sample, nrow = 1, switch = "x") +
theme(axis.text = element_blank(),
axis.title = element_blank(),
panel.grid = element_blank())
