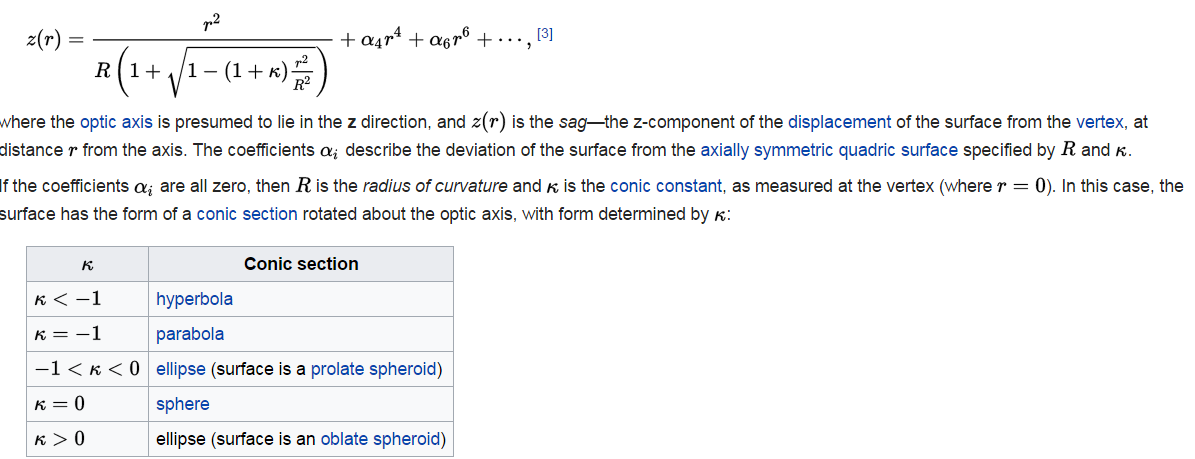

问用广义的已知公式拟合截面表面轮廓，得到系数并建立曲面的数学模型

EN

import numpy as np
import matplotlib.pyplot as plt
from lmfit import Model, Parameters

def asphere_complete(x, r0, k, a2, a4, a6, a8, a10, a12):
    r_squared = x ** 2.
    z_even_r = r_squared * (a2 + (r_squared * (a4 + r_squared * (a6 + r_squared * (a8 + r_squared * (a10 + (r_squared * a12)))))))

    square_root_term = 1 - (1 + k) * ((x / r0) ** 2)
    zg = (x ** 2) / (r0 * (1 + np.sqrt(square_root_term)))
    return z_even_r + zg

def generate_dummy_data(x, asphere_parameters, noise_sigma, seed=12345):
    np.random.seed(seed)
    return asphere_complete(x, **asphere_parameters) + noise_sigma * np.random.randn(x.shape[0])

def fit_asphere(r, z, fit_parameters):
    # create two subplots to plot the original data and the fit in one plot and the residual in another
    fig, axarr = plt.subplots(1, 2, figsize=(10, 5))
    fit_plot = axarr[0]
    residuum_plot = axarr[1]

    # configure first plot:
    fit_plot.set_xlabel("r")
    fit_plot.set_ylabel("z")
    fit_plot.grid()

    # configure second plot:
    residuum_plot.set_xlabel("r")
    residuum_plot.set_ylabel("$\Delta$z")
    residuum_plot.grid()

    # plot original data
    fit_plot.plot(r, z, label="Input")

    # create an lmfit model and the parameters
    function_model = Model(asphere_complete)

    # The fitting procedure may throw ValueErrors, if the radicand gets negative
    try:
        result = function_model.fit(z, fit_parameters, x=r)

        # To plot the resulting curve remove the parameters which were just used for the constraints
        opt_parameters = dict(result.values)
        opt_parameters.pop('r_max', None)
        opt_parameters.pop('radicand', None)

        # calculate z-values of fitted curve:
        z_fitted = asphere_complete(r, **opt_parameters)

        # calculate residual values
        z_residual = z - z_fitted

        # plot fit and residual:
        fit_plot.plot(r, z_fitted, label="Fit")
        residuum_plot.plot(r, z_residual, label="Residual")

        # legends:
        fit_plot.legend(loc="best")
        residuum_plot.legend(loc="best")

        print(result.fit_report())
    except ValueError as val_error:
        print("Fit Failed: ")
        print(val_error)

if __name__ == "__main__":
    parameters_dummy = Parameters()
    parameters_dummy.add('r0', value=-34.4)
    parameters_dummy.add('k', value=-0.98)
    parameters_dummy.add('a2', value=0)
    parameters_dummy.add('a4', value=-9.67e-9)
    parameters_dummy.add('a6', value=1.59e-10)
    parameters_dummy.add('a8', value=-5.0e-12)
    parameters_dummy.add('a10', value=0)
    parameters_dummy.add('a12', value=-1.0e-19)

r = np.linspace(0, 35, 1000)
z = generate_dummy_data(r, parameters_dummy, 0.00001)

parameters = Parameters()
parameters.add('r0', value=-30, vary=True)

keep_radicand_safe = True
if keep_radicand_safe:
    r_max = np.max(r)
    parameters.add('r_max', r_max, vary=False)
    parameters.add('radicand', value=0.98, vary=True, min=0)
    parameters.add('k', expr='(r0/r_max)**2*(1-radicand)-1')
else:
    parameters.add('k', value=-0.98, vary=True)

parameters.add('a2', value=0, vary=False)
parameters.add('a4', value=0, vary=True)
parameters.add('a6', value=0, vary=True)
parameters.add('a8', value=0, vary=True)
parameters.add('a10', value=0, vary=False)
parameters.add('a12', value=0, vary=True)

fit_asphere(r, z, parameters)
plt.show()

[[Variables]]
    r0:       -34.3999435 +/- 6.1027e-05 (0.00%) (init = -30)
    r_max:     35 (fixed)
    radicand:  0.71508611 +/- 0.09385813 (13.13%) (init = 0.98)
    k:        -0.72477176 +/- 0.09066656 (12.51%) == '(r0/r_max)**2*(1-radicand)-1'
    a2:        0 (fixed)
    a4:        7.7436e-07 +/- 2.7872e-07 (35.99%) (init = 0)
    a6:        2.5547e-10 +/- 6.3330e-11 (24.79%) (init = 0)
    a8:       -4.9832e-12 +/- 1.7115e-14 (0.34%) (init = 0)
    a10:       0 (fixed)
    a12:      -9.8670e-20 +/- 2.0716e-21 (2.10%) (init = 0)
