QML如何将LinearGradient添加到带有边框的矩形中?
EN

Stack Overflow用户
提问于 2017-03-11 23:11:15
回答 2查看 5.2K关注 0票数 4

我想要一个比默认垂直梯度更具体的Rectangle。我尝试为对角线效果添加一个LinearGradient,但它覆盖边框。

以这个例子为例。顶部Rectangle确定与垂直梯度和边框。底部Rectangle梯度覆盖边框和radius。我试过clipgradient: LinearGradient,但它们也没有工作。

代码语言:javascript
运行
复制
import QtQuick 2.7
import QtQuick.Controls 1.4
import QtQuick.Controls.Styles 1.4
import QtGraphicalEffects 1.0

ApplicationWindow
{
    visible: true
    width: 640
    height: 480

    Column
    {
        spacing: 20
        width: parent.width
        Rectangle
        {
            width: 200
            height: 200

            border.width: 4
            border.color: "#888"
            radius: 10

            // adds a vertical gradient to button
            gradient: Gradient
            {
                GradientStop
                {
                    position: 0
                    color: "#eee"
                }
                GradientStop
                {
                    position: 1
                    color: "#ccc"
                }
            }
        }

        Rectangle
        {
            width: 200
            height: 200

            border.width: 4
            border.color: "#888"
            radius: 10

            // try to add diagonal gradient, but overwrites button border
            // also can't do, gradient: LinearGradient  ?
            LinearGradient
            {
                anchors.fill: parent
                start: Qt.point(0,0)
                end: Qt.point(parent.width,parent.height)

                gradient: Gradient
                {
                    GradientStop
                    {
                        position: 0
                        color: "#eee"
                    }
                    GradientStop
                    {
                        position: 1
                        color: "#ccc"
                    }
                }
            }
        }
    }
}

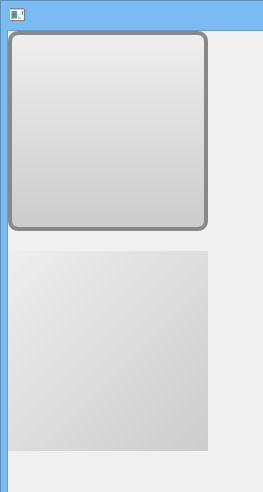

这方面的结果:

我可以理解为什么这会产生这样的结果,但是如何将梯度裁剪到带有Rectangleradius

EN

回答 2

Stack Overflow用户

回答已采纳

发布于 2017-03-11 23:41:46

clip总是在正在裁剪的Item的边界矩形处剪辑,而不关心alpha-values。

然而,LinearGradient还有另一个工具来实现您想要的:

参见此示例:

代码语言:javascript
运行
复制
import QtQuick 2.0
import QtQuick.Window 2.0
import QtQuick.Controls 1.4
import QtQuick.Controls.Styles 1.4
import QtGraphicalEffects 1.0
Window {
    width: 1024
    height: 800
    visible: true

    Rectangle {
        id: rect1
        width: 100
        height: 100
        radius: 20
    }

    LinearGradient {
        anchors.fill: rect1
        source: rect1          <-- Here is where you specify its shape.
        start: Qt.point(0, 0)
        end: Qt.point(300, 300)
        gradient: Gradient {
            GradientStop { position: 0.0; color: "white" }
            GradientStop { position: 1.0; color: "black" }
        }
    }
}
票数 5
EN

Stack Overflow用户

发布于 2017-03-11 23:21:07

QML只支持垂直梯度。你可以通过翻转物品的宽度和高度并旋转来伪造水平梯度。

对于不能工作的对角线,因为矩形也会被旋转。

至于使用剪贴画的计划,这也不起作用,因为QML剪贴图只剪辑到项目的矩形,而不是它的实际可见像素。

有两种方法你可以采取:

1-尝试通过Canvas元素实现所需的结果。

2-使用ShaderEffect向其传递带有渐变和圆形矩形的ShaderEffectSource纹理,然后在实际着色器中使用来自第一个源的rgb (渐变)和从第二个ShaderEffectSource纹理(圆形矩形)手动剪辑。

3-如果要使用ShaderEffect,可以轻松跳过使用渐变作为源,并查找如何在GLSL中以任意角度实现渐变,并且只对alpha使用圆角矩形源,即使“圆形”部分也可以在着色器中实现。

票数 0
