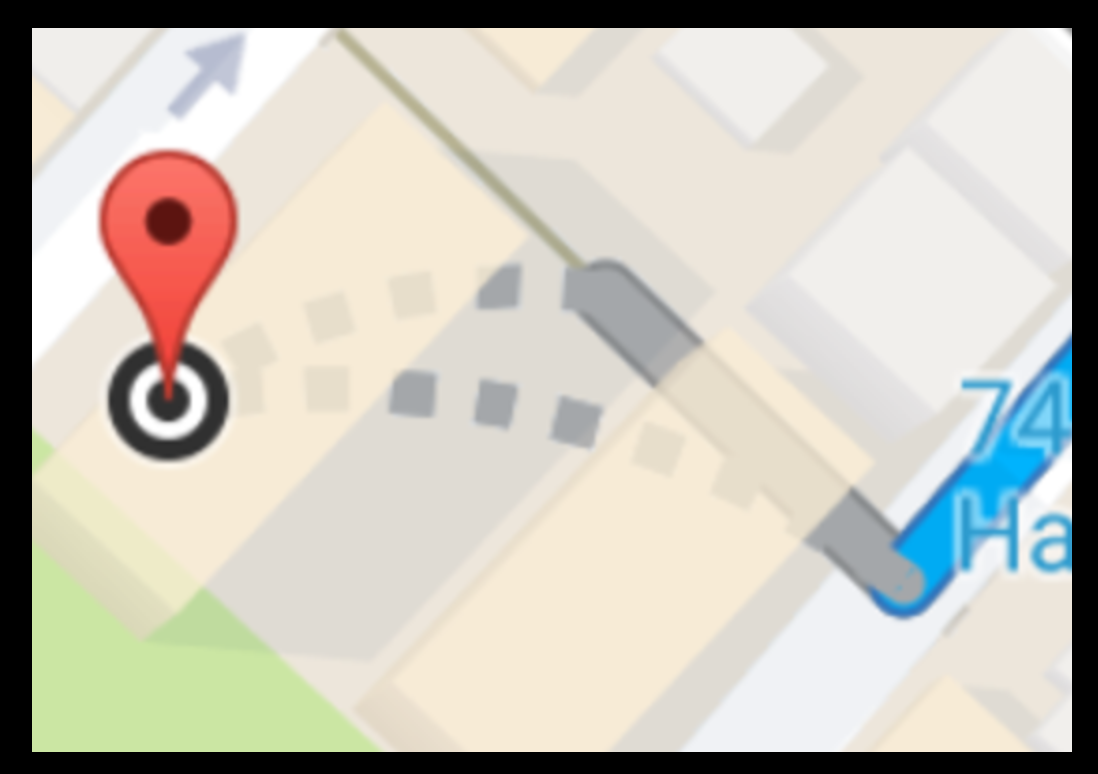

问我能在Google中画一条曲线吗？

EN

public class MapsActivity extends FragmentActivity implements OnMapReadyCallback {

private GoogleMap mMap;
private LatLng sydney1;
private LatLng sydney2;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_maps);
    // Obtain the SupportMapFragment and get notified when the map is ready to be used.
    SupportMapFragment mapFragment = (SupportMapFragment) getSupportFragmentManager()
            .findFragmentById(R.id.map);
    mapFragment.getMapAsync(this);
}

@Override
public void onMapReady(GoogleMap googleMap) {
    mMap = googleMap;

    mMap.getUiSettings().setZoomControlsEnabled(true);

    // Add a marker in Sydney and move the camera
    sydney1 = new LatLng(-33.904438,151.249852);
    sydney2 = new LatLng(-33.905823,151.252422);

    mMap.addMarker(new MarkerOptions().position(sydney1)
            .draggable(false).visible(true).title("Marker in Sydney 1"));
    mMap.addMarker(new MarkerOptions().position(sydney2)
            .draggable(false).visible(true).title("Marker in Sydney 2"));

    mMap.moveCamera(CameraUpdateFactory.newLatLngZoom(sydney1, 16F));

    this.showCurvedPolyline(sydney1,sydney2, 0.5);
}

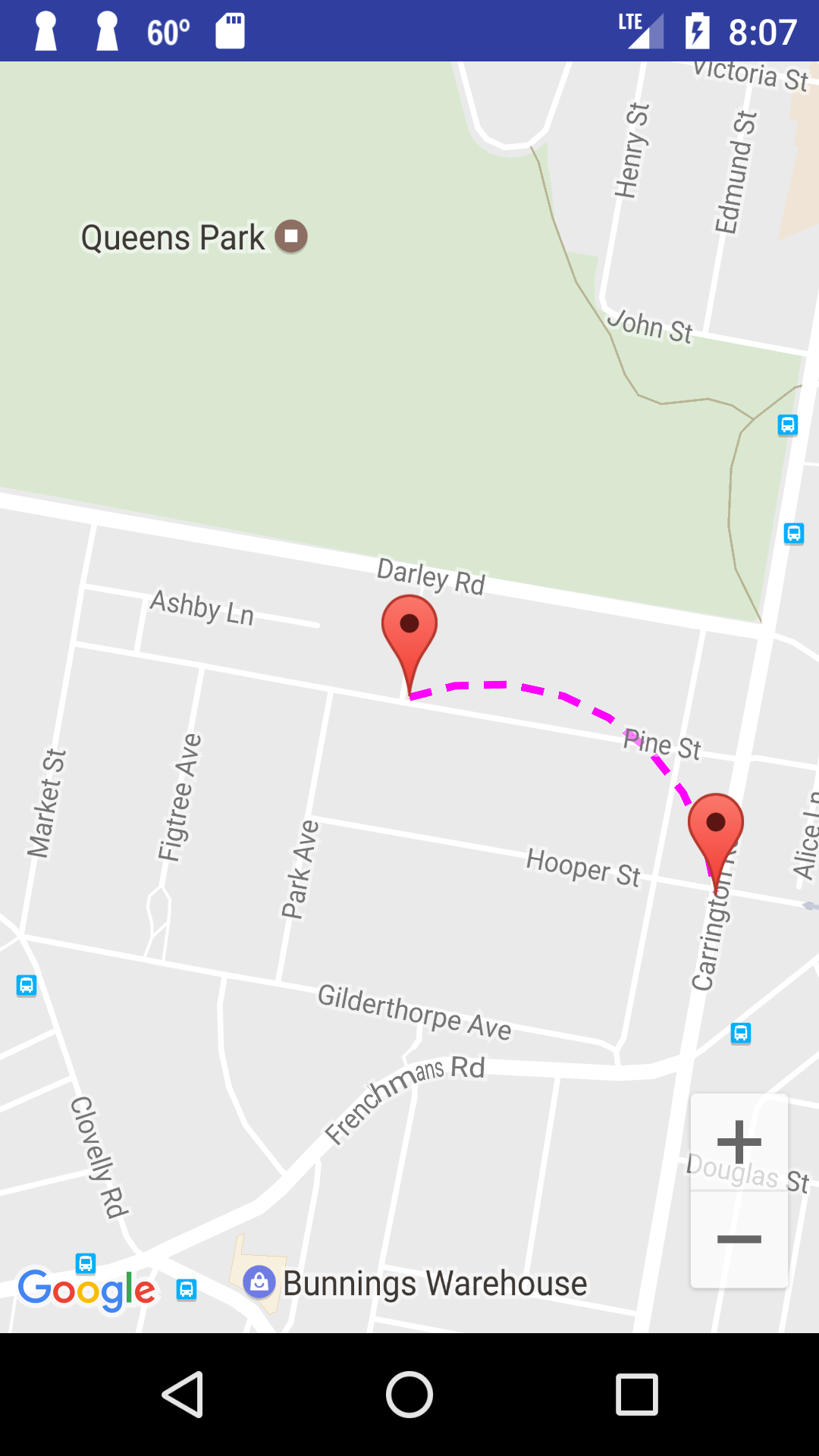

private void showCurvedPolyline (LatLng p1, LatLng p2, double k) {
    //Calculate distance and heading between two points
    double d = SphericalUtil.computeDistanceBetween(p1,p2);
    double h = SphericalUtil.computeHeading(p1, p2);

    //Midpoint position
    LatLng p = SphericalUtil.computeOffset(p1, d*0.5, h);

    //Apply some mathematics to calculate position of the circle center
    double x = (1-k*k)*d*0.5/(2*k);
    double r = (1+k*k)*d*0.5/(2*k);

    LatLng c = SphericalUtil.computeOffset(p, x, h + 90.0);

    //Polyline options
    PolylineOptions options = new PolylineOptions();
    List<PatternItem> pattern = Arrays.<PatternItem>asList(new Dash(30), new Gap(20));

    //Calculate heading between circle center and two points
    double h1 = SphericalUtil.computeHeading(c, p1);
    double h2 = SphericalUtil.computeHeading(c, p2);

    //Calculate positions of points on circle border and add them to polyline options
    int numpoints = 100;
    double step = (h2 -h1) / numpoints;

    for (int i=0; i < numpoints; i++) {
        LatLng pi = SphericalUtil.computeOffset(c, r, h1 + i * step);
        options.add(pi);
    }

    //Draw polyline
    mMap.addPolyline(options.width(10).color(Color.MAGENTA).geodesic(false).pattern(pattern));
}

}

LatLng c = SphericalUtil.computeOffset(p, x, h > 40 ? h + 90.0 : h - 90.0);

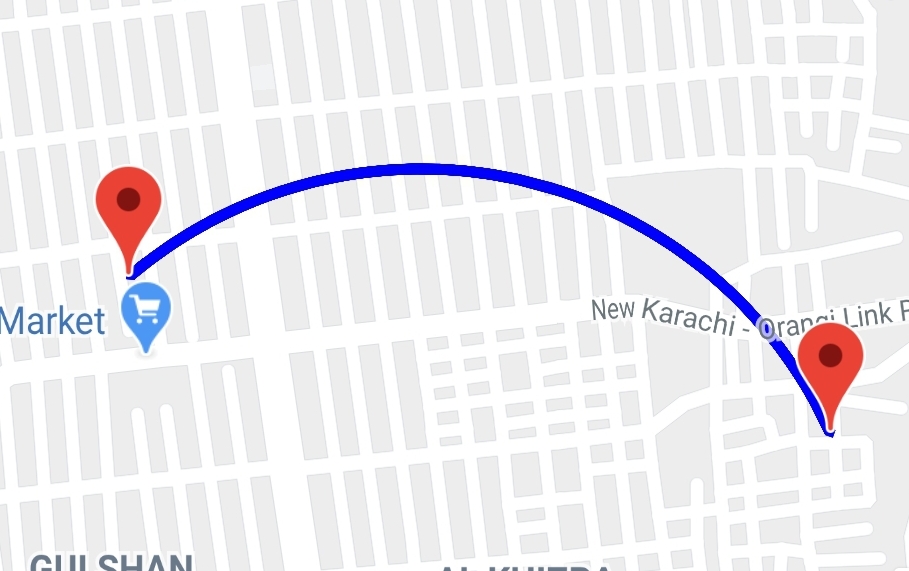

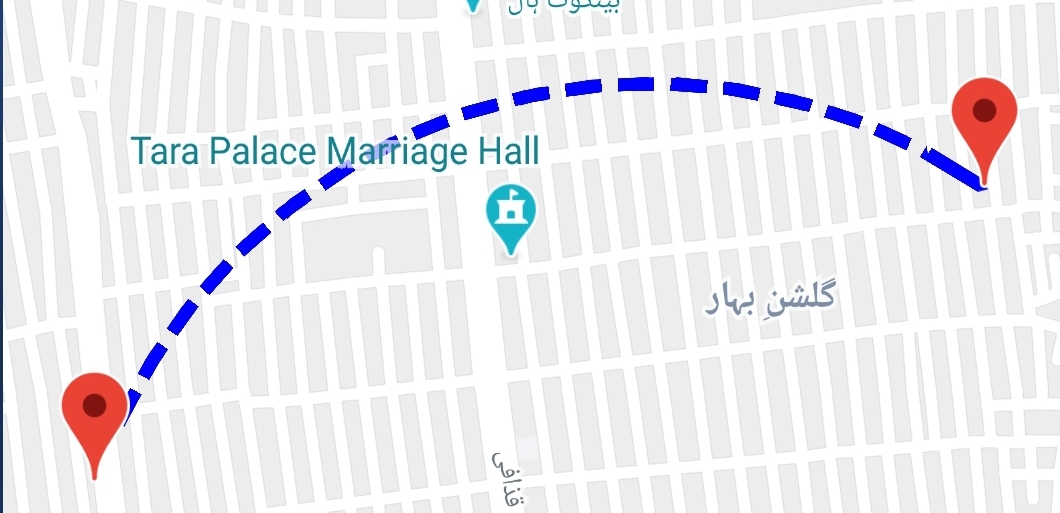

fun drawCurveOnMap(googleMap: GoogleMap, latLng1: LatLng, latLng2: LatLng) {

    //Adding marker is optional here, you can move out from here.
    googleMap.addMarker(
       MarkerOptions().position(latLng1).icon(BitmapDescriptorFactory.defaultMarker()))
    googleMap.addMarker(
       MarkerOptions().position(latLng2).icon(BitmapDescriptorFactory.defaultMarker()))

    val k = 0.5 //curve radius
    var h = SphericalUtil.computeHeading(latLng1, latLng2)
    var d = 0.0
    val p: LatLng?

    //The if..else block is for swapping the heading, offset and distance
    //to draw curve always in the upward direction
    if (h < 0) {
        d = SphericalUtil.computeDistanceBetween(latLng2, latLng1)
        h = SphericalUtil.computeHeading(latLng2, latLng1)
        //Midpoint position
        p = SphericalUtil.computeOffset(latLng2, d * 0.5, h)
    } else {
        d = SphericalUtil.computeDistanceBetween(latLng1, latLng2)

        //Midpoint position
        p = SphericalUtil.computeOffset(latLng1, d * 0.5, h)
    }

    //Apply some mathematics to calculate position of the circle center
    val x = (1 - k * k) * d * 0.5 / (2 * k)
    val r = (1 + k * k) * d * 0.5 / (2 * k)

    val c = SphericalUtil.computeOffset(p, x, h + 90.0)

    //Calculate heading between circle center and two points
    val h1 = SphericalUtil.computeHeading(c, latLng1)
    val h2 = SphericalUtil.computeHeading(c, latLng2)

    //Calculate positions of points on circle border and add them to polyline options
    val numberOfPoints = 1000 //more numberOfPoints more smooth curve you will get
    val step = (h2 - h1) / numberOfPoints

    //Create PolygonOptions object to draw on map
    val polygon = PolygonOptions()

    //Create a temporary list of LatLng to store the points that's being drawn on map for curve
    val temp = arrayListOf<LatLng>()

    //iterate the numberOfPoints and add the LatLng to PolygonOptions to draw curve
    //and save in temp list to add again reversely in PolygonOptions
    for (i in 0 until numberOfPoints) {
        val latlng = SphericalUtil.computeOffset(c, r, h1 + i * step)
        polygon.add(latlng) //Adding in PolygonOptions
        temp.add(latlng)    //Storing in temp list to add again in reverse order
    }

    //iterate the temp list in reverse order and add in PolygonOptions
    for (i in (temp.size - 1) downTo 1) {
        polygon.add(temp[i])
    }

    polygon.strokeColor(Color.BLUE)
    polygon.strokeWidth(12f)
    polygon.strokePattern(listOf(Dash(30f), Gap(50f))) //Skip if you want solid line
    googleMap.addPolygon(polygon)

    temp.clear() //clear the temp list
}
