问GLade Python中带有CSS的复选框
EN

Stack Overflow用户
提问于 2017-09-21 11:48:14
回答 1查看 1.5K关注 0票数 3

每个我试图改变颜色的复选框时，他们按下，因为我正在做的工作，需要他们使用。我使用他们没有“绘图指示器”属性，所以我需要他们有一个不同的颜色时，按下，因为它看起来不太好，也不是很有吸引力。有办法这样做吗？我的空地的版本是3.18.3。我使用的是Pi3 B型

这是我的密码：

代码语言：javascript
运行
复制
import gi
gi.require_version('Gtk', '3.0')
from gi.repository import Gtk
from gi.repository import GObject as gobject
from gi.repository import Gtk, Gdk
import gtk


#Checkbuttons


def on_checkbutton_toggled(button, name):
    if (button.get_active()):
        state = "Active"

    else:
        state = "Inactive"
    print("port " + name + " toggled, state is " +state)


def start(button):
    print ("Button start clicked")

def save(button):
    print ("Button save clicked")

def clear(button):
    print ("Button clear clicked")

def select_all(button):
    print ("Button all clicked")

def details(button):
    print ("Button details clicked")

def click_for_help(button):
    print ("Button help clicked")

def gtk_style():
    css= b"""
.button:checked {
    color:white;
    background:red;
}
"""
    style_provider = Gtk.CssProvider()
    style_provider.load_from_data(css)

    Gtk.StyleContext.add_provider_for_screen(
        Gdk.Screen.get_default(),
        style_provider,
        Gtk.STYLE_PROVIDER_PRIORITY_APPLICATION
    )

    gtk_style()

# GUI (Graphical User Interface)
builder = Gtk.Builder()
builder.add_from_file("/home/pi/Desktop/Wi-Green_Project/schedule-0.4.3/Wi-GreenSPM.glade")
handlers = {
        "action_start": start,
        "action_save": save,
        "action_clear": clear,
        "action_all": select_all,
        "action_details": details,
        "action_help":click_for_help


    }

builder.connect_signals(handlers)
window = builder.get_object("window_WG")


checkb1 = builder.get_object("port1")
checkb2 = builder.get_object("port2")
checkb3 = builder.get_object("port3")
checkb4 = builder.get_object("port4")
checkb5 = builder.get_object("port5")
checkb6 = builder.get_object("port6")
checkb7 = builder.get_object("port7")
checkb8 = builder.get_object("port8")
checkb9 = builder.get_object("port9")
checkb10 = builder.get_object("port10")
checkb11 = builder.get_object("port11")
checkb12 = builder.get_object("port12")
checkb13 = builder.get_object("port13")
checkb14 = builder.get_object("port14")
checkb15 = builder.get_object("port15")
checkb16 = builder.get_object("port16")
checkb17 = builder.get_object("port17")
checkb18 = builder.get_object("port18")
checkb19 = builder.get_object("port19")
checkb20 = builder.get_object("port20")
checkb21 = builder.get_object("port21")
checkb22 = builder.get_object("port22")
checkb23 = builder.get_object("port23")
checkb24 = builder.get_object("port24")

checkb1.connect ("toggled", on_checkbutton_toggled, "1")
checkb2.connect ("toggled", on_checkbutton_toggled, "2")
checkb3.connect ("toggled", on_checkbutton_toggled, "3")
checkb4.connect ("toggled", on_checkbutton_toggled, "4")
checkb5.connect ("toggled", on_checkbutton_toggled, "5")
checkb6.connect ("toggled", on_checkbutton_toggled, "6")
checkb7.connect ("toggled", on_checkbutton_toggled, "7")
checkb8.connect ("toggled", on_checkbutton_toggled, "8")
checkb9.connect ("toggled", on_checkbutton_toggled, "9")
checkb10.connect ("toggled", on_checkbutton_toggled, "10")
checkb11.connect ("toggled", on_checkbutton_toggled, "11")
checkb12.connect ("toggled", on_checkbutton_toggled, "12")
checkb13.connect ("toggled", on_checkbutton_toggled, "13")
checkb14.connect ("toggled", on_checkbutton_toggled, "14")
checkb15.connect ("toggled", on_checkbutton_toggled, "15")
checkb16.connect ("toggled", on_checkbutton_toggled, "16")
checkb17.connect ("toggled", on_checkbutton_toggled, "17")
checkb18.connect ("toggled", on_checkbutton_toggled, "18")
checkb19.connect ("toggled", on_checkbutton_toggled, "19")
checkb20.connect ("toggled", on_checkbutton_toggled, "20")
checkb21.connect ("toggled", on_checkbutton_toggled, "21")
checkb22.connect ("toggled", on_checkbutton_toggled, "22")
checkb23.connect ("toggled", on_checkbutton_toggled, "23")
checkb24.connect ("toggled", on_checkbutton_toggled, "24")
#---------------------------------------------------------------------------------------

window.connect("destroy", Gtk.main_quit)

window.show_all()

Gtk.main()

​

​

python
gtk3
raspberry-pi3
glade
EN

回答 1

Stack Overflow用户

回答已采纳

发布于 2017-09-21 12:33:14

因为Gtk.CheckButton是在没有抽签指示符的情况下设置的，所以它基本上变成了一个切换按钮，Gtk+ 3.18上的CSS类就是.button。

定义该类的提供程序并将其添加到屏幕上非常简单。

首先，相关的css代码是：

代码语言：javascript
运行
复制
.button:checked {
    color: white;
    background: red;
}

对于此示例，当选中该按钮时，该按钮的背景将为红色，背景为白色文本。

一个有用的例子是：

代码语言：javascript
运行
复制
#!/usr/bin/python3
from gi.repository import Gtk, Gdk
import sys


class MyWindow(Gtk.Window):

    def __init__(self):
        Gtk.Window.__init__(self, title="Hello World")
        self.set_name('MyWindow')
        self.set_default_size(600, 300)

        self.box = Gtk.HBox()
        self.box.set_halign(Gtk.Align.CENTER)
        self.box.set_valign(Gtk.Align.CENTER)
        self.add(self.box)

        self.button1 = Gtk.CheckButton(label="1")
        self.button1.set_mode (False);
        self.button1.connect("clicked", self.on_button1_clicked)
        self.box.pack_start(self.button1, True, True, 0)

        self.button2 = Gtk.CheckButton(label="2")
        self.button2.set_mode (False);
        self.button2.connect("clicked", self.on_button2_clicked)
        self.box.pack_start(self.button2, True, True, 0)

    def on_button1_clicked(self, widget):
        print("Button 1")

    def on_button2_clicked(self, widget):
        print("Button 2")


def main(argv):

    def gtk_style():
        css = b"""
.button:checked {
    color: white;
    background: red;
}
        """
        style_provider = Gtk.CssProvider()
        style_provider.load_from_data(css)

        Gtk.StyleContext.add_provider_for_screen(
            Gdk.Screen.get_default(),
            style_provider,
            Gtk.STYLE_PROVIDER_PRIORITY_APPLICATION
        )

    gtk_style()
    win = MyWindow()
    win.connect("delete-event", Gtk.main_quit)
    win.show_all()
    Gtk.main()

if __name__ == "__main__":
    main(sys.argv)

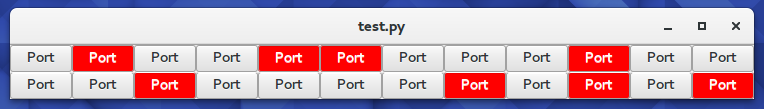

结果是这样的：

​

​

这将对所有的复选按钮应用相同的行为，因此如果只对那些编号的按钮使用此解决方案，但希望在应用程序上再使用另一个复选按钮(作为切换按钮)，则需要添加/删除样式类或添加自定义样式类等。

编辑:解决问题代码不起作用.

问题在于gtk_style ()没有被调用。调用在它自己的定义中：

代码语言：javascript
运行
复制
def gtk_style():
   ...code...
   gtk_style() # <----- Here is the problem.

Python缩进是相关的。按照现在的方式，它变成了递归的，并且没有被调用。解决方案是删除该行并将其移动到下面的代码中，如window.connect行之后。

一个虚拟的glade文件(myui.glade)：

代码语言：javascript
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<!-- Generated with glade 3.19.0 -->
<interface>
  <requires lib="gtk+" version="3.16"/>
  <object class="GtkWindow" id="window1">
    <property name="can_focus">False</property>
    <child>
      <object class="GtkGrid" id="grid1">
        <property name="visible">True</property>
        <property name="can_focus">False</property>
        <child>
          <object class="GtkCheckButton" id="port1">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">0</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port2">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">1</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port3">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">2</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port4">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">3</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port5">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">4</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port6">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">5</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port7">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">6</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port8">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">7</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port9">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">8</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port10">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">9</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port11">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">10</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port12">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">11</property>
            <property name="top_attach">0</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port13">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">0</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port14">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">1</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port15">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">2</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port16">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">3</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port17">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">4</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port18">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">5</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port19">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">6</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port20">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">7</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port21">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">8</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port22">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">9</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port23">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">10</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
        <child>
          <object class="GtkCheckButton" id="port24">
            <property name="label" translatable="yes">Port</property>
            <property name="visible">True</property>
            <property name="can_focus">True</property>
            <property name="receives_default">False</property>
            <property name="xalign">0.5</property>
            <property name="draw_indicator">False</property>
          </object>
          <packing>
            <property name="left_attach">11</property>
            <property name="top_attach">1</property>
          </packing>
        </child>
      </object>
    </child>
  </object>
</interface>

将代码调整到虚拟的glade文件，并应用这些更改来修复代码：

代码语言：javascript
运行
复制
import gi
gi.require_version('Gtk', '3.0')
from gi.repository import Gtk
from gi.repository import GObject as gobject
from gi.repository import Gtk, Gdk
import gtk


#Checkbuttons


def on_checkbutton_toggled(button, name):
    if (button.get_active()):
        state = "Active"

    else:
        state = "Inactive"
    print("port " + name + " toggled, state is " +state)


def start(button):
    print ("Button start clicked")

def save(button):
    print ("Button save clicked")

def clear(button):
    print ("Button clear clicked")

def select_all(button):
    print ("Button all clicked")

def details(button):
    print ("Button details clicked")

def click_for_help(button):
    print ("Button help clicked")

def gtk_style():
    css= b"""
.button:checked {
    color:white;
    background:red;
}
"""
    style_provider = Gtk.CssProvider()
    style_provider.load_from_data(css)

    Gtk.StyleContext.add_provider_for_screen(
        Gdk.Screen.get_default(),
        style_provider,
        Gtk.STYLE_PROVIDER_PRIORITY_APPLICATION
    )


# GUI (Graphical User Interface)
builder = Gtk.Builder()
builder.add_from_file("myui.glade")
handlers = {
        "action_start": start,
        "action_save": save,
        "action_clear": clear,
        "action_all": select_all,
        "action_details": details,
        "action_help":click_for_help


    }

builder.connect_signals(handlers)
window = builder.get_object("window1")

checkb1 = builder.get_object("port1")
checkb2 = builder.get_object("port2")
checkb3 = builder.get_object("port3")
checkb4 = builder.get_object("port4")
checkb5 = builder.get_object("port5")
checkb6 = builder.get_object("port6")
checkb7 = builder.get_object("port7")
checkb8 = builder.get_object("port8")
checkb9 = builder.get_object("port9")
checkb10 = builder.get_object("port10")
checkb11 = builder.get_object("port11")
checkb12 = builder.get_object("port12")
checkb13 = builder.get_object("port13")
checkb14 = builder.get_object("port14")
checkb15 = builder.get_object("port15")
checkb16 = builder.get_object("port16")
checkb17 = builder.get_object("port17")
checkb18 = builder.get_object("port18")
checkb19 = builder.get_object("port19")
checkb20 = builder.get_object("port20")
checkb21 = builder.get_object("port21")
checkb22 = builder.get_object("port22")
checkb23 = builder.get_object("port23")
checkb24 = builder.get_object("port24")

checkb1.connect ("toggled", on_checkbutton_toggled, "1")
checkb2.connect ("toggled", on_checkbutton_toggled, "2")
checkb3.connect ("toggled", on_checkbutton_toggled, "3")
checkb4.connect ("toggled", on_checkbutton_toggled, "4")
checkb5.connect ("toggled", on_checkbutton_toggled, "5")
checkb6.connect ("toggled", on_checkbutton_toggled, "6")
checkb7.connect ("toggled", on_checkbutton_toggled, "7")
checkb8.connect ("toggled", on_checkbutton_toggled, "8")
checkb9.connect ("toggled", on_checkbutton_toggled, "9")
checkb10.connect ("toggled", on_checkbutton_toggled, "10")
checkb11.connect ("toggled", on_checkbutton_toggled, "11")
checkb12.connect ("toggled", on_checkbutton_toggled, "12")
checkb13.connect ("toggled", on_checkbutton_toggled, "13")
checkb14.connect ("toggled", on_checkbutton_toggled, "14")
checkb15.connect ("toggled", on_checkbutton_toggled, "15")
checkb16.connect ("toggled", on_checkbutton_toggled, "16")
checkb17.connect ("toggled", on_checkbutton_toggled, "17")
checkb18.connect ("toggled", on_checkbutton_toggled, "18")
checkb19.connect ("toggled", on_checkbutton_toggled, "19")
checkb20.connect ("toggled", on_checkbutton_toggled, "20")
checkb21.connect ("toggled", on_checkbutton_toggled, "21")
checkb22.connect ("toggled", on_checkbutton_toggled, "22")
checkb23.connect ("toggled", on_checkbutton_toggled, "23")
checkb24.connect ("toggled", on_checkbutton_toggled, "24")
#---------------------------------------------------------------------------------------

window.connect("destroy", Gtk.main_quit)

gtk_style ()  # <----------------------- MOVED HERE

window.show_all()

Gtk.main()

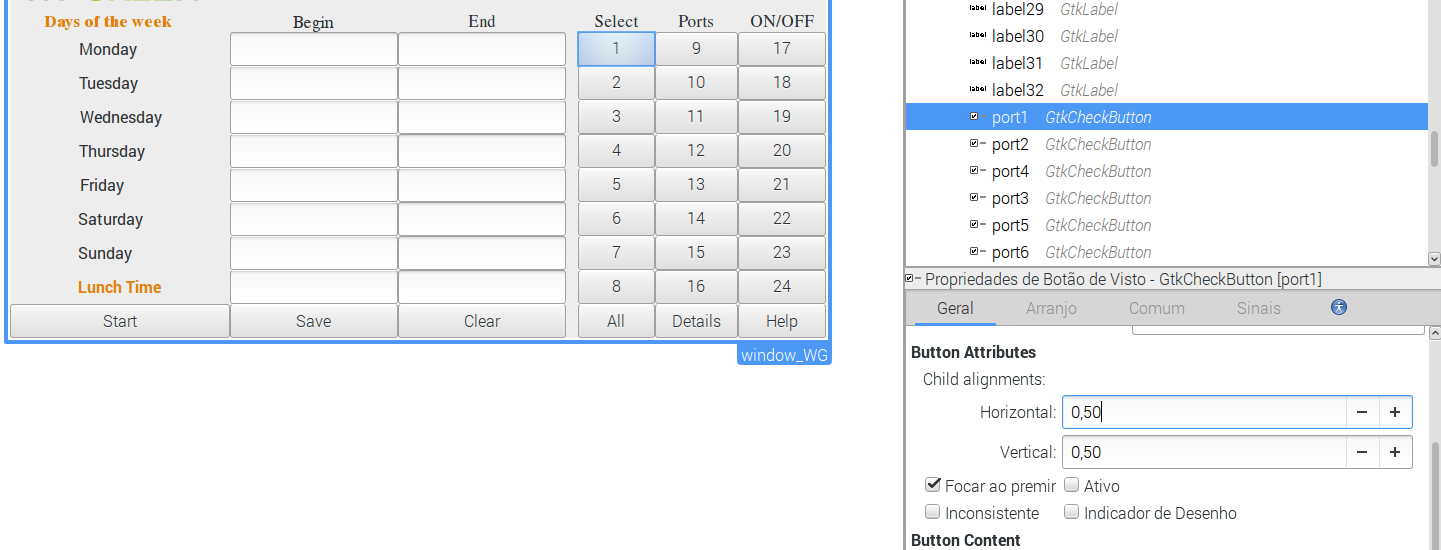

结果应该是这样的：

​

​

票数 0
EN
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：

https://stackoverflow.com/questions/46343162

复制
相关文章

相似问题

领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
