Stack Overflow用户

提问于 2017-10-07 18:16:17

回答 1查看 2.5K关注 0票数 0

我正在尝试使用Apache创建一个自动化(.docx) MS文件。Java程序的输入包含文本、图像和LaTeX样式方程(嵌入$ or中)。

我的问题是如何在Word中添加这个LaTeX样式方程，以便当.docx文件在MS Word中被编辑时，它将该方程识别为MS Word样式方程(OMML类型)。

注意：，我认为方法应该是将LaTeX方程转换为MathML。如果是这样，那么如何将MathML添加到.docx中？

java

ms-word

apache-poi

回答 1

Stack Overflow用户

回答已采纳

发布于 2017-10-08 07:37:32

Microsoft提供XSLT样式表，用于将OMML转换为MathML (OMML2MML.XSL)，以及使用XSLT将MathML转换为OMML (MML2OMML.XSL)。

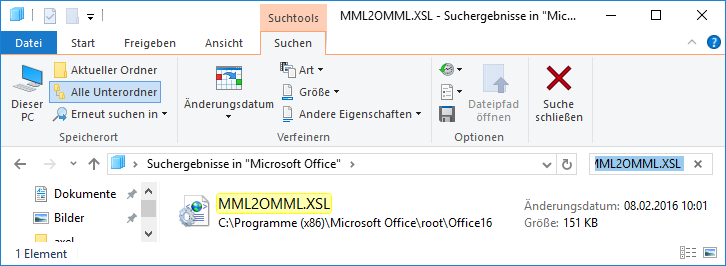

如果您安装了Microsoft Office，您将在Office程序目录中找到这些文件。在我的系统里：

使用它，我们可以使用XSLT将MathML转换为OMML。

示例：

import java.io.*;
import org.apache.poi.xwpf.usermodel.*;

import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTP;
import org.openxmlformats.schemas.officeDocument.x2006.math.CTOMath;
import org.openxmlformats.schemas.officeDocument.x2006.math.CTOMathPara;
import org.openxmlformats.schemas.officeDocument.x2006.math.CTR;

import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.stream.StreamSource;
import javax.xml.transform.stream.StreamResult;

import org.apache.xmlbeans.XmlCursor;

/*
needs the full ooxml-schemas-*.jar or poi-ooxml-full-5.0.0.jar as mentioned in https://poi.apache.org/faq.html#faq-N10025
*/

public class CreateWordFormulaFromMathML {

 static File stylesheet = new File("MML2OMML.XSL");
 static TransformerFactory tFactory = TransformerFactory.newInstance();
 static StreamSource stylesource = new StreamSource(stylesheet);

 static CTOMath getOMML(String mathML) throws Exception {
  Transformer transformer = tFactory.newTransformer(stylesource);

  StringReader stringreader = new StringReader(mathML);
  StreamSource source = new StreamSource(stringreader);

  StringWriter stringwriter = new StringWriter();
  StreamResult result = new StreamResult(stringwriter);
  transformer.transform(source, result);

  String ooML = stringwriter.toString();
  stringwriter.close();

  CTOMathPara ctOMathPara = CTOMathPara.Factory.parse(ooML);
  CTOMath ctOMath = ctOMathPara.getOMathArray(0);

  //for making this to work with Office 2007 Word also, special font settings are necessary
  XmlCursor xmlcursor = ctOMath.newCursor();
  while (xmlcursor.hasNextToken()) {
   XmlCursor.TokenType tokentype = xmlcursor.toNextToken();
   if (tokentype.isStart()) {
    if (xmlcursor.getObject() instanceof CTR) {
     CTR cTR = (CTR)xmlcursor.getObject();
     cTR.addNewRPr2().addNewRFonts().setAscii("Cambria Math");
     cTR.getRPr2().getRFonts().setHAnsi("Cambria Math"); // up to apache poi 4.1.2
     //cTR.getRPr2().getRFontsArray(0).setHAnsi("Cambria Math"); // since apache poi 5.0.0
    }
   }
  }

  return ctOMath;
 }

 public static void main(String[] args) throws Exception {

  XWPFDocument document = new XWPFDocument();

  XWPFParagraph paragraph = document.createParagraph();
  XWPFRun run = paragraph.createRun();
  run.setText("The Pythagorean theorem: ");

  String mathML =
    "<math xmlns=\"http://www.w3.org/1998/Math/MathML\">"
   +"<mrow>"
   +"<msup><mi>a</mi><mn>2</mn></msup><mo>+</mo><msup><mi>b</mi><mn>2</mn></msup><mo>=</mo><msup><mi>c</mi><mn>2</mn></msup>"
   +"</mrow>"
   +"</math>";

  CTOMath ctOMath = getOMML(mathML);
System.out.println(ctOMath);

  CTP ctp = paragraph.getCTP();
  ctp.setOMathArray(new CTOMath[]{ctOMath});

  paragraph = document.createParagraph();
  run = paragraph.createRun();
  run.setText("The Quadratic Formula: ");

  mathML =
    "<math xmlns=\"http://www.w3.org/1998/Math/MathML\">"
   +"<mrow>"
   +"<mi>x</mi><mo>=</mo><mfrac><mrow><mrow><mo>-</mo><mi>b</mi></mrow><mo>±</mo><msqrt><mrow><msup><mi>b</mi><mn>2</mn></msup><mo>-</mo><mrow><mn>4</mn><mo>⁢</mo><mi>a</mi><mo>⁢</mo><mi>c</mi></mrow></mrow></msqrt></mrow><mrow><mn>2</mn><mo>⁢</mo><mi>a</mi></mrow></mfrac>"
   +"</mrow>"
   +"</math>";

  ctOMath = getOMML(mathML);
System.out.println(ctOMath);

  ctp = paragraph.getCTP();
  ctp.setOMathArray(new CTOMath[]{ctOMath});

  FileOutputStream out = new FileOutputStream("CreateWordFormulaFromMathML.docx");
  document.write(out);
  out.close();
  document.close();

 }
}

注意，这段代码需要完整的ooxml-schemas-*.jar或poi-ooxml-full-5.0.0.jar，如https://poi.apache.org/faq.html#faq-N10025中提到的那样。

当然，也有可用于将LaTeX转换为MathML的Java库。例如：http://www.fmath.info/java/download.jsp。

下载：fmath-mathml-java-test-project-b1124.zip，类路径中有/lib/fmath-mathml-java.jar和/lib/jdom-2.0.6.jar，以下工作：

import java.io.*;
import org.apache.poi.xwpf.usermodel.*;

import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTP;
import org.openxmlformats.schemas.officeDocument.x2006.math.CTOMath;
import org.openxmlformats.schemas.officeDocument.x2006.math.CTOMathPara;
import org.openxmlformats.schemas.officeDocument.x2006.math.CTR;

import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.stream.StreamSource;
import javax.xml.transform.stream.StreamResult;

import org.apache.xmlbeans.XmlCursor;

/*
needs the full ooxml-schemas-1.3.jar as mentioned in https://poi.apache.org/faq.html#faq-N10025
*/

public class CreateWordFormulaFromLaTeX {

 static File stylesheet = new File("MML2OMML.XSL");
 static TransformerFactory tFactory = TransformerFactory.newInstance();
 static StreamSource stylesource = new StreamSource(stylesheet);

 static CTOMath getOMML(String mathML) throws Exception {
  Transformer transformer = tFactory.newTransformer(stylesource);

  StringReader stringreader = new StringReader(mathML);
  StreamSource source = new StreamSource(stringreader);

  StringWriter stringwriter = new StringWriter();
  StreamResult result = new StreamResult(stringwriter);
  transformer.transform(source, result);

  String ooML = stringwriter.toString();
  stringwriter.close();

  CTOMathPara ctOMathPara = CTOMathPara.Factory.parse(ooML);
  CTOMath ctOMath = ctOMathPara.getOMathArray(0);

  //for making this to work with Office 2007 Word also, special font settings are necessary
  XmlCursor xmlcursor = ctOMath.newCursor();
  while (xmlcursor.hasNextToken()) {
   XmlCursor.TokenType tokentype = xmlcursor.toNextToken();
   if (tokentype.isStart()) {
    if (xmlcursor.getObject() instanceof CTR) {
     CTR cTR = (CTR)xmlcursor.getObject();
     cTR.addNewRPr2().addNewRFonts().setAscii("Cambria Math");
     cTR.getRPr2().getRFonts().setHAnsi("Cambria Math");
    }
   }
  }

  return ctOMath;
 }

 public static void main(String[] args) throws Exception {

  XWPFDocument document = new XWPFDocument();

  XWPFParagraph paragraph = document.createParagraph();
  XWPFRun run = paragraph.createRun();
  run.setText("The Pythagorean theorem: ");

  String latex = "$a^2 + b^2 = c^2$";

  String mathML = fmath.conversion.ConvertFromLatexToMathML.convertToMathML(latex);
  mathML = mathML.replaceFirst("<math ", "<math xmlns=\"http://www.w3.org/1998/Math/MathML\" ");
System.out.println(mathML);

  CTOMath ctOMath = getOMML(mathML);
System.out.println(ctOMath);

  CTP ctp = paragraph.getCTP();
  ctp.setOMathArray(new CTOMath[]{ctOMath});


  paragraph = document.createParagraph();
  run = paragraph.createRun();
  run.setText("The Quadratic Formula: ");

  latex = "$x=\\frac{-b\\pm\\sqrt{b^2-4ac}}{2a}$";

  mathML = fmath.conversion.ConvertFromLatexToMathML.convertToMathML(latex);
  mathML = mathML.replaceFirst("<math ", "<math xmlns=\"http://www.w3.org/1998/Math/MathML\" ");
  mathML = mathML.replaceAll("&plusmn;", "±");
System.out.println(mathML);

  ctOMath = getOMML(mathML);
System.out.println(ctOMath);

  ctp = paragraph.getCTP();
  ctp.setOMathArray(new CTOMath[]{ctOMath});

  document.write(new FileOutputStream("CreateWordFormulaFromLaTeX.docx"));
  document.close();

 }
}

但是每一次转换都包含可能的错误。因此，LaTeX -> MathML -> OMML比MathML -> OMML更容易出错。

在这种情况下，fmath.conversion.ConvertFromLatexToMathML.convertToMathML会导致没有名称空间的Math XML。但是由于XSLT需要这一点，所以必须手动添加它。

fmath.conversion.ConvertFromLatexToMathML.convertToMathML使用MML2OMML.XSL不知道的HTML实体。所以在这个例子中，"±“必须用"±”代替。

也许SnuggleTeX会是更好的图书馆？

下载它并在类路径中使用snuggletex-core-1.2.2.jar，我的上一个示例中的以下代码更改工作：

...
  String latex = "$a^2 + b^2 = c^2$";

  uk.ac.ed.ph.snuggletex.SnuggleEngine engine = new uk.ac.ed.ph.snuggletex.SnuggleEngine();
  uk.ac.ed.ph.snuggletex.SnuggleSession session = engine.createSession();
  uk.ac.ed.ph.snuggletex.SnuggleInput input = new uk.ac.ed.ph.snuggletex.SnuggleInput(latex);
  session.parseInput(input);
  String mathML = session.buildXMLString();
System.out.println(mathML);

/*
  String mathML = fmath.conversion.ConvertFromLatexToMathML.convertToMathML(latex);
  mathML = mathML.replaceFirst("<math ", "<math xmlns=\"http://www.w3.org/1998/Math/MathML\" ");
System.out.println(mathML);
*/

  CTOMath ctOMath = getOMML(mathML);
System.out.println(ctOMath);

...

  latex = "$x=\\frac{-b\\pm\\sqrt{b^2-4ac}}{2a}$";

  engine = new uk.ac.ed.ph.snuggletex.SnuggleEngine();
  session = engine.createSession();
  input = new uk.ac.ed.ph.snuggletex.SnuggleInput(latex);
  session.parseInput(input);
  mathML = session.buildXMLString();
System.out.println(mathML);

/*
  mathML = fmath.conversion.ConvertFromLatexToMathML.convertToMathML(latex);
  mathML = mathML.replaceFirst("<math ", "<math xmlns=\"http://www.w3.org/1998/Math/MathML\" ");
  mathML = mathML.replaceAll("&plusmn;", "±");
System.out.println(mathML);
*/

  ctOMath = getOMML(mathML);
System.out.println(ctOMath);
...

不需要人工干预。至少不使用给定的LaTeX示例。

票数 2
